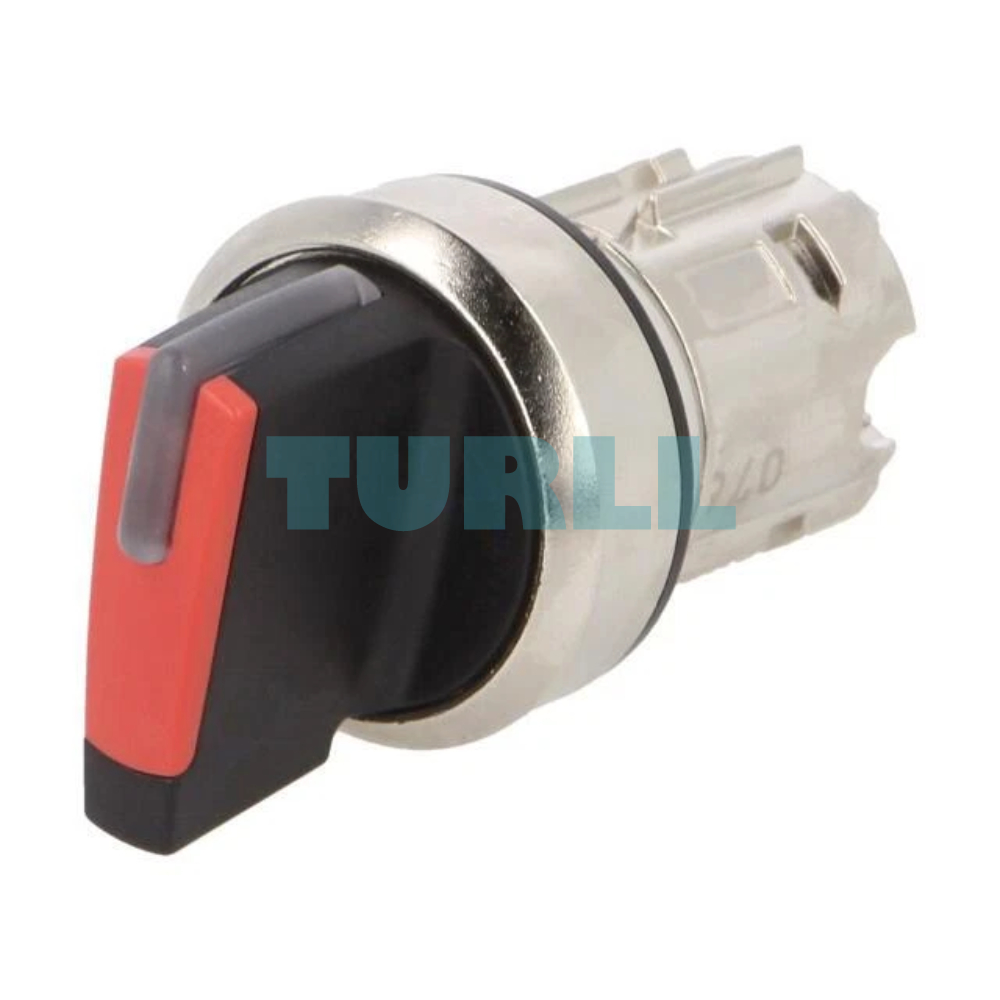

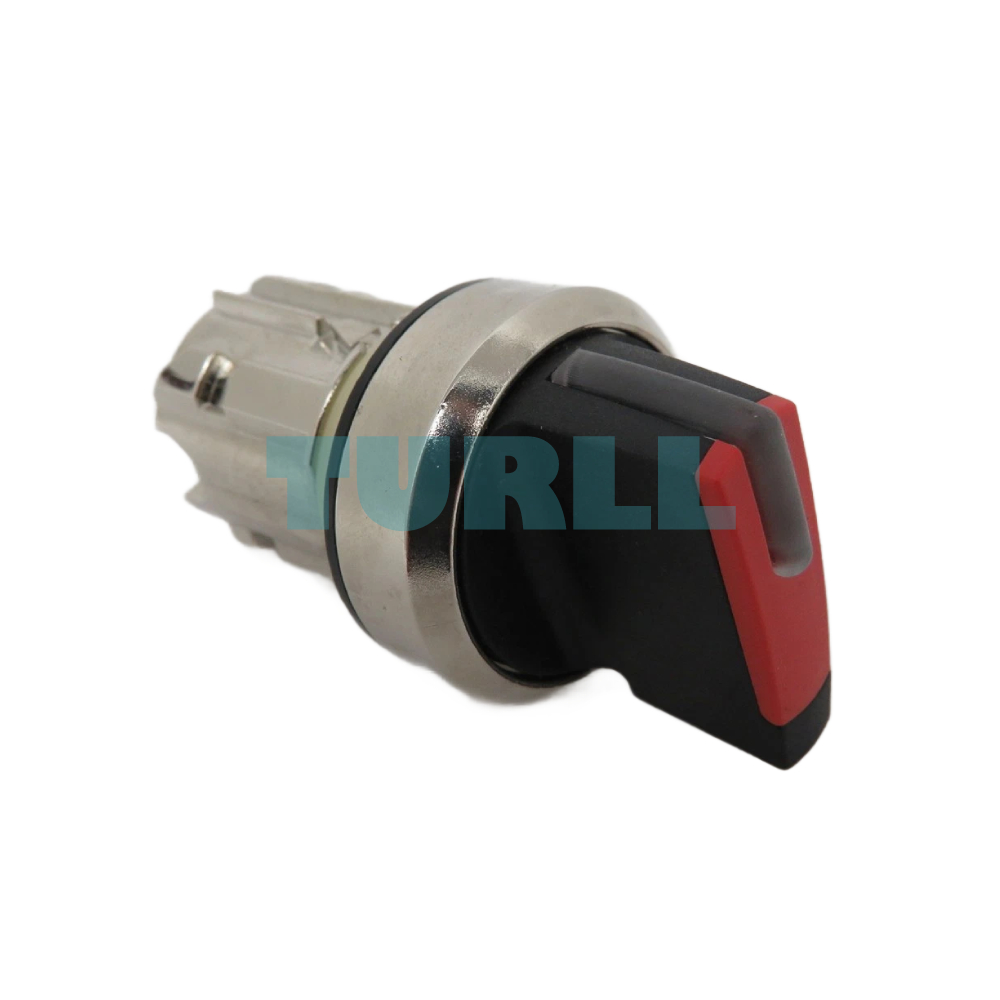

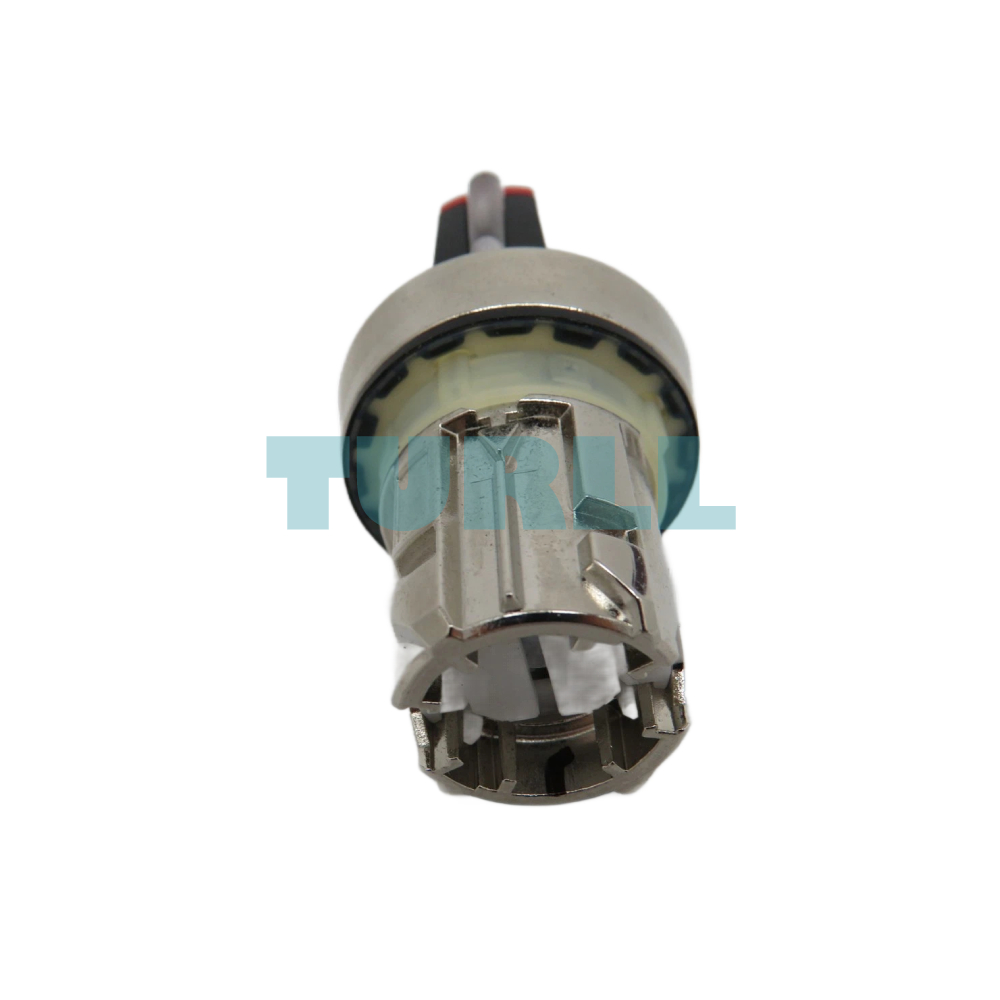

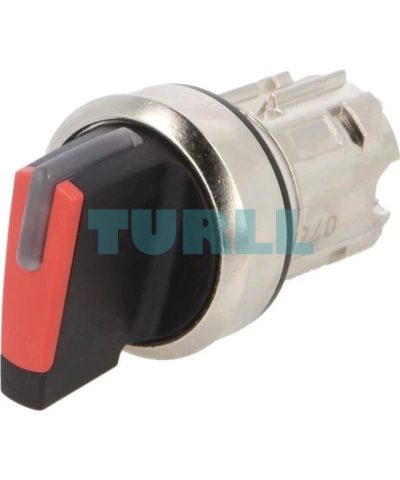

Siemens 3SU1052-2BL20-0AA0 Illuminated Selector Switch, 22mm, Red, Metal, 3-Positio, Latching Original Brand New
$9.68
Illuminated red selector switch with 22 mm metal body, 3 positions (I-O-II), latching function, short actuator, and 2×45° actuating angle at 10:30h/12h/13:30h—ideal for industrial control applications.
Availability: In stock
Overview
The Siemens 3SU1052-2BL20-0AA0 selector switch is a premium-quality, illuminated industrial control component designed for reliable operation in automation, machinery, and control panel applications. Featuring a 22 mm round metal body, a shiny red finish, and 3 switch positions (I-O-II), this robust selector switch ensures precise handling and long-lasting performance. The device includes a short actuator, latching function, and a 2×45° actuating angle positioned at 10:30h / 12h / 13:30h, making it ideal for operators requiring clear visual and tactile feedback.
Benefit
-
Enhanced Visibility – Illuminable design improves clarity in low-light environments.
-
Reliable Operation – Durable metal construction ensures longevity in demanding industrial settings.
-
User-Friendly Control – 3-position switch (I-O-II) with latching for stable and precise switching.
-
Professional Aesthetic – Red, shiny finish enhances panel visibility and differentiation.
-
Flexible Integration – Standard 22 mm mounting for compatibility with Siemens control systems and other industrial panels.
Product Features
-
Type: Selector Switch (Illuminable)
-
Model: Siemens 3SU1052-2BL20-0AA0
-
Mounting Diameter: 22 mm
-
Shape: Round
-
Material: Metal
-
Color: Red (Shiny)
-
Actuator Length: Short
-
Switch Positions: 3 positions – I / O / II
-
Switching Type: Latching
-
Actuating Angle: 2×45°
-
Rotation Positions: 10:30h / 12h / 13:30h
Function and Application
The 3SU1052-2BL20-0AA0 is primarily used for selecting between up to three different operational states or modes in industrial machinery and control panels.
-
Mode Selection: Switch between “Off” (O), “Mode 1” (I), and “Mode 2” (II).
-
Process Control: Directing power or signal flow to different circuits.
-
Machine Operation: Starting, stopping, or setting different machine cycles.
Its 3-position, latching function ensures the selected position is maintained until manually switched to another position. The red color often signifies control functions or specific, attention-grabbing modes.
Visit 3SU1052-2BL20-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.051 kg |
|---|---|
| Dimensions | 30.00 × 53.00 × 28.00 mm |
| Brand | SIEMENS |
| Product brand name | SIRIUS ACT |
| Product designation | Selector switches |
| Design of the product | Actuating/signaling element |
| Product type designation | 3SU1 |
| Number of command points | 1 |
| Design of the operating mechanism | Toggle switch |
| Manner of function of the actuating element | latching, 2×45° (10:30 h/12 h/13:30 h) |
| Product extension optional Light source | Yes |
| Color of the actuating element | red |
| Material of the actuating element | plastic |
| Shape of the actuating element | Handle |
| Outer diameter of the actuating element | 32.3 mm |
| Marking of the actuating element | Customized labeling, graphical symbols acc. to ISO7000 and IEC60417 |
| Number of switching positions | 3 |
| Actuating angle | – |
| ● clockwise | 45° |
| ● anticlockwise | 45° |
| Product component front ring | Yes |
| Design of the front ring | standard |
| Material of the front ring | Metal, high gloss |
| Color of the front ring | silver |
| Protection class IP | IP66, IP67, IP69(IP69K) |
| Degree of protection NEMA rating | NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms |
| Vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| Operating frequency maximum | 1 800 1/h |
| Mechanical service life (switching cycles) | – |
| ● typical | 1 000 000 |
| Reference code acc. to DIN EN 81346-2 | S |
| Reference code acc. to DIN EN 61346-2 | S |
| B10 value | – |
| Proportion of dangerous failures | – |
| ● with high demand rate acc. to SN 31920 | 20 % |
| Failure rate [FIT] | – |
| ● with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| Ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |

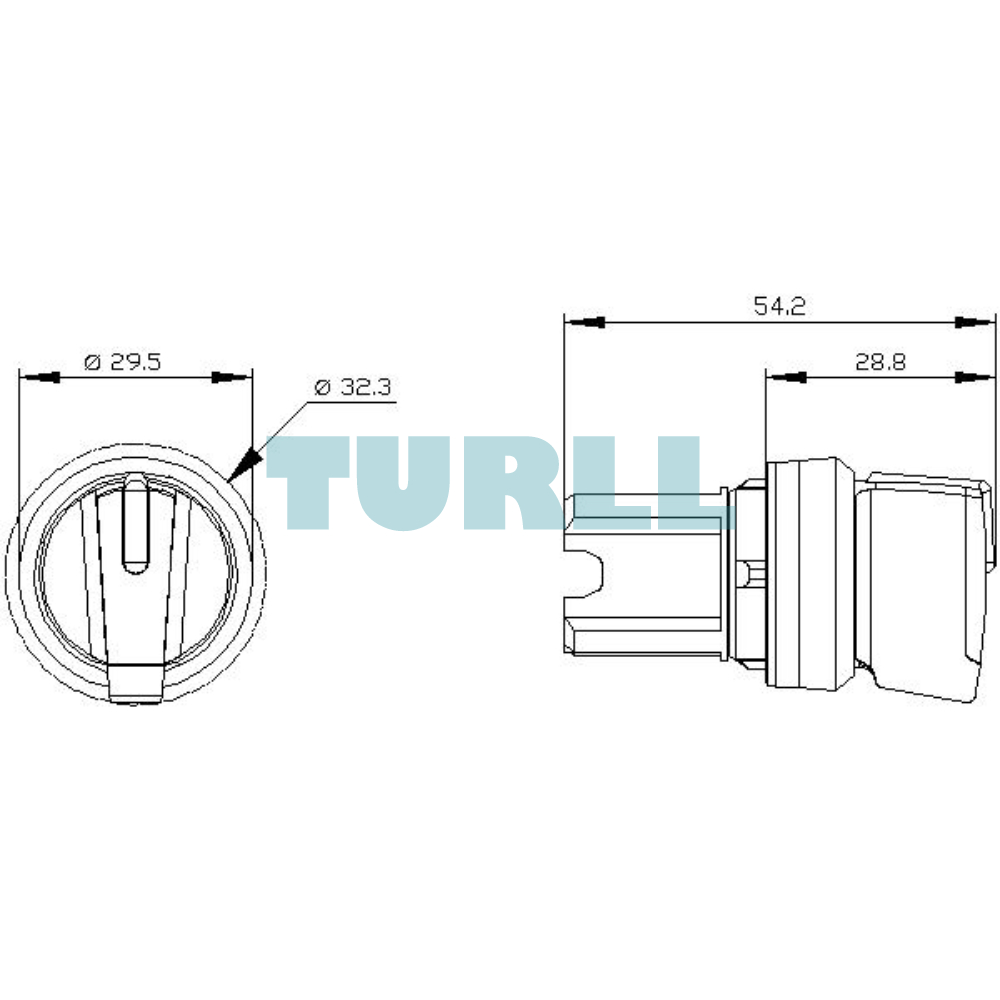

| Height | 32.3 mm |
| Width | 32.3 mm |
| Shape of the installation opening | round |
| Mounting diameter | 22.3 mm |
| Positive tolerance of installation diameter | 0.4 mm |
| Mounting height | 28.8 mm |
| Installation width | 32.3 mm |
| Installation depth | 25.4 mm |
| last modified: | 10/30/2019 |
