SIEMENS

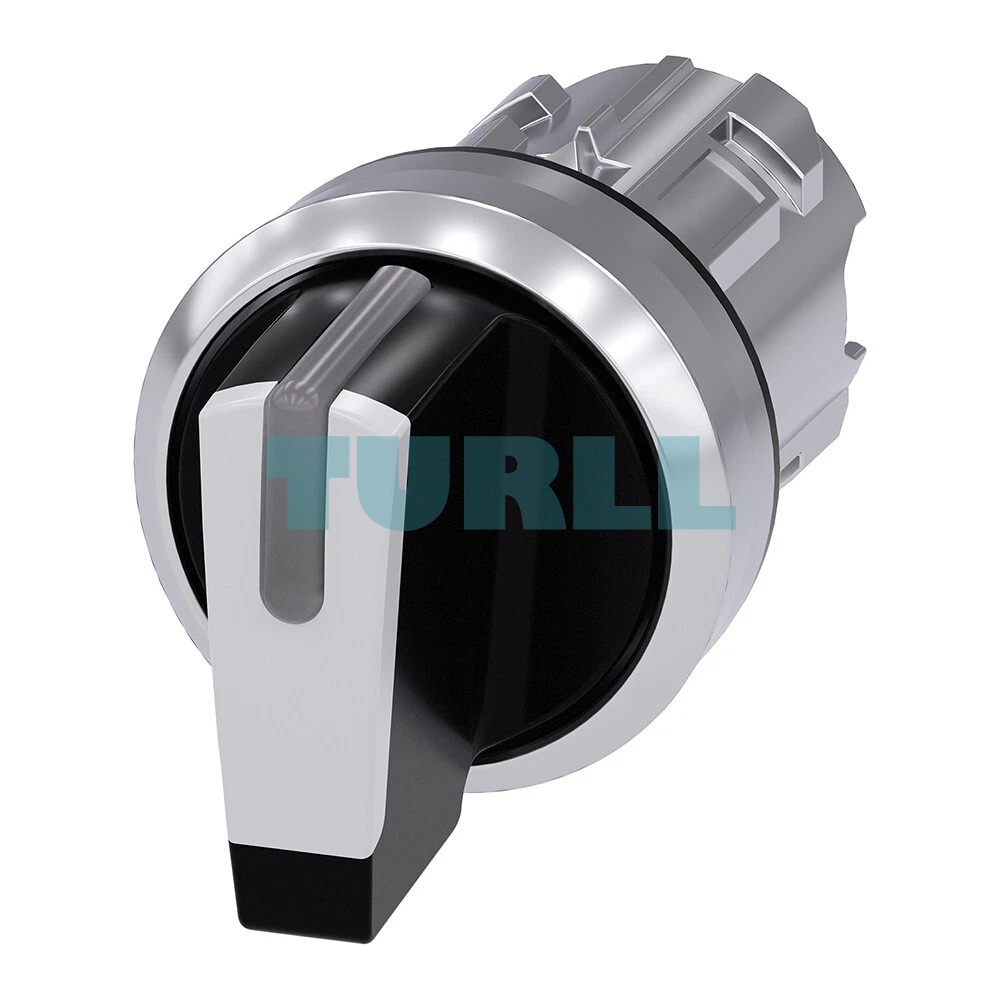

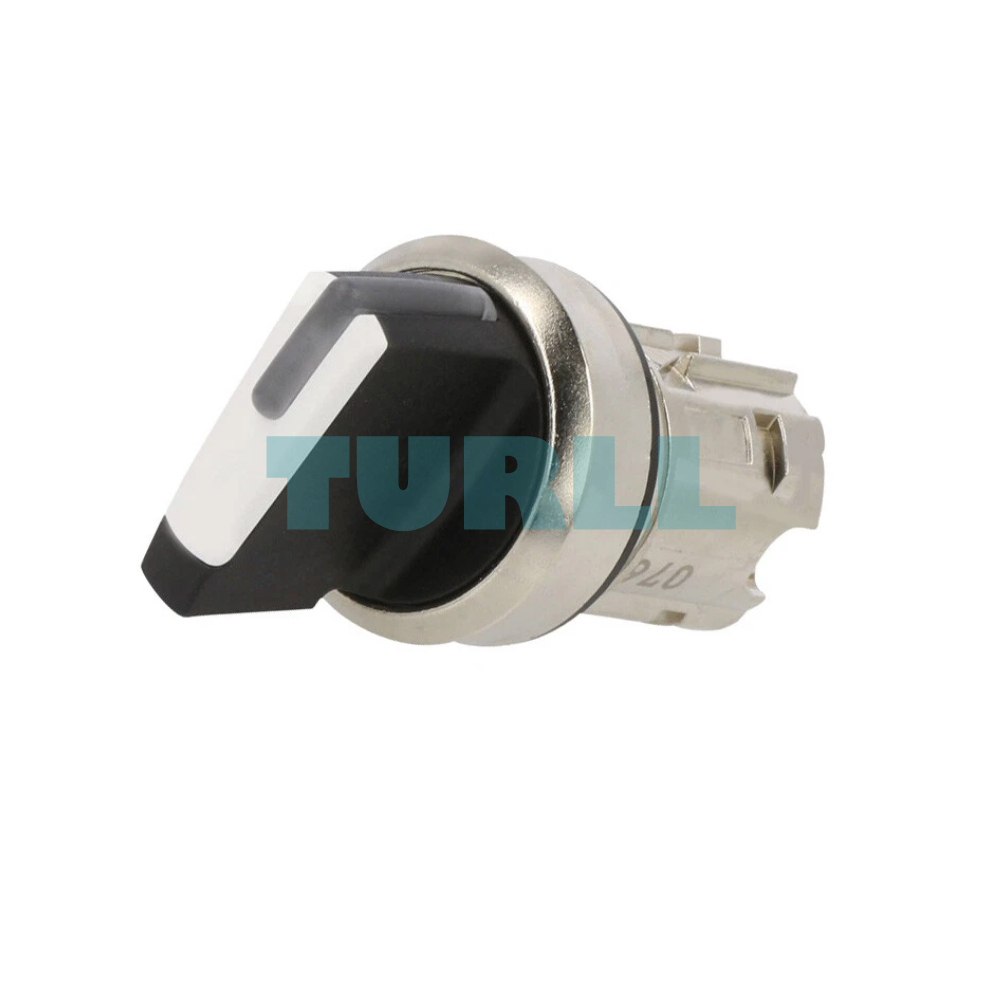

Selector switch, illuminable, 22 mm, round, metal, shiny, white, short design, 3 switch positions I-O-II, latching, 2×45° actuating angle, orientation 10:30h/12h/13:30h.
The Siemens 3SU1052-2BL60-0AA0 is a premium-quality illuminable selector switch designed for industrial control applications requiring reliability, durability, and clear visual feedback. With its 22 mm round metal design, shiny white finish, and 3 switch positions (I-O-II), this selector switch offers exceptional performance in demanding environments. Ideal for machinery, automation panels, and safety control systems.
Enhanced Visibility: Illuminable white actuator ensures clear status indication.
Long-Lasting Durability: Built with high-grade metal for industrial reliability.
Precision Control: Offers 3 switch positions with 2x45° actuating angle for smooth and accurate switching.
Easy Integration: 22 mm round design fits standard industrial control panels.
User-Friendly Design: Short latching function and ergonomic selector operation.
Type: Selector switch
Illuminable: Yes
Mounting Size: 22 mm
Shape: Round
Material: Metal (shiny finish)
Color: White
Switch Positions: 3 (I-O-II)
Function: Latching
Actuating Angle: 2x45°
Position Orientation: 10:30h / 12h / 13:30h
This front element is used to select between three distinct operating states: Position I (left), Position O (center/off), and Position II (right). Since it is a latching (maintained) switch, the actuator remains in the last selected position until manually changed.
It is typically used in control panels for:
Mode Selection (e.g., Manual - Off - Automatic)
Speed Selection (e.g., Low - Off - High)
Source Selection (e.g., Source A - Off - Source B)
Visit 3SU1052-2BL60-0AA0 for more detail info
For more our products visit turll
| SKU / Model | 3SU1052-2BL60-0AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Selector switches |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Selector, short |
| principle of operation of the actuating element | latching, 2x45° (10:30 h/12 h/13:30 h) |
| product extension optional | - |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | white |
| material of the actuating element | plastic |
| shape of the actuating element | Handle |
| outer diameter of the actuating element | 32.3 mm |
| number of switching positions | 3 |
| actuating angle | - |
| ● clockwise | 45° |
| ● anticlockwise | 45° |
| product component front ring | Yes |
| design of the front ring | standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 1 000 000 |
| reference code acc. to IEC 81346-2 | S |
| B10 value with high demand rate acc. to SN 31920 | 300 000 |
| proportion of dangerous failures | - |
| ● with low demand rate acc. to SN 31920 | 20 % |
| ● with high demand rate acc. to SN 31920 | 20 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |

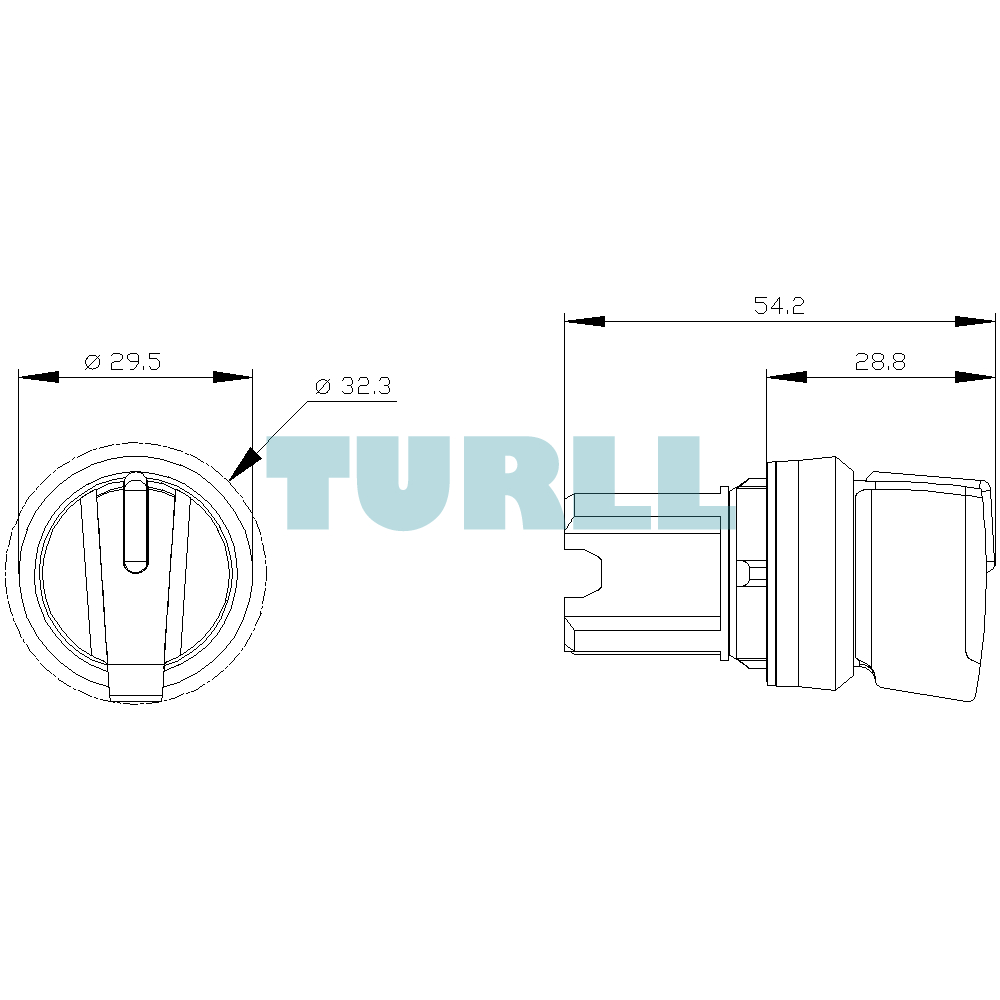

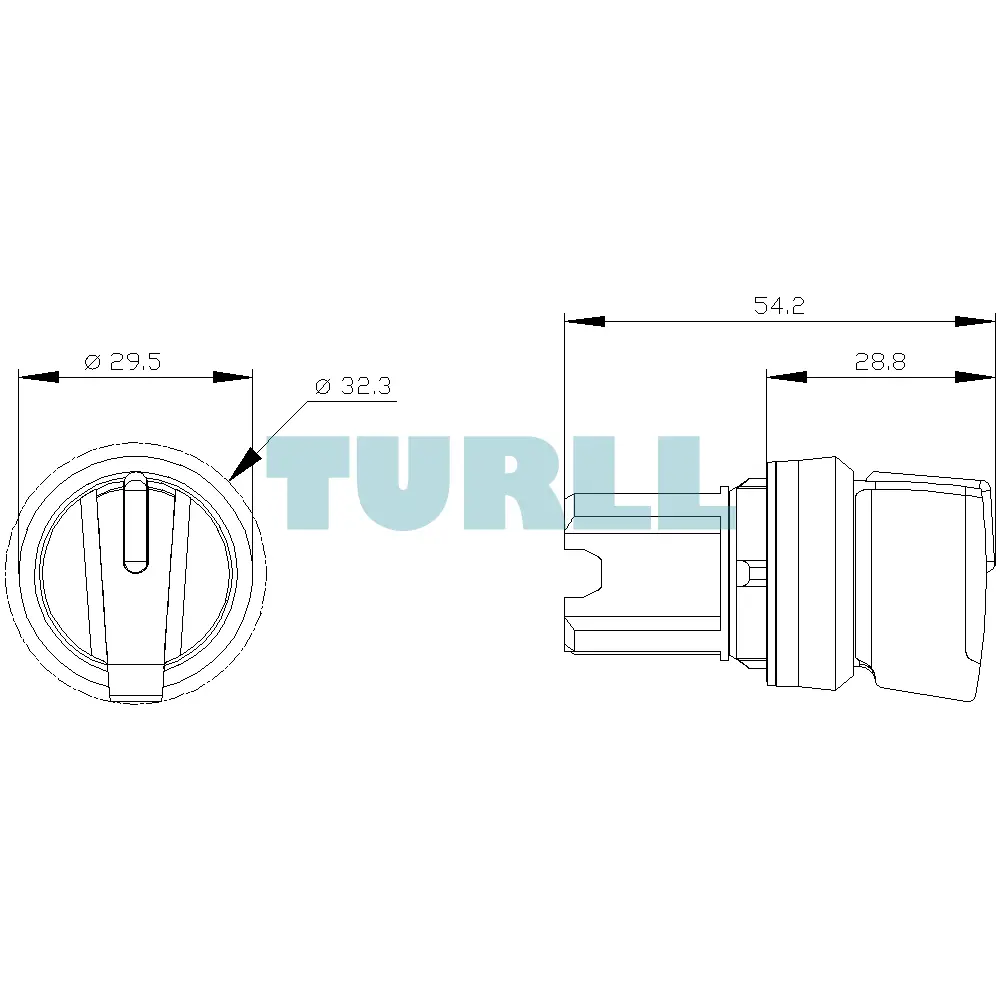

| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 28.8 mm |
| installation width | 32.3 mm |
| installation depth | 25.4 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/6/2021 |
| Weight | 0.020 kg |
| Dimensions | 30.00 × 70.00 × 30.00 mm |
