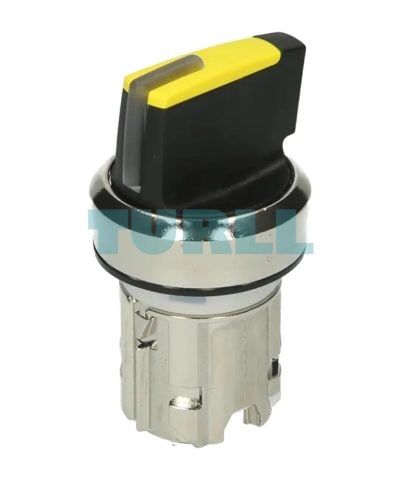

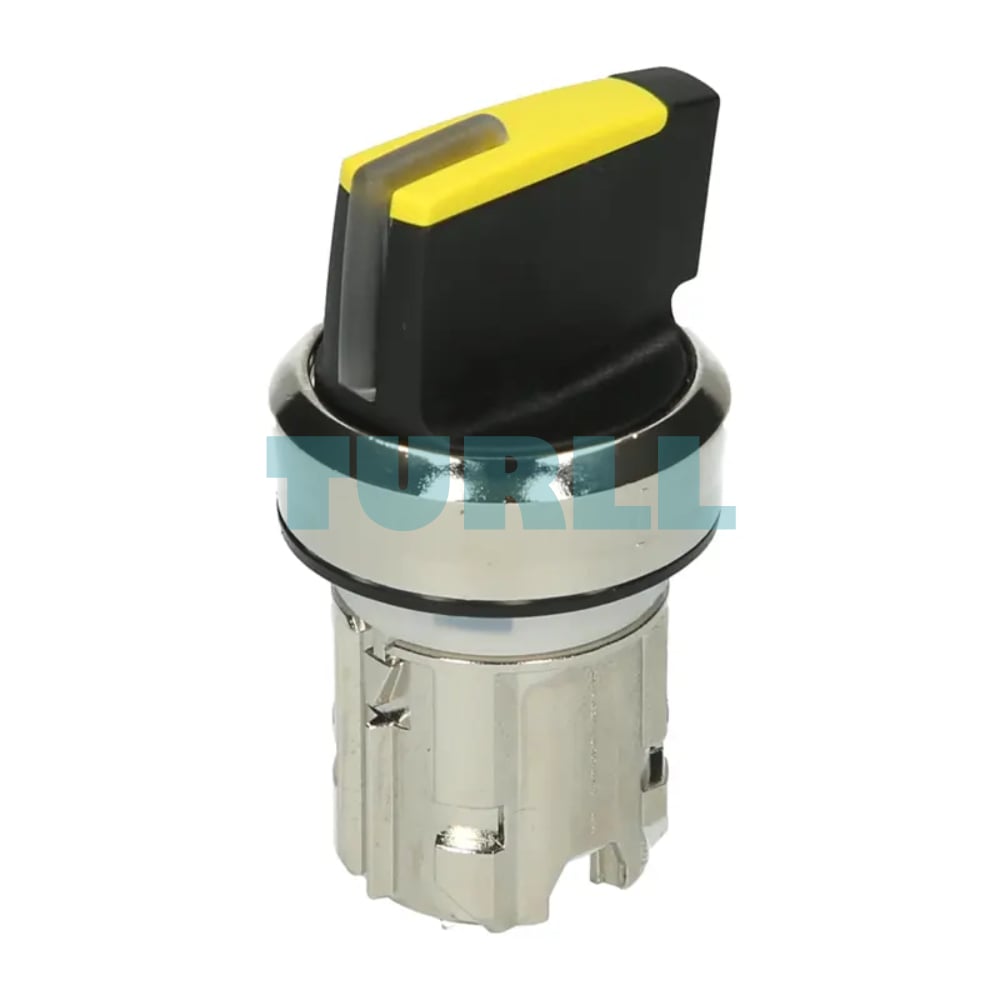

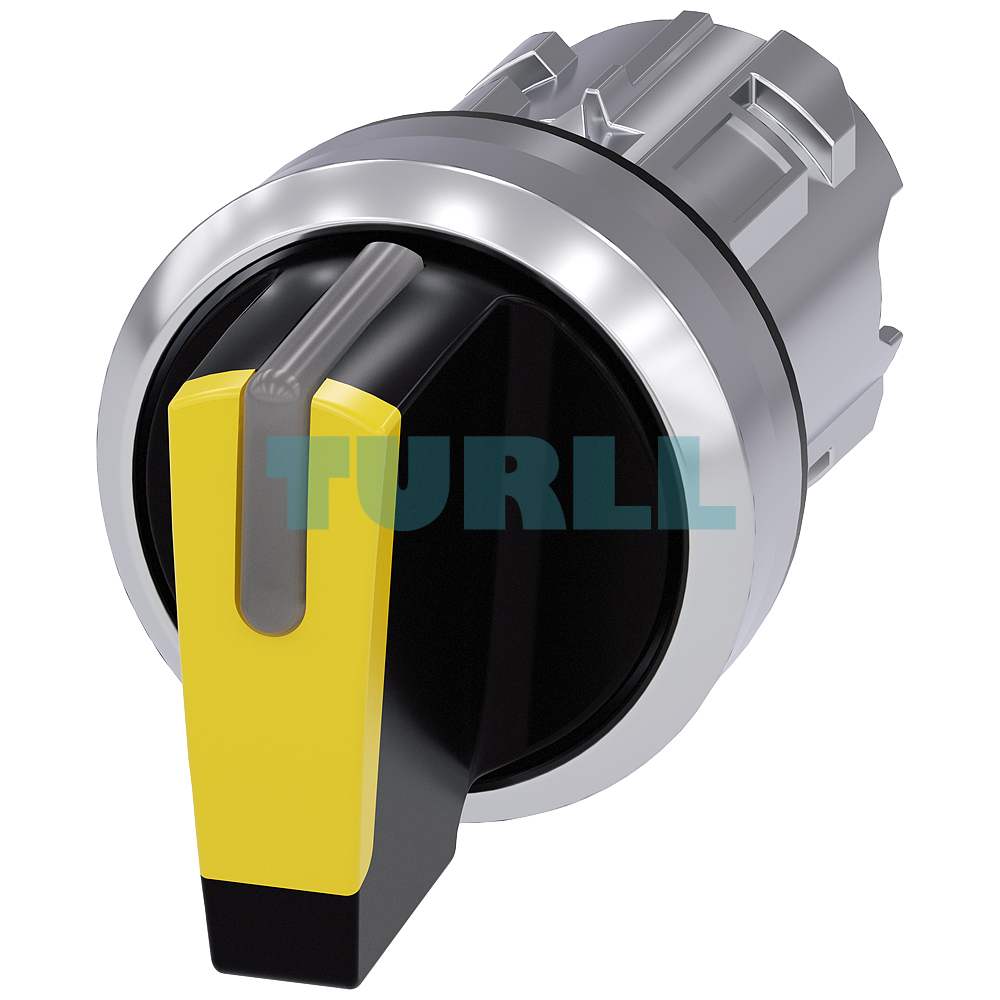

An illuminable 22 mm round metal selector switch with three positions (I>O<II), momentary contact type, and a shiny yellow finish. Perfect for control panels and industrial applications.
Backorder available · Factory lead time 2–3 weeks.
The Siemens 3SU1052-2BM30-0AA0 is a premium-quality illuminable selector switch designed for industrial control applications. Featuring a compact 22 mm round metal design with a shiny yellow finish, this selector switch ensures both durability and visibility. It offers three switch positions (I>O<II) with a momentary contact type and a precise actuating angle of 2x45° (10:30h / 12h / 13:30h), making it perfect for control panels, machinery, and automation systems.
High Durability: Robust metal construction for long-lasting performance in industrial environments.
Enhanced Visibility: Illuminable design ensures clear status indication even in low-light conditions.
Precision Control: Momentary contact type with exact actuating angles ensures reliable switching.
Compact & Stylish: 22 mm round design with a shiny yellow finish adds a professional look to control panels.
Versatile Applications: Suitable for industrial machines, automation systems, and control panels requiring multi-position switches.
Illuminable selector switch for easy visual recognition
22 mm round metal housing, shiny yellow finish
Three switch positions: I>O<II
Momentary contact type ensures safe and precise operation
Actuating angle: 2x45° (10:30h / 12h / 13:30h)
Compact and robust design for industrial applications
Visit 3SU1052-2BM30-0AA0 for more detail info
For more our products visit turll
| SKU / Model | 3SU1052-2BM30-0AA0 |
|---|---|
| Brand | SIEMENS |
| Product brand name | SIRIUS ACT |
| Product designation | Selector switches |
| Design of the product | Actuating/signaling element |
| Product type designation | 3SU1 |
| Number of command points | 1 |
| Design of the operating mechanism | Toggle switch |
| Manner of function of the actuating element | momentary contact, 2x45° (10:30 h/12 h/13:30 h), return on both sides |
| Product extension optional Light source | Yes |
| Color of the actuating element | yellow |
| Material of the actuating element | plastic |
| Shape of the actuating element | Handle |
| Outer diameter of the actuating element | 32.3 mm |
| Marking of the actuating element | Customized labeling, graphical symbols acc. to ISO7000 and IEC60417 |
| Number of switching positions | 3 |
| Actuating angle | - |
| ● clockwise | 45° |
| ● anticlockwise | 45° |
| Product component front ring | Yes |
| Design of the front ring | standard |
| Material of the front ring | Metal, high gloss |
| Color of the front ring | silver |
| Protection class IP | IP66, IP67, IP69(IP69K) |
| Degree of protection NEMA rating | NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms |
| Vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| Operating frequency maximum | 1 800 1/h |
| Mechanical service life (switching cycles) | - |
| ● typical | 1 000 000 |
| Reference code acc. to DIN EN 81346-2 | S |
| Reference code acc. to DIN EN 61346-2 | S |
| B10 value | - |
| Proportion of dangerous failures | - |
| ● with high demand rate acc. to SN 31920 | 20 % |
| Failure rate [FIT] | - |
| ● with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| Ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |

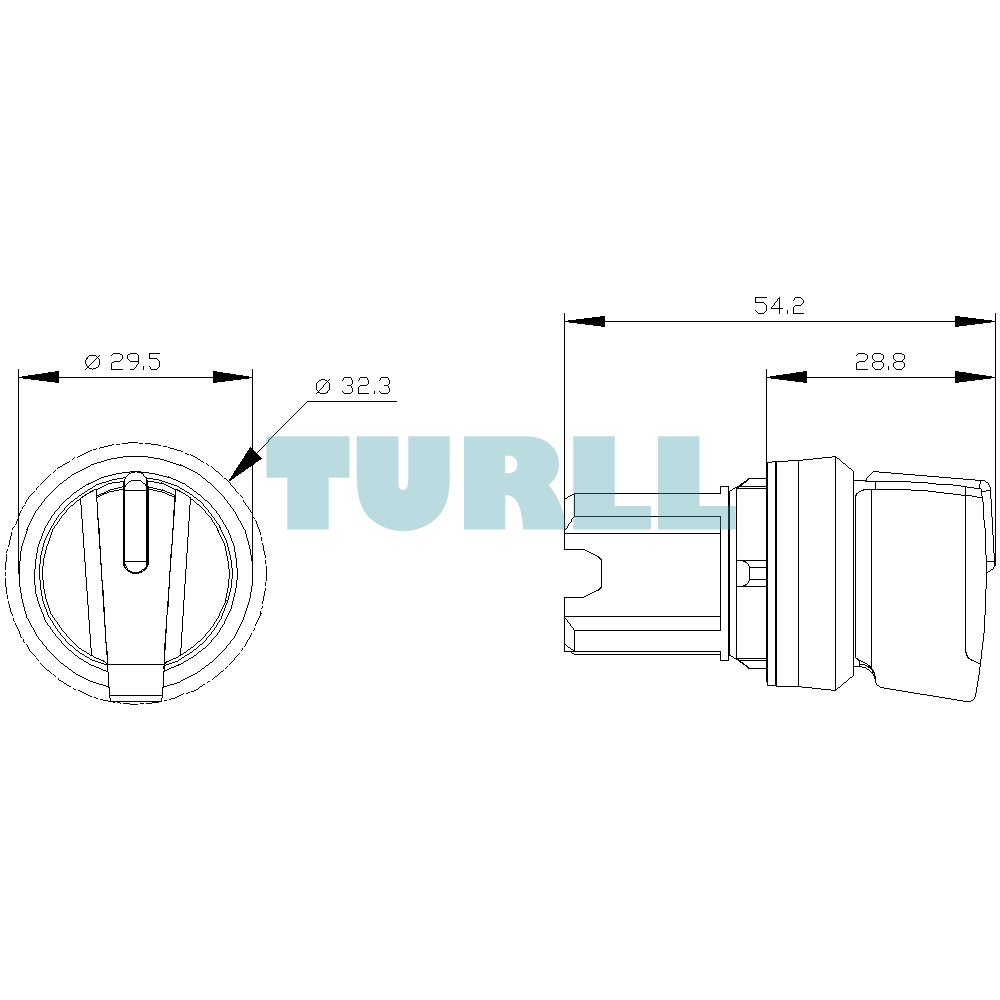

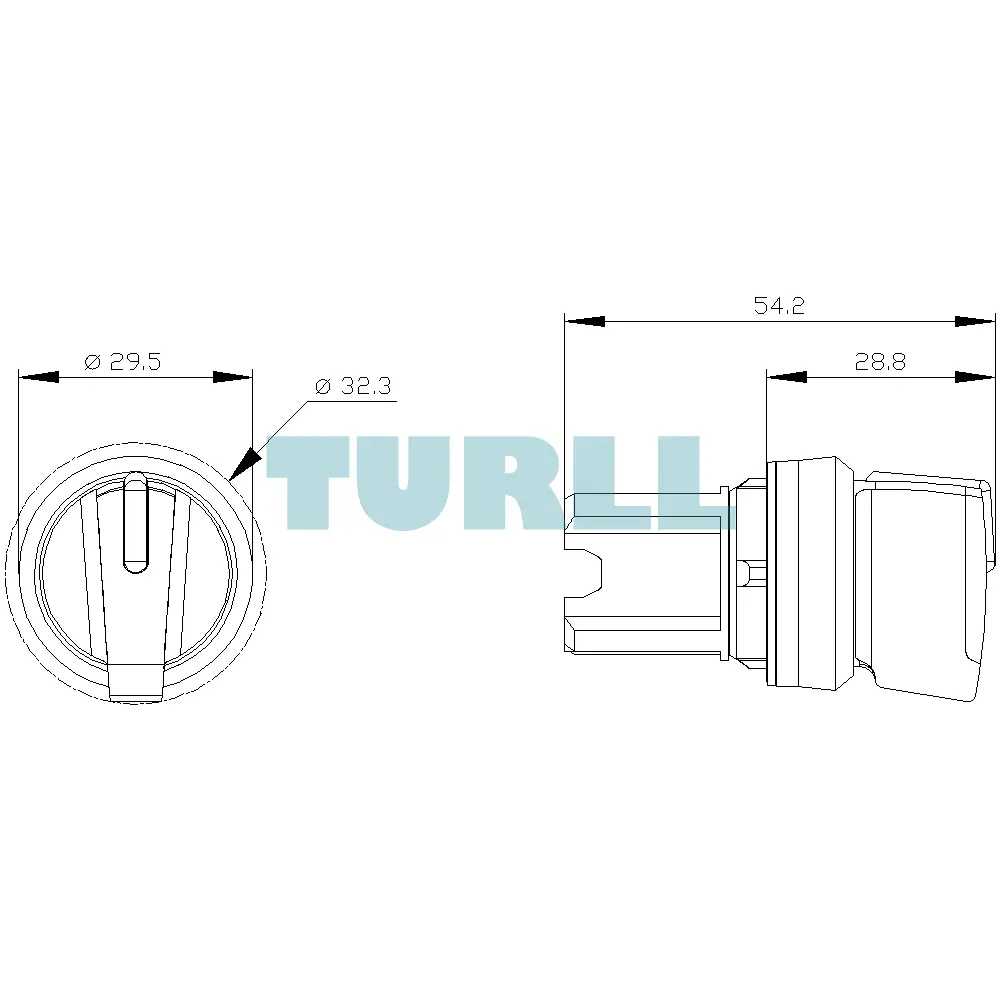

| Height | 32.3 mm |
| Width | 32.3 mm |
| Shape of the installation opening | round |
| Mounting diameter | 22.3 mm |
| Positive tolerance of installation diameter | 0.4 mm |
| Mounting height | 28.8 mm |
| Installation width | 32.3 mm |
| Installation depth | 25.4 mm |
| last modified: | 10/30/2019 |
| Weight | 0.020 kg |
| Dimensions | 30.00 × 60.00 × 30.00 mm |
