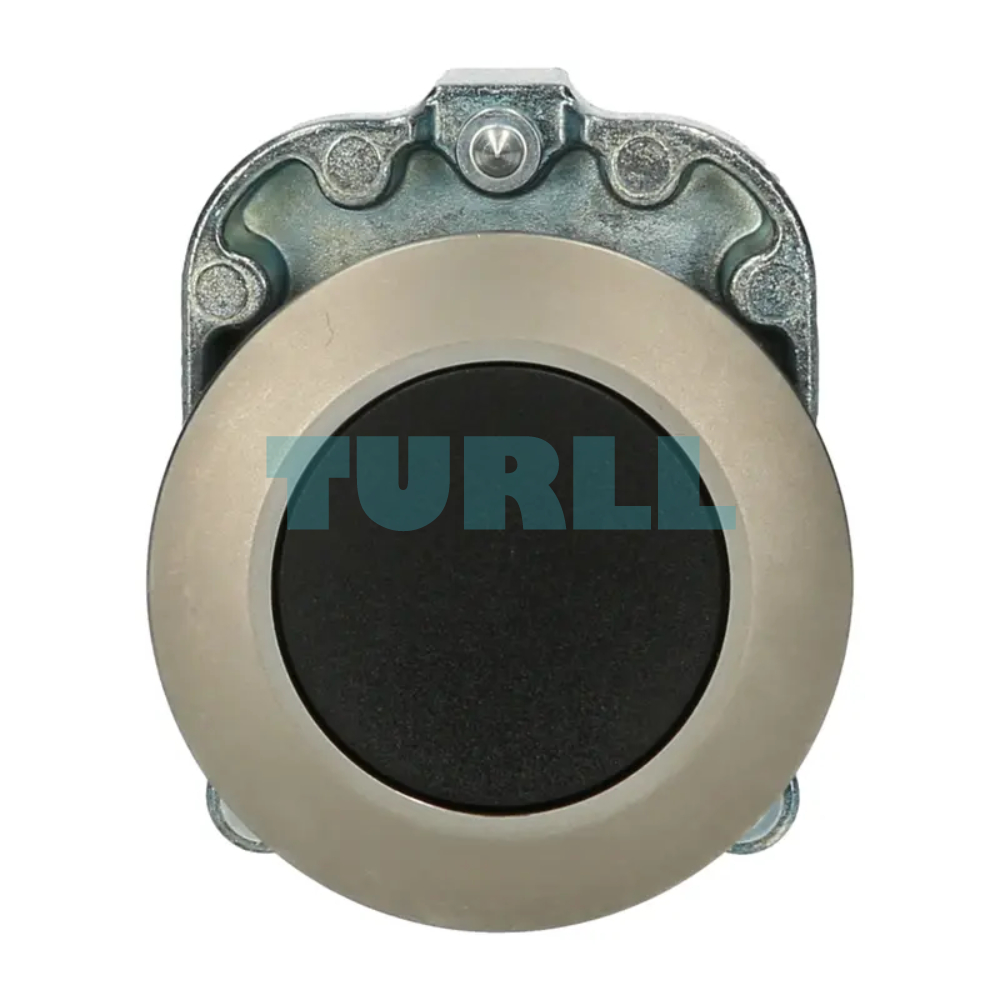

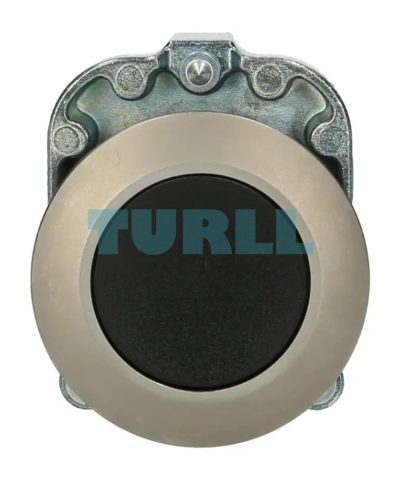

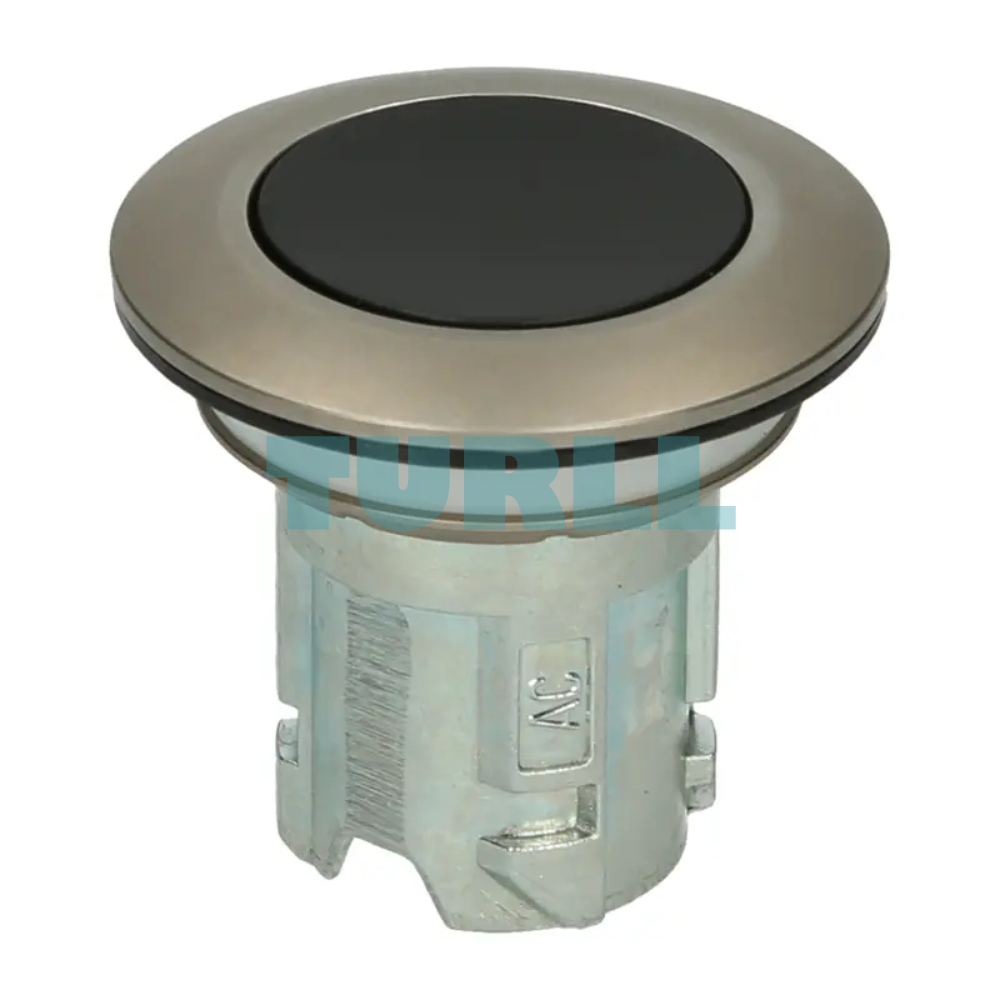

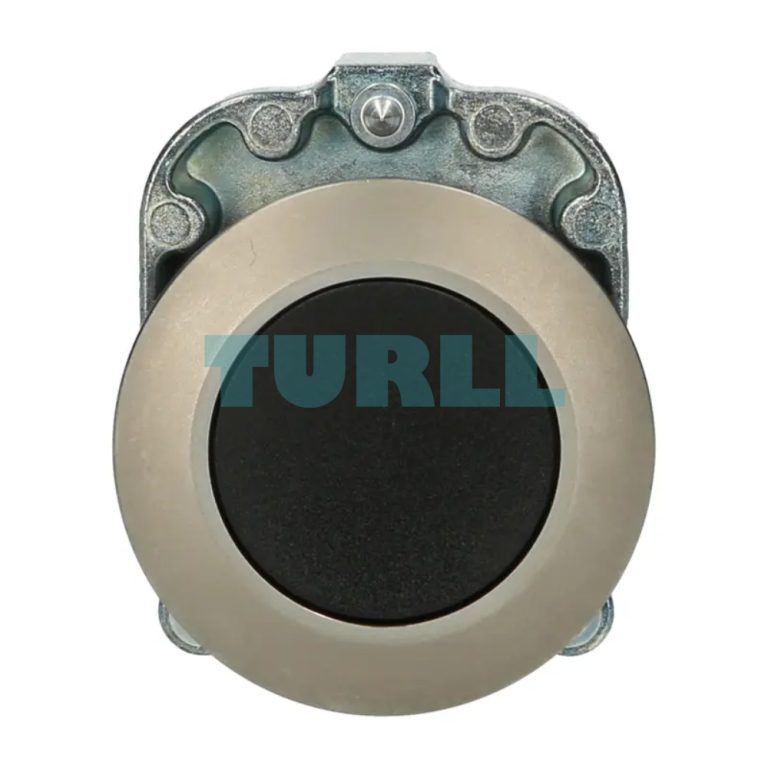

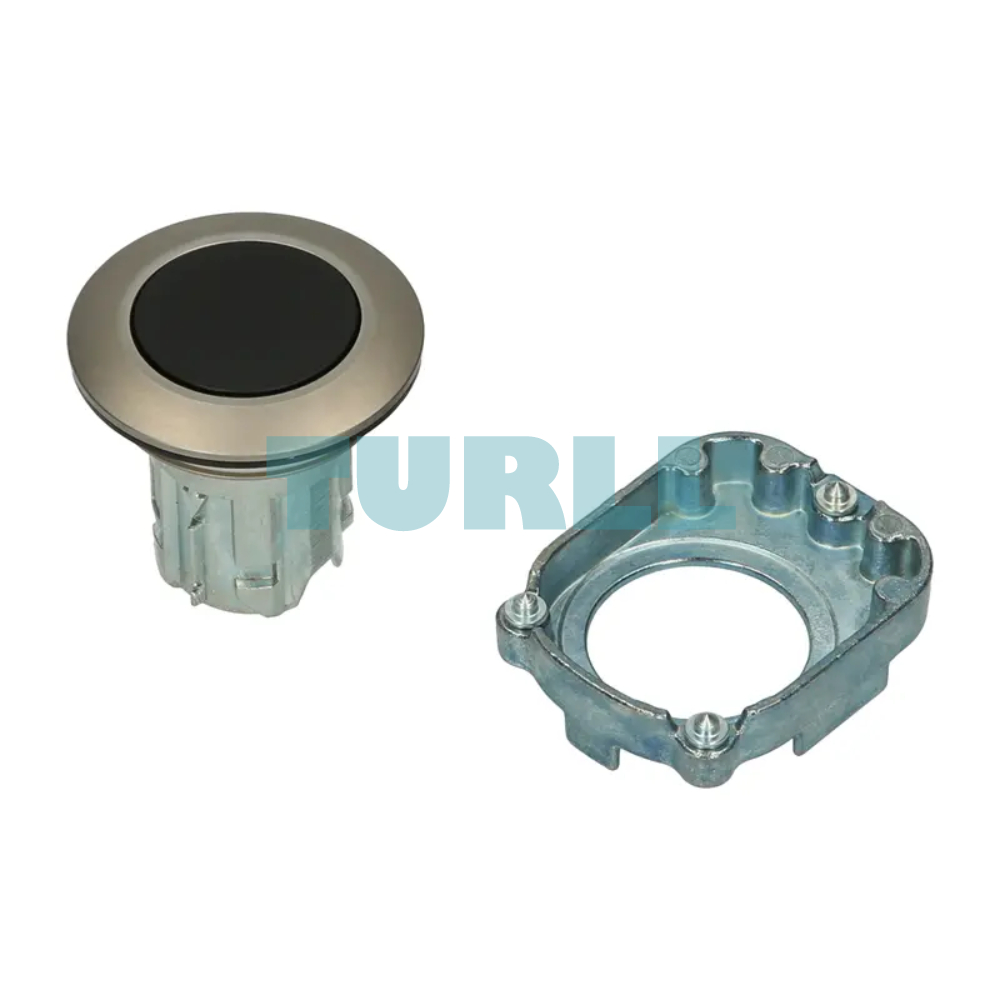

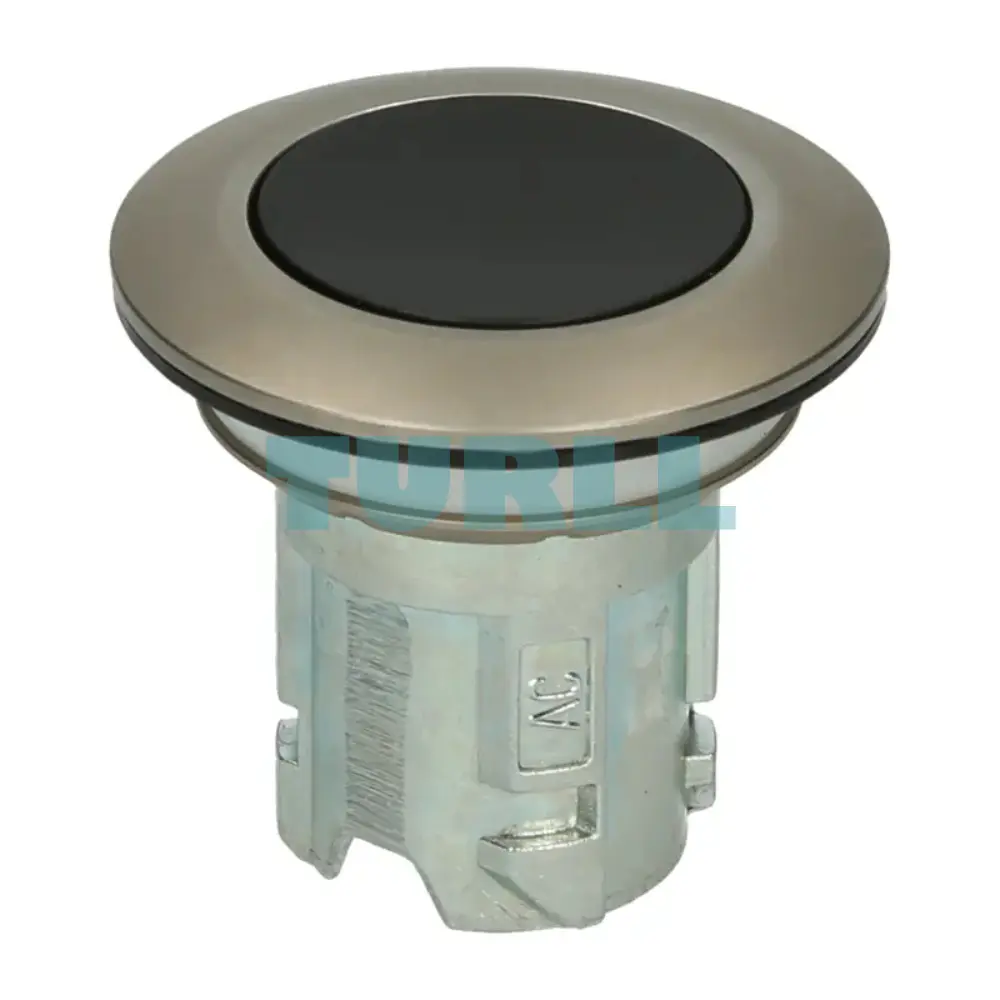

Siemens 3SU1060-0JA10-0AA0 Black Metal Pushbutton, 30mm, Latching, Push-to-Release Original Brand New
$17.71
Pushbutton, 30 mm, round, metal, matte, black, front ring for flush installation, latching, Push-to-release mechanism.
Availability: In stock
Overview
The Siemens 3SU1060-0JA10-0AA0 is a premium 30 mm round pushbutton designed for industrial control systems. Constructed with durable metal and a matte black finish, this pushbutton ensures long-lasting performance and a professional appearance. The front ring allows for flush installation, providing a sleek and seamless look. Featuring a latching, push-to-release mechanism, this pushbutton delivers reliable operation in demanding environments.
Key Benefit
-
Robust & Durable: Constructed with a metal enclosure and matte finish for high resistance in harsh industrial environments.
-
Aesthetic Integration: The flush installation and sleek black design blend seamlessly into modern control panel layouts.
-
Reliable Operation: Features a dependable latching mechanism, essential for functions requiring a sustained command state.
-
Ease of Use: The Push-to-release function provides clear, tactile feedback for activation and deactivation.
-
Standard Compatibility: Part of the modular SIRIUS ACT system, ensuring compatibility with a wide range of contact blocks and accessories.
Functions / Features
-
Round pushbutton, 30 mm diameter
-
Metal, matte black finish for durability
-
Flush front ring for clean installation
-
Latching with push-to-release mechanism
-
Suitable for industrial and automation systems
Function & Application
This unit serves as a primary latching control actuator in machinery and electrical systems.
-
Function: To initiate or sustain a particular command (e.g., hold-stop, power ON/OFF sequence) that requires the operator to intentionally release the state.
-
Typical Applications:
-
Main control panel operations in manufacturing plants.
-
Start/Stop sequence controls for pumps, conveyors, or mixers.
-
Mode selection switches where a sustained signal is required.
-
Visit 3SU1060-0JA10-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.072 kg |
|---|---|
| Dimensions | 40.00 × 90.00 × 40.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | latching |
| product extension optional | – |
| ● light source | No |
| ● contact module | Yes |
| color of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 38 mm |
| marking of the actuating element | Customized labeling, text in lower case / capital letters, all words start with capital letters |
| type of unlocking device | push-to-unlatch mechanism |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 500 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 4.2 mm |
| installation width | 38 mm |
| installation depth | 31.1 mm |
| last modified: | 10/6/2021 |
