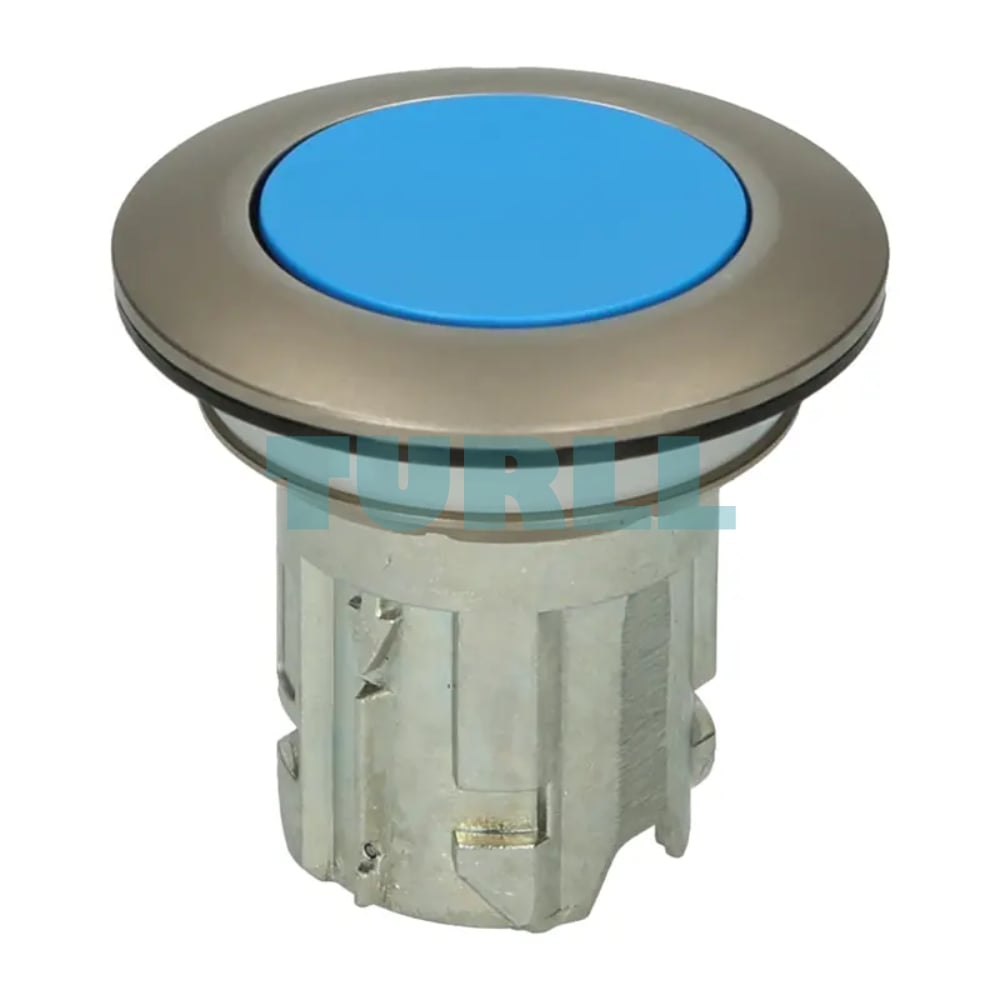

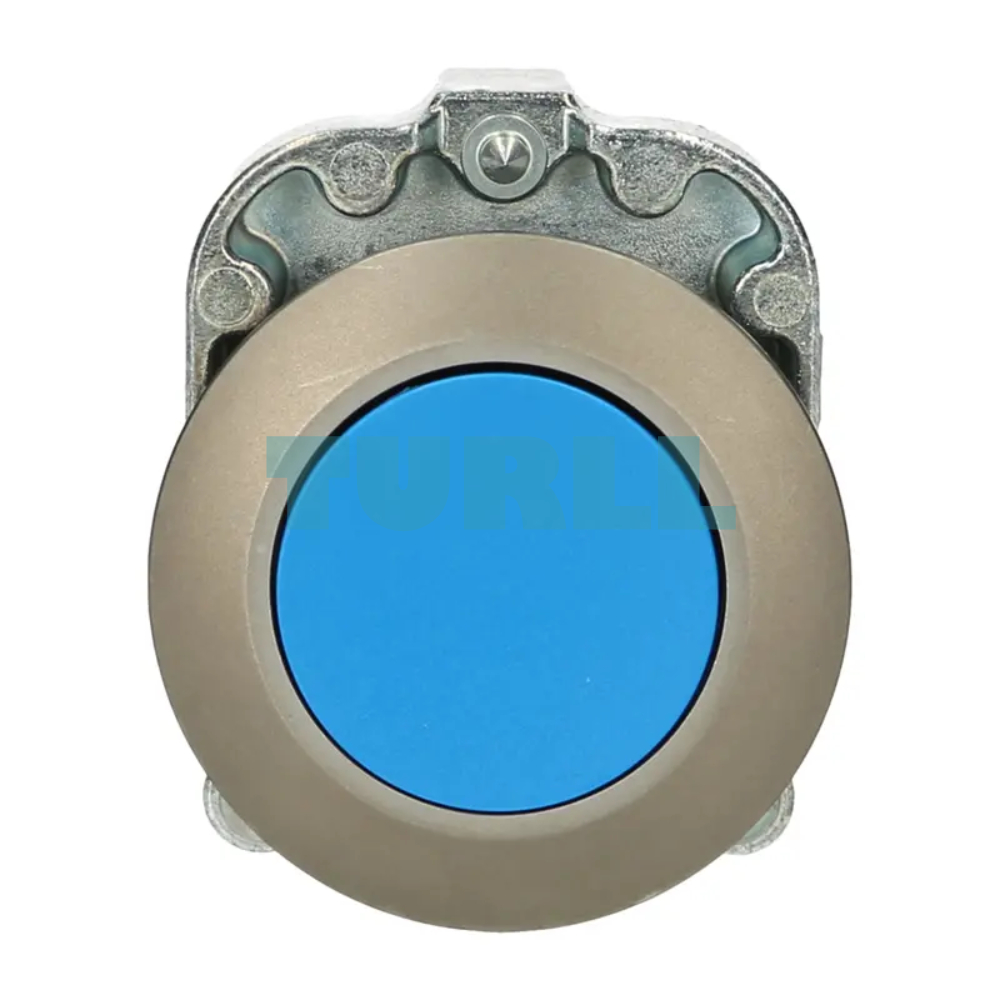

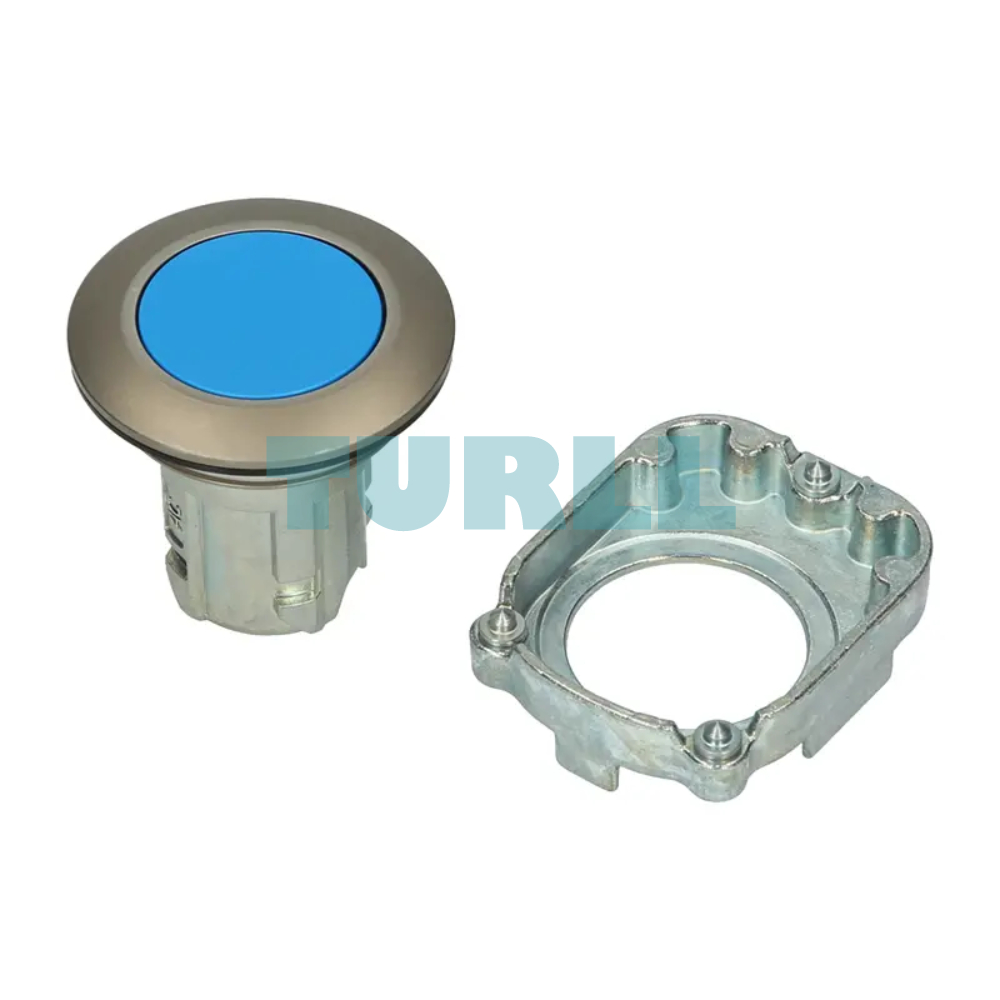

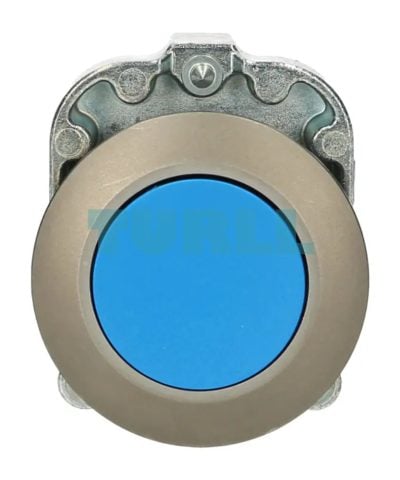

Siemens 3SU1060-0JA50-0AA0 Pushbutton, 30 mm, Round Metal Blue, Latching Original Brand New
$17.71
Pushbutton, 30 mm, round, metal, matte blue finish, with front ring for flush installation. Features a latching design with a reliable push-to-release mechanism—ideal for industrial control applications.
Availability: In stock
Overview
The Siemens 3SU1060-0JA50-0AA0 is a premium-grade industrial pushbutton engineered for durability, reliability, and excellent operator feedback. Designed with a 30 mm round metal body and a matte blue finish, it ensures clear visibility and long-lasting performance in demanding environments. The flush installation front ring provides a sleek appearance while maintaining mechanical robustness. With a latching push-to-release mechanism, this pushbutton is ideal for applications requiring secure, deliberate activation and safe release.
Benefit
-
Exceptional Durability: Constructed with high-quality matte metal for superior resistance to wear, vibration, and environmental stress.
-
Flush Aesthetic: The specialized front ring allows for a flush installation, providing a modern, sleek look while minimizing snag hazards.
-
Reliable Latching Function: The latching operation provides positive feedback and maintained status, essential for critical start/stop or mode selection controls.
-
Intuitive Operation: Features a Push-to-release mechanism, ensuring the latched state can be quickly and easily disengaged by simply pressing the button again.
-
High Visibility: The distinct blue color makes the function easily identifiable on a busy control panel, enhancing operator safety and efficiency.
Functions & Features
-
Actuator Type: Pushbutton
-
Design: 30 mm, round, metal
-
Color: Matte blue
-
Mounting: Flush-mounted front ring
-
Mechanism: Latching with push-to-release function
-
Application: Industrial control panels, machinery interfaces, operator stations
-
Build Quality: Rugged metal for high mechanical and chemical resistance
Visit 3SU1060-0JA50-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.065 kg |
|---|---|
| Dimensions | 50.00 × 90.00 × 40.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | latching |
| product extension optional | – |
| ● light source | No |
| ● contact module | Yes |
| color of the actuating element | blue |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 38 mm |
| marking of the actuating element | Customized labeling, text in lower case / capital letters, all words start with capital letters |
| type of unlocking device | push-to-unlatch mechanism |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 500 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 4.2 mm |
| installation width | 38 mm |
| installation depth | 31.1 mm |
| last modified: | 10/6/2021 |
