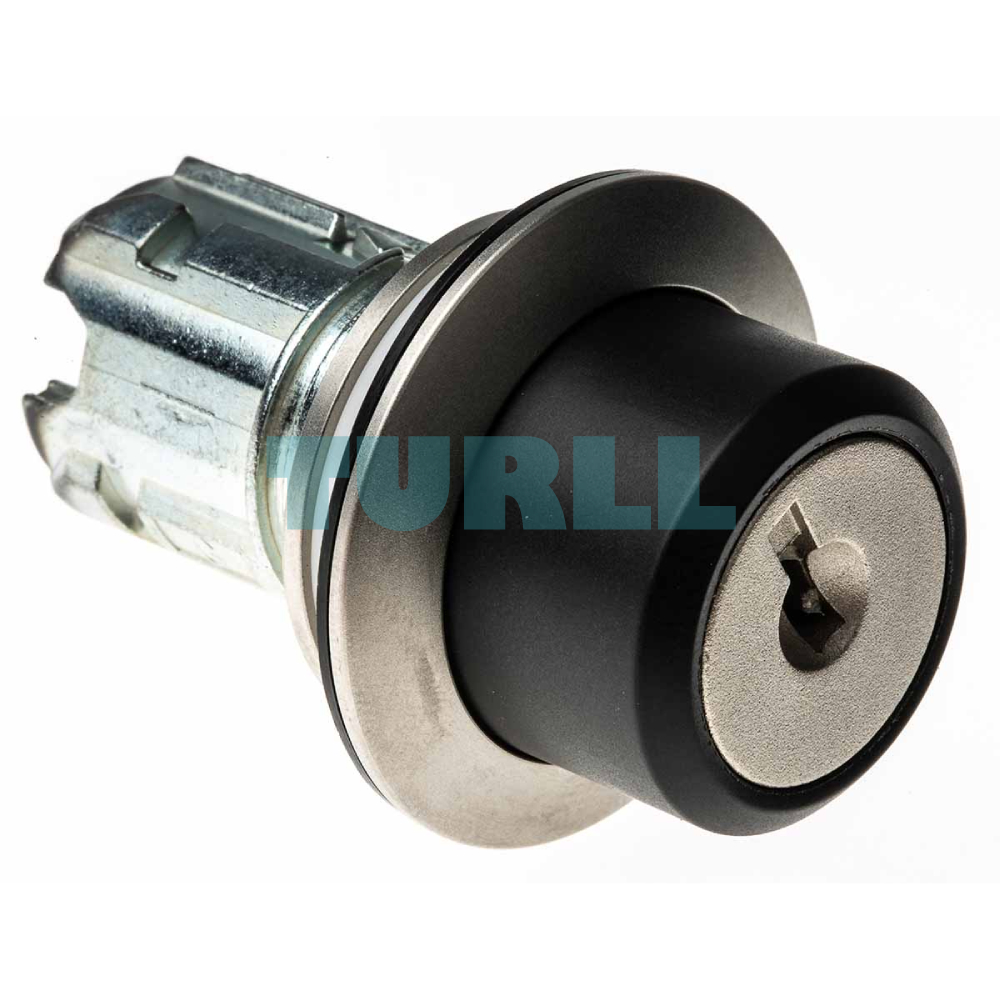

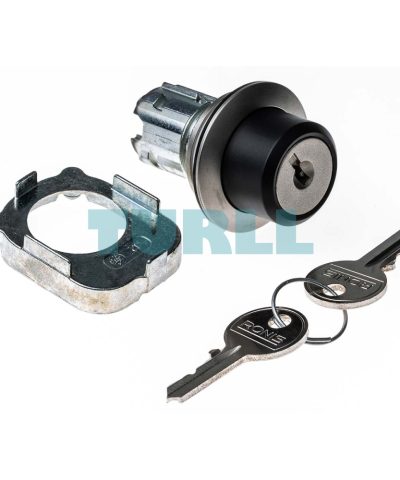

Siemens 3SU1060-4LF11-0AA0 RONIS Key-Operated Switch, 30mm, Round, Metal, Matte Finish Original Brand New
$31.13
RONIS key-operated switch, 30 mm round metal, matte finish, flush front ring, lock SB30, 2 keys, 2 positions O-I, latching, 90° actuating angle, key removal O+I, optional special locks SB31, 421, 455.
Availability: In stock
Overview
The Siemens 3SU1060-4LF11-0AA0 is a crucial component within the SIRIUS ACT command and signaling device portfolio, offering a high degree of operational security through key-based access control. As a RONIS key-operated switch, it is specifically engineered for reliability in demanding industrial environments. Its metal construction and matte finish ensure longevity and aesthetic integration into modern control panels, especially with the front ring designed for flush installation.
Key Features & Benefit
-
Durable Construction: Made of robust metal with a matte finish to resist wear and tear.
-
User-Friendly Design: Round 30 mm format with a front ring suitable for flush installation.
-
Secure Operation: Lock number SB30 with the option for special locks SB31, 421, 455.
-
Versatile Switching: 2 switch positions (O-I), latching mechanism, actuating angle 90°, ideal for precise control.
-
Convenient Key Removal: Key can be removed in both O and I positions for enhanced safety.
-

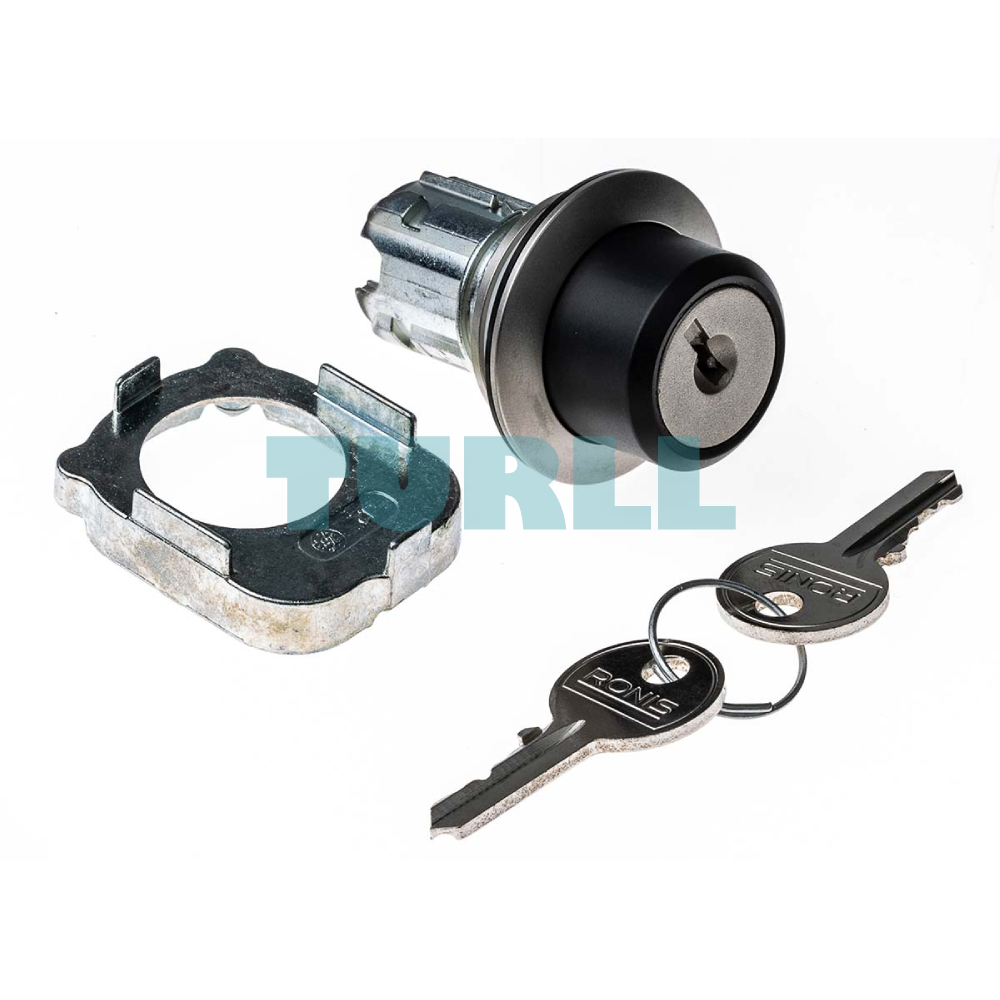

Complete Set: Comes with 2 keys for immediate use.
-
Optimized Timing: Switching times at 10:30h and 13:30h for synchronized operations.
Functionality
The Siemens 3SU1060-4LF11-0AA0 key-operated switch is perfect for industrial control panels, machinery, and safety systems. Its latching mechanism ensures the switch remains in the selected position, preventing accidental changes. The metal matte finish enhances longevity, while the flexible lock options allow for secure access control.
Visit 3SU1060-4LF11-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.100 kg |
|---|---|
| Dimensions | 80.00 × 90.00 × 40.00 mm |
| Brand | SIEMENS |
| Product brand name | SIRIUS ACT |
| Product designation | Key-operated switches |
| Design of the product | Actuating/signaling element |
| Product type designation | 3SU1 |
| Manufacturer's article number | – |
| ● of included key | 3SU1950-0FB80-0AA0 |
| Manner of function of the actuating element | latching, 90° (10:30 h/13:30 h) |
| Product extension optional Light source | No |
| Color | – |
| ● of the actuating element | silver |
| Material of the actuating element | metal |
| Shape of the actuating element | Key |
| Outer diameter of the actuating element | 38 mm |
| Marking of the actuating element | Any inscription, symbol compliant with ISO7000 and IEC60417 |
| Number of switching positions | 2 |
| Switch position for key distraction | O+I |
| Actuating angle | – |
| ● clockwise | 90° |
| Lock make | RONIS |
| Key number | SB30 |
| Product component front ring | Yes |
| Design of the front ring | Standard |
| Material of the front ring | Metal, matt |
| Color of the front ring | sand gray |
| Protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20 |
| Degree of protection NEMA rating | NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms |
| Vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| Operating frequency maximum | 1 800 1/h |
| Mechanical service life (switching cycles) | – |
| ● typical | 300 000 |
| Reference code acc. to DIN EN 81346-2 | S |
| Reference code acc. to DIN EN 61346-2 | S |
| Ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |

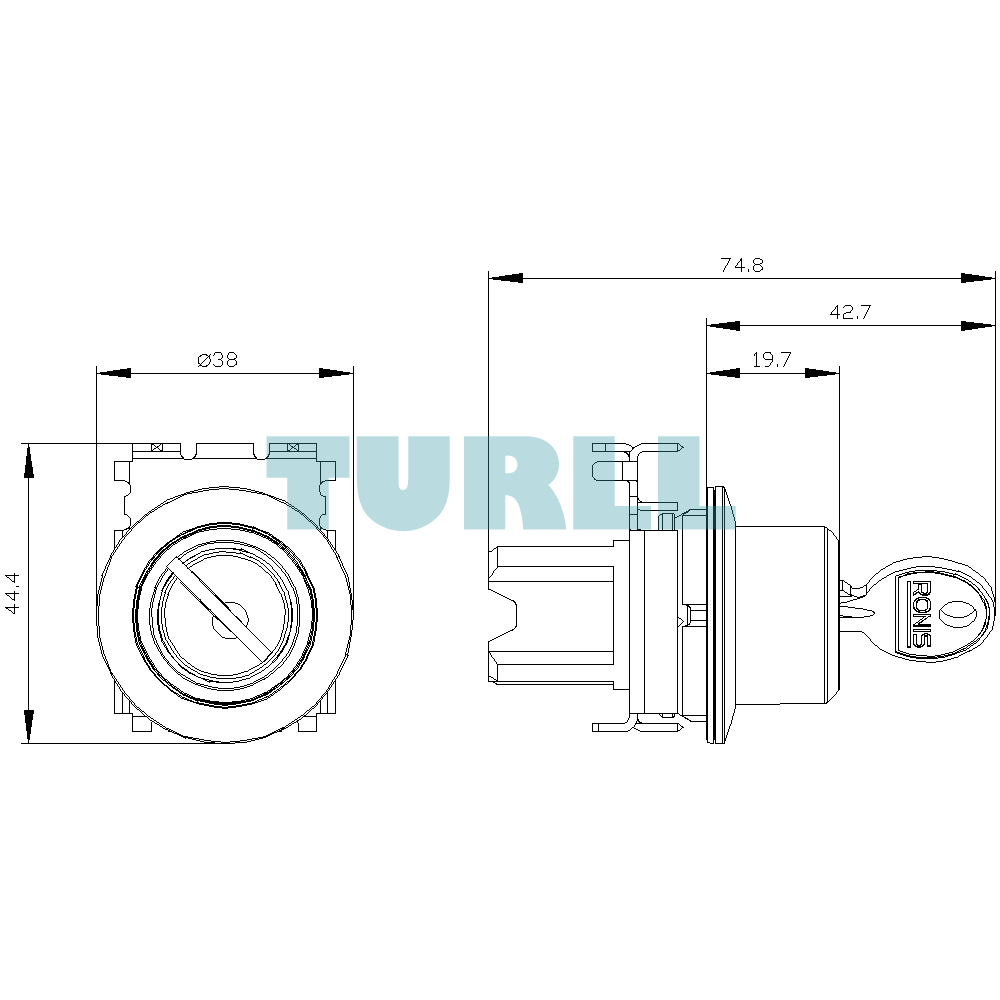

| Height | 44.8 mm |
| Width | 38 mm |
| Shape of the installation opening | round |
| Mounting diameter | 30.5 mm |
| Positive tolerance of installation diameter | 0.5 mm |
| Mounting height | 42.7 mm |
| Installation width | 38 mm |
| Installation depth | 32.1 mm |
| last modified: | 10/30/2019 |
