3SU1061-0JA30-0AA0

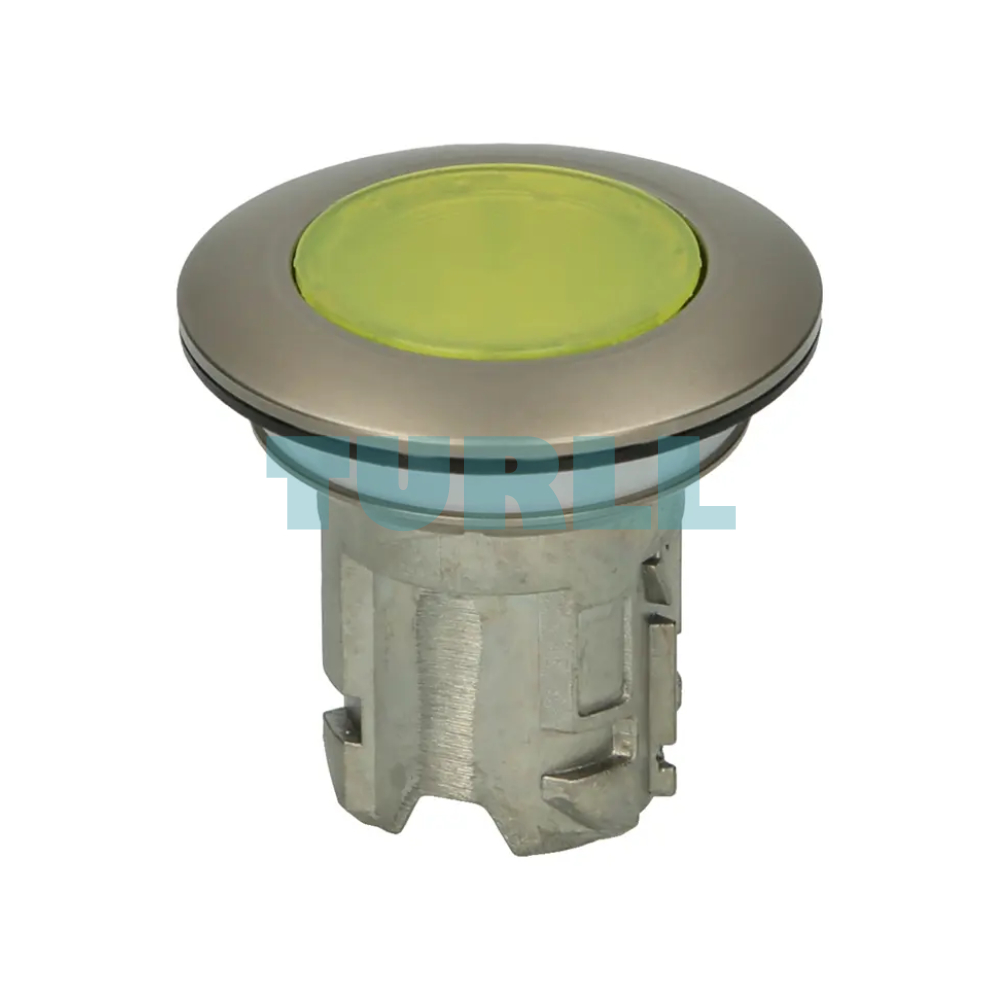

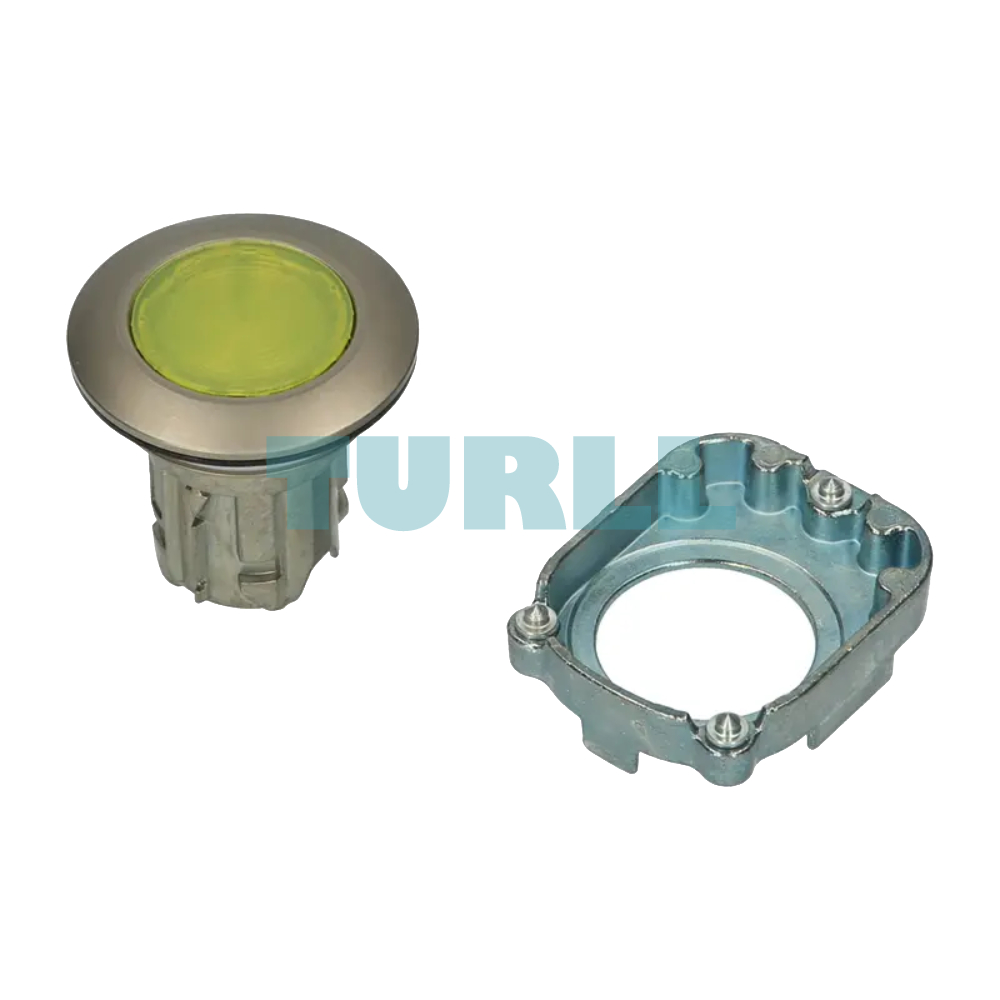

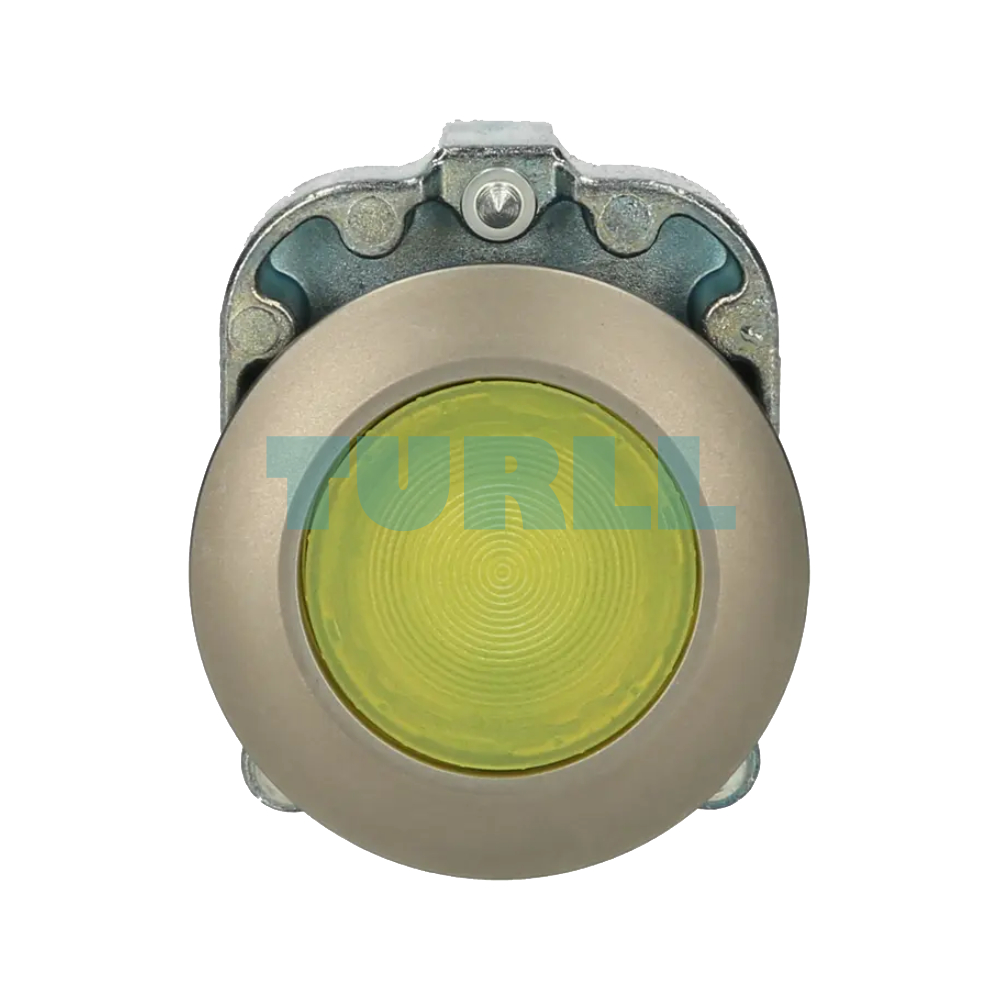

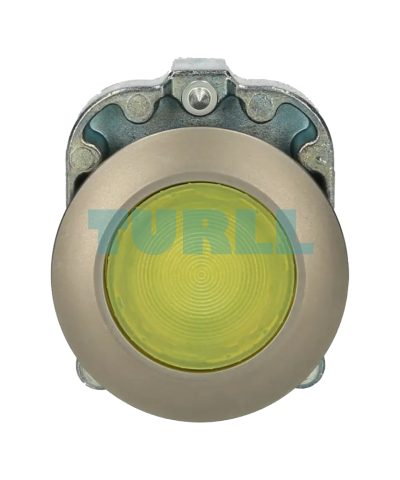

Siemens 3SU1061-0JA30-0AA0 Illuminated Pushbutton, 30mm, Yellow, Metal, Flush-Mount, Latching Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1061-0JA30-0AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Illuminated pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | latching |
| product extension optional | - |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | yellow |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 38 mm |
| type of unlocking device | push-to-unlatch mechanism |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 500 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |
| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 4.2 mm |
| installation width | 38 mm |
| installation depth | 31.1 mm |
| last modified: | 10/6/2021 |
| Weight for shipping | 0.073 kg |
| Dimensions for shipping | 95.00 × 137.00 × 42.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens 3SU1061-0JA30-0AA0 illuminated pushbutton is engineered for demanding industrial environments where visibility, reliability, and operator safety are essential. Featuring a robust 30 mm metal design, matte yellow actuator, and flush-mount front ring, this pushbutton provides clear status indication and durable performance. Its mechanical latching with push-to-release mechanism ensures precise control during machine operations, making it ideal for emergency, maintenance, and process applications.
Technical Function
-
Product Type: Illuminated Pushbutton
-
Operating Principle: Latching (Stay-put)
-
Release Mechanism: Push-to-release
-
Mounting Diameter: 30 mm
-
Design: Round, Metal (Matte finish)
-
Color: Yellow (High visibility)
-
Installation: Flush installation front ring (Modern, easy-to-clean design)
-
Product Series: SIRIUS ACT
Benefit
-
Enhanced Safety: The latching function requires a deliberate push to release the button, preventing accidental deactivation and improving operational safety for critical functions.
-
High Visibility: The illuminated, matte yellow color ensures the button status is instantly recognizable, even in low-light conditions.
-
Durable Construction: Built with a robust metal front ring, it is designed to withstand the harsh conditions of industrial applications.
-
Modern Aesthetics: Flush installation offers an attractive, clean look that also makes panel surfaces easier to wipe down and clean.
-
Reliable Brand: As a Siemens SIRIUS ACT component, you are assured of quality, compatibility, and long-term operational reliability.
Application
-
Industrial machinery control panels
-
Automation equipment
-
Emergency stop or release systems (non-safety rated unless specified)
-
Electrical distribution boards
-
Production lines
-
Mechanical control consoles
