SIEMENS
High-durability 30mm green illuminated pushbutton (momentary contact) from the Siemens SIRIUS ACT series. Features a sleek matte metal finish and flush installation design.
Backorder available · Factory lead time 2–3 weeks.

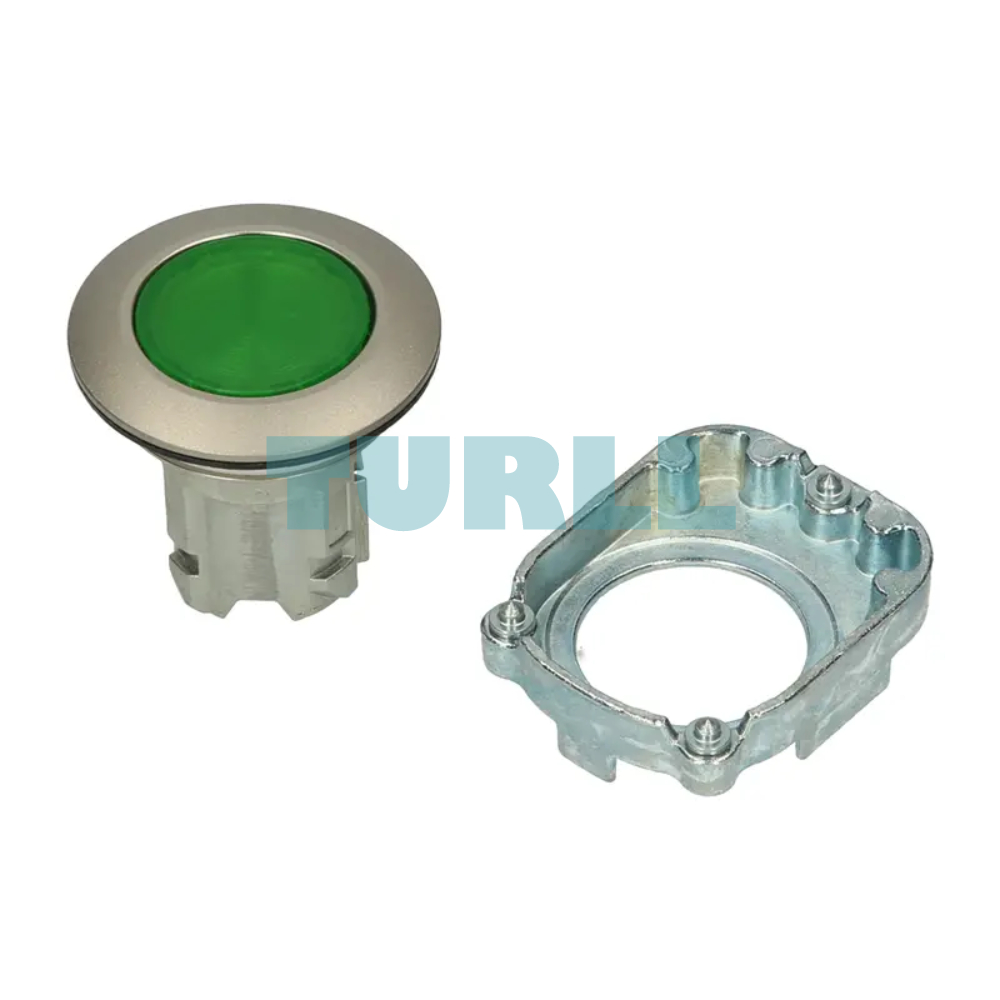

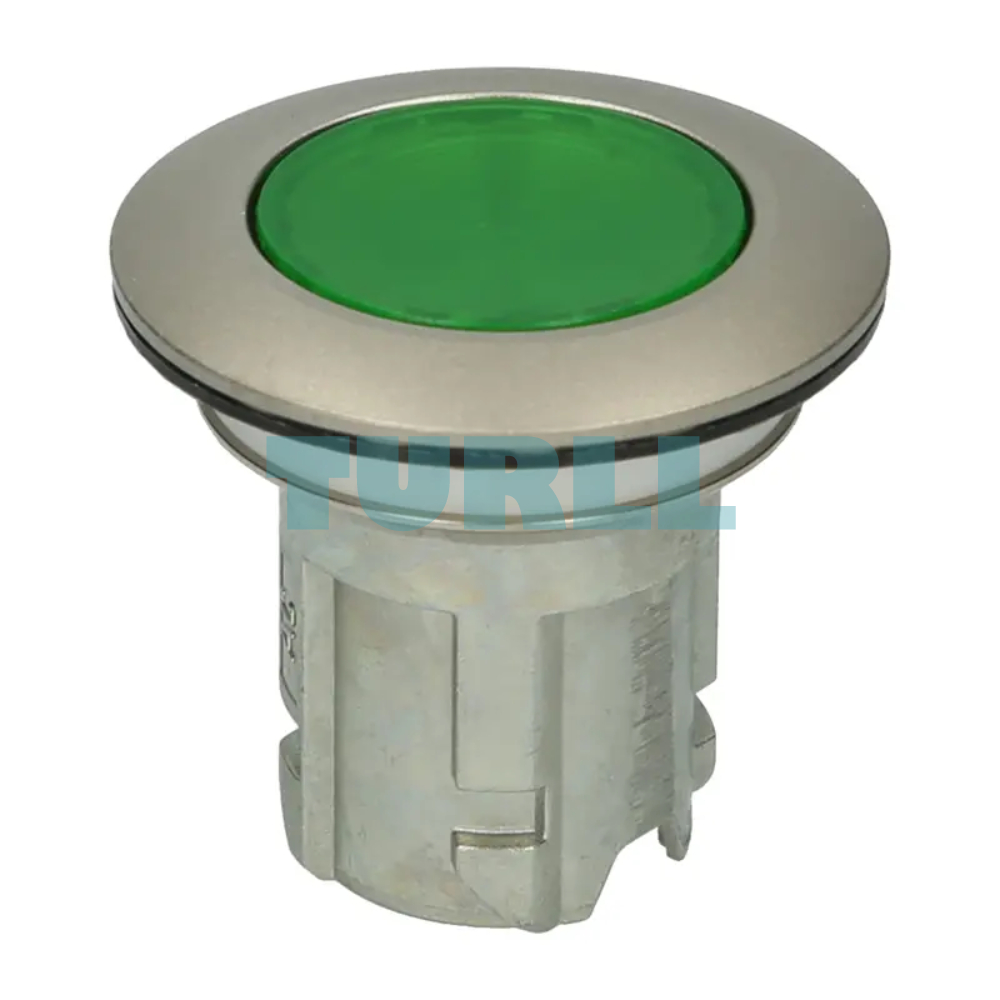

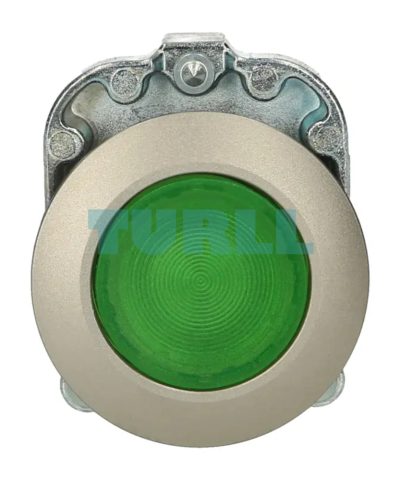

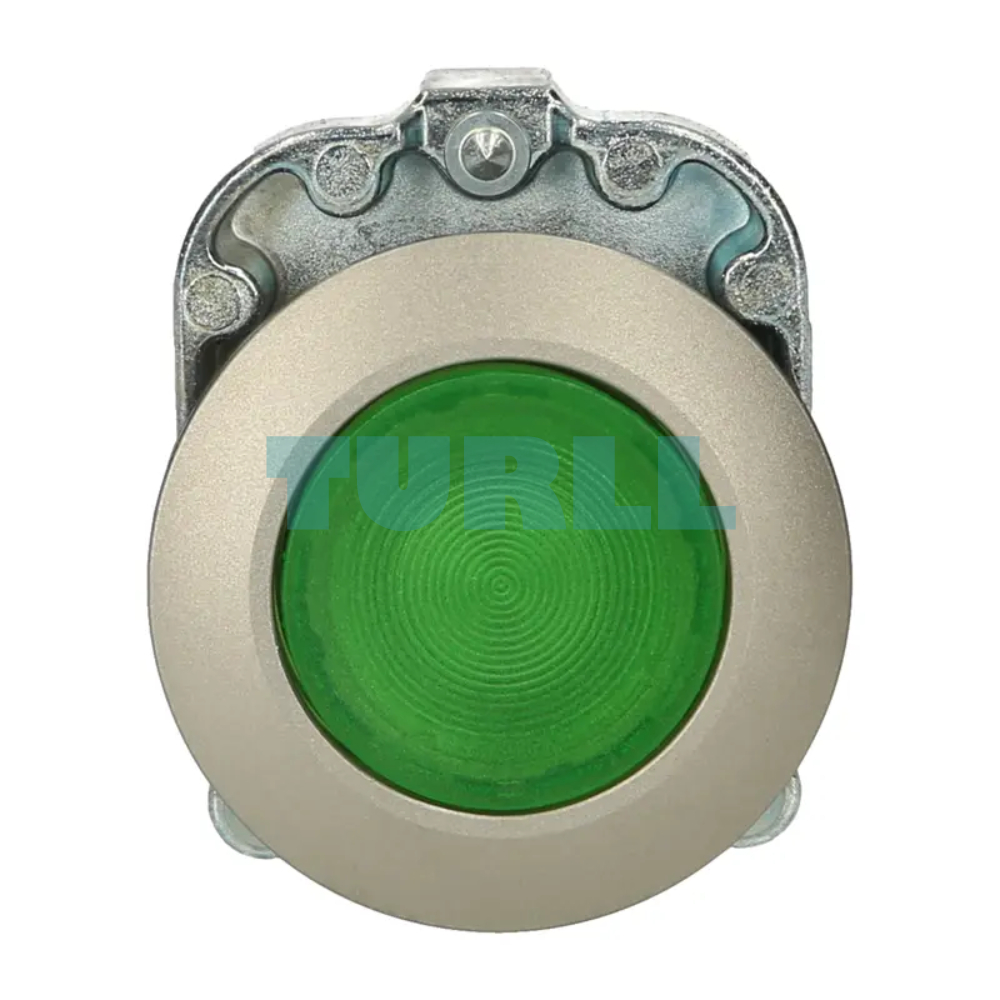

The Siemens 3SU1061-0JB40-0AA0 Illuminated Pushbutton is a high-quality industrial control component engineered for durability, reliability, and precision. Featuring a 30 mm round metal actuator with a matte green illuminated surface, this pushbutton ensures clear visibility and smooth operation in demanding environments. Its flush-mounted front ring delivers a sleek, professional appearance for modern control panels.
Rugged Durability: Constructed from high-quality matte metal, offering superior resistance to mechanical wear and harsh industrial chemicals.
Sleek Flush Design: Designed for flush installation, providing a clean, low-profile interface on control panels.
High Visibility: The green illuminated surface ensures clear operational feedback, even in low-light environments.
Easy Integration: Part of the modular SIRIUS ACT system, making assembly and replacement fast and tool-free.
Actuator Type: Illuminated pushbutton
Contact Type: Momentary
Mounting Diameter: 30 mm
Shape: Round
Material: Metal
Surface Finish: Matte
Illumination Color: Green
Installation: Front ring, flush-mounted
Application: Industrial automation, machinery, control panels
Industrial control panels
Manufacturing machinery
Automation systems
Electrical enclosures
Process control equipment
Brand: Siemens
Model Number: 3SU1061-0JB40-0AA0
Series: Siemens 3SU1
Operation Type: Momentary
Mounting Type: Flush mount
Illuminated: Yes
Visit 3SU1061-0JB40-0AA0 for more detail info
For more our products visit turll
| SKU / Model | 3SU1061-0JB40-0AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Illuminated pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | momentary contact type |
| product extension optional | - |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | green |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 38 mm |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 3 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |
| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 4.2 mm |
| installation width | 38 mm |
| installation depth | 31.1 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/6/2021 |
| Weight | 0.073 kg |
| Dimensions | 40.00 × 60.00 × 40.00 mm |
