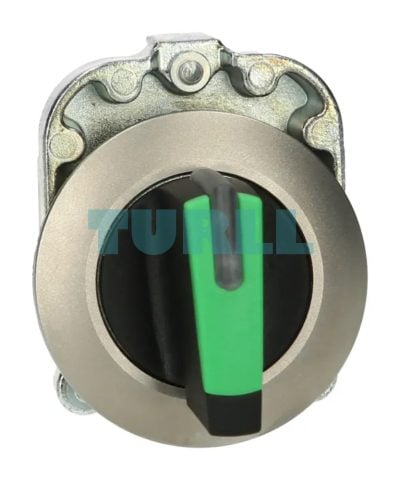

Siemens 3SU1062-2DF40-0AA0 SIRIUS ACT Selector Switch, 30mm, Green, 2-Position Latching Original Brand New
$17.27
Industrial-grade Siemens 3SU1062-2DF40-0AA0 selector switch. Features a 30mm matte metal design, green illuminable short handle, and 2-position latching (O-I) with a 90° actuating angle. Built for flush installation in rugged environments.
Availability: In stock
Overview

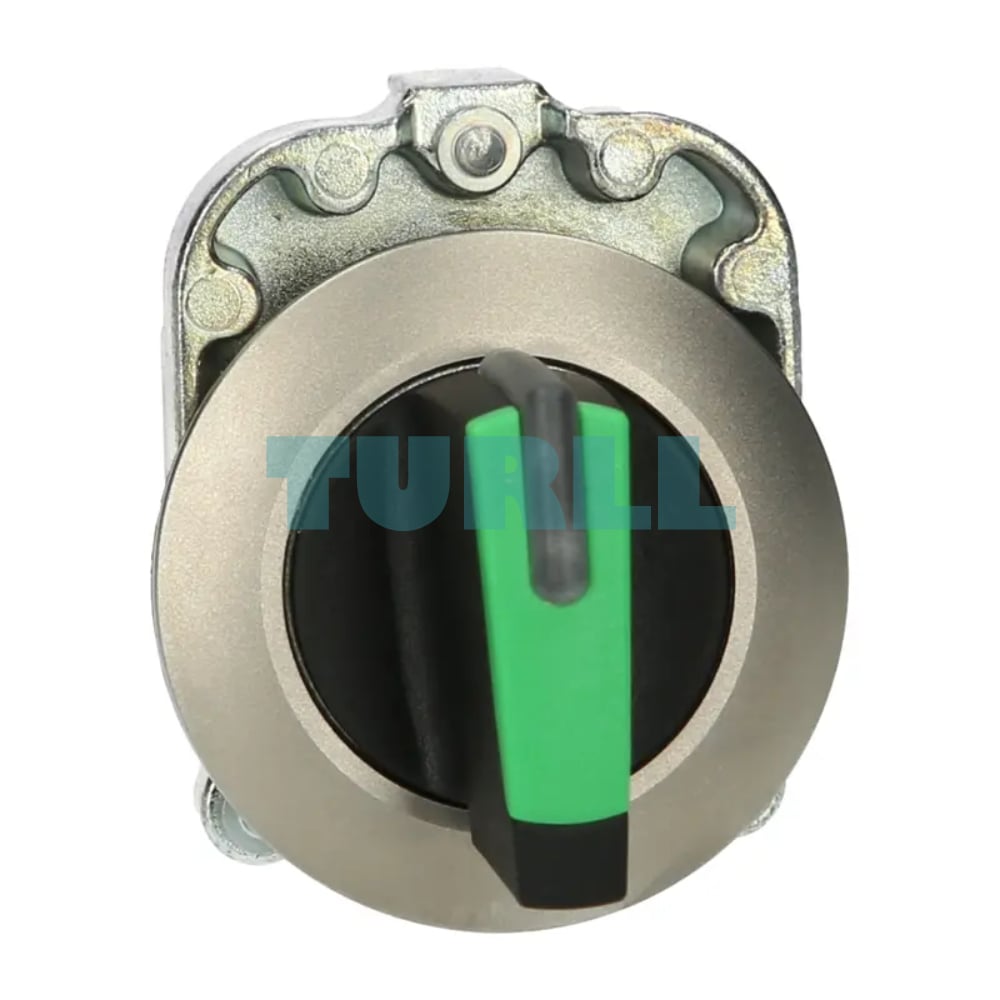

The Siemens 3SU1062-2DF40-0AA0 is a high-performance selector switch from the SIRIUS ACT series. Designed for aesthetic precision and extreme durability, this 30mm round switch features a matte metal front ring suited for flush mounting. Its vibrant green, illuminable short handle ensures high visibility and easy operation in industrial control panels.
Key Benefit
-
Rugged Construction: The matte metal finish provides superior resistance to harsh industrial environments and chemicals.
-
Modern Aesthetics: Designed for flush installation, offering a sleek, low-profile look on control desks.
-
High Visibility: The green illuminable actuator allows for clear status indication even in low-light conditions.
-
Easy Integration: Part of the modular SIRIUS ACT system, making it simple to install and replace without specialized tools.
Function & Specification
-
Switching Positions: 2 positions (O-I) for simple On/Off control.
-
Operating Mechanism: Latching (stays in position after being turned).
-
Actuating Angle: 90° (switching at 10:30h and 13:30h positions).
-
Mounting: 30mm round cutout with a front ring for flush installation.
-
Material: Premium matte metal for long-term mechanical reliability.
Visit 3SU1062-2DF40-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.075 kg |
|---|---|
| Dimensions | 98.00 × 125.00 × 43.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Selector switches |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Selector, short |
| principle of operation of the actuating element | latching, 90° (10:30 h/13:30 h) |
| product extension optional | – |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | green |
| material of the actuating element | plastic |
| shape of the actuating element | Handle |
| outer diameter of the actuating element | 38 mm |
| marking of the actuating element | Customized labeling, text in lower case letters |
| number of switching positions | 2 |
| actuating angle | – |
| ● clockwise | 90° |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 300 000 |
| reference code acc. to IEC 81346-2 | S |
| B10 value with high demand rate acc. to SN 31920 | 100 000 |
| proportion of dangerous failures | – |
| ● with low demand rate acc. to SN 31920 | 20 % |
| ● with high demand rate acc. to SN 31920 | 20 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |

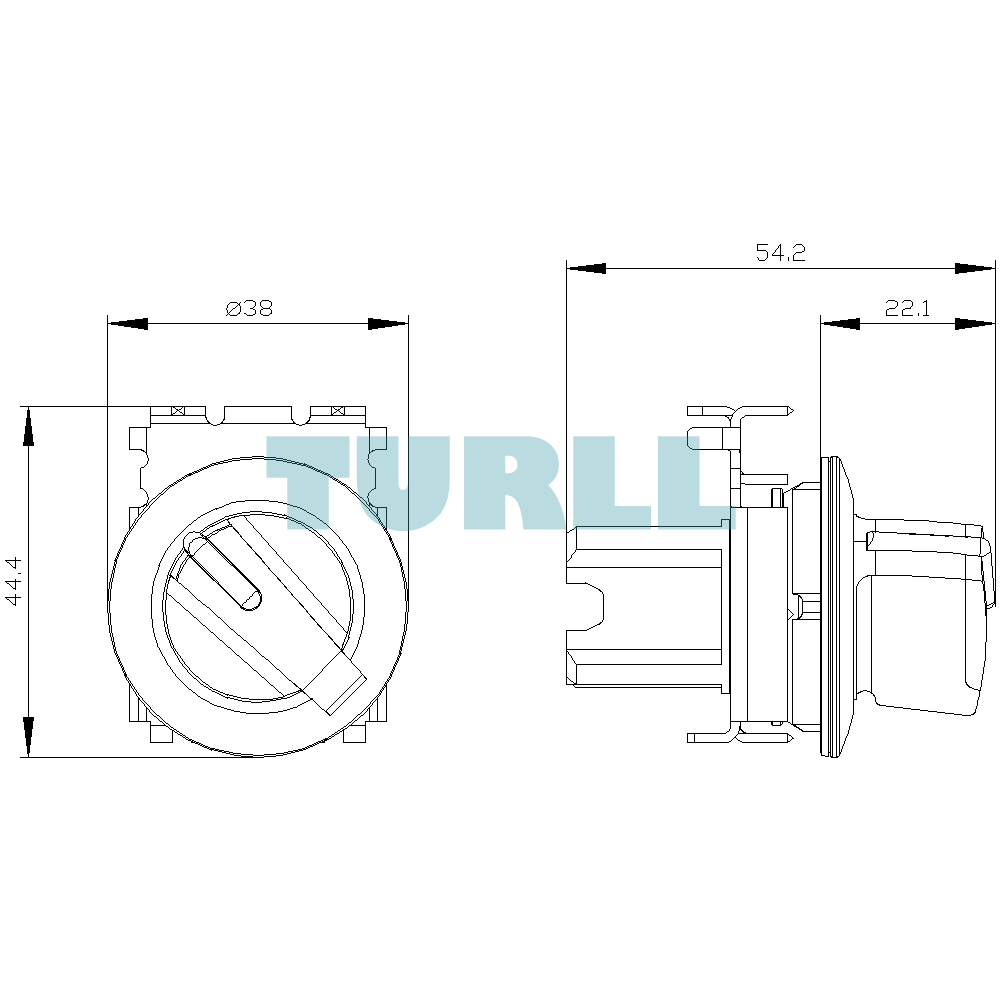

| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 22.1 mm |
| installation width | 38 mm |
| installation depth | 32.1 mm |
| last modified: | 10/6/2021 |
