3SU1062-2DL60-0AA0

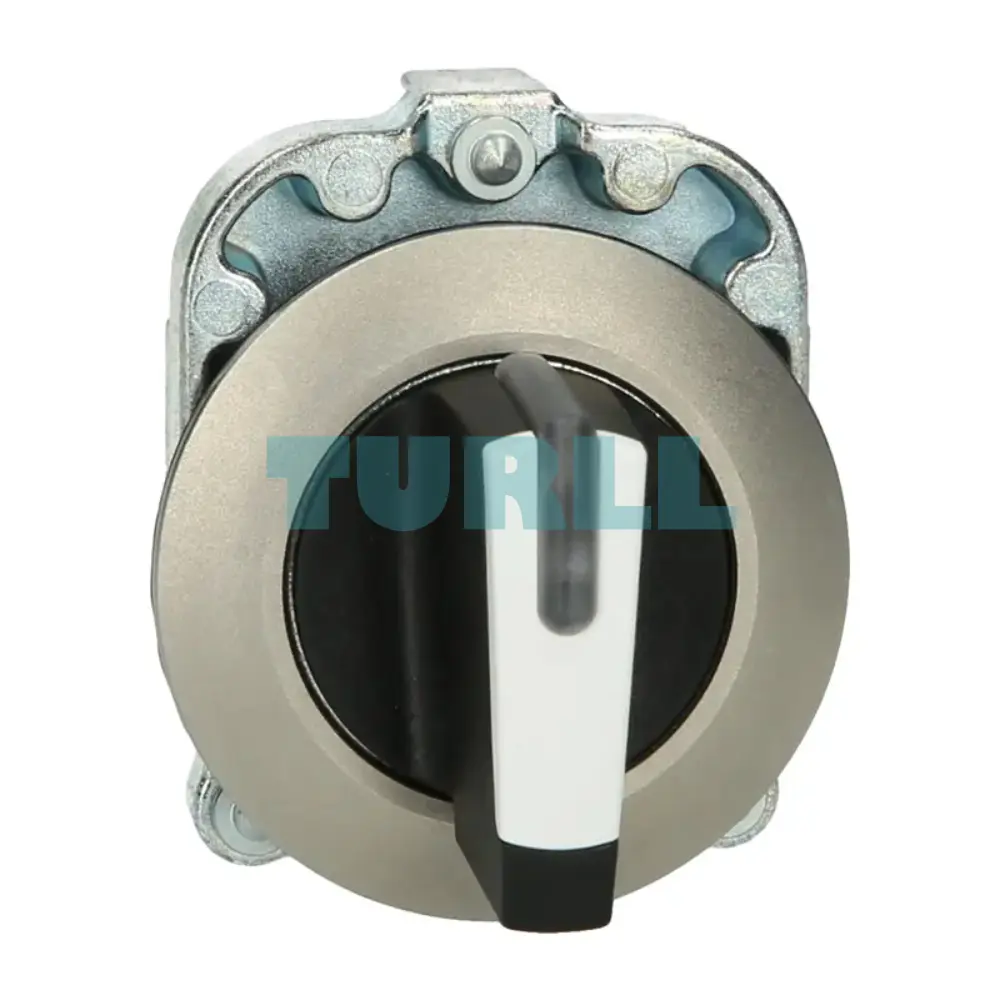

Siemens SIRIUS ACT 3SU1062-2DL60-0AA0 Illuminated Selector Switch Head, 30mm, 3-Position Latching Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1062-2DL60-0AA0 |
|---|---|
| Brand | SIEMENS |
| Product brand name | SIRIUS ACT |
| Product designation | Selector switches |
| Design of the product | Actuating/signaling element |
| Product type designation | 3SU1 |
| Product line | Metal, matt, flat, 30 mm |
| Number of command points | 1 |
| Design of the operating mechanism | Selector, short |
| Manner of function of the actuating element | latching, 2x45° (10:30 h/12 h/13:30 h) |
| Product extension optional Light source | Yes |
| Color of the actuating element | white |
| Material of the actuating element | plastic |
| Shape of the actuating element | Handle |
| Outer diameter of the actuating element | 38 mm |
| Marking of the actuating element | Customized labeling, graphical symbols acc. to ISO7000 and IEC60417 |
| Number of switching positions | 3 |
| Actuating angle | - |
| ● clockwise | 45° |
| ● anticlockwise | 45° |
| Product component front ring | Yes |
| Design of the front ring | Flat |
| Material of the front ring | Metal, matt |
| Color of the front ring | sand gray |
| Protection class IP | IP66, IP67, IP69(IP69K) |
| Degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms |
| Vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| Operating frequency maximum | 1 800 1/h |
| Mechanical service life (switching cycles) | - |
| ● typical | 300 000 |
| Reference code acc. to DIN EN 81346-2 | S |
| Reference code acc. to DIN EN 61346-2 | S |
| B10 value | - |
| Proportion of dangerous failures | - |
| ● with high demand rate acc. to SN 31920 | 20 % |
| Failure rate [FIT] | - |
| ● with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| Ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |

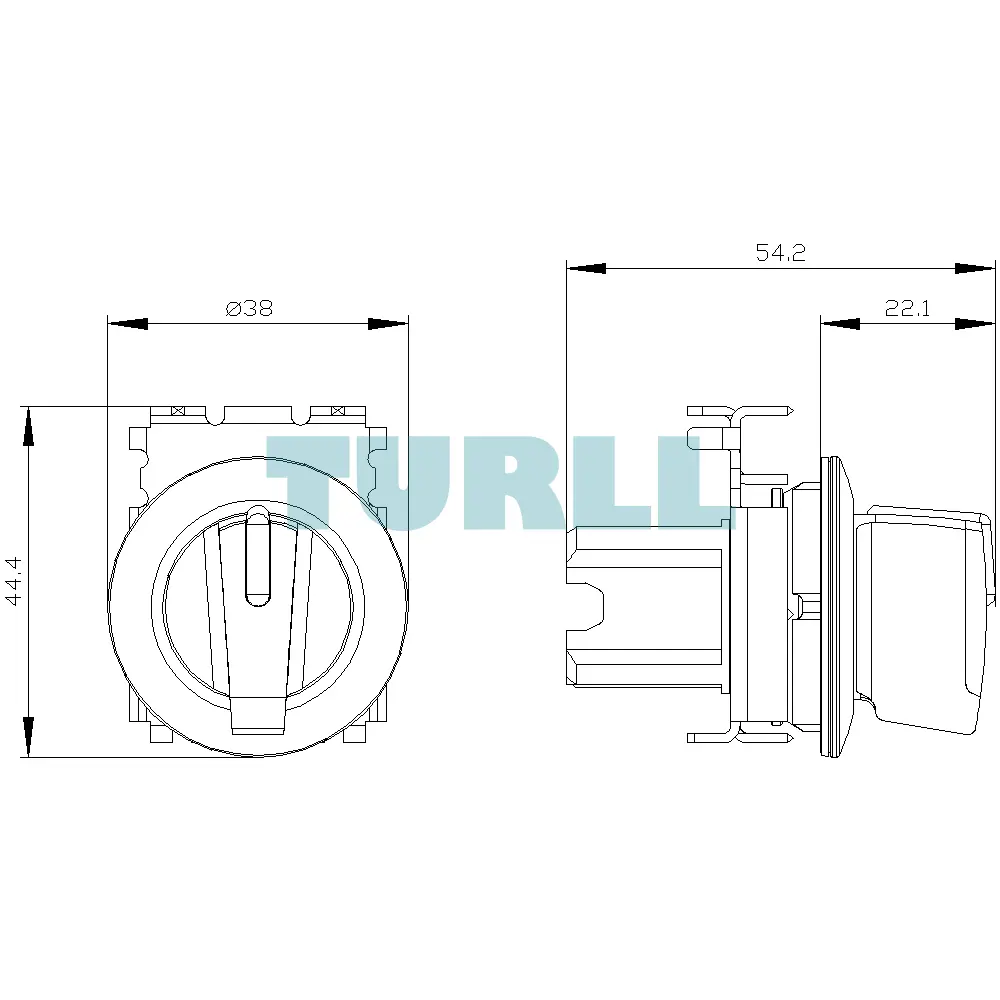

| Height | 44.8 mm |
| Width | 38 mm |
| Shape of the installation opening | round |
| Mounting diameter | 30.5 mm |
| Positive tolerance of installation diameter | 0.5 mm |
| Mounting height | 22.1 mm |
| Installation width | 38 mm |
| Installation depth | 32.1 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 02/18/2020 |
| Weight for shipping | 0.072 kg |
| Dimensions for shipping | 80.00 × 90.00 × 40.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview

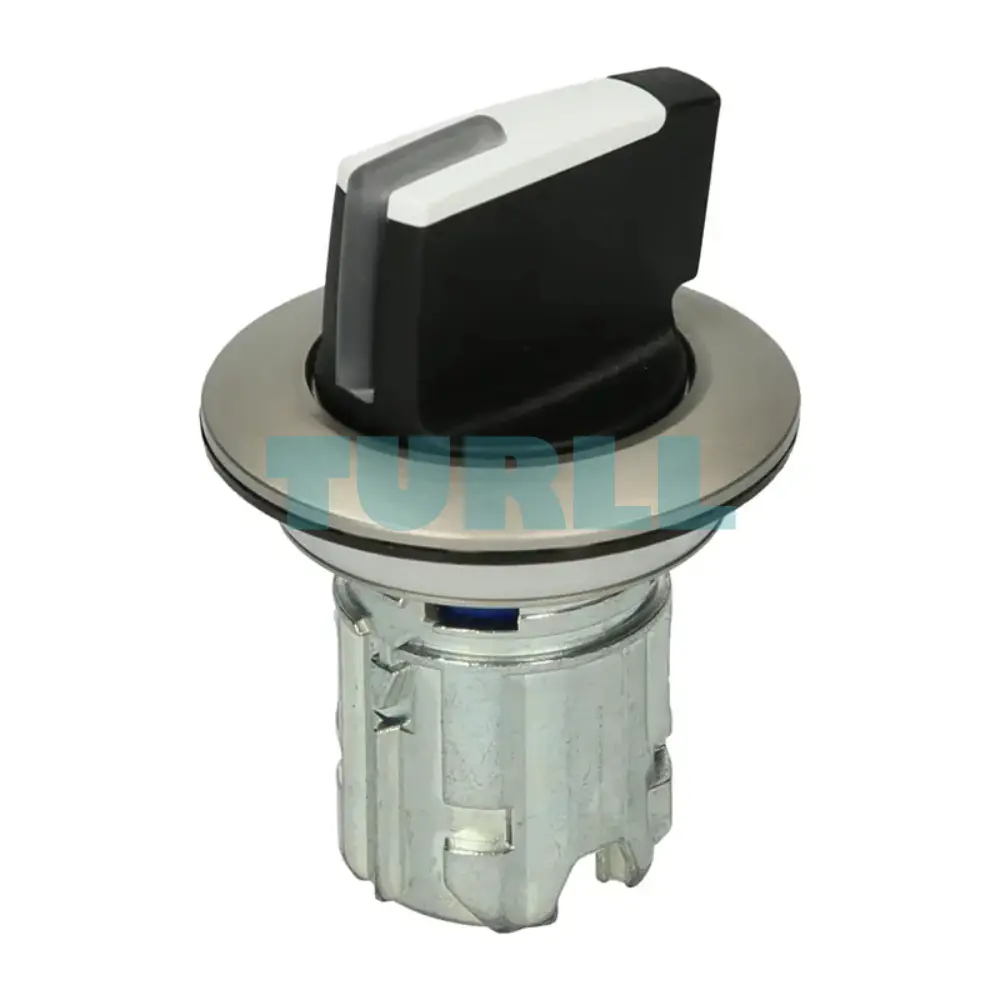

The Siemens 3SU1062-2DL60-0AA0 is an illuminable selector switch head from the robust SIRIUS ACT range, designed for reliable switching and control in industrial applications. This operator features a durable, round, 30 mm diameter design with a matte metal front ring for flush installation, ensuring a sleek, modern look on your control panel. It is a short-handle operator with a white color, ideal for commanding and signaling electrical loads across a wide range of operating environments.
Benefits and Features
-
Robust Design: Constructed with a durable matte metal front ring and a high degree of protection (IP66, IP67, IP69K), making it suitable for harsh industrial environments, including those requiring cleaning with high-pressure jets.
-

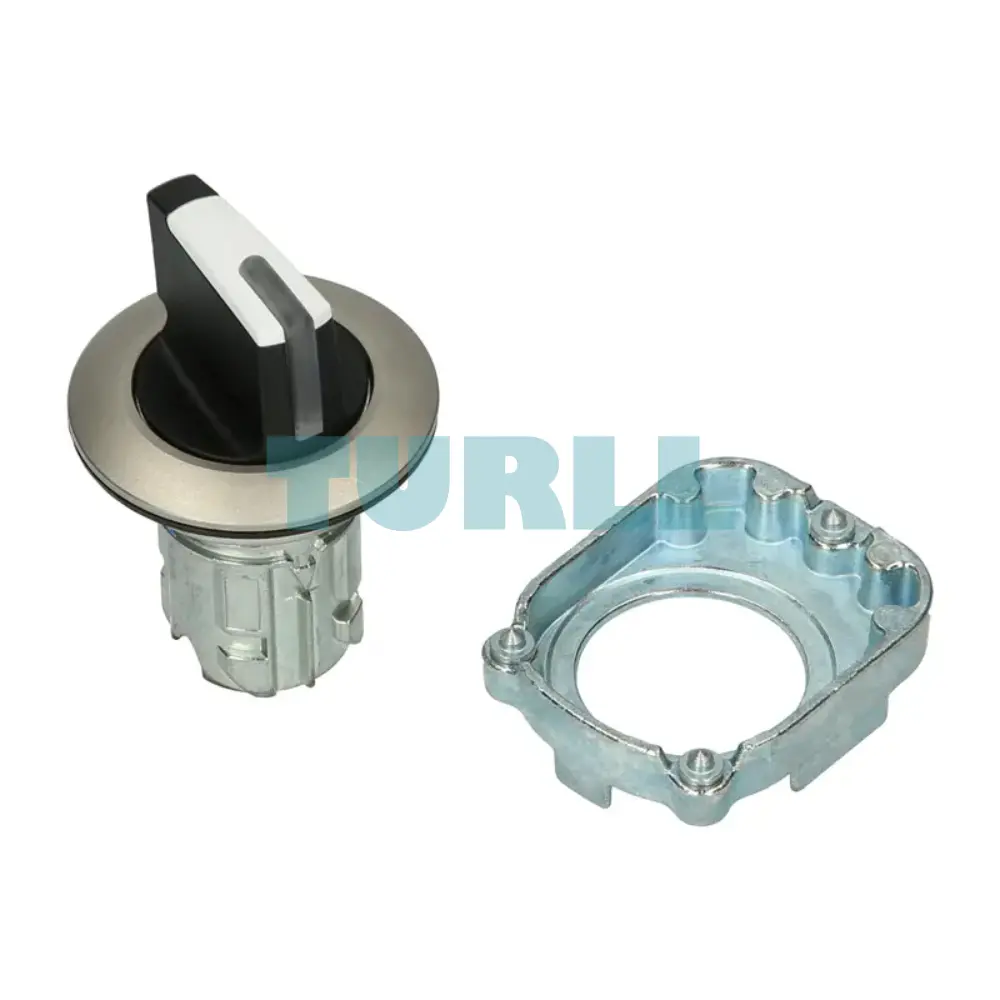

Easy Installation: Features the innovative SIRIUS ACT snap-on concept for fast, simple, one-handed mounting without special tools. Full twist prevention is integrated, requiring only groove-free mounting holes.
-
Clear Status Indication: As an illuminable selector switch, it allows for clear visual feedback (when paired with a separate LED module), enhancing operator safety and process monitoring.
-
Modular System: Sold as a single actuating element, giving you the flexibility to choose and combine your required holder, contact modules, and LED module separately for a customized solution.
Function
The 3SU1062-2DL60-0AA0 serves as the front element (operator) for control devices, translating manual rotation into electrical signals.9 It is primarily used for selecting operating modes, source selection, or three-state machine control in industrial automation and control panels.
Application
-
Control Panels and Cabinets
-
Machinery and Plant Engineering
-
Process Control Systems
-
Electrical Power Isolators and Circuit Selection
