Read shipping & delivery →SIEMENS
3SU1150-0AB20-1BA0

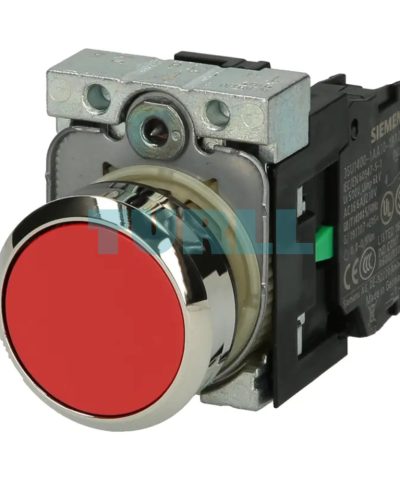

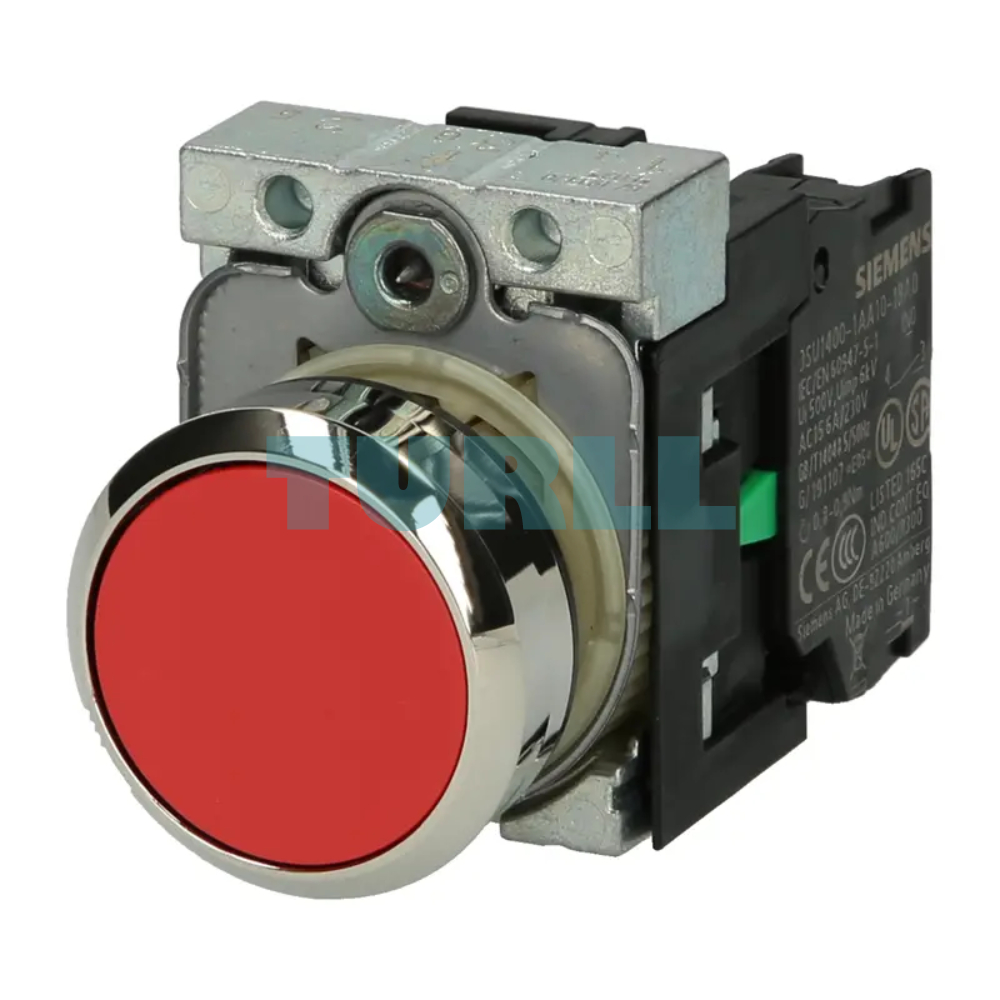

Siemens 3SU1150-0AB20-1BA0 Red Metal Pushbutton, 22mm, Flat Momentary Contact Original Brand New
Original price was: $18.28.$7.40Current price is: $7.40.
USDIn warehouse stock
Dispatches in 1–3 days
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1150-0AB20-1BA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Pushbuttons |
| design of the product | Complete unit |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| manufacturer's article number | - |

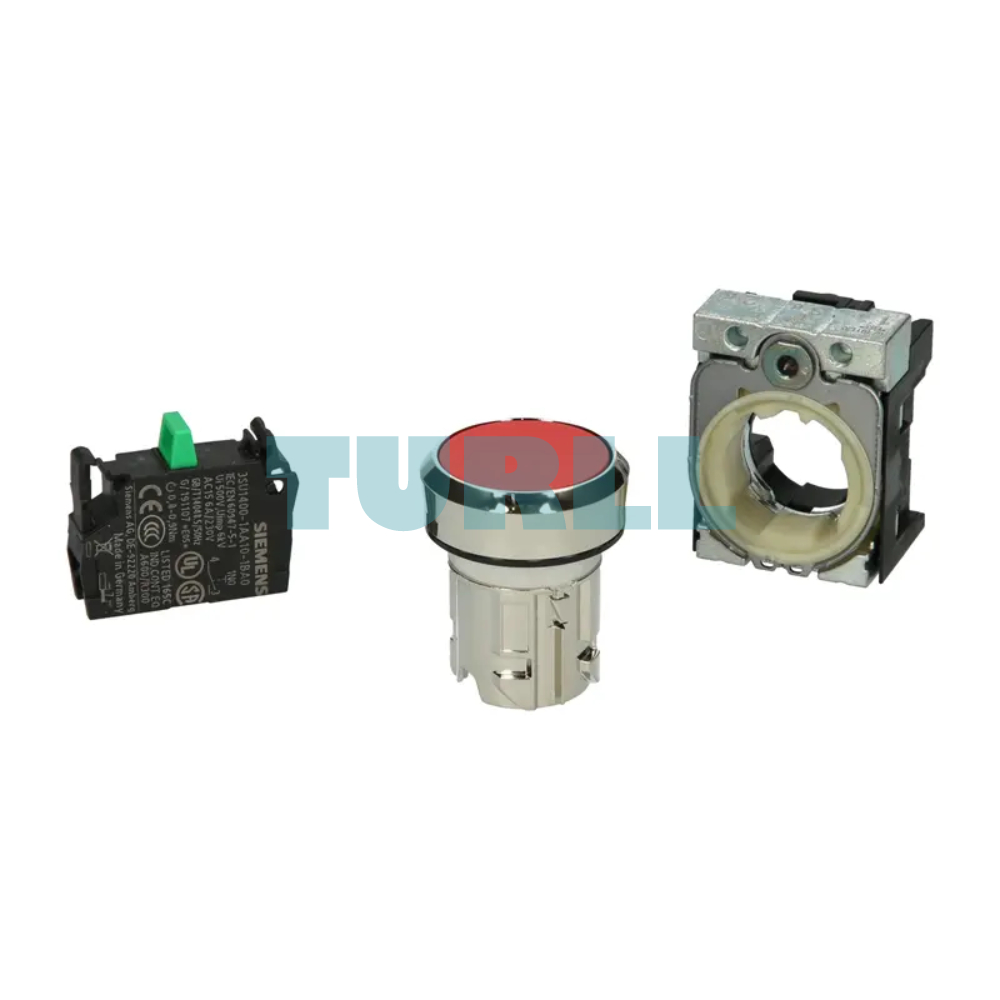

| ● of supplied contact module at position 1 | 3SU1400-1AA10-1BA0 |
| ● of the supplied holder | 3SU1550-0AA10-0AA0 |
| ● of the supplied actuator | 3SU1050-0AB20-0AA0 |
| number of command points | 1 |
| design of the actuating element | Button, flat |
| principle of operation of the actuating element | momentary contact type |
| product extension optional light source | No |
| color of the actuating element | red |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.45 mm |
| number of contact modules | 1 |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| material of the holder | Plastic |
| number of LED modules | 0 |
| product function positive opening | No |
| product component light source | No |
| insulation voltage rated value | 500 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC/DC |
| surge voltage resistance rated value | 6 kV |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20 |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| electrical endurance (switching cycles) typical | 10 000 000 |
| thermal current | 10 A |
| reference code acc. to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A |
| continuous current of the DIAZED fuse link gG | 10 A |
| operating voltage | - |
| ● at AC | - |
| — at 50 Hz rated value | 5 ... 500 V |
| — at 60 Hz rated value | 5 ... 500 V |
| ● at DC rated value | 5 ... 500 V |
| contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 0 |

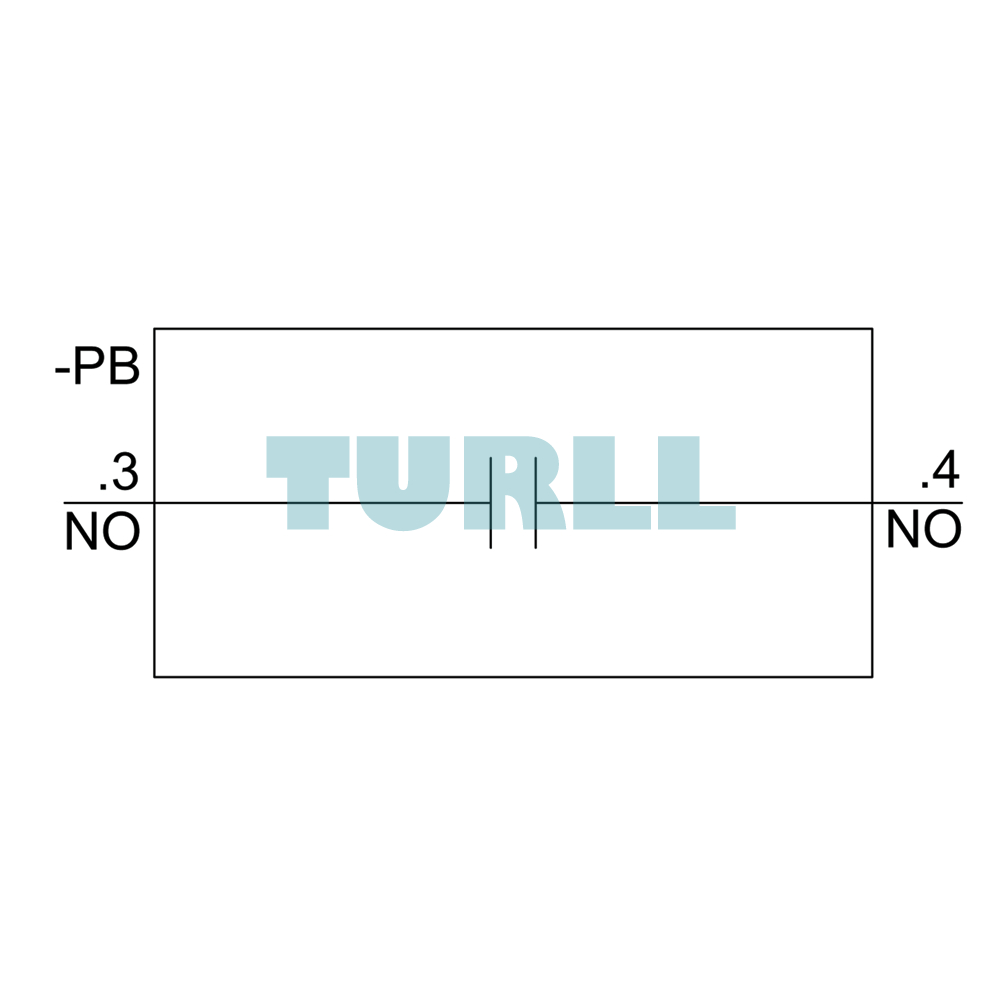

| number of NO contacts for auxiliary contacts | 1 |

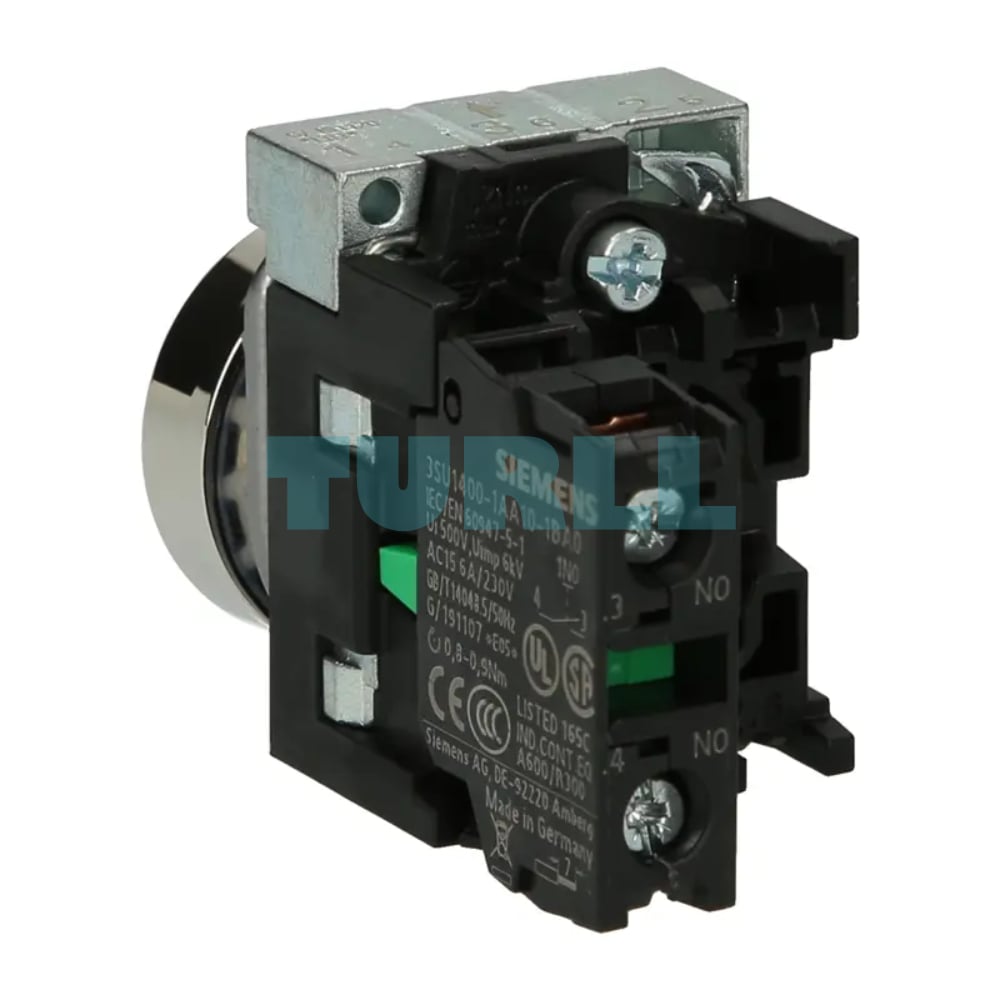

| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | - |
| ● solid with core end processing | 2x (0.5 ... 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 ... 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 ... 1,5 mm²) |
| ● at AWG cables | 2x (18 ... 14) |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 ... 0.9 N·m |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method | front panel mounting |
| ● of modules and accessories | Front plate mounting |
| shape of the installation opening | round |

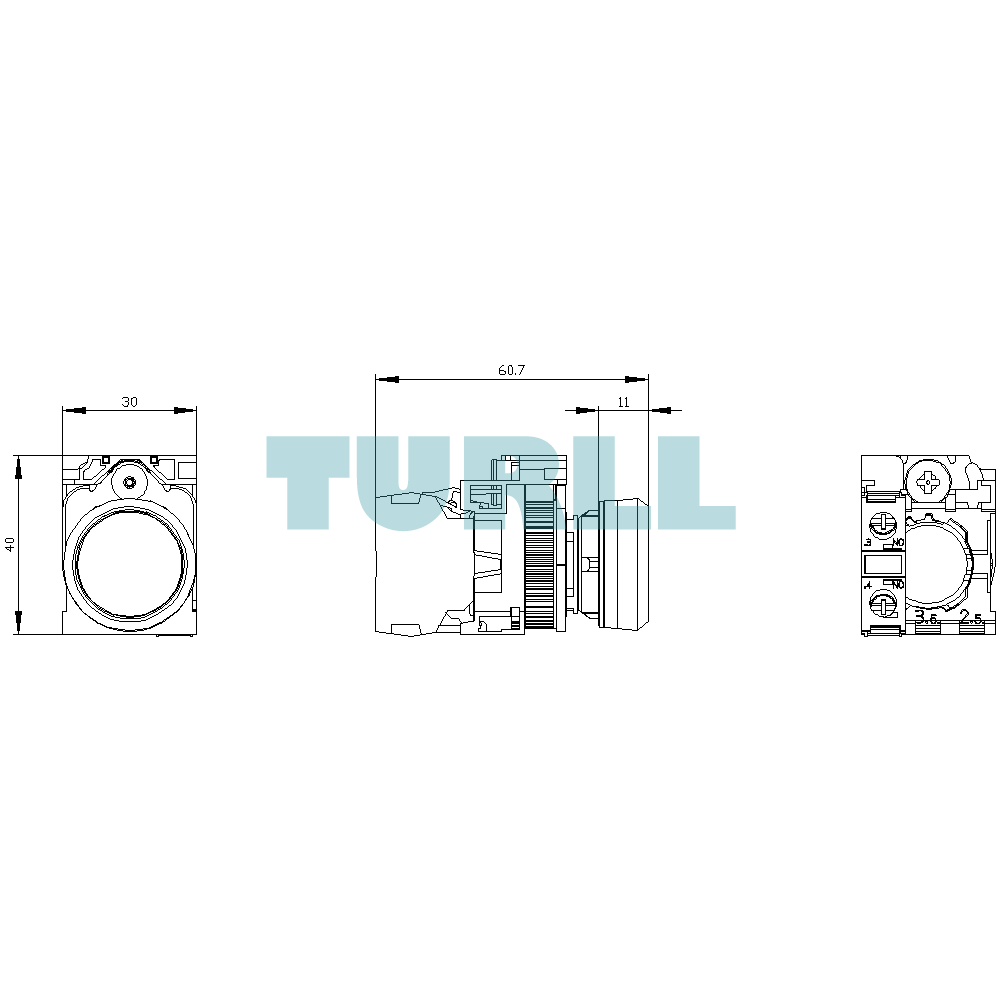

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11 mm |
| installation width | 29.5 mm |
| installation depth | 49.7 mm |
| last modified: | 10/1/2021 |
| Weight for shipping | 0.092 kg |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens 3SU1150-0AB20-1BA0 is a premium-quality pushbutton designed for industrial applications. With a 22 mm diameter, this round, metal, shiny red pushbutton offers a flat, ergonomic design for smooth operation. It features a momentary contact type, 1 NO (normally open) configuration, and secure screw terminal connections, making it reliable for controlling machinery and electrical circuits.
Key Features & Function
-
High-Quality Build: Durable metal construction with a shiny finish for long-lasting performance.
-
Size & Design: 22 mm round pushbutton, flat design for easy operation.
-
Contact Type: Momentary contact, 1 NO (normally open) for precise control.
-
Easy Installation: Comes with a holder and secure screw terminals.
-
Industrial Use: Ideal for machinery control panels, automation systems, and industrial electrical applications.
-
Color: Eye-catching red for immediate visibility and operational clarity.
Benefit
-
Reliable Performance: Ensures consistent electrical connection during operation.
-
Durable & Safe: Metal construction withstands industrial wear and tear.
-
Easy to Use: Flat, round design makes operation comfortable and efficient.
-
Quick Installation: Screw terminal allows fast and secure setup.
-
Enhanced Visibility: Red color improves identification in control panels.
Visit 3SU1150-0AB20-1BA0 for more detail info
