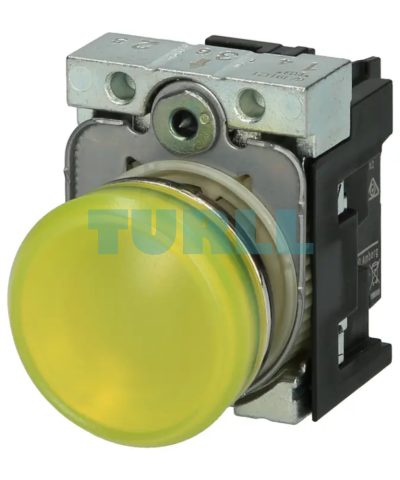

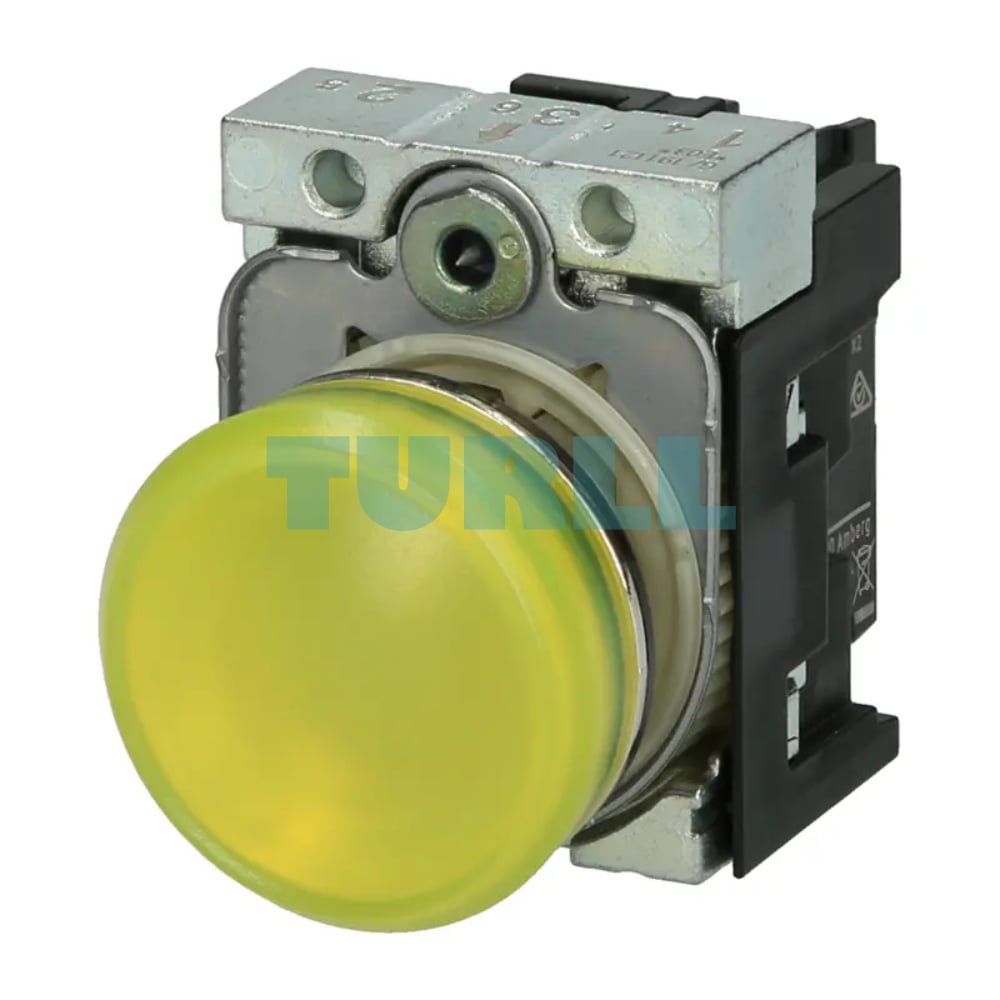

Siemens 3SU1156-6AA30-1AA0 22mm, Yellow LED Indicator Light, Metal, Round, 230V AC
Siemens 3SU1156-6AA30-1AA0 22mm, Yellow LED Indicator Light, Metal, Round, 230V AC
Siemens 3SU1156-6AA30-1AA0 22mm, Yellow LED Indicator Light, Metal, Round, 230V AC
Siemens 3SU1156-6AA30-1AA0 22mm, Yellow LED Indicator Light, Metal, Round, 230V AC
Siemens 3SU1156-6AA30-1AA0 22mm, Yellow LED Indicator Light, Metal, Round, 230V AC

SIEMENS

Siemens 3SU1156-6AA30-1AA0 22mm, Yellow LED Indicator Light, Metal, Round, 230V AC Original Brand New

Model / SKU3SU1156-6AA30-1AA0

SIRIUS ACT 22mm round, shiny metal indicator light with a smooth yellow lens. Complete with a holder and a robust 230V AC integrated LED module for high-voltage industrial applications. Features secure and reliable screw terminal connection. (IP67/69K Rated)

Original price was: $24.69.Current price is: $11.30.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 3SU1156-6AA30-1AA0 is a premium component from the SIRIUS ACT line, designed for reliable visual status indication in industrial control panels and machinery. This unit features a durable, round, and shiny metal construction (22 mm diameter) with a striking yellow, smooth lens. It comes complete with a holder and an integrated 230V AC LED module, making it suitable for standard line voltage applications. The screw terminal connection ensures fast, secure, and maintenance-friendly wiring.

Key Features & Function

  • Type: Indicator light

  • Mounting Diameter: 22 mm

  • Shape: Round

  • Material: Metal, shiny finish

  • Lens: Smooth, yellow

  • LED Module: Integrated 230V AC LED

  • Connection: Screw terminal

  • Holder: Included

  • Durability: Long-lasting metal construction suitable for industrial environments

Benefit

  • Maximum Visibility: The bright yellow, smooth lens and integrated LED module ensure clear operational status visibility, even in high-ambient-light environments.

  • Superior Durability (IP66/IP67/IP69): The high-grade metal construction provides exceptional resistance to dust, water jets, and temporary submersion, guaranteeing long-term reliability in harsh industrial settings.

  • Simple Installation: Supplied with a holder and employing robust screw terminals, installation and wiring are straightforward, reducing assembly time.

  • Long-Life Performance: The integrated LED technology offers significantly extended service life compared to traditional incandescent bulbs, drastically minimizing maintenance and replacement costs.

  • Global Standard Compliance: Part of the SIRIUS ACT portfolio, ensuring compliance with international standards for industrial control gear.

Download

Datasheet in PDF

Visit 3SU1156-6AA30-1AA0 for more detail info

For more our products visit turll



Specifications

SKU / Model3SU1156-6AA30-1AA0
BrandSIEMENS
product brand nameSIRIUS ACT
product designationIndicator lights
design of the productComplete unit
product type designation3SU1
product lineMetal, shiny, 22 mm
manufacturer's article number-

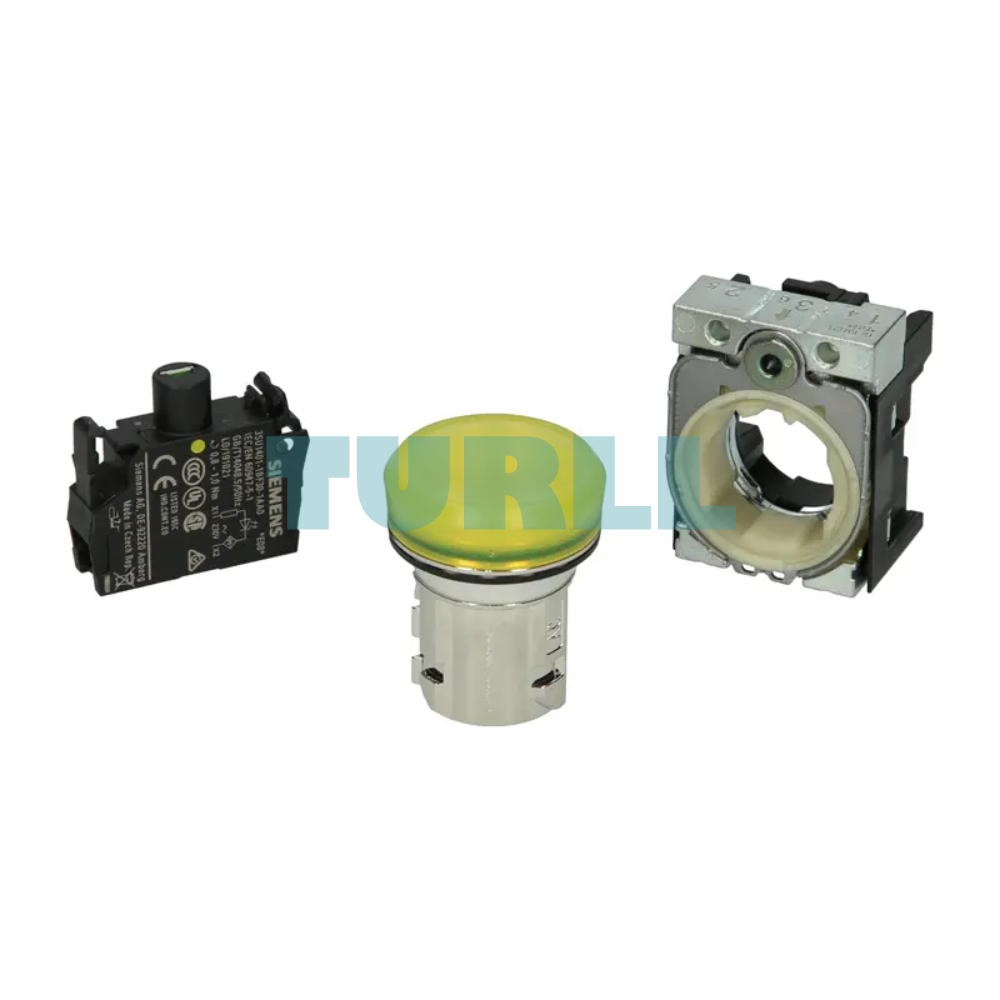

● of supplied LED module3SU1401-1BF30-1AA0
● of the supplied holder3SU1550-0AA10-0AA0
● of supplied repeater3SU1051-6AA30-0AA0
number of command points1
product extension optional light sourceYes
color-
● of the actuating elementyellow
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element29.45 mm
marking of the actuating elementAny inscription, text in upper/lower case, every line begins with upper case letter
product component front ringNo
material of the holderPlastic
number of LED modules1
product component light sourceYes
insulation voltage rated value320 V
degree of pollution3
surge voltage resistance rated value4 kV
protection class IPIP66, IP67, IP69(IP69K)
● of the terminalIP20
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance-
● acc. to IEC 60068-2-27Sinusoidal half-wave 50g / 11 ms
vibration resistance-
● acc. to IEC 60068-2-610 ... 500 Hz: 5g
reference code acc. to IEC 81346-2P

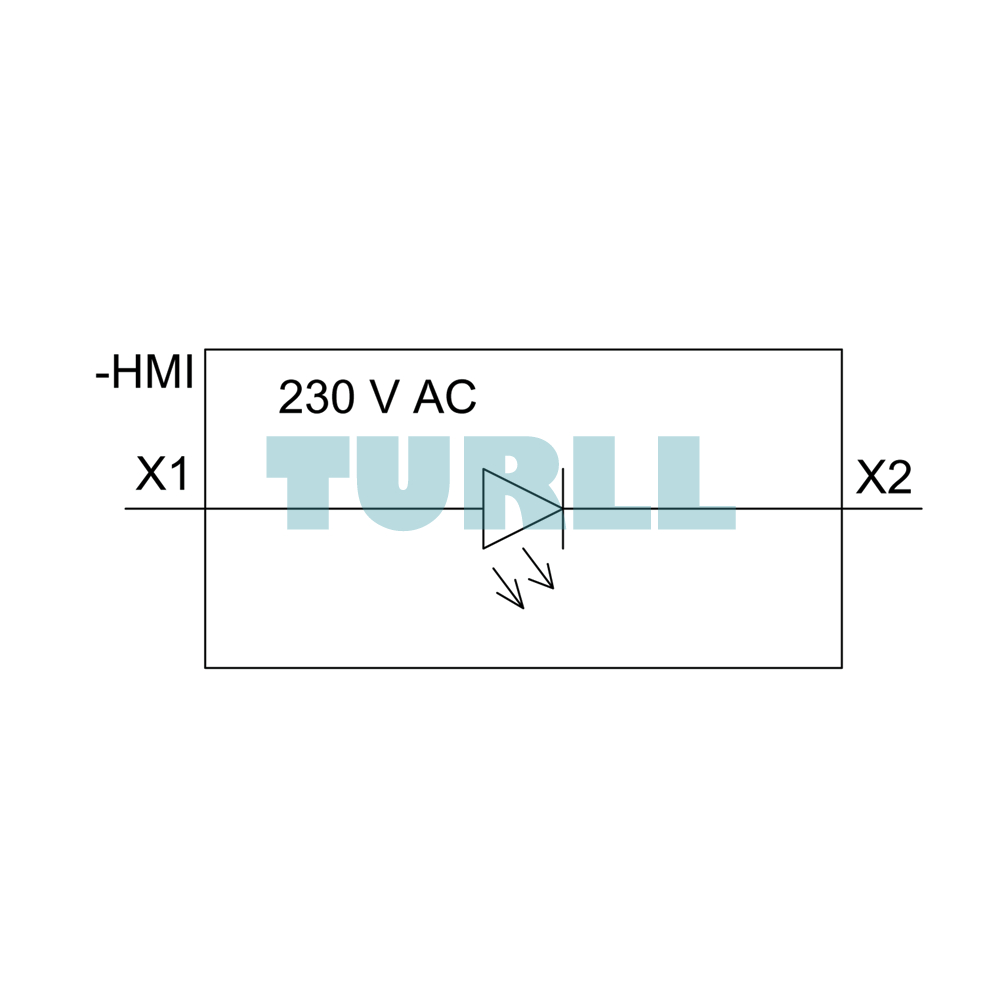

type of voltage of the supply voltage of the light sourceAC
supply voltage of the light source at AC-
● at 50 Hz rated value230 V
● at 60 Hz rated value230 ... 230 V
relative negative tolerance of the supply voltage20 %
relative positive tolerance of the supply voltage20 %
inrush current maximum3 A
type of electrical connectionother
type of connectable conductor cross-sections-
● solid with core end processing2x (0.5 ... 0.75 mm²)
● solid without core end processing2x (1.0 ... 1.5 mm²)
● finely stranded with core end processing2x (0.5 ... 1.5 mm²)
● finely stranded without core end processing2x (1,0 ... 1,5 mm²)
● at AWG cables2x (18 ... 14)
tightening torque of the screws in the bracket1 ... 1.2 N·m
tightening torque with screw-type terminals0.8 ... 0.9 N·m
type of light sourceLED
color of the light sourceyellow
light intensity900 ... 1 400 mcd
ambient temperature-
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation acc. to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel)
fastening methodfront panel mounting
● of modules and accessoriesFront plate mounting
shape of the installation openinground

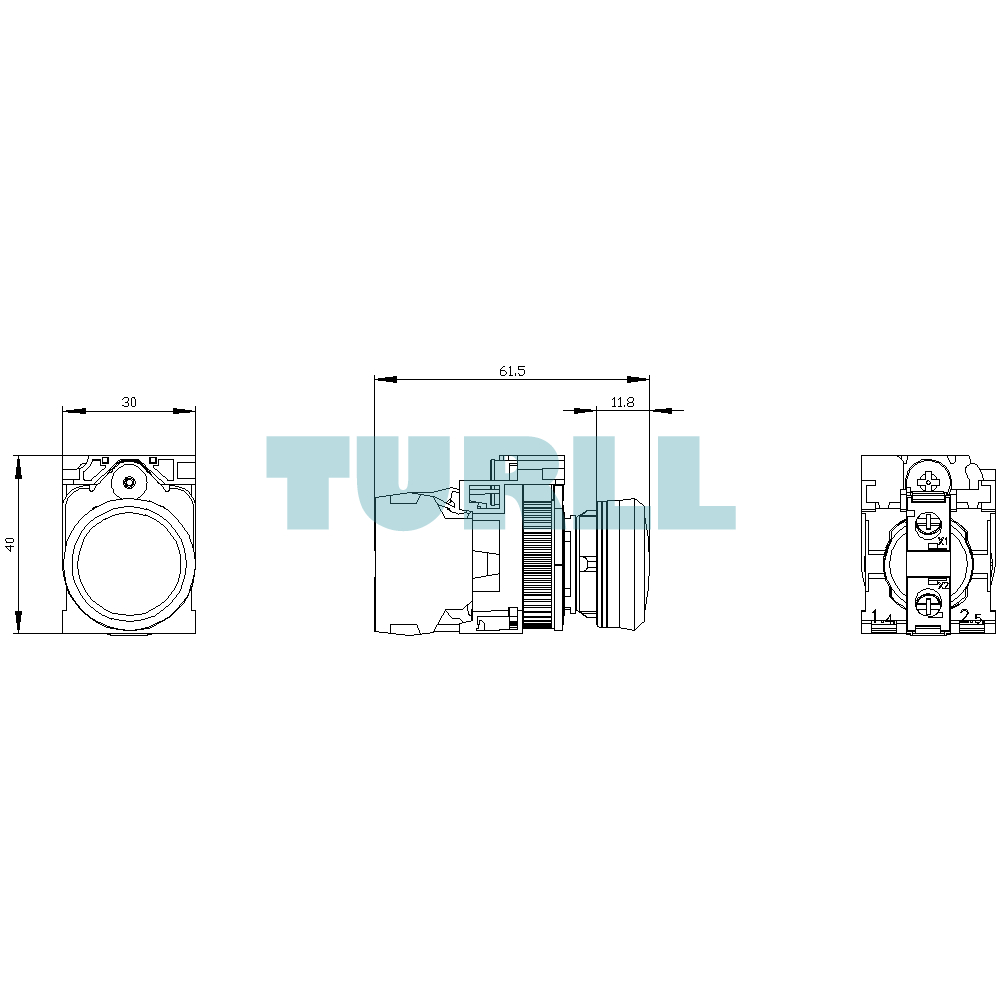

mounting diameter22.3 mm
positive tolerance of installation diameter0.4 mm
mounting height11.8 mm
installation width29.5 mm
installation depth49.7 mm
last modified:10/27/2021
Weight0.082 kg
