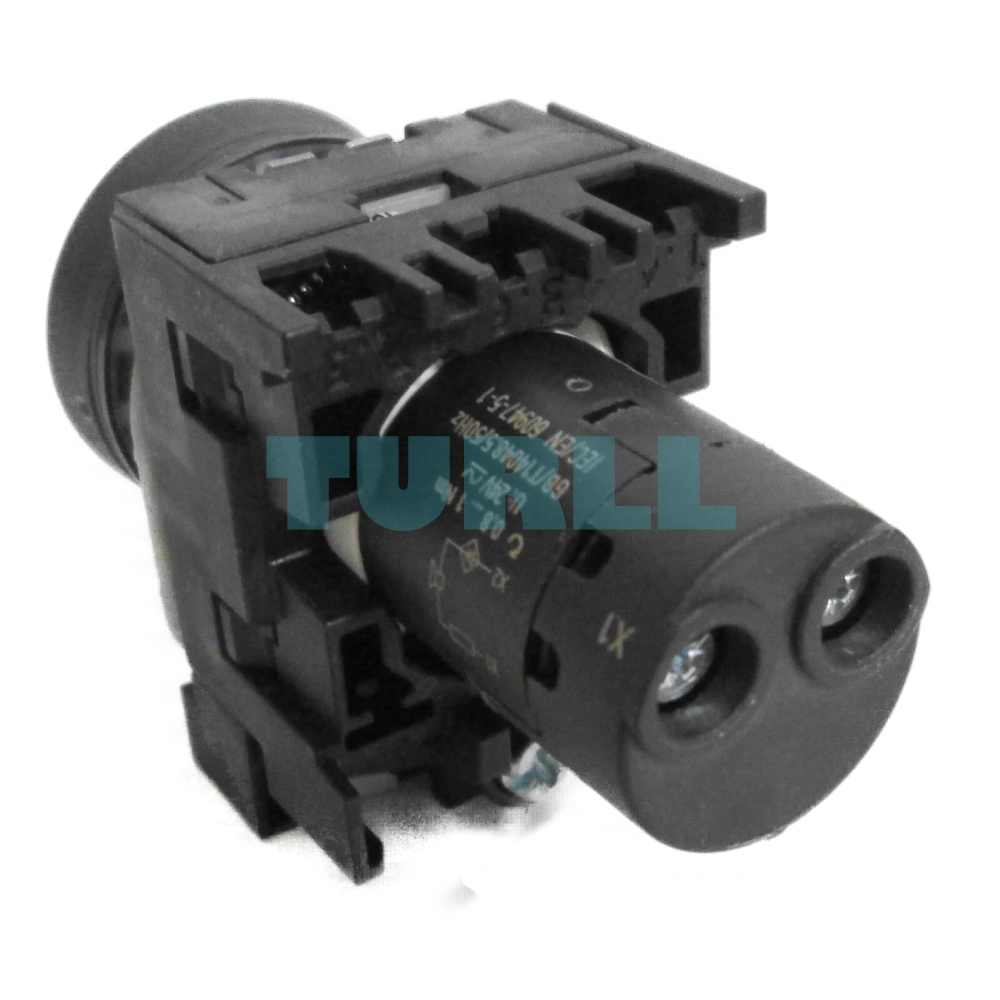

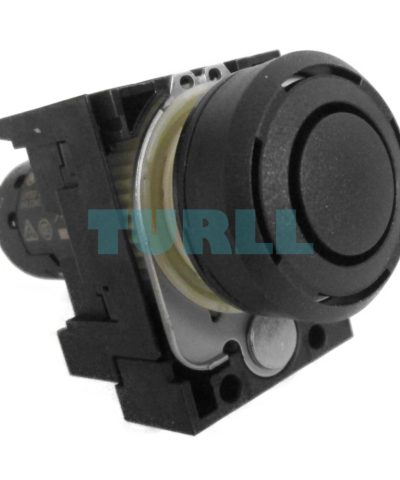

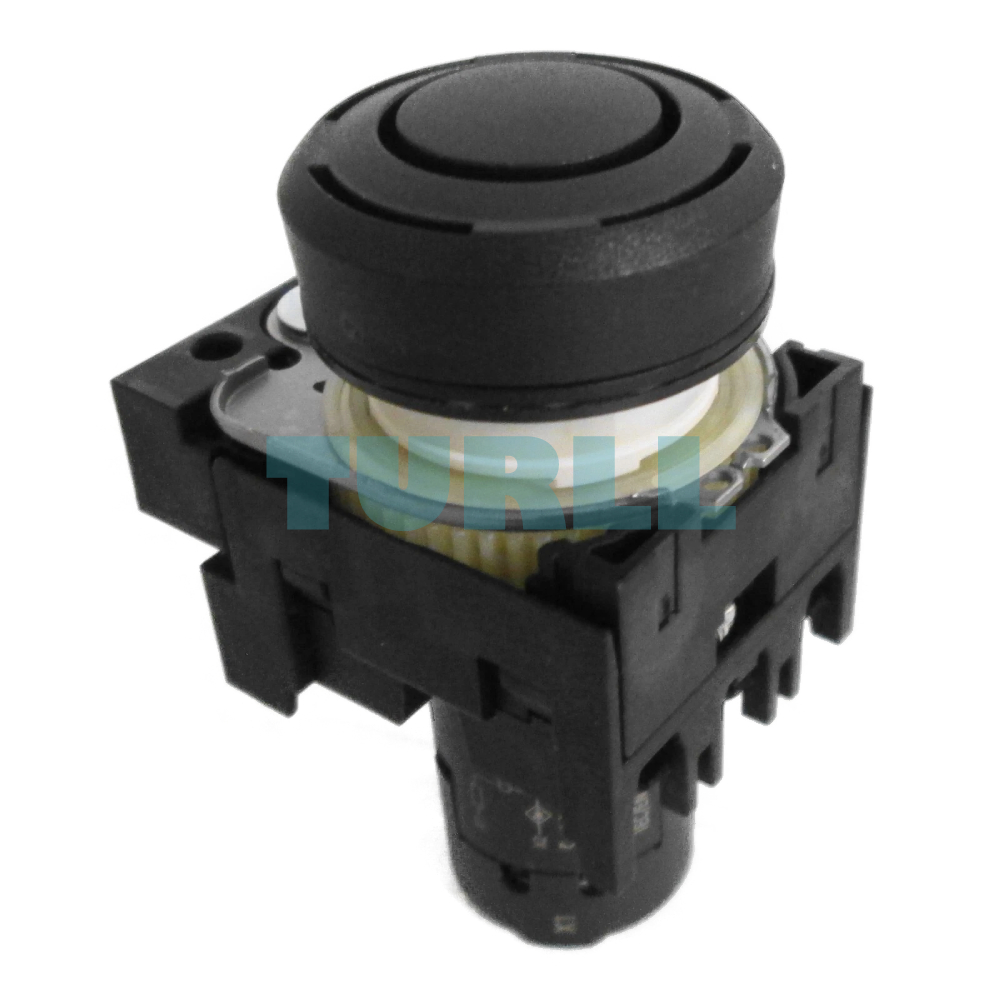

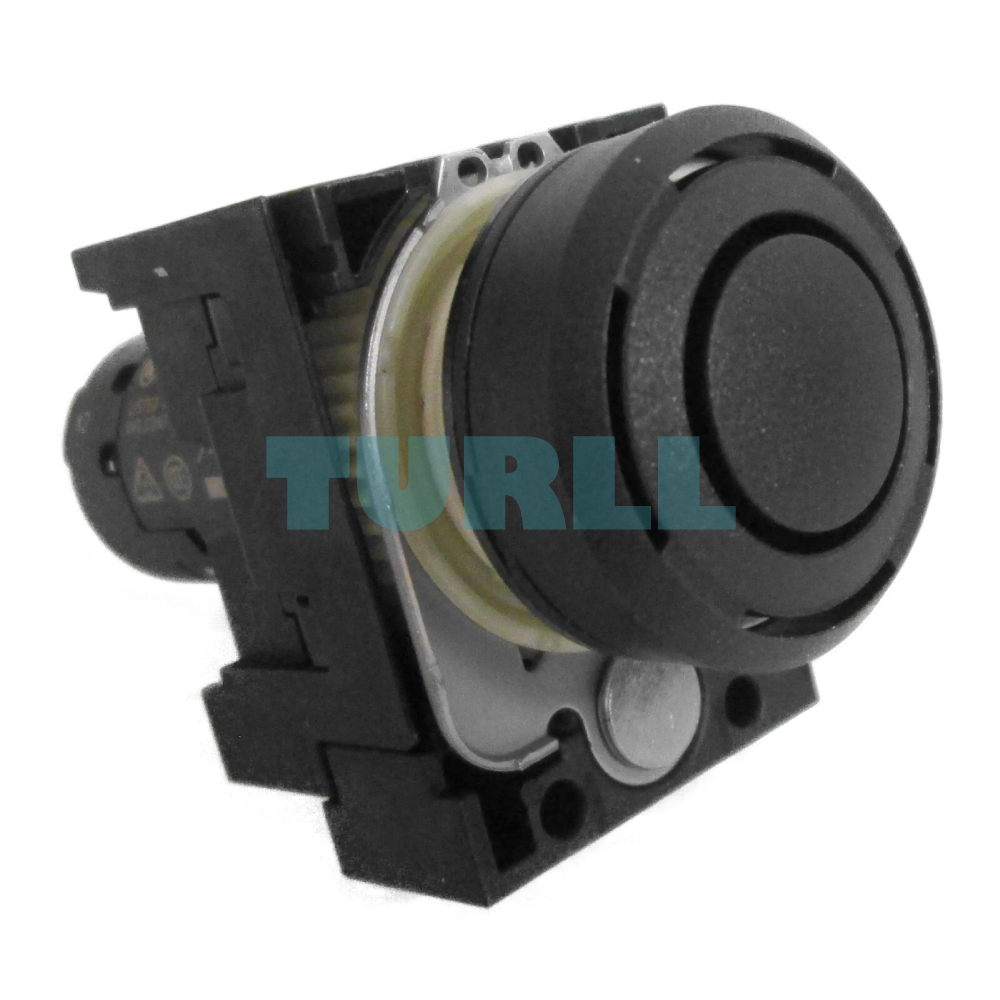

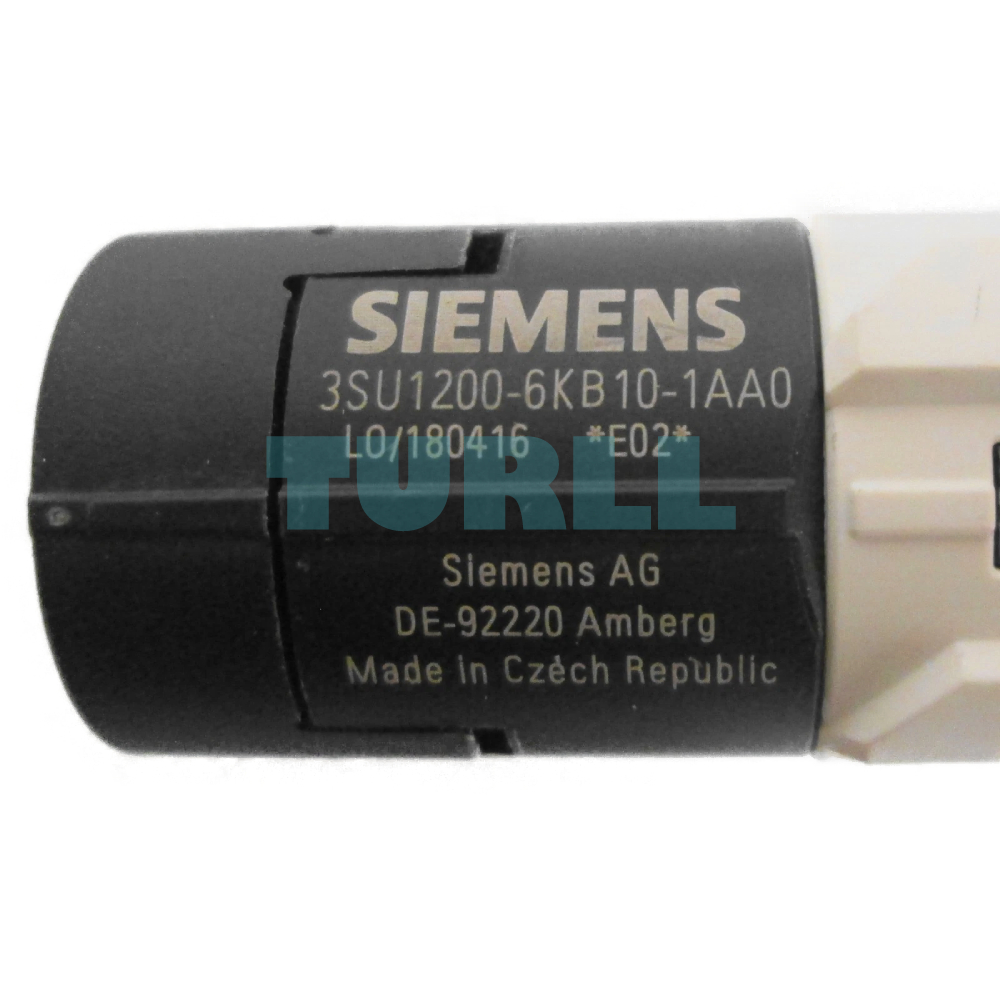

Siemens 3SU1200-6KB10-1AA0 Acoustic Signal Device, 22 mm, 24 V AC/DC, 80 dB, Black Original Brand New
$31.24
A compact, 22mm round acoustic signal device in black plastic, featuring a 2.4 kHz continuous tone and 80 dB sound pressure. Includes holder and screw terminals.
Availability: In stock
Overview
The Siemens 3SU1200-6KB10-1AA0 is a compact and reliable acoustic signal device designed for industrial control and signaling applications. Featuring a 22 mm round design, continuous 2.4 kHz tone, and a minimum sound pressure of 80 dB, this device ensures clear and effective audible alerts in control panels and machinery environments. Its robust plastic housing and simple screw terminal connection make it ideal for long-term industrial use.
Benefit
-
Clear Audible Signaling: Continuous 2.4 kHz tone ensures effective sound alerts
-
Compact 22 mm Design: Saves panel space and integrates easily into standard installations
-
Reliable Performance: Minimum sound pressure of 80 dB at 10 cm
-
Flexible Power Supply: Supports 24 V AC/DC operation
-
Easy Installation: Screw terminal connection with included holder
-
Durable Construction: Plastic housing with IP40 protection rating
Function
-
Provides continuous audible alerts in control panels
-
Enhances operational safety through sound signaling
-
Suitable for automation systems, machinery, and industrial control environments
-
Designed for panel mounting with 22 mm standard cutout
Technical Specification
-
Product Number: 3SU1200-6KB10-1AA0
-
Brand: Siemens
-
Device Type: Acoustic Signal Device
-
Mounting Size: 22 mm
-
Shape: Round
-
Material: Plastic
-
Color: Black
-
Sound Type: Continuous tone
-
Frequency: 2.4 kHz
-
Sound Pressure: Min. 80 dB / 10 cm
-
Protection Rating: IP40
-
Operating Voltage: 24 V AC/DC
-
Connection Type: Screw terminal
-
Accessories Included: Holder
Visit 3SU1200-6KB10-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.049 kg |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Acoustic signaling device |
| design of the product | Compact unit |
| product type designation | 3SU1 |
| product line | Plastic, black, 22 mm |
| manufacturer's article number of the supplied holder | 3SU1550-0AA10-0AA0 |
| number of command points | 1 |
| color of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.5 mm |
| product component front ring | No |
| material of the holder | Plastic |
| loudness level at 10 cm distance | 80 dB |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 kV |
| consumed current at rated value of operating voltage maximum | 28 mA |
| protection class IP | IP40 |
| ● of the terminal | IP20, clamping screw tightened |
| degree of protection NEMA rating | 1 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| reference code acc. to IEC 81346-2 | P |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| type of voltage of the supply voltage of the acoustic signal element | AC/DC |
| supply voltage at AC | – |
| ● at 50 Hz rated value | 24 V |
| ● at 60 Hz rated value | 24 V |
| supply voltage at DC rated value | 24 V |
| inrush current maximum | 2 A |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque of the screws in the bracket | 1 … 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 … 1 N·m |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |

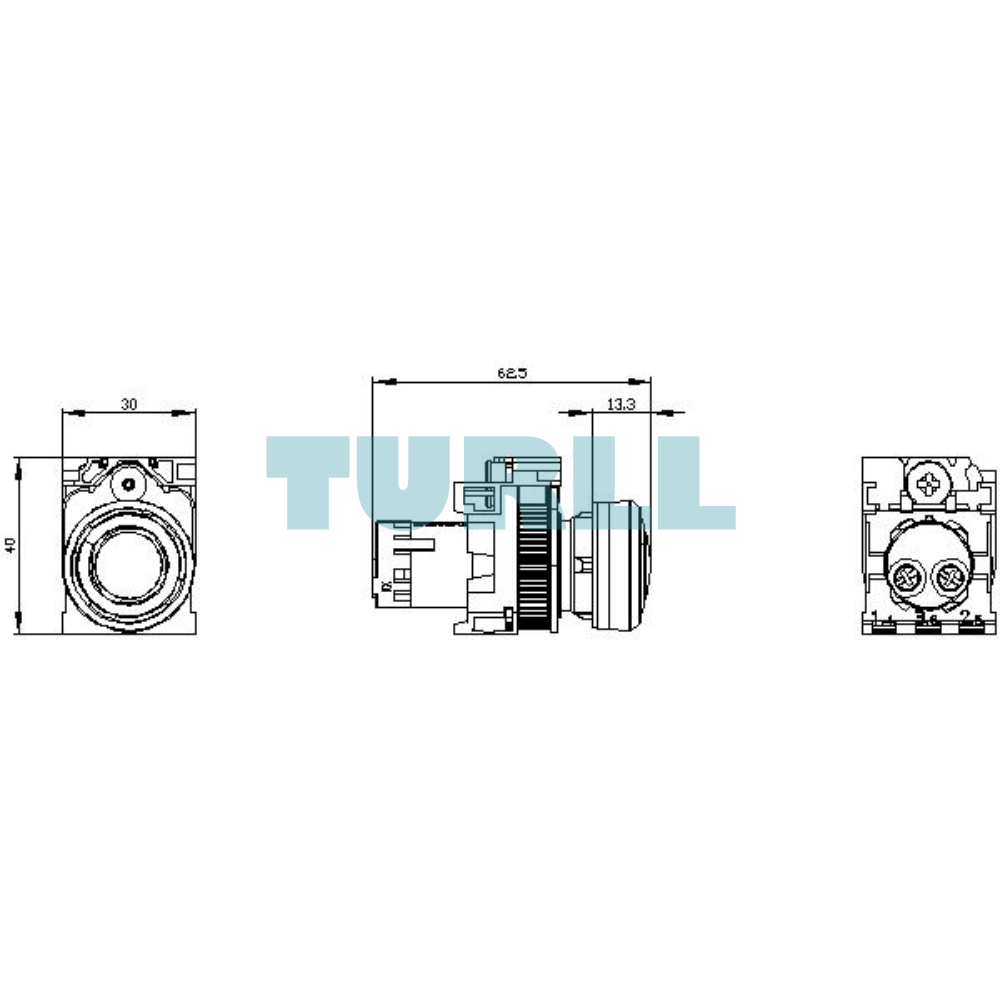

| fastening method | front panel mounting |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11.4 mm |
| installation width | 29.5 mm |
| installation depth | 49.6 mm |
| Test Certificates | other |
| Special Test Certificate | Confirmation |
| last modified: | 9/30/2021 |
