3SU1200-6KF10-1AA0

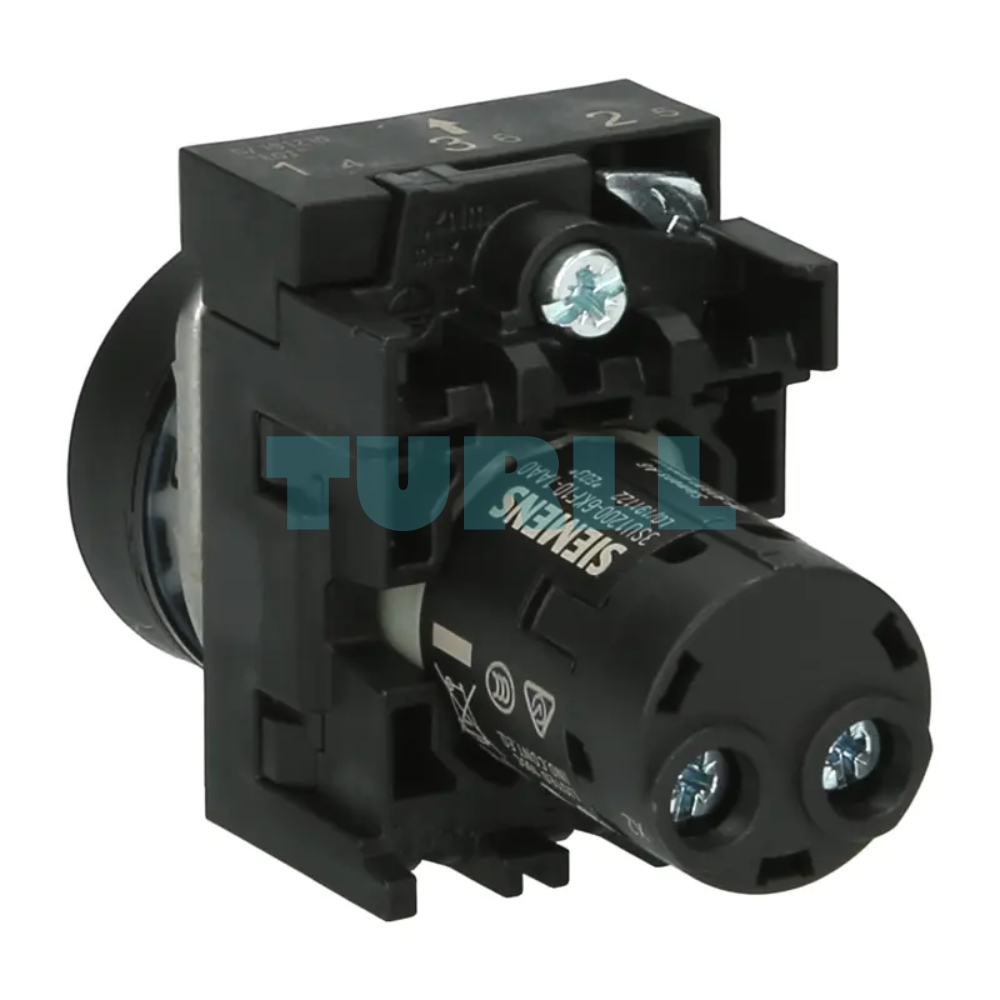

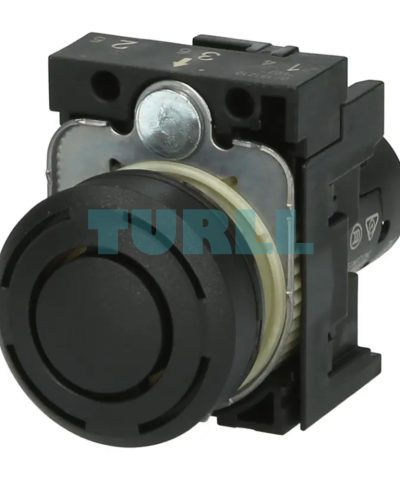

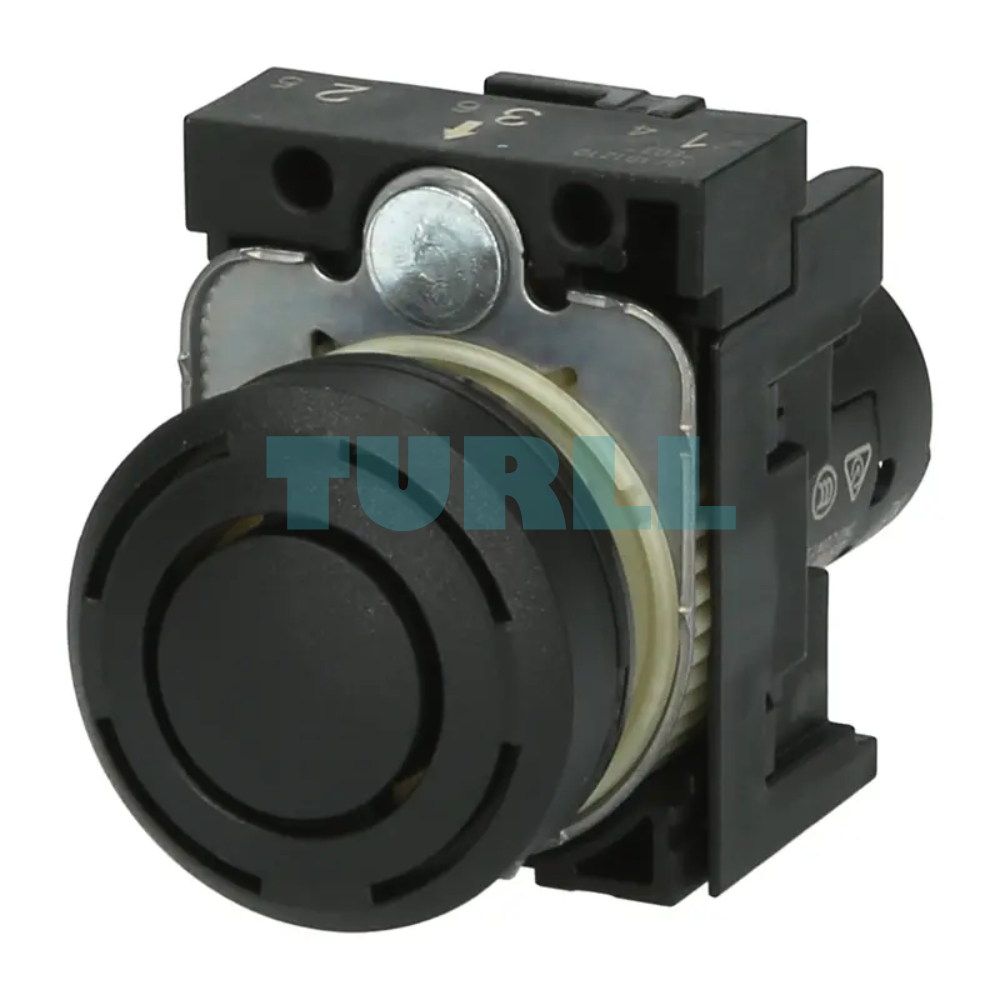

Siemens 3SU1200-6KF10-1AA0 Acoustic Signal Device, Compact 22mm, 230V AC, IP40, 80dB Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1200-6KF10-1AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Acoustic signaling device |
| design of the product | Compact unit |
| product type designation | 3SU1 |
| product line | Plastic, black, 22 mm |

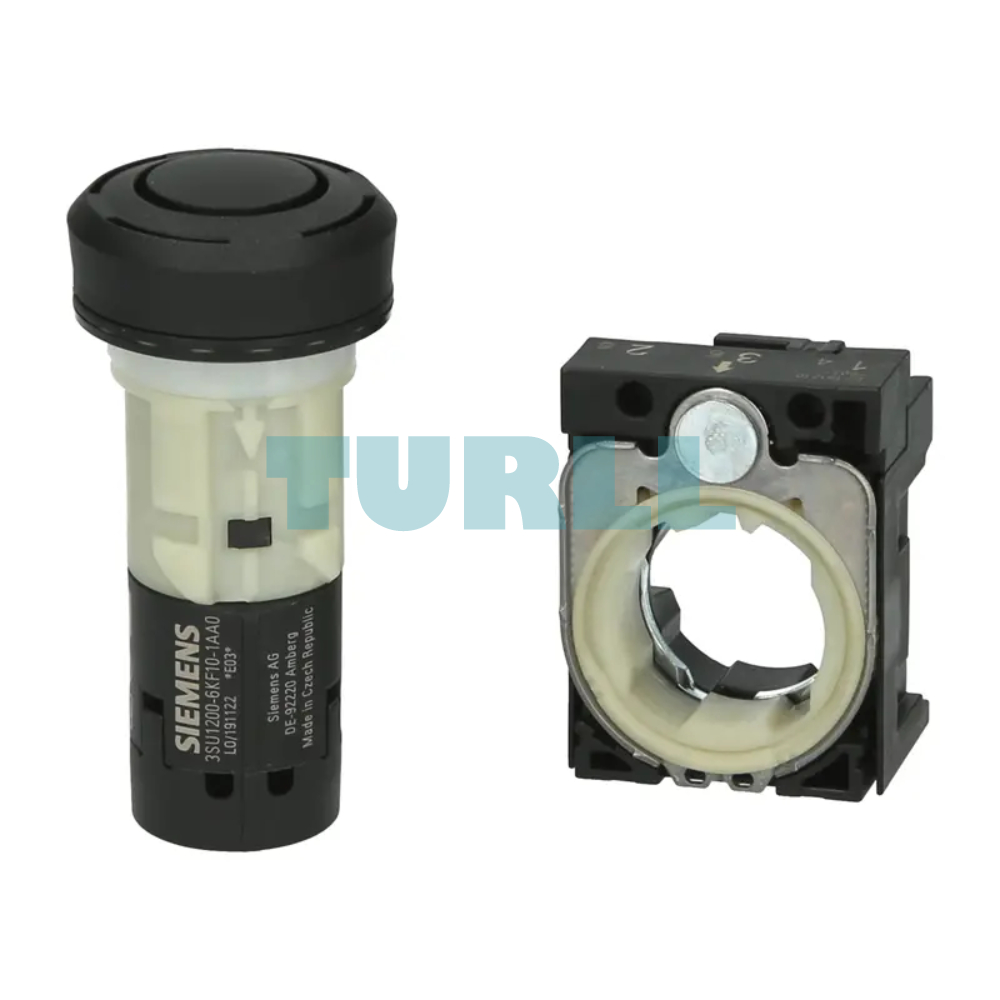

| manufacturer's article number of the supplied holder | 3SU1550-0AA10-0AA0 |
| number of command points | 1 |
| color of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.5 mm |
| product component front ring | No |
| material of the holder | Plastic |
| loudness level at 10 cm distance | 80 dB |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 kV |
| consumed current at rated value of operating voltage maximum | 28 mA |
| protection class IP | IP40 |
| ● of the terminal | IP20, clamping screw tightened |
| degree of protection NEMA rating | 1 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| reference code acc. to IEC 81346-2 | P |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| type of voltage of the supply voltage of the acoustic signal element | AC |
| supply voltage at AC | - |
| ● at 50 Hz rated value | 230 V |
| ● at 60 Hz rated value | 230 V |
| inrush current maximum | 3 A |

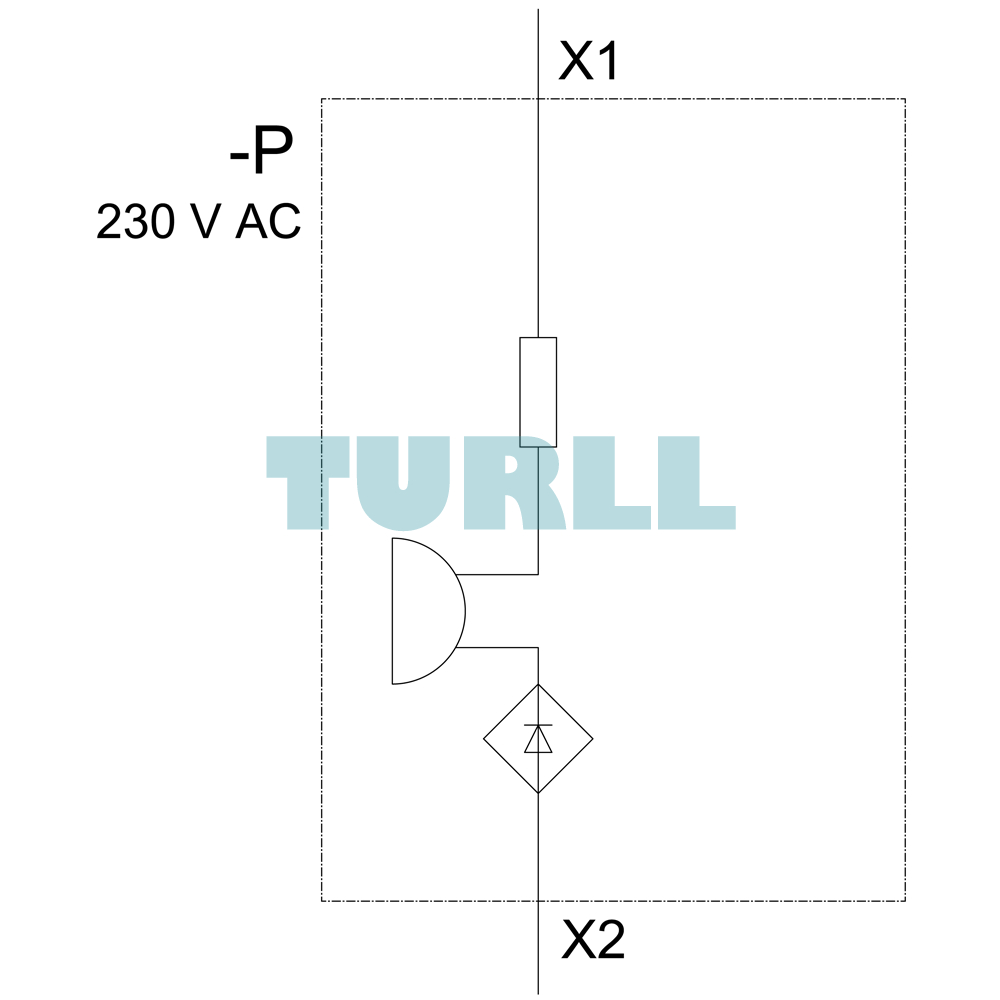

| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | - |
| ● solid with core end processing | 2x (0.5 ... 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 ... 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 ... 1,5 mm²) |
| ● at AWG cables | 2x (18 ... 14) |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 ... 1 N·m |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method | front panel mounting |
| shape of the installation opening | round |

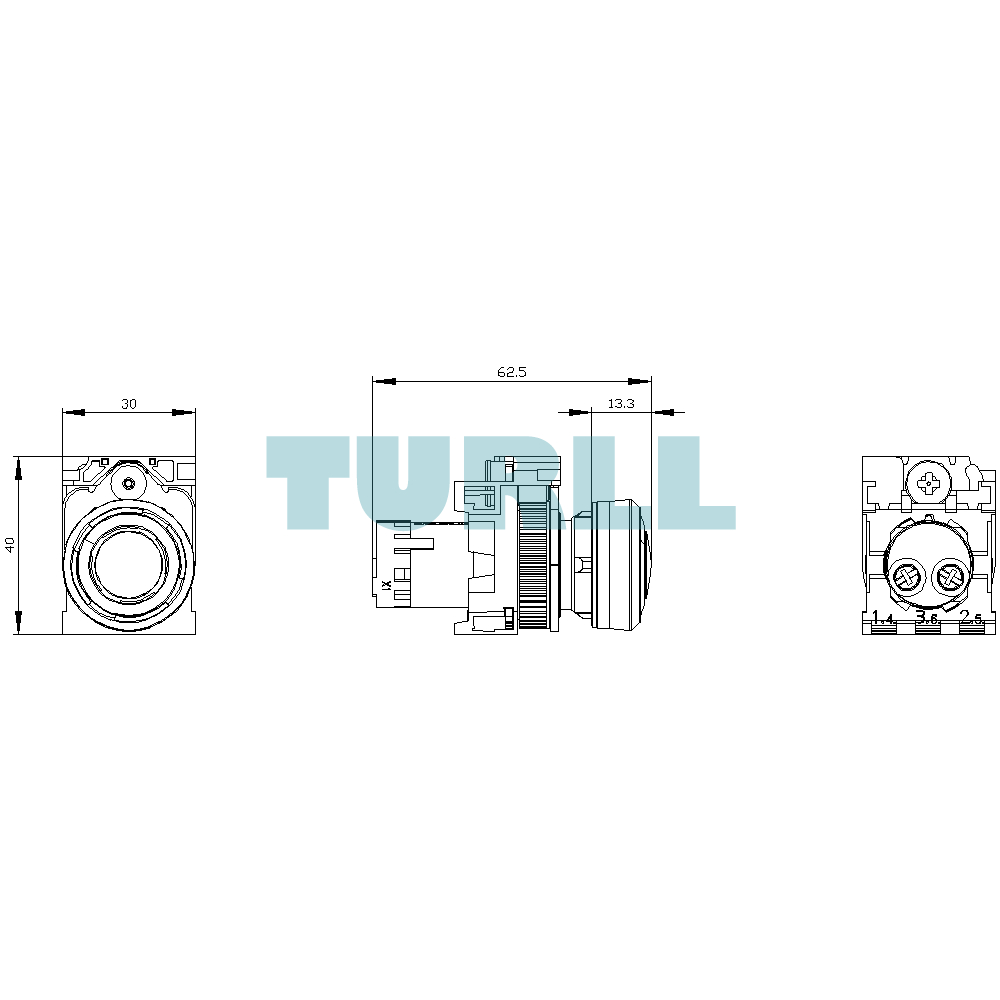

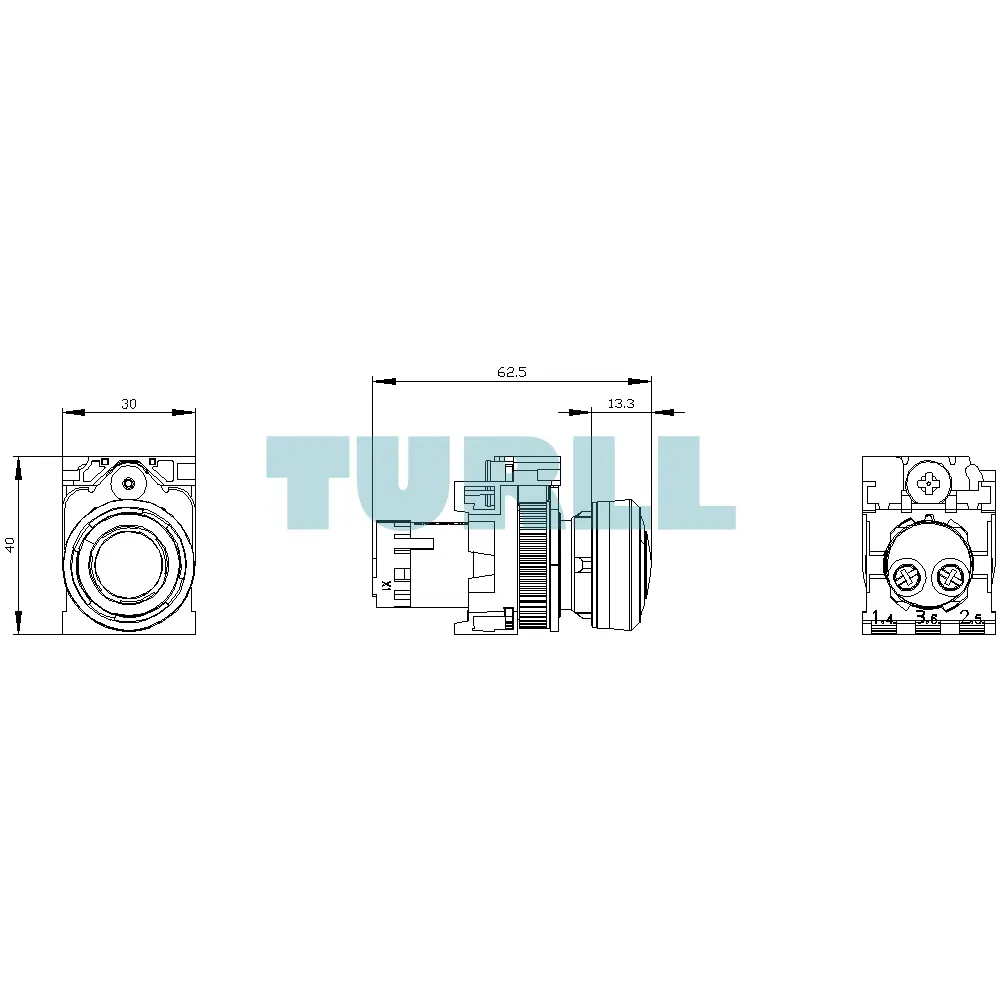

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11.4 mm |
| installation width | 29.5 mm |
| installation depth | 49.6 mm |
| last modified: | 9/30/2021 |
| Weight for shipping | 0.001 kg |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens 3SU1200-6KF10-1AA0 Acoustic Signal Device is a high-quality signaling solution designed for industrial and commercial applications. Compact yet powerful, it offers reliable audible alerts in control panels, machinery, and automation systems. Its durable black plastic construction and round 22 mm design make it both visually unobtrusive and highly functional.
Key Benefit
-
Enhanced Safety: Provides immediate, clear acoustic signaling of operational status, warnings, or faults, improving operator response time.
-
Reliable Performance: Fixed 2.4 kHz continuous tone and 80 dB output guarantee consistent, noticeable alerts in noisy industrial settings.
-
Easy Integration: Standard 22 mm mounting and included holder simplify panel integration and reduce installation time.
-
Durable Design: Constructed from high-quality plastic, offering a cost-effective yet durable signaling solution with IP40 protection.
-
Standardized Solution: Part of the widely adopted Siemens SIRIUS ACT line, ensuring compatibility and ease of maintenance.
Functions & Features
-
Type: Acoustic signal device
-
Size: 22 mm, round
-
Housing Material: Plastic, black
-
Sound Output: Continuous tone, 2.4 kHz
-
Sound Pressure Level: Minimum 80 dB at 10 cm
-
Protection Rating: IP40
-
Installation: With holder, screw terminal
-
Operating Voltage: 230 V AC
-
Ideal For: Control panels, machinery alarms, safety signaling
