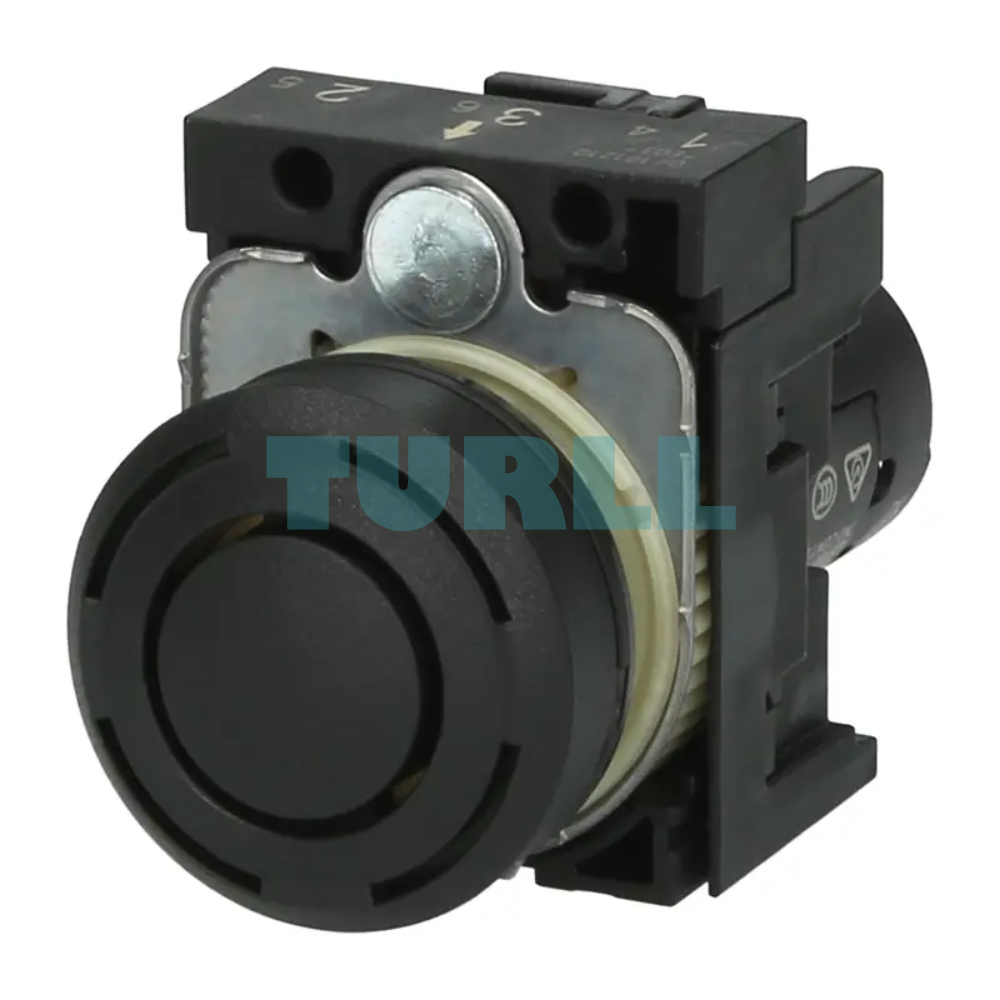

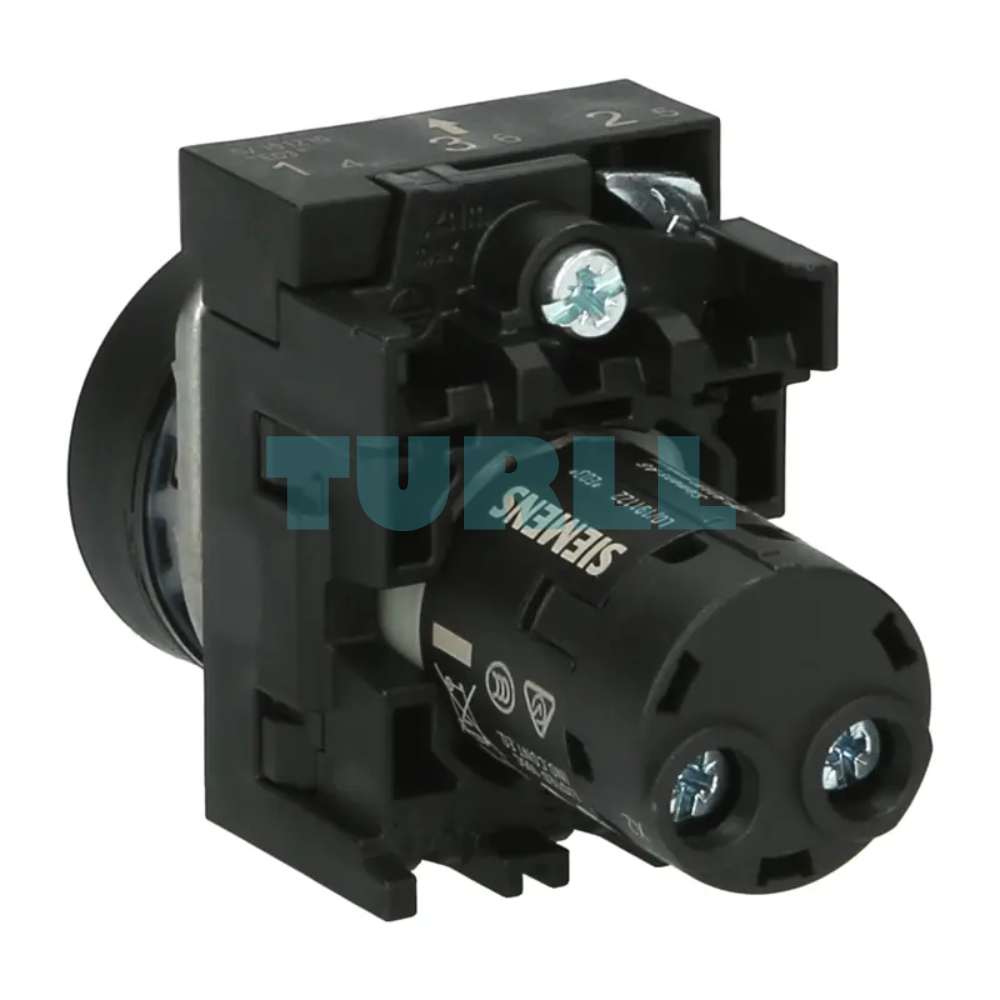

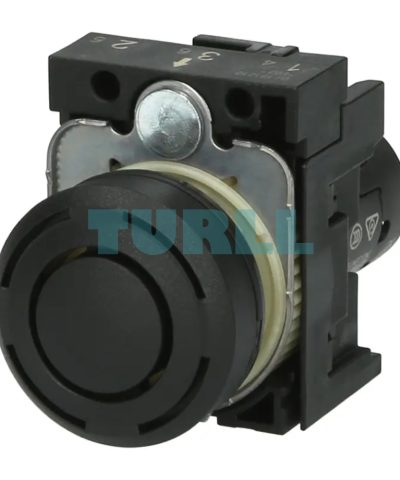

Siemens 3SU1200-6LB10-1AA0 Acoustic Signal Device, Compact 22mm, IP69, 24V AC/DC Original Brand New
$54.89
A compact, high-durability acoustic signal device from the Siemens SIRIUS ACT series. Features a 22mm round plastic design, 4.5 kHz continuous tone, and IP69 protection. Complete with holder and screw terminals for 24V AC/DC operation.
Availability: In stock
Overview
The Siemens 3SU1200-6LB10-1AA0 is a compact acoustic signal device designed for industrial applications requiring reliable and clear audible alerts. Its robust design ensures durability in demanding environments, while its high-quality plastic construction and 22mm round profile make installation simple and efficient.
Key Benefit
-
Compact and Durable: Small 22 mm size with sturdy black plastic housing for easy integration into control panels.
-
High-Performance Sound: Continuous tone at 4.5 kHz with sound pressure of 75 ±10% dB at 10 cm ensures audible alerts even in noisy environments.
-
Reliable Protection: IP69 rating makes it highly resistant to dust and water, suitable for harsh industrial conditions.
-
Easy Installation: Comes with a holder and screw terminals for quick and secure mounting.
-
Versatile Voltage Compatibility: Operates efficiently at 24 V AC/DC for flexible application.
Function
The Siemens 3SU1200-6LB10-1AA0 serves as a dependable acoustic signal device for alerting personnel to system status, alarms, or process notifications. Its continuous tone ensures clear recognition in operational areas, while its compact design allows seamless integration into existing control panels and machinery.
Specification
-
Product Type: Acoustic signal device
-
Shape & Size: Round, 22 mm
-
Material: Black plastic
-
Sound Type: Continuous tone, 4.5 kHz
-
Sound Pressure: 75 ±10% dB at 10 cm
-
Ingress Protection: IP69
-
Mounting: Holder included
-
Operating Voltage: 24 V AC/DC
-
Connection: Screw terminal
Visit 3SU1200-6LB10-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.048 kg |
|---|---|
| Dimensions | 40.00 × 100.00 × 40.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Acoustic signaling device |
| design of the product | Compact unit |
| product type designation | 3SU1 |
| product line | Plastic, black, 22 mm |

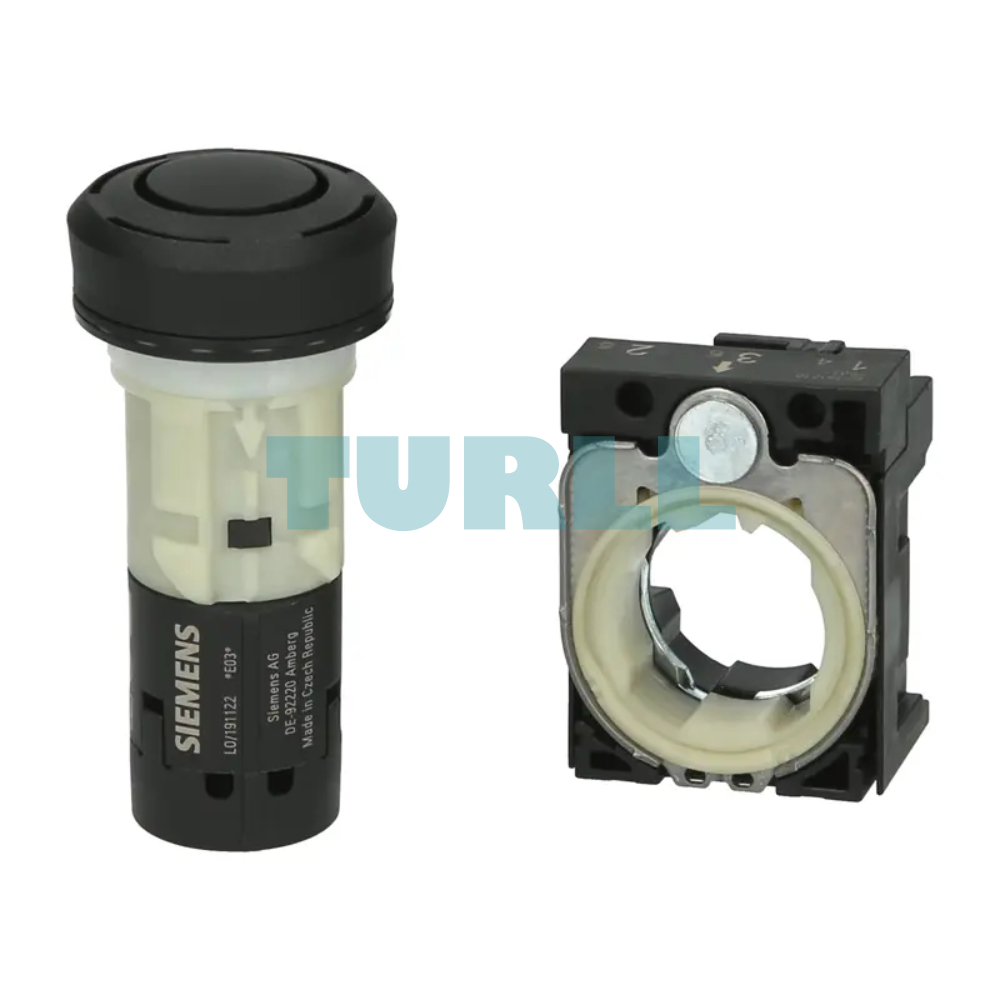

| manufacturer's article number of the supplied holder | 3SU1550-0AA10-0AA0 |
| number of command points | 1 |
| color of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.5 mm |
| product component front ring | No |
| material of the holder | Plastic |
| loudness level at 10 cm distance | 75 dB |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 kV |
| consumed current at rated value of operating voltage maximum | 28 mA |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20, clamping screw tightened |
| degree of protection NEMA rating | 1 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| reference code acc. to IEC 81346-2 | P |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| type of voltage of the supply voltage of the acoustic signal element | AC/DC |
| supply voltage at AC | – |
| ● at 50 Hz rated value | 24 V |
| ● at 60 Hz rated value | 24 V |
| supply voltage at DC rated value | 24 V |
| inrush current maximum | 2 A |

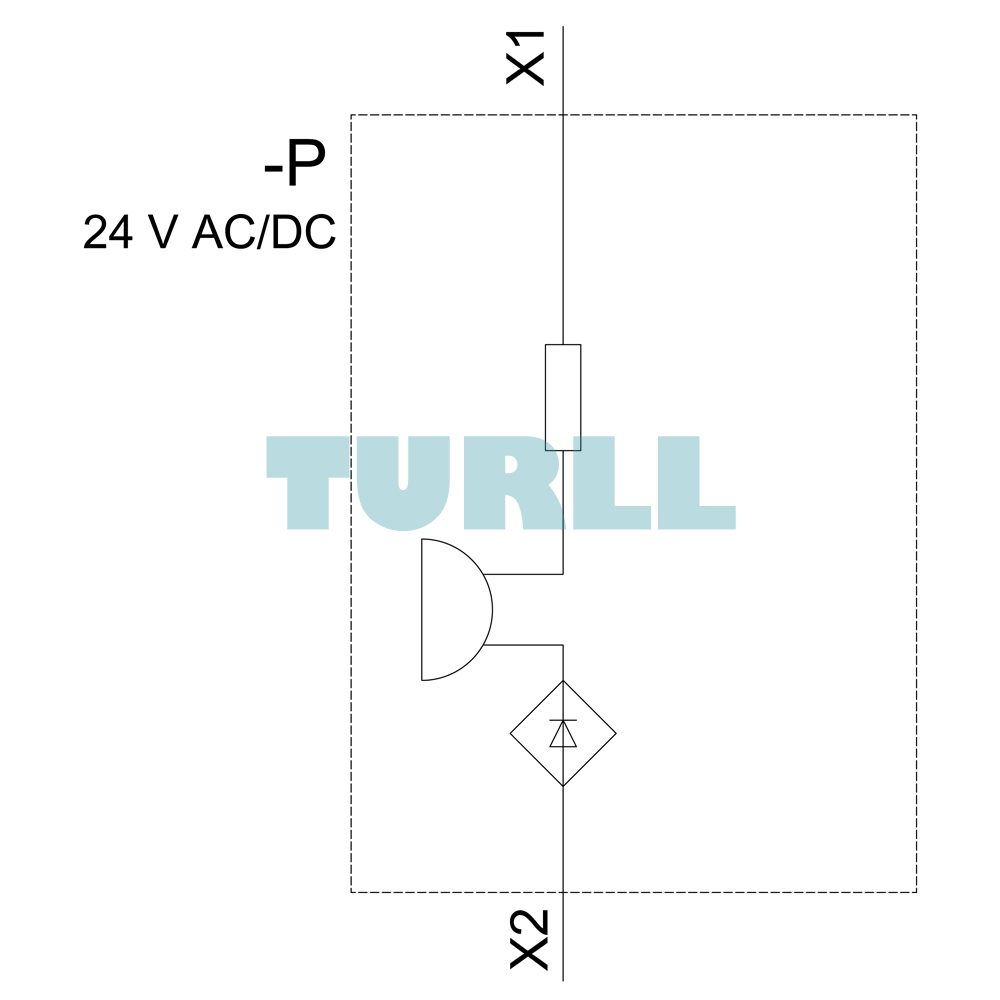

| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque of the screws in the bracket | 1 … 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 … 1 N·m |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method | front panel mounting |
| shape of the installation opening | round |

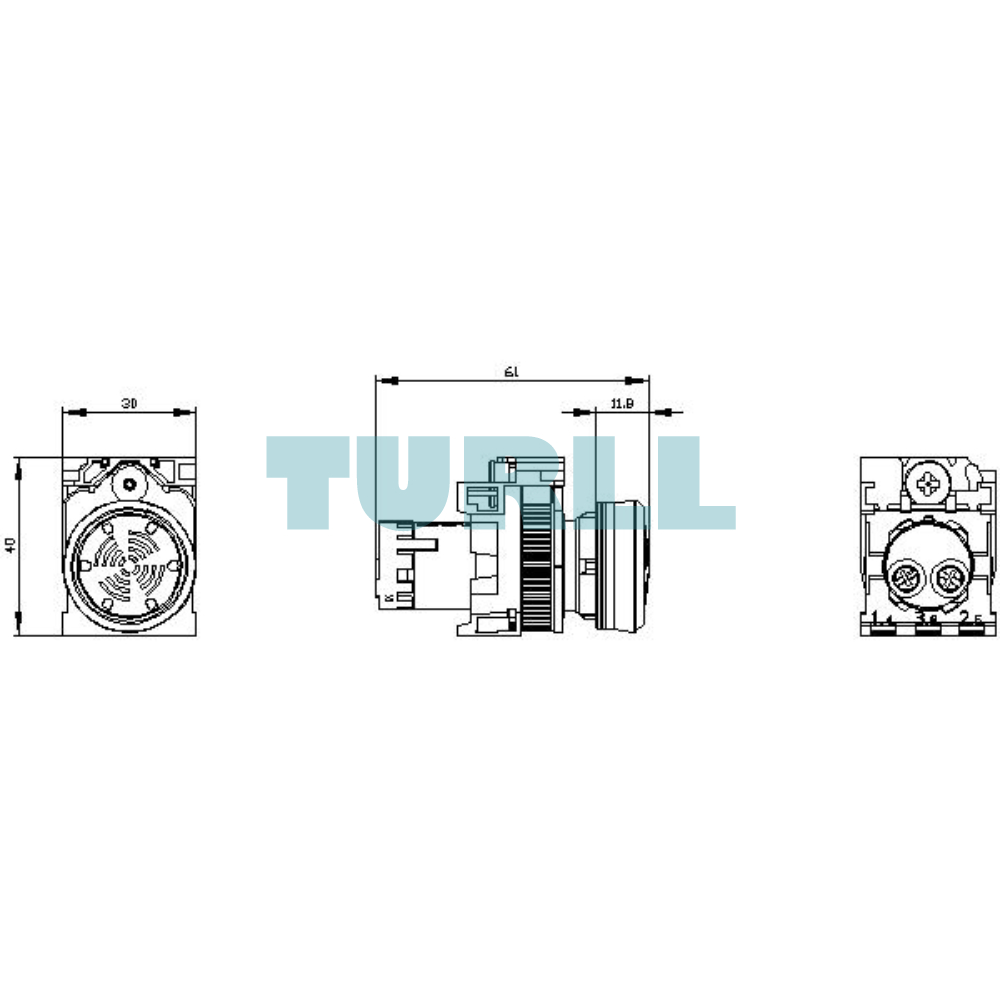

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11.4 mm |
| installation width | 29.5 mm |
| installation depth | 49.6 mm |
| last modified: | 9/30/2021 |
