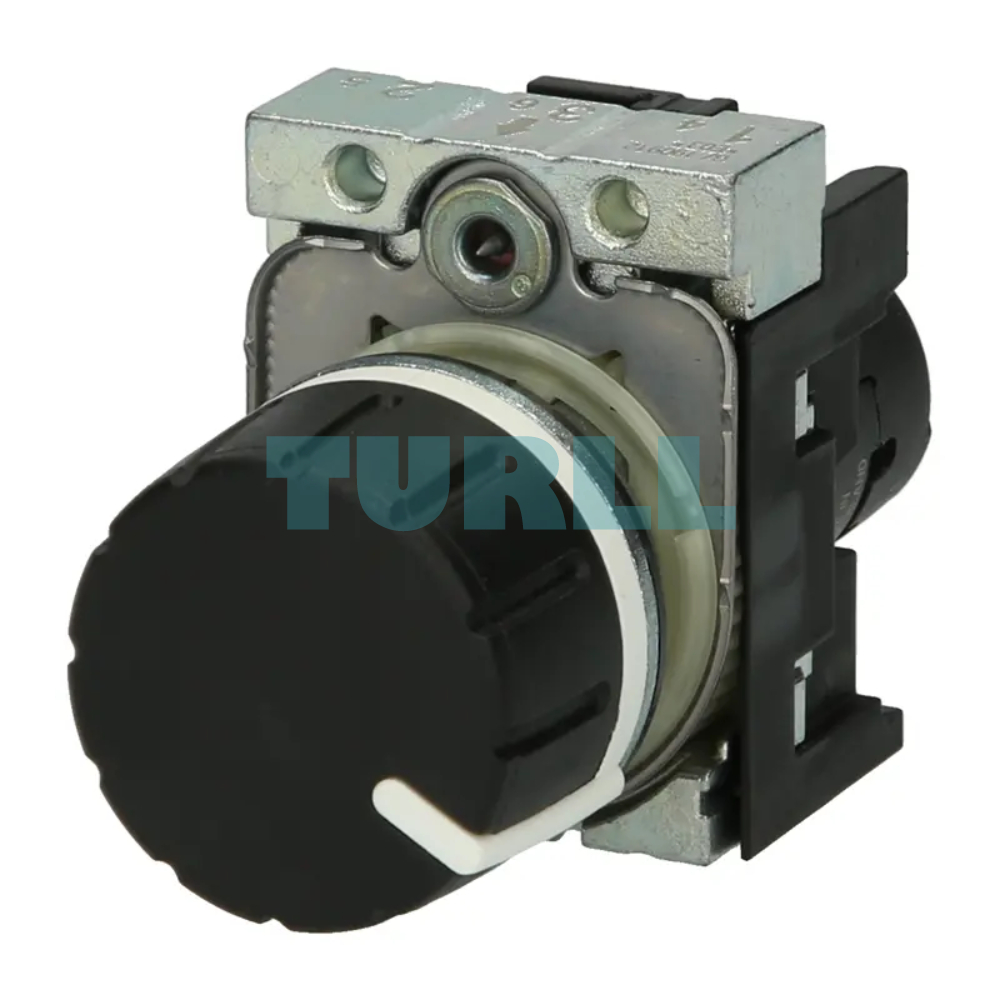

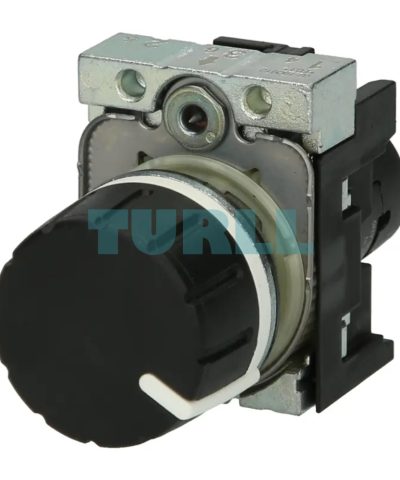

Siemens 3SU1250-2PQ10-1AA0 Metal Potentiometer, 22mm, 1k Ohm, Screw Terminal Holder Original Brand New
$46.53
The Siemens 3SU1250-2PQ10-1AA0 is a compact, 1k ohm potentiometer designed for the SIRIUS ACT series. Featuring a durable metal construction, 22mm round design, and integrated holder, it provides precise analog control for industrial automation environments.
Availability: In stock
Overview
The Siemens 3SU1250-2PQ10-1AA0 is a high-quality compact potentiometer designed for precise control in electrical and electronic applications. Featuring a durable 22 mm round metal design in sleek black, this potentiometer ensures reliability and longevity even in demanding industrial environments. Its 1k Ohm resistance provides versatile application options, while the included holder with screw terminals makes installation secure and straightforward.
Key Benefit
-
Rugged Durability: The metal front ring and high-quality finish ensure resistance to harsh environmental conditions.
-
Space-Saving Design: The compact integrated version includes the holder and screw terminals, simplifying installation in tight control panels.
-
Precision Control: Provides a linear 1k ohm resistance range for accurate adjustments of speed, temperature, or frequency.
-
Simple Integration: Fully compatible with the modular SIRIUS ACT system for seamless aesthetic and functional matching.
Function & Features
-
Type: Compact potentiometer
-
Mounting Diameter: 22 mm
-
Shape: Round
-
Material: Metal
-
Color: Black
-

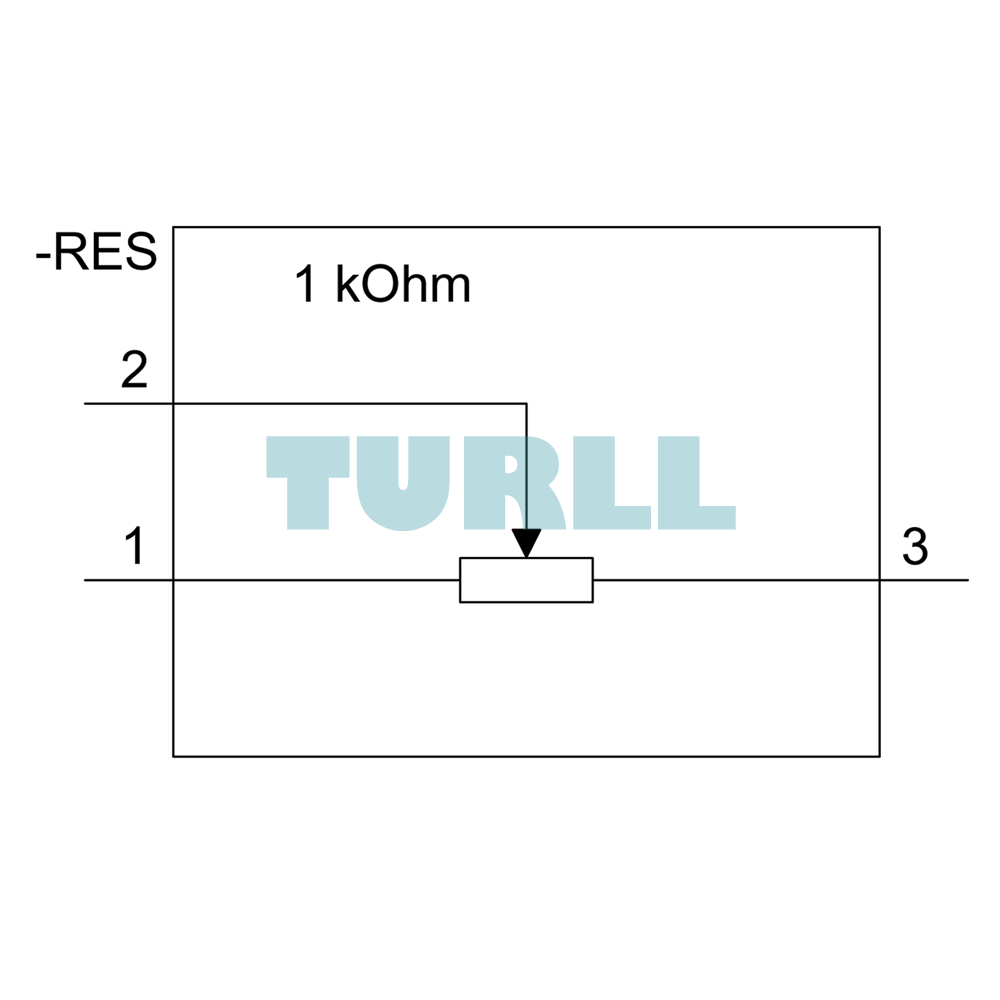

Resistance: 1k Ohm
-

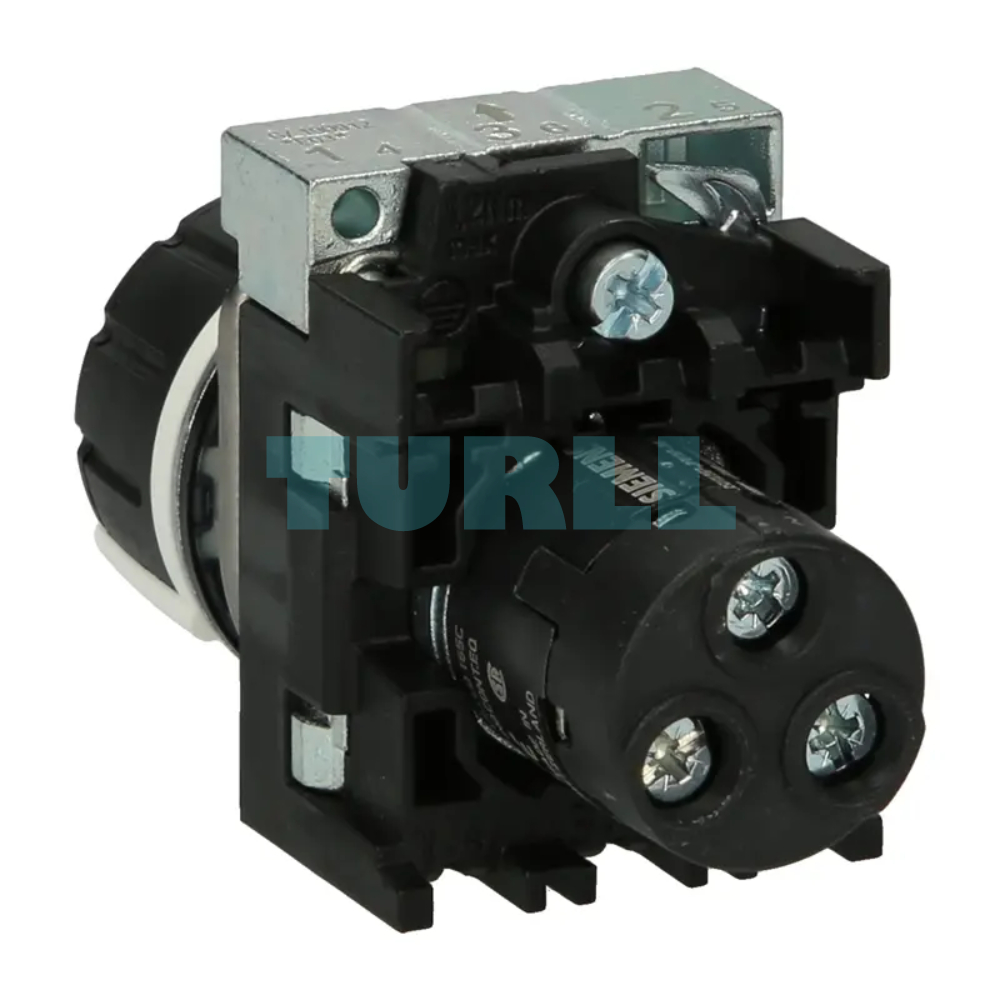

Terminal Type: Screw terminal
-

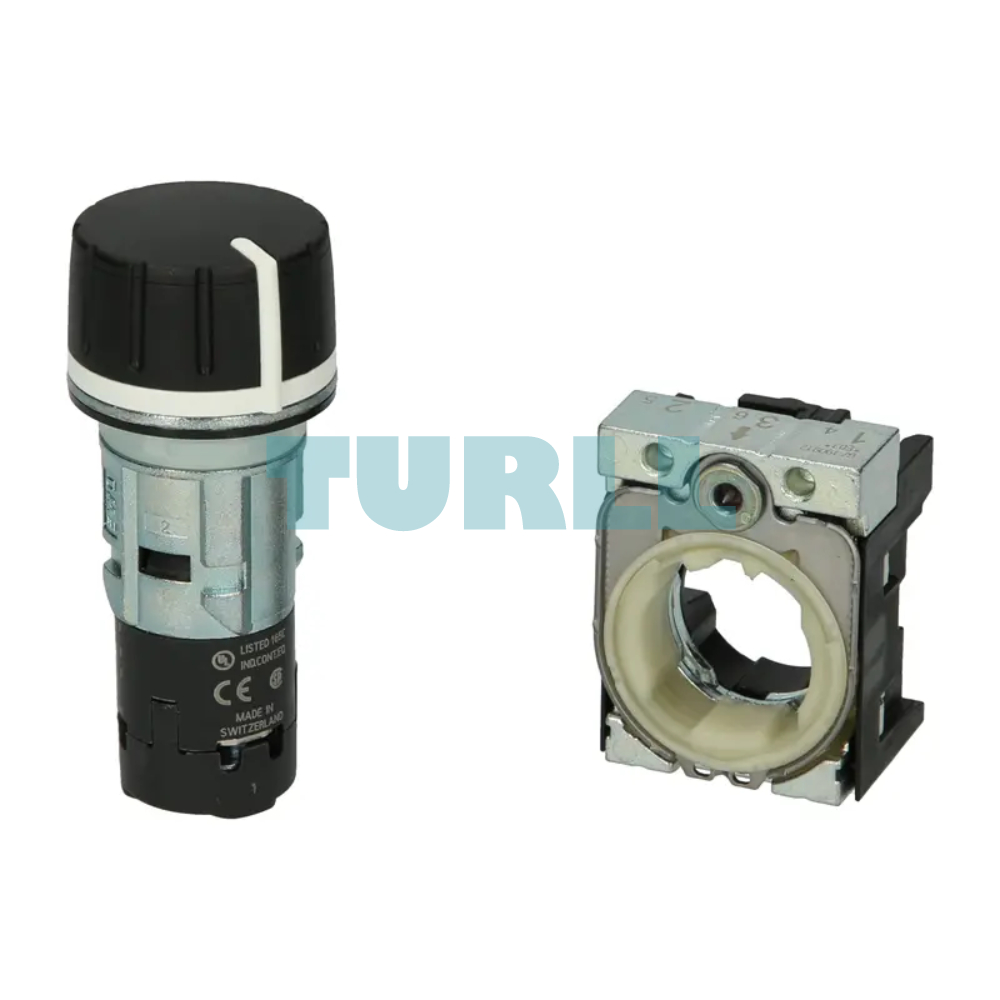

Includes: Potentiometer holder for secure installation
-
Applications: Ideal for industrial controls, electrical circuits, panel installations, and electronic devices
Visit 3SU1250-2PQ10-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.111 kg |
|---|---|
| Dimensions | 121.00 × 88.00 × 45.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Potentiometers |
| design of the product | Compact unit |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| manufacturer's article number of the supplied holder | 3SU1550-0AA10-0AA0 |
| number of command points | 1 |
| design of the actuating element | Rotary knob |
| principle of operation of the actuating element | Infinitely variable adjustment, angle of rotation 280° |
| color of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 30 mm |
| Maximum deflection angle [°] | 280° |
| product component front ring | No |
| material of the holder | Plastic |
| insulation voltage rated value | 500 V |
| degree of pollution | 3 |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20, clamping screw tightened |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| mechanical service life (switching cycles) typical | 25 000 |
| reference code acc. to IEC 81346-2 | S |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque of the screws in the bracket | 1 … 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 … 1 N·m |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |

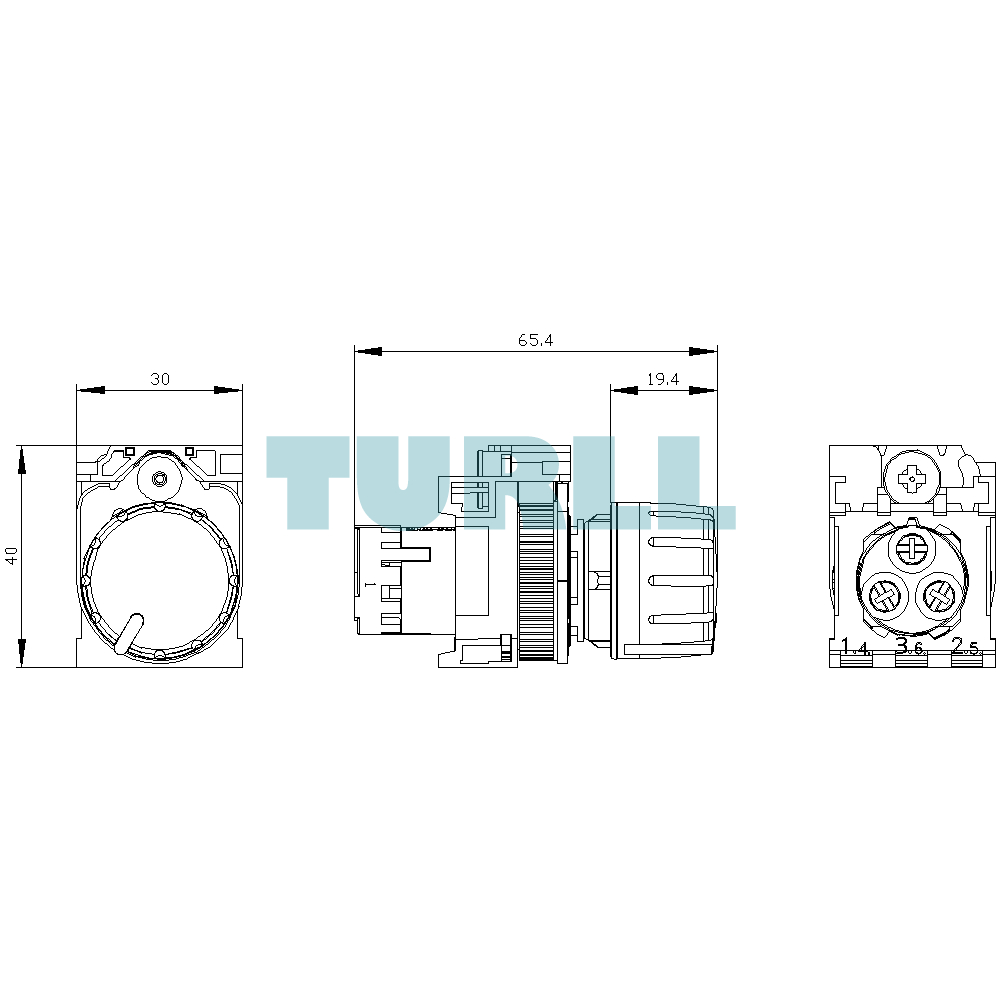

| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 19.4 mm |
| installation width | 30 mm |
| installation depth | 46 mm |
| last modified: | 10/1/2021 |
