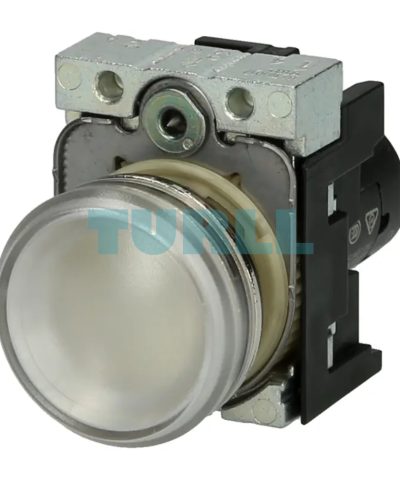

Siemens 3SU1251-6AG24-1AA0 LED Indicator Light, 22mm Metal Panel Mount, RGB, 6–24V AC/DC Original Brand New
$15.29
High-durability SIRIUS ACT indicator light featuring a compact 22mm metal design. Equipped with a versatile Red-Yellow-Green LED and smooth clear lens, it supports 6-24V AC/DC operation with secure screw terminal connections.
Availability: In stock
Overview
The Siemens 3SU1251-6AG24-1AA0 LED Indicator Light is a high-quality signaling device designed for industrial automation and control applications. Featuring a 22 mm round metal housing and a clear, smooth lens, this compact indicator provides reliable visual status indication using red, yellow, and green LED illumination. Its wide 6–24 V AC/DC operating voltage ensures flexible integration across various control systems.
Key Benefit
-
High visibility RGB LED for clear machine and system status indication
-
Durable metal housing for long service life in industrial environments
-
Compact 22 mm panel mount design saves control panel space
-
Wide voltage range (6–24 V AC/DC) for flexible applications
-
Reliable Siemens quality ensures consistent performance
Function
-
Provides visual status signaling in automation and electrical panels
-
Indicates operational states, warnings, or fault conditions
-
Supports multi-color LED indication (red, yellow, green) for easy recognition
-
Designed for simple installation using screw terminals
Technical Specification
-
Manufacturer: Siemens
-
Product Number: 3SU1251-6AG24-1AA0
-
Mounting Size: 22 mm
-
Shape: Round
-
Material: Metal
-
Lens Type: Clear, smooth
-
LED Colors: Red / Yellow / Green
-
Operating Voltage: 6–24 V AC/DC
-

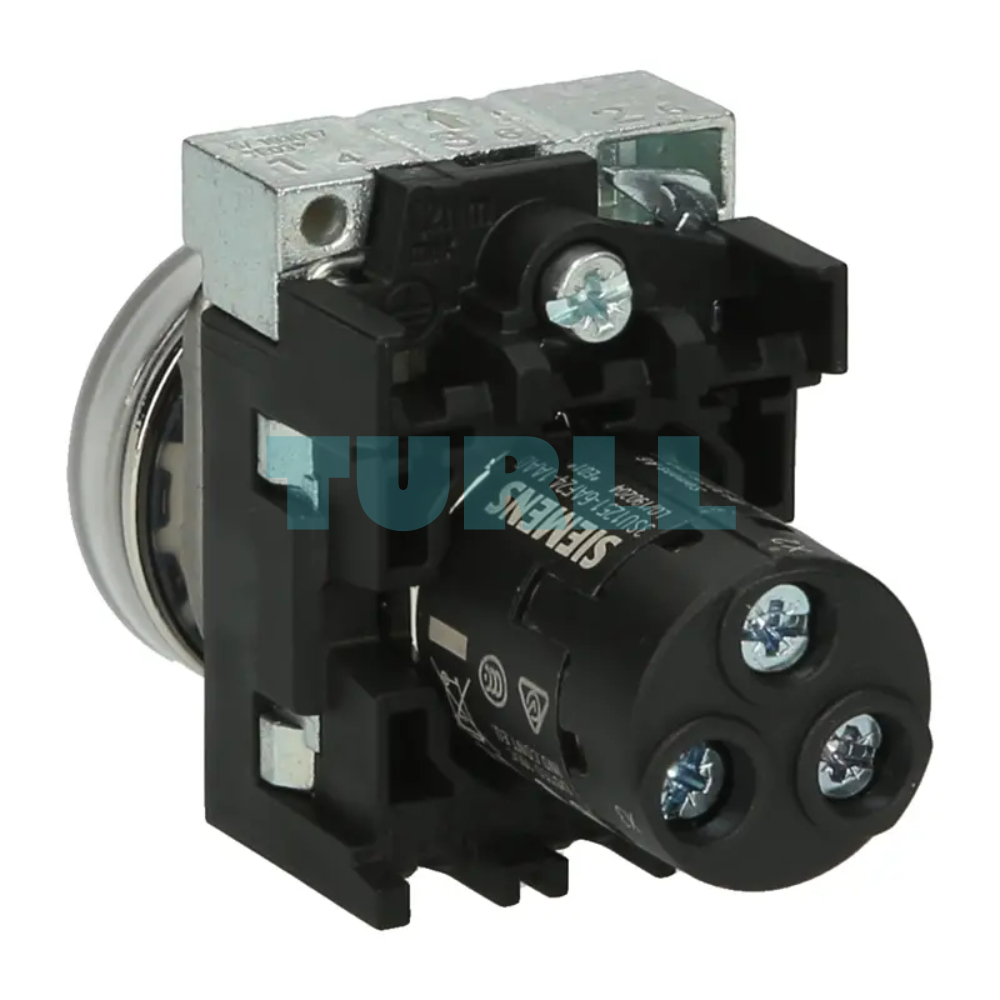

Connection Type: Screw terminal
-
Includes Holder: Yes
Visit 3SU1251-6AG24-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.085 kg |
|---|---|
| Dimensions | 98.00 × 150.00 × 32.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Indicator lights |
| design of the product | Compact unit |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| manufacturer's article number of the supplied holder | 3SU1550-0AA10-0AA0 |
| shape of the enclosure front | round |
| design of the actuating element | With "traffic light" LED |
| product extension optional light source | No |
| color | – |
| ● of the actuating element | clear |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.5 mm |
| product component front ring | No |
| material of the holder | Metal |
| product component light source | Yes |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 40 mA |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20, clamping screw tightened |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| type of voltage of the supply voltage of the light source | AC/DC |
| supply voltage of the light source at AC | – |
| ● at 50 Hz rated value | 12 V |
| ● at 60 Hz rated value | 12 V |
| supply voltage of the light source at DC | – |
| ● rated value | 12 V |
| relative negative tolerance of the supply voltage | 50 % |
| relative positive tolerance of the supply voltage | 200 % |
| inrush current maximum | 2 A |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque of the screws in the bracket | 1 … 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 … 1 N·m |
| type of light source | LED |

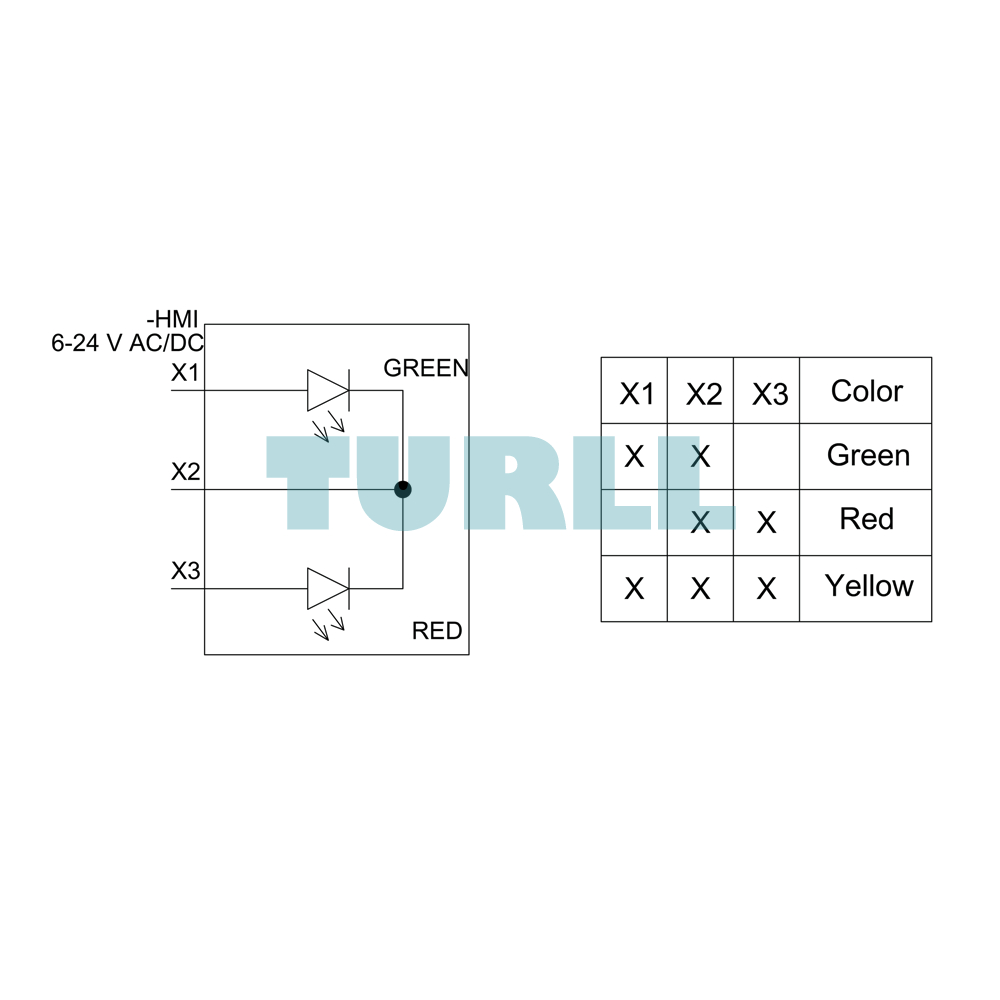

| color of the light source | red/yellow/ green |
| light intensity | 900 … 1 400 mcd |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |

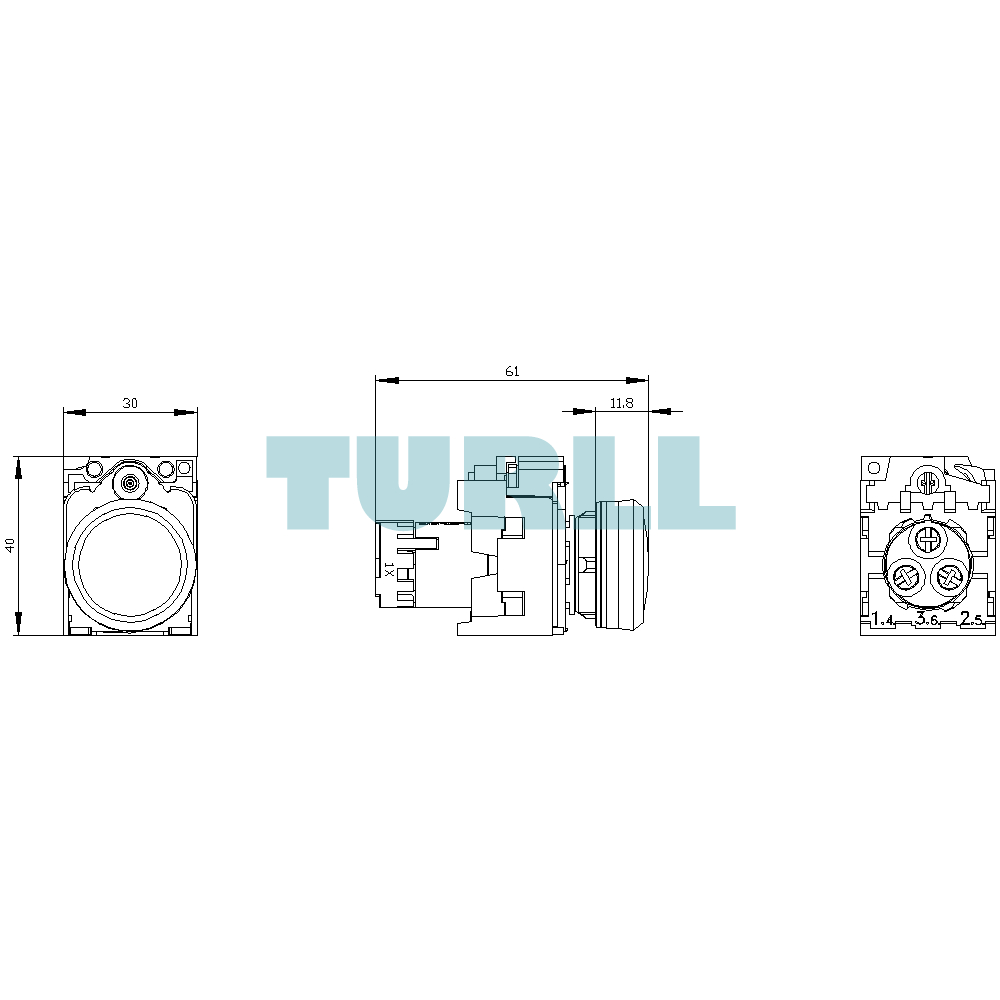

| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 12.9 mm |
| installation width | 29.5 mm |
| installation depth | 49.6 mm |
| Test Certificates | other |
| Special Test Certificate | Confirmation |
| last modified: | 10/6/2021 |
