Siemens 3SU1400-1AA10-3CA0 Contact Module, 1 NC, Spring-Type Terminal, Front Plate Mounting Original Brand New
$4.18
Contact module with 1 NC contact element and spring-type terminal for Siemens SIRIUS ACT devices, designed for front plate mounting. Requires minimum order quantity of 5 or a multiple thereof.
Availability: In stock
Overview
The Siemens 3SU1400-1AA10-3CA0 contact module is part of the reliable SIRIUS ACT series, designed to deliver optimal performance in control and automation systems. Featuring one Normally Closed contact, this module is ideal for safety circuits and control functionalities where secure deactivation signals are essential. The spring-type terminal ensures consistent electrical contact while reducing wiring effort, making it perfect for industrial environments with frequent vibrations.
Engineered for front plate mounting, the contact module provides clean and efficient assembly into pushbutton stations, control boxes, and operator consoles. Whether used in manufacturing, processing, or machine automation, this Siemens contact module guarantees outstanding durability and system reliability.
Please note: Minimum order quantity is 5 pieces.
Benefit
-
High Reliability: Siemens engineering ensures stable and durable switching performance.
-
Easy Installation: Spring-type terminals allow fast, secure, tool-assisted wiring.
-
Compact Integration: Designed for straightforward front plate mounting in control panels.
-
Enhanced Safety: NC contact configuration supports safety-critical circuits.
-
Long Service Life: Manufactured with robust materials suitable for demanding industrial environments.
Functions & Features
-

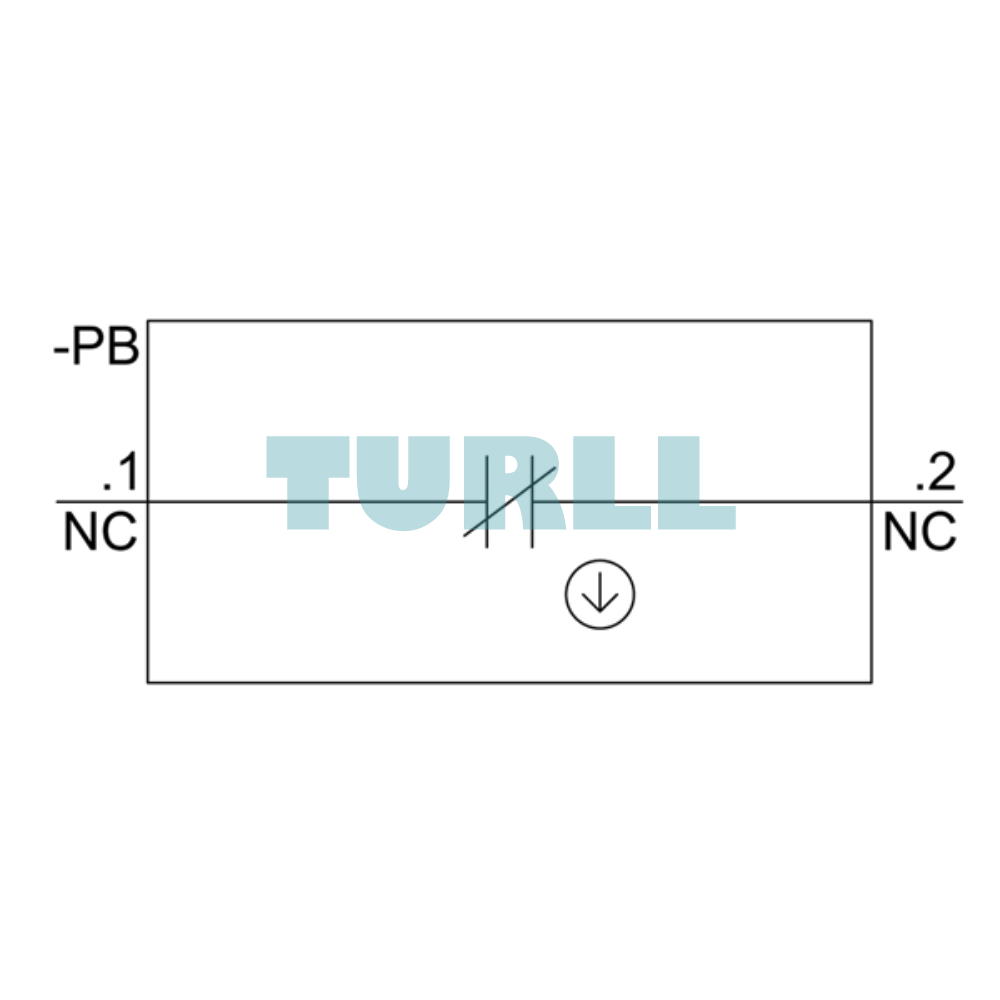

1 NC (Normally Closed) contact element
-
Spring-type terminal connection for secure, vibration-resistant wiring
-
Front plate mounting design for operator panel integration
-
Compatible with Siemens SIRIUS ACT command & signaling devices
-
High mechanical endurance for long-term industrial use
-
Suitable for a wide range of machine and factory automation applications
-
Minimum order quantity: 5 units or multiples thereof
Visit 3SU1400-1AA10-3CA0 for more detail info
For more our products visit turll
Download
| Weight | 0.009 kg |
|---|---|

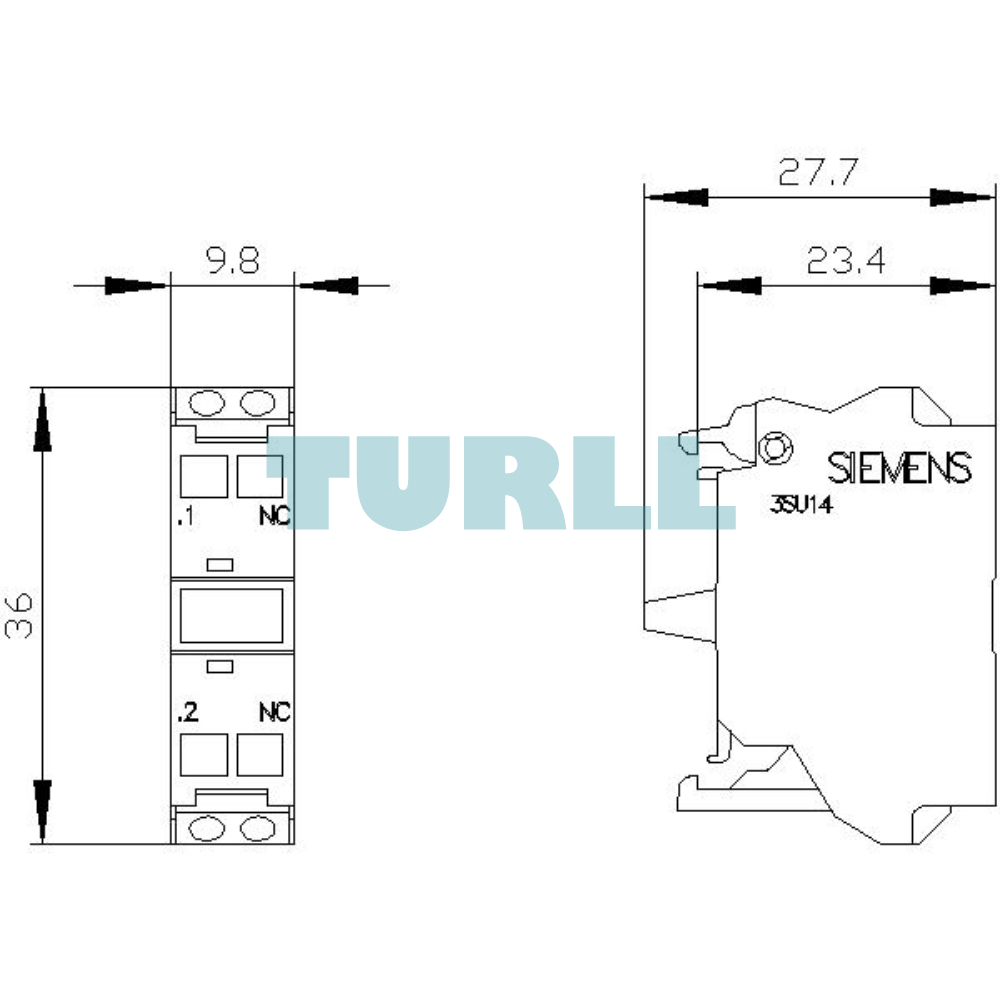

| Dimensions | 26.00 × 36.00 × 10.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Contact module |
| product type designation | 3SU1 |
| socket design | other |
| product function positive opening | Yes |
| insulation voltage rated value | 500 V |
| degree of pollution | 3 |
| type of voltage | – |
| ● of the operating voltage | AC/DC |
| ● of the input voltage | AC/DC |
| surge voltage resistance rated value | 6 kV |
| protection class IP | – |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| electrical endurance (switching cycles) typical | 10 000 000 |
| thermal current | 10 A |
| reference code acc. to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A |
| operating voltage | – |
| ● at AC | – |
| — at 50 Hz rated value | 5 … 500 V |
| — at 60 Hz rated value | 5 … 500 V |
| ● at DC rated value | 5 … 500 V |
| contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 1 |
| ● lagging switching | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| ● leading contact | 0 |
| operational current at AC-12 | – |
| operational current at AC-15 | – |
| operational current at DC-12 | – |
| operational current at DC-13 | – |
| ● at 24 V rated value | 3 A |
| ● at 48 V rated value | 1.5 A |
| ● at 110 V rated value | 0.7 A |
| ● at 230 V rated value | 0.3 A |
| ● at 400 V rated value | 0.1 A |
| ● at 500 V rated value | 0.1 A |
| type of electrical connection | spring-loaded terminals |
| type of connectable conductor cross-sections | – |
| ● solid without core end processing | 2x (0.25 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.25 … 0.75 mm²) |
| ● finely stranded without core end processing | 2x (0.25 … 1.5 mm²) |
| ● at AWG cables | 2x (24 … 16) |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 … 95%, no condensation in operation permitted) |
| fastening method | front panel mounting |
| ● of modules and accessories | Front plate mounting |
| last modified: | 10/27/2021 |
