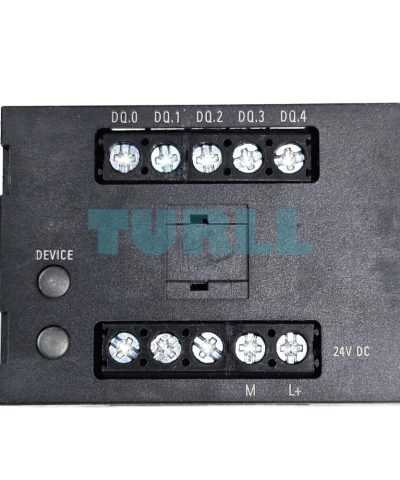

Siemens 3SU1400-1GC10-1AA0 Electronics Module for ID Key-Operated Switch, 24V DC Original Brand New
$132.77
Electronics module for ID key-operated switch, black housing, 24 V DC operating voltage, screw terminal connection, Group ID type, suitable for front-plate mounting.
Availability: In stock
Overview
The Siemens 3SU1400-1GC10-1AA0 is a high-quality electronics module designed for ID key-operated switches, ensuring secure and reliable machine and system operation. Built for effortless front-plate mounting, this module delivers superior durability and performance, making it ideal for industrial control panels and automation applications.
With a 24 V DC operating voltage, black housing, and screw terminal connections, this electronics module integrates seamlessly into Siemens command and signaling device systems. It is engineered to provide enhanced operator control, secure access management, and long service life.
Key Benefit
-
Enhanced Security: Supports the group ID function for segmented, authorized access control using the ID key switch system.
-
Seamless Integration: Part of the globally recognized SIRIUS ACT series, ensuring compatibility and high quality within your control panel setup.
-
Easy Installation: Designed for user-friendly front plate mounting and secured wiring via the reliable screw terminal connection.
-
Industrial Standard Power: Operates reliably on the industry-standard 24 V DC voltage, simplifying power supply integration.
Technical Function & Application
The 3SU1400-1GC10-1AA0 module serves as the interface between the mechanical ID key-operated switch actuator and the control system. It processes the unique ID signal from the key, enabling the group ID function to determine access permissions. This makes it indispensable in applications requiring multi-level security, such as:
-
Machine setup and maintenance mode selection.
-
Access control in restricted manufacturing areas.
-
Enabling or disabling specific operational sequences.
Visit 3SU1400-1GC10-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.060 kg |
|---|---|

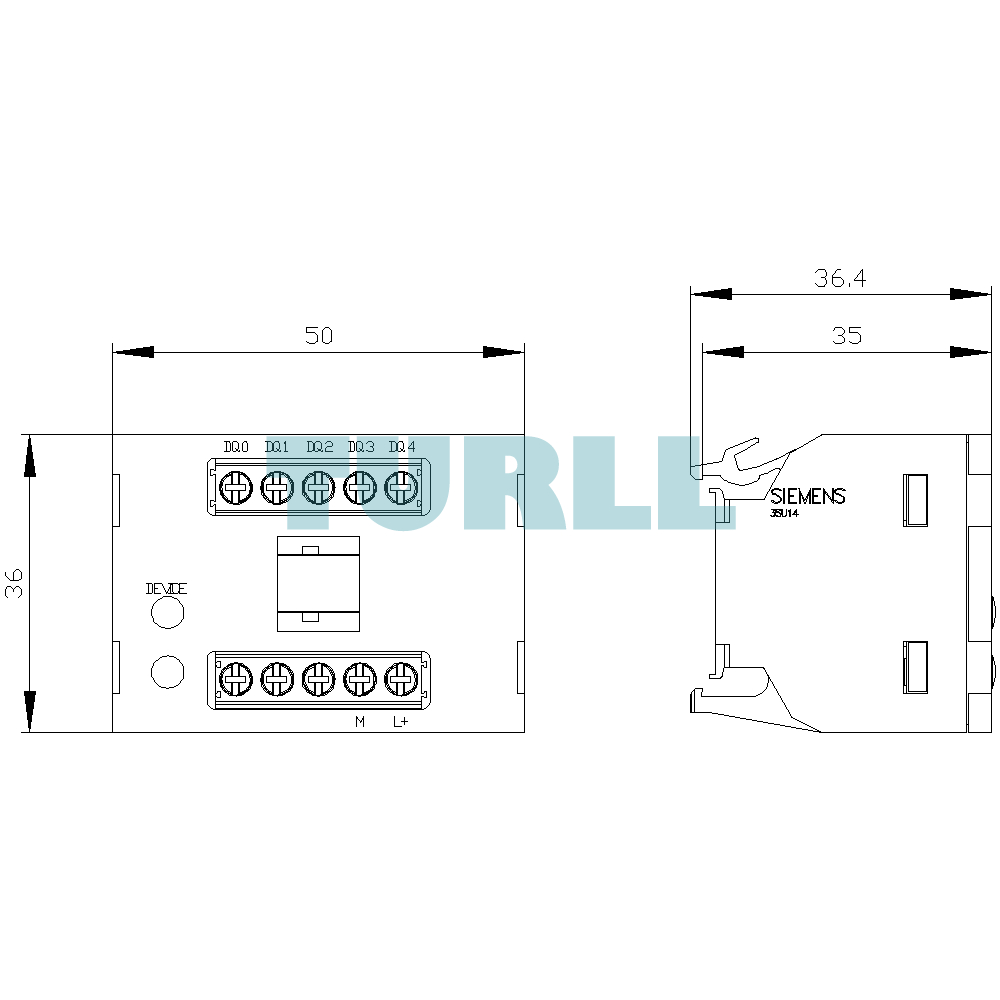

| Dimensions | 50.00 × 81.00 × 65.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Electronic module for ID key-operated switches |
| product type designation | 3SU1 |
| product extension optional light source | No |
| socket design | other |
| number of LEDs | 4 |
| insulation voltage rated value | 30 V |
| degree of pollution | 3 |
| type of voltage | – |
| ● of the operating voltage | DC |
| ● of the input voltage | DC |
| surge voltage resistance rated value | 0.8 kV |
| consumed current maximum | 49 mA |
| protection class IP | IP20, clamping screw tightened |
| reference code acc. to IEC 81346-2 | P |
| operating voltage | – |
| ● rated value | 18 … 30 V |
| ● at DC rated value | 24 V |
| operating voltage 1 at DC rated value | 24 V |
| protocol is supported IO-Link protocol | No |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 5 |
| number of digital inputs | 0 |
| ● safety-related | 0 |
| number of digital outputs | 5 |
| output voltage at digital output at DC rated value | 23.5 V |
| output current per output | 250 mA |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid without core end processing | 1x (0.2 … 2.5 mm²) |
| ● finely stranded with core end processing | 1x (0.25 … 1.5 mm²), 2x (0.5 … 0.75 mm²) |
| ● finely stranded without core end processing | 1x (0.2 … 2.5 mm²), 2x (0.2 … 0.75 mm²) |
| ● at AWG cables | 1x (26 … 14) |
| tightening torque with screw-type terminals | 0.4 … 0.4 N·m |
| product function parameterizable | No |
| MTBF | – |
| ● at 70 °C | 138 y |
| ● at full load at 25 °C | 141 y |
| touch protection against electrical shock | finger-safe |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted) |
| fastening method | front panel mounting |
| ● of modules and accessories | Front plate mounting |
| required spacing with side-by-side mounting | – |
| ● forwards | 100 mm |
| ● backwards | 100 mm |
| ● upwards | 100 mm |
| ● downwards | 100 mm |
| ● at the side | 100 mm |
| product function | Group ID 24 V DC |
| last modified: | 10/27/2021 |
