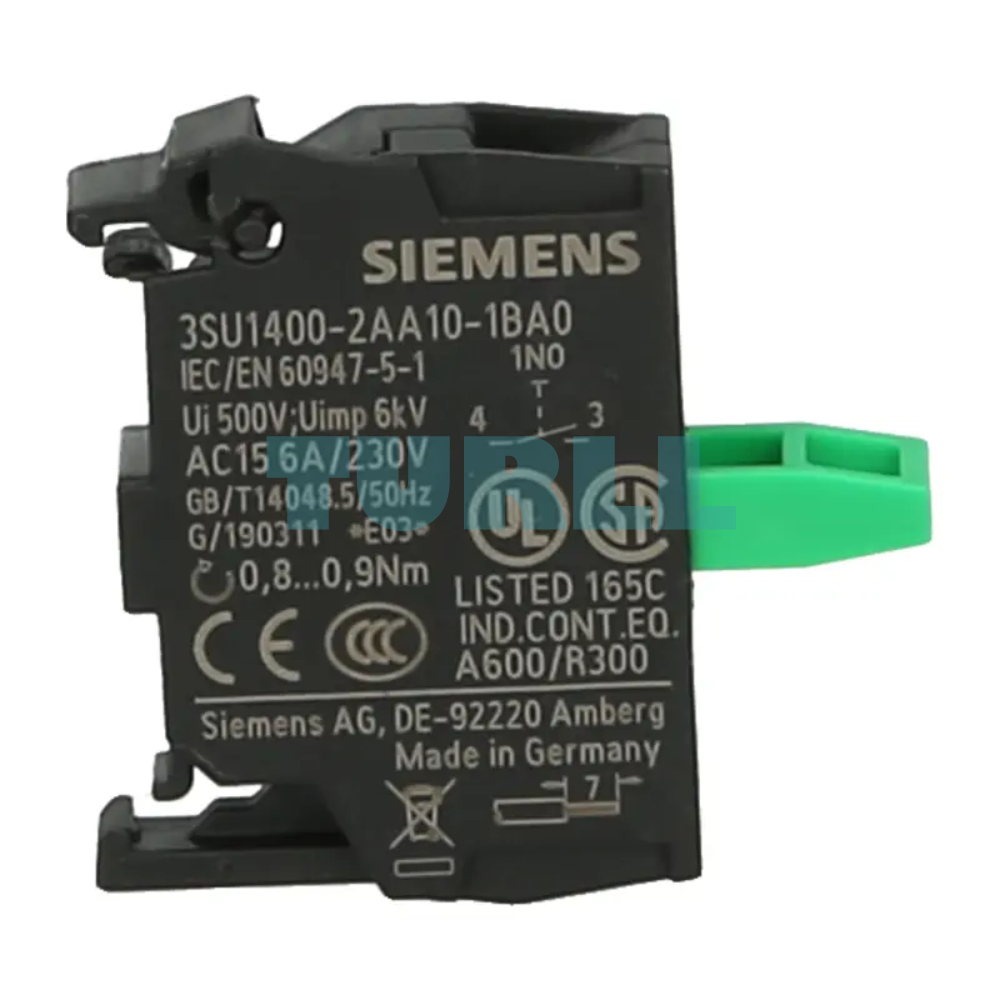

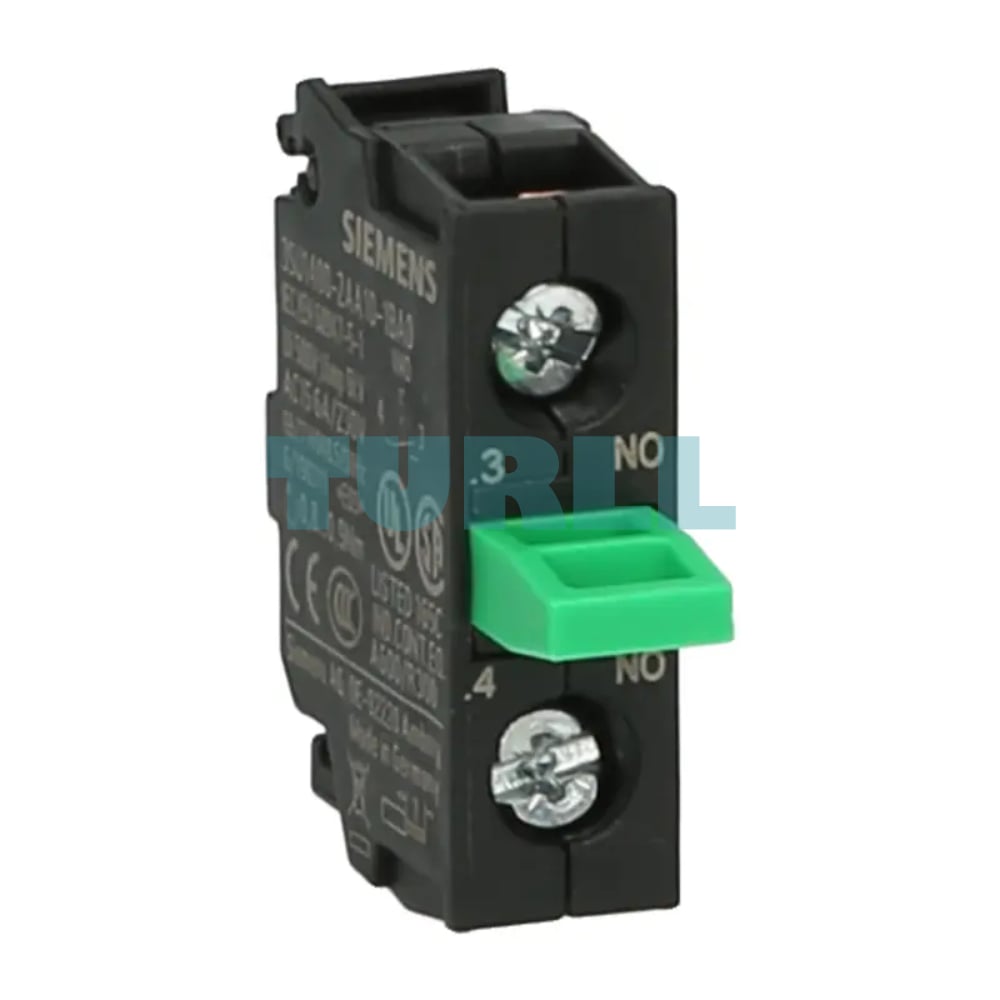

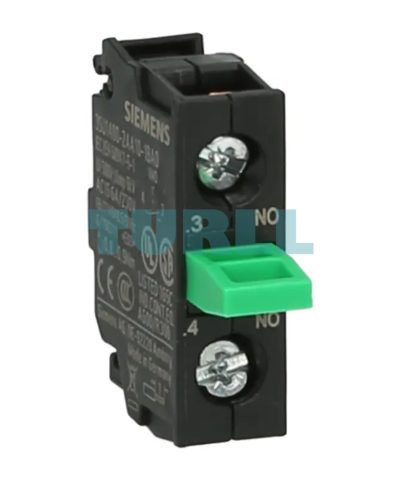

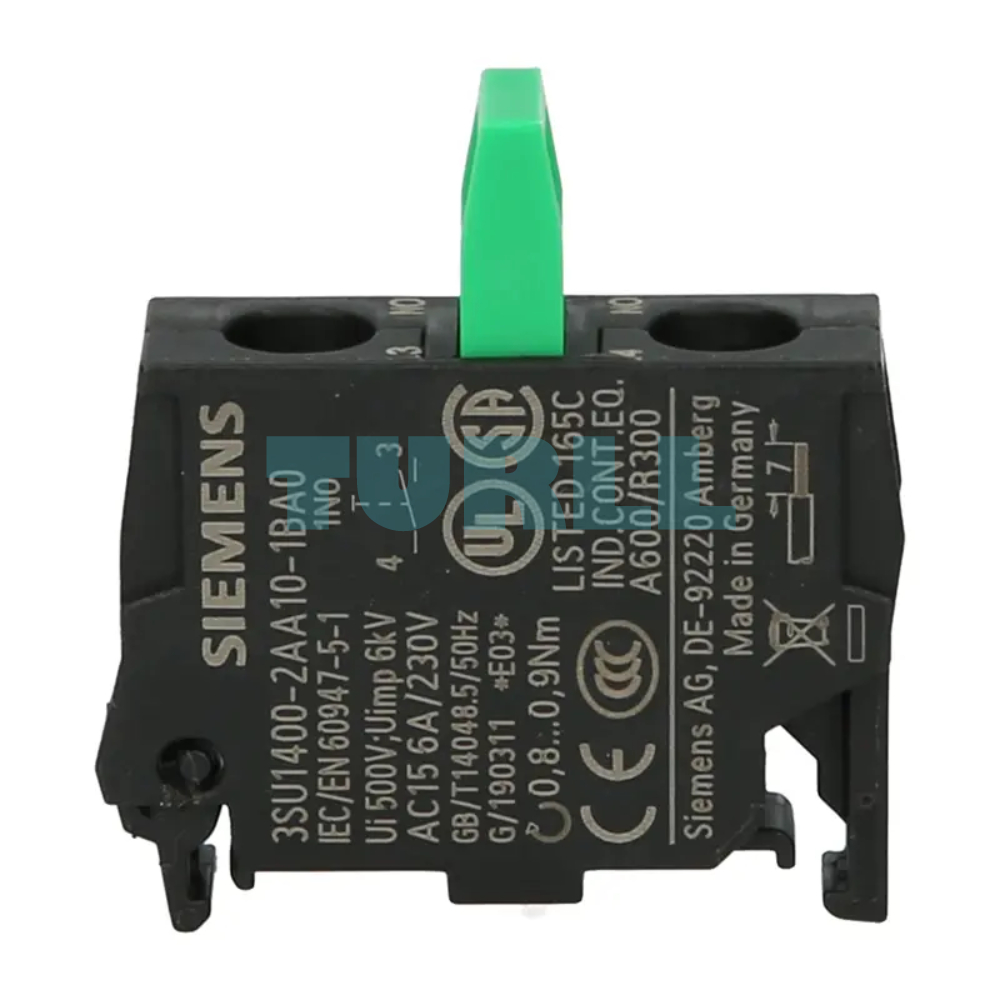

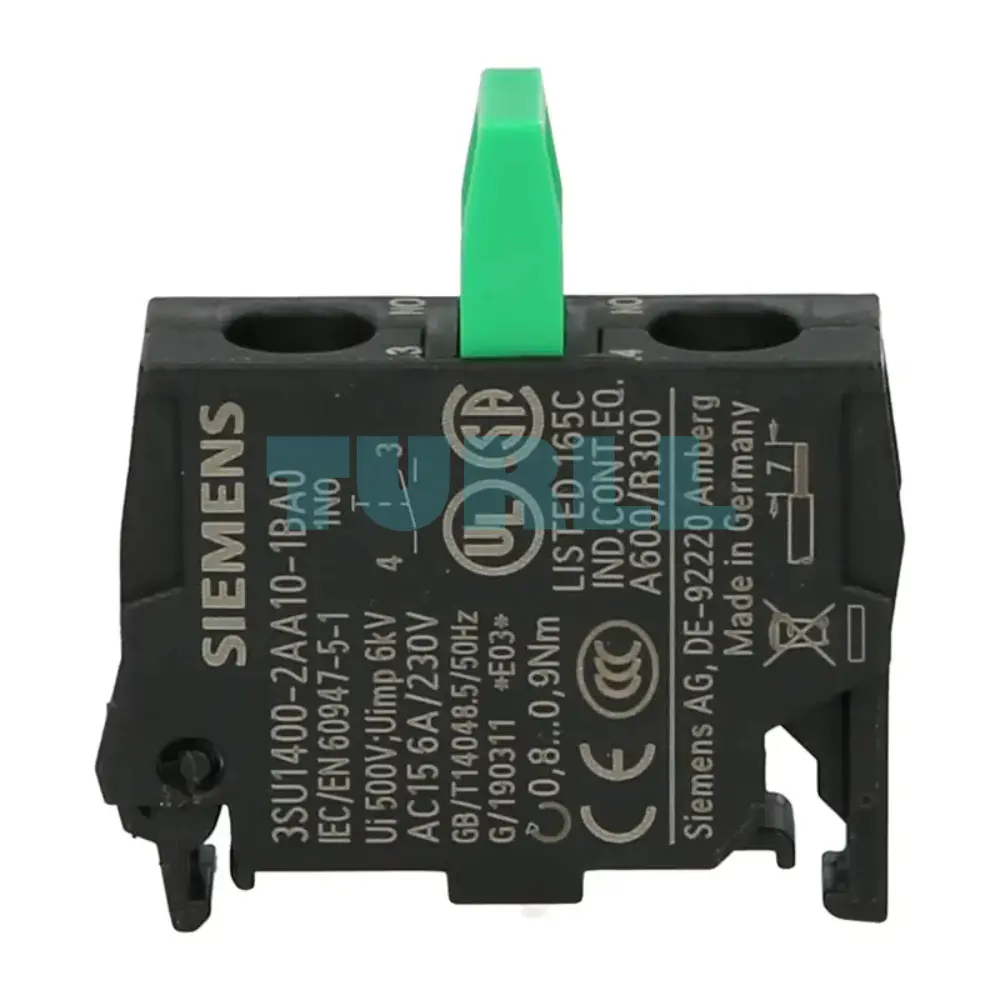

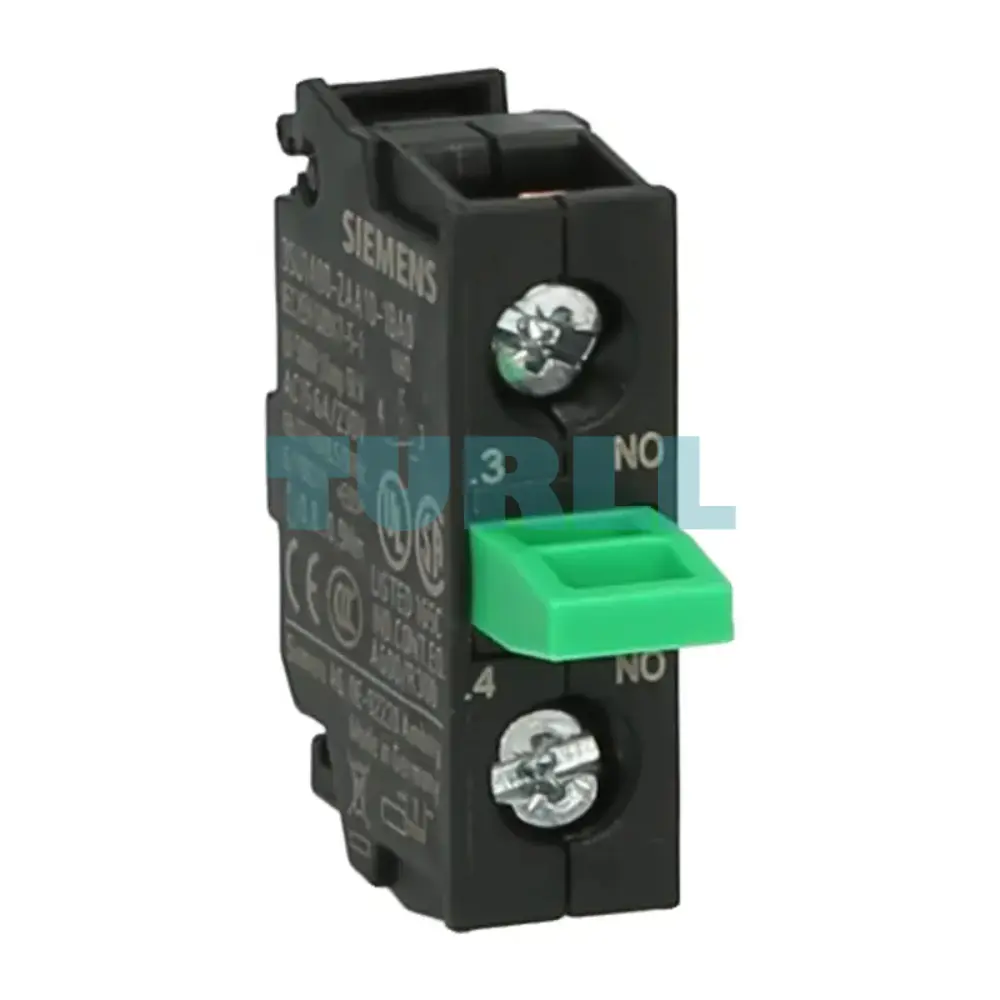

Siemens 3SU1400-2AA10-1BA0 Contact Module, 1 NO Contact, Screw-Type Terminal Original Brand new
$5.28
High-reliability contact module from the SIRIUS ACT series. It features 1 NO (Normally Open) contact element and is designed specifically for floor mounting within enclosures. Utilizing a robust screw-type terminal connection, it ensures secure and long-lasting electrical contact for industrial applications.
Availability: In stock
Overview
The Siemens 3SU1400-2AA10-1BA0 Contact Module is a reliable and durable contact element designed for industrial control and automation systems. Featuring 1 Normally Open (NO) contact and screw-type terminals, this module ensures secure electrical connections and dependable switching performance. It is engineered for floor mounting and is ideal for use in Siemens command and signaling devices.
This product is supplied with a minimum order quantity of 5 units or multiples thereof, making it suitable for both maintenance replacements and large-scale industrial installations.
Key Benefit
-
Precision Engineering: Part of the world-renowned SIRIUS ACT line, ensuring compatibility and high performance.
-
Secure Installation: The screw-type terminals provide maximum pull-out strength for wiring in high-vibration environments.
-
Space-Efficient: Optimized for floor mounting, allowing for flexible enclosure layouts.
-
Industrial Grade: Built to withstand harsh environmental conditions, ensuring a long operational lifespan.
Function
-
Provides a Normally Open (NO) switching contact
-
Ensures stable electrical connectivity in control circuits
-
Supports efficient signal transmission in automation systems
-
Designed for integration with Siemens command devices
Technical Specification
-
Manufacturer: Siemens
-
Product Number: 3SU1400-2AA10-1BA0
-

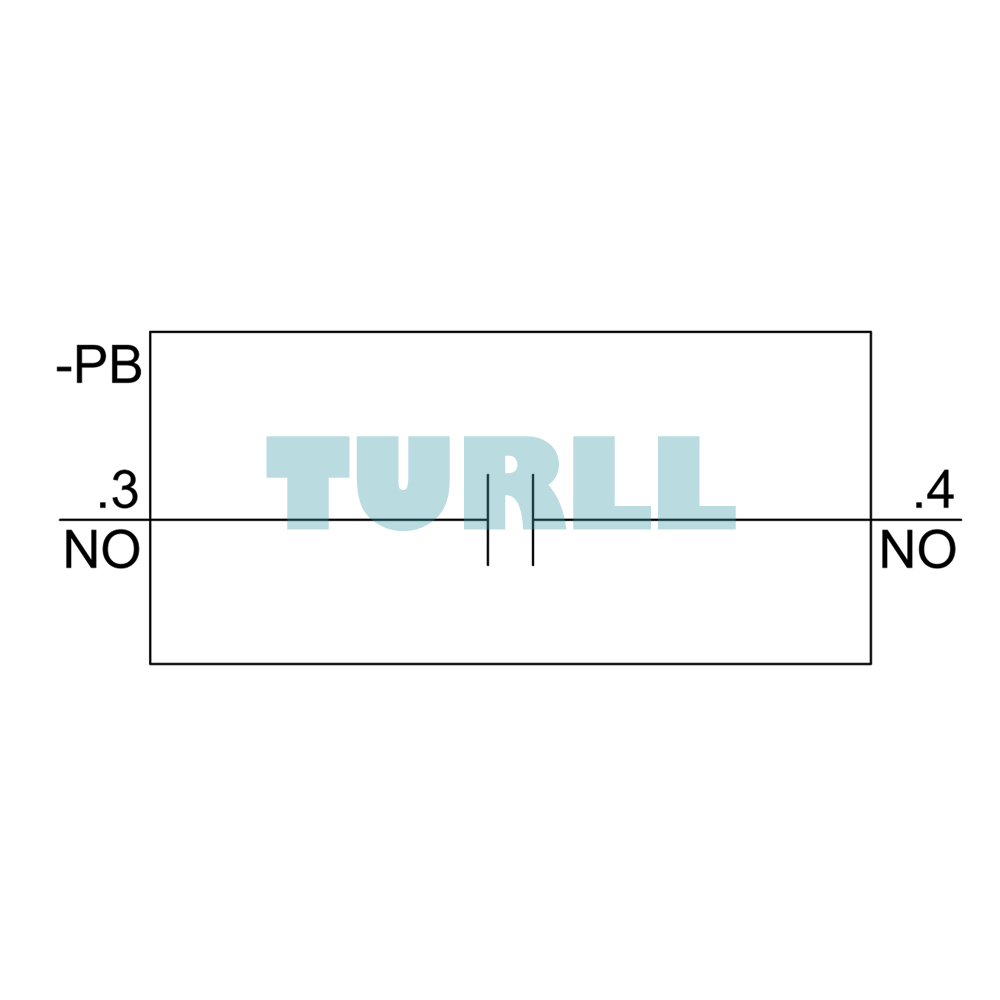

Contact Type: 1 NO (Normally Open)
-
Contact Elements: 1
-
Terminal Type: Screw-type terminal
-
Mounting Type: Floor mounting
-
Minimum Order Quantity: 5 units or multiples thereof
Visit 3SU1400-2AA10-1BA0 for more detail info
For more our products visit turll
Download
| Weight | 0.010 kg |
|---|---|

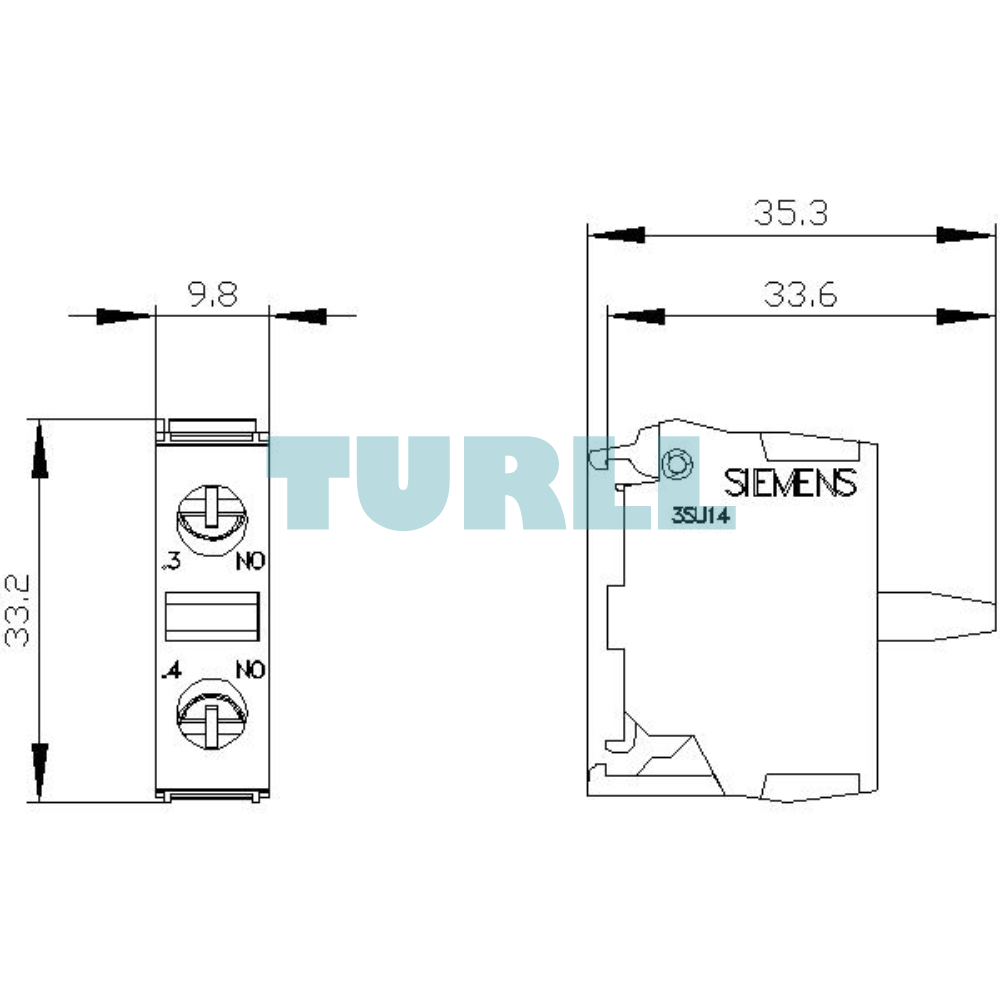

| Dimensions | 30.00 × 30.00 × 10.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Contact module |
| product type designation | 3SU1 |
| socket design | other |
| product function positive opening | No |
| insulation voltage rated value | 500 V |
| degree of pollution | 3 |
| type of voltage | – |
| ● of the operating voltage | AC/DC |
| ● of the input voltage | AC/DC |
| surge voltage resistance rated value | 6 kV |
| protection class IP | – |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| electrical endurance (switching cycles) typical | 10 000 000 |
| thermal current | 10 A |
| reference code acc. to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A |
| operating voltage | – |
| ● at AC | – |
| — at 50 Hz rated value | 5 … 500 V |
| — at 60 Hz rated value | 5 … 500 V |
| ● at DC rated value | 5 … 500 V |
| contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 0 |
| ● lagging switching | 0 |
| number of NO contacts for auxiliary contacts | 1 |
| ● leading contact | 0 |
| operational current at AC-12 | – |
| operational current at AC-15 | – |
| operational current at DC-12 | – |
| operational current at DC-13 | – |
| ● at 24 V rated value | 3 A |
| ● at 48 V rated value | 1.5 A |
| ● at 110 V rated value | 0.7 A |
| ● at 230 V rated value | 0.3 A |
| ● at 400 V rated value | 0.1 A |
| ● at 500 V rated value | 0.1 A |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 … 95%, no condensation in operation permitted) |
| fastening method | floor mounting |
| ● of modules and accessories | Floor mounting |
| last modified: | 10/27/2021 |
