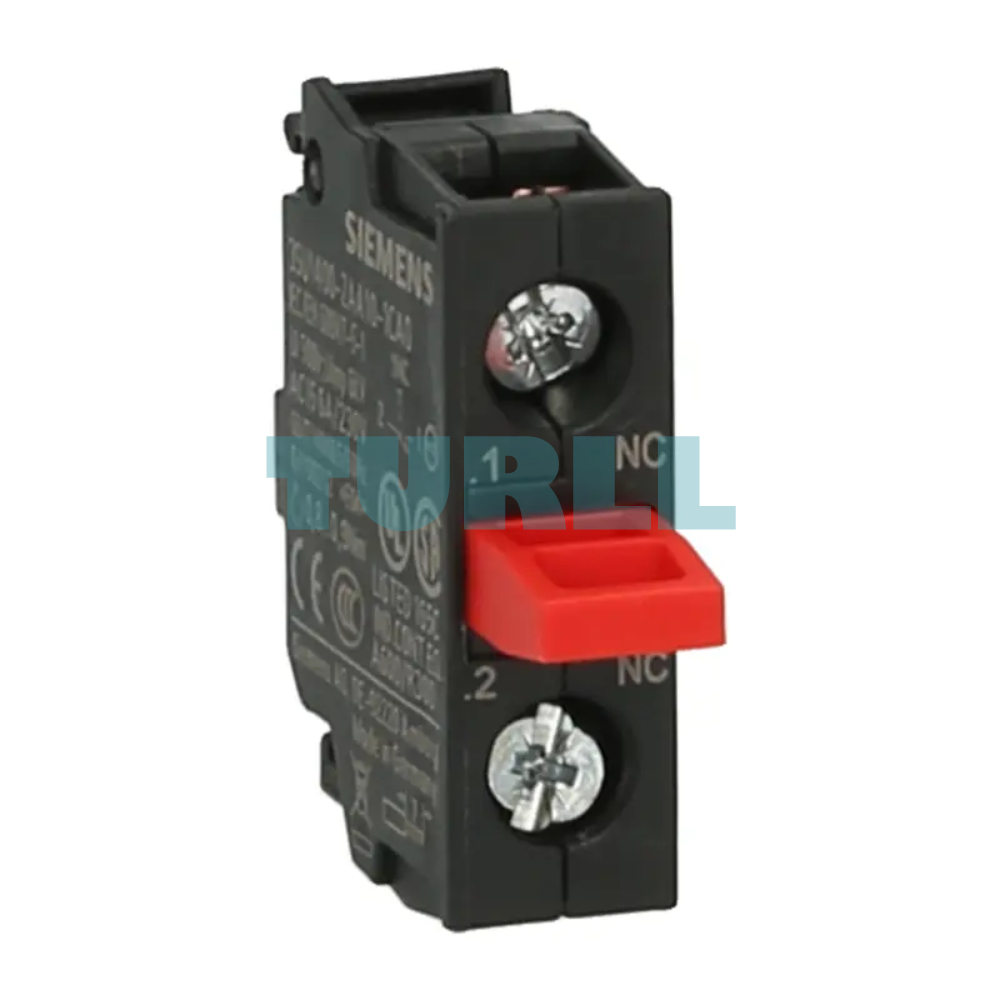

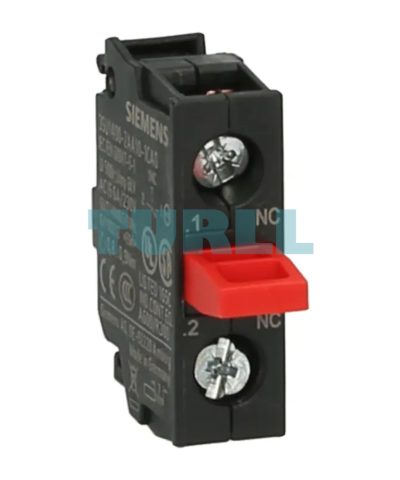

Siemens 3SU1400-2AA10-1CA0 Contact Module, 1 NC Contact, Screw Terminal, Floor Mount Original Brand New
$5.17
High-quality Siemens SIRIUS ACT 3SU1 Contact Module with 1 Normally Closed (NC) auxiliary contact and robust screw-type terminals. Designed for reliable floor mounting (or base mounting) in industrial control and signaling devices. Part of the SIRIUS ACT family, ensuring easy and secure integration. Minimum order quantity applies: 5 units or a multiple thereof.
Availability: In stock
Overview
The Siemens 3SU1400-2AA10-1CA0 is a crucial component within the SIRIUS ACT system of commanding and signaling devices. This is a configurable contact block, specifically a Contact Module with 1 Contact Element (1NC), designed to provide a reliable switching function for auxiliary and control circuits. Its silver alloy contacts guarantee high contact reliability and a long mechanical service life of 10 million operating cycles. The robust screw terminal connection ensures secure and easy wiring in challenging industrial environments.
Key Features & Function
The 3SU1400-2AA10-1CA0 contact module translates the mechanical action of a pushbutton, selector switch, or EMERGENCY STOP actuator into an electrical signal. As an NC (Normally Closed) contact, it allows current to flow in its idle state. When the coupled actuator is pressed (or turned), the module is mechanically triggered, causing the NC contact to open and interrupt the circuit. This is the standard configuration for functions like machine stop, where the circuit must be broken to ensure safety.
Benefit
-
Ensures safe and reliable operation of industrial equipment.
-
Facilitates easy and secure installation.
-
Compatible with a wide range of Siemens automation systems.
-
Reduces maintenance downtime thanks to robust build quality.
Application
This contact module is an essential component for control panels, machinery, and industrial automation systems where reliable signaling is required:
-
Safety Circuits: Used as the NC contact for EMERGENCY STOP pushbuttons to ensure positive opening.
-
Control Desks and Panels: Integration with SIRIUS ACT pushbuttons, selector switches, and indicator lights.
-
Machine Tools: Auxiliary switching in control devices for start/stop functions.
-
Process Control: Reliable signal transmission in complex automation processes.
Visit 3SU1400-2AA10-1CA0 for more detail info
For more our products visit turll
Download
| Weight | 0.010 kg |
|---|---|

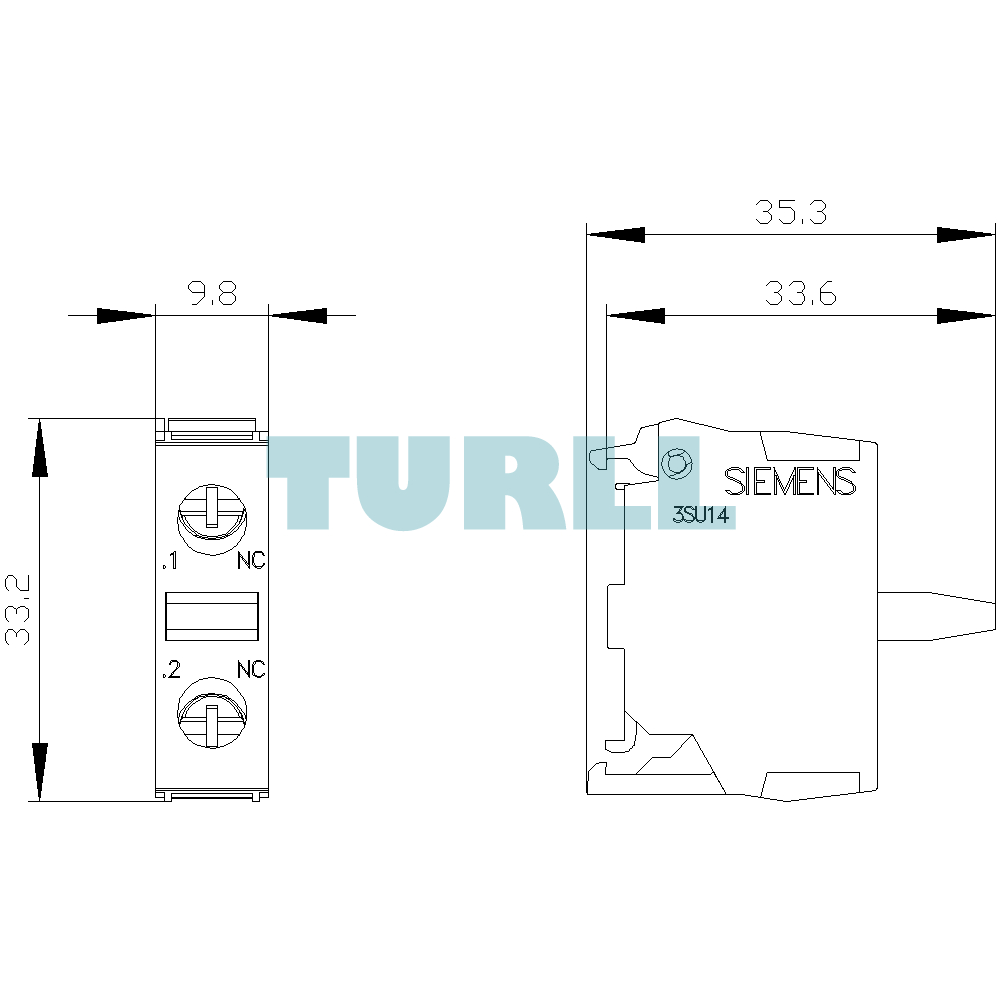

| Dimensions | 78.00 × 107.00 × 17.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Contact module |
| product type designation | 3SU1 |
| socket design | other |
| product function positive opening | Yes |
| insulation voltage rated value | 500 V |
| degree of pollution | 3 |
| type of voltage | – |
| ● of the operating voltage | AC/DC |
| ● of the input voltage | AC/DC |
| surge voltage resistance rated value | 6 kV |
| protection class IP | – |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| electrical endurance (switching cycles) typical | 10 000 000 |
| thermal current | 10 A |
| reference code acc. to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A |
| operating voltage | – |
| ● at AC | – |
| — at 50 Hz rated value | 5 … 500 V |
| — at 60 Hz rated value | 5 … 500 V |
| ● at DC rated value | 5 … 500 V |
| contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 1 |
| ● lagging switching | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| ● leading contact | 0 |
| operational current at AC-12 | – |
| operational current at AC-15 | – |
| operational current at DC-12 | – |
| operational current at DC-13 | – |
| ● at 24 V rated value | 3 A |
| ● at 48 V rated value | 1.5 A |
| ● at 110 V rated value | 0.7 A |
| ● at 230 V rated value | 0.3 A |
| ● at 400 V rated value | 0.1 A |
| ● at 500 V rated value | 0.1 A |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 … 95%, no condensation in operation permitted) |
| fastening method | floor mounting |
| ● of modules and accessories | Floor mounting |
| last modified: | 10/27/2021 |
