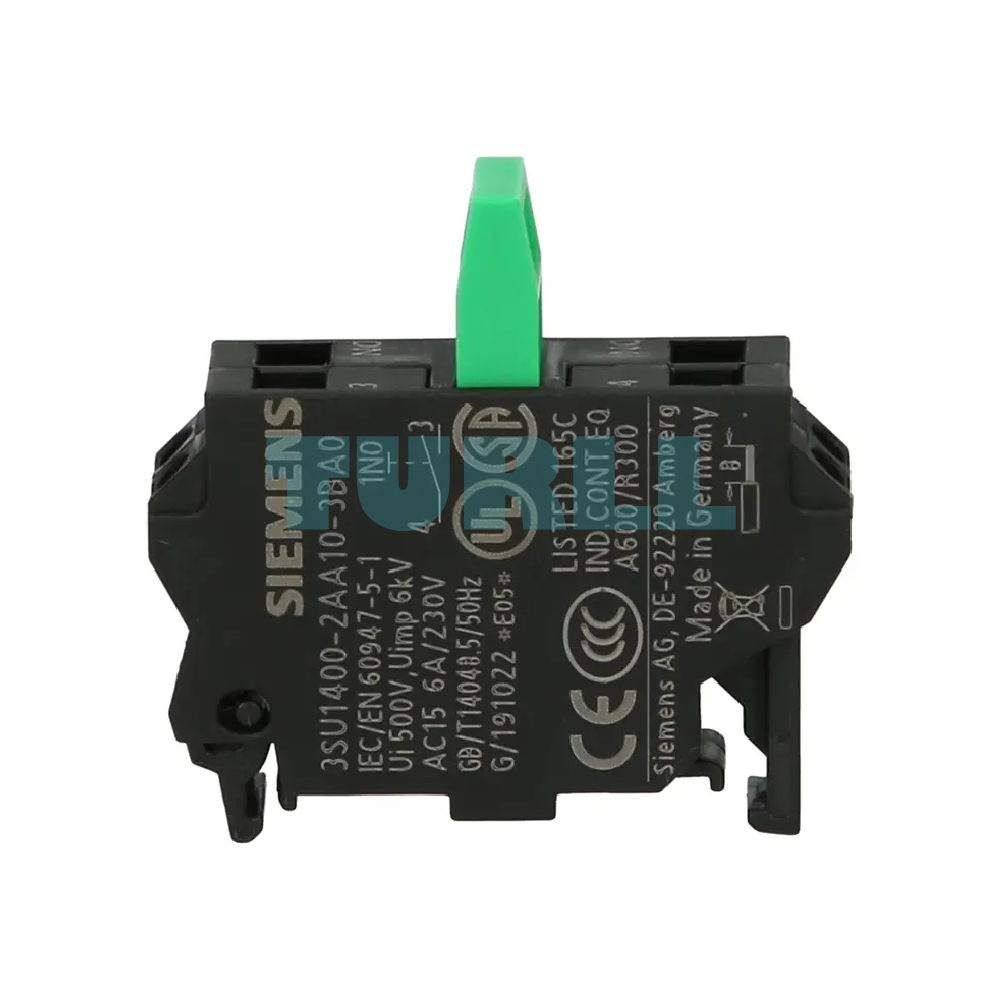

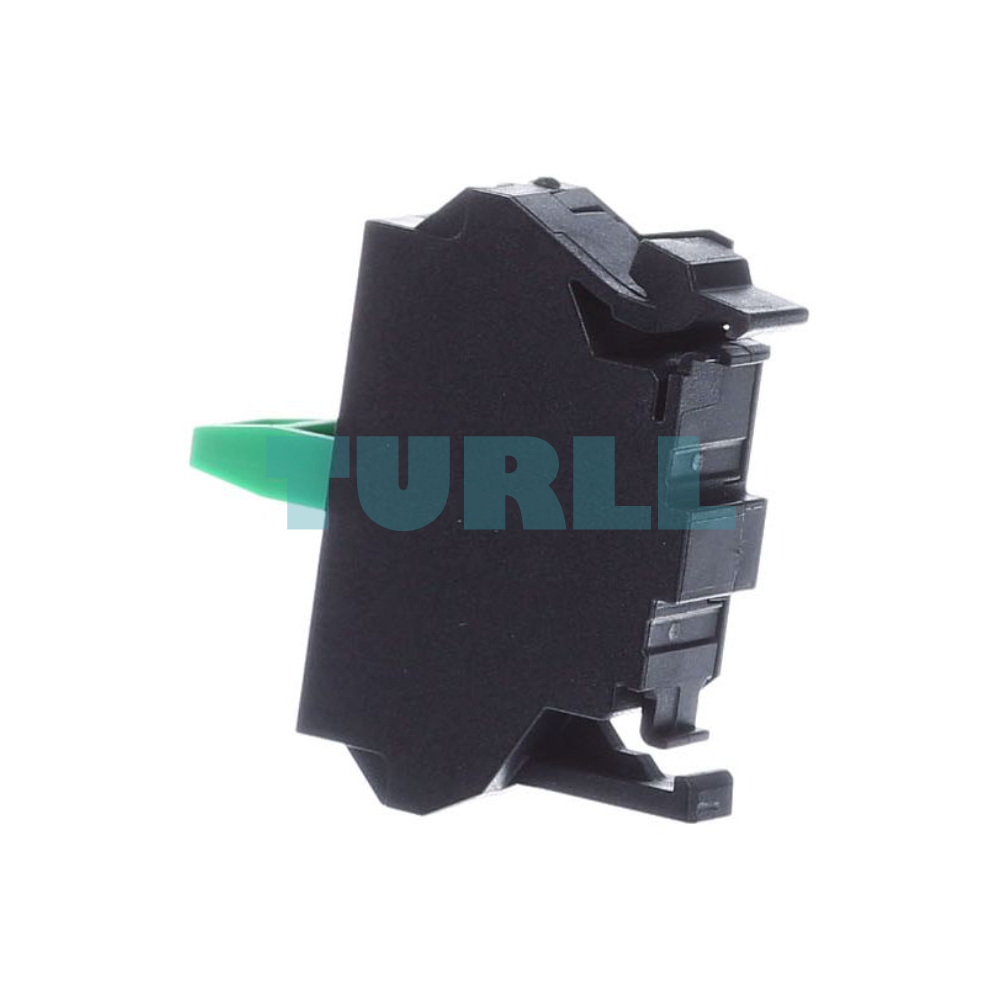

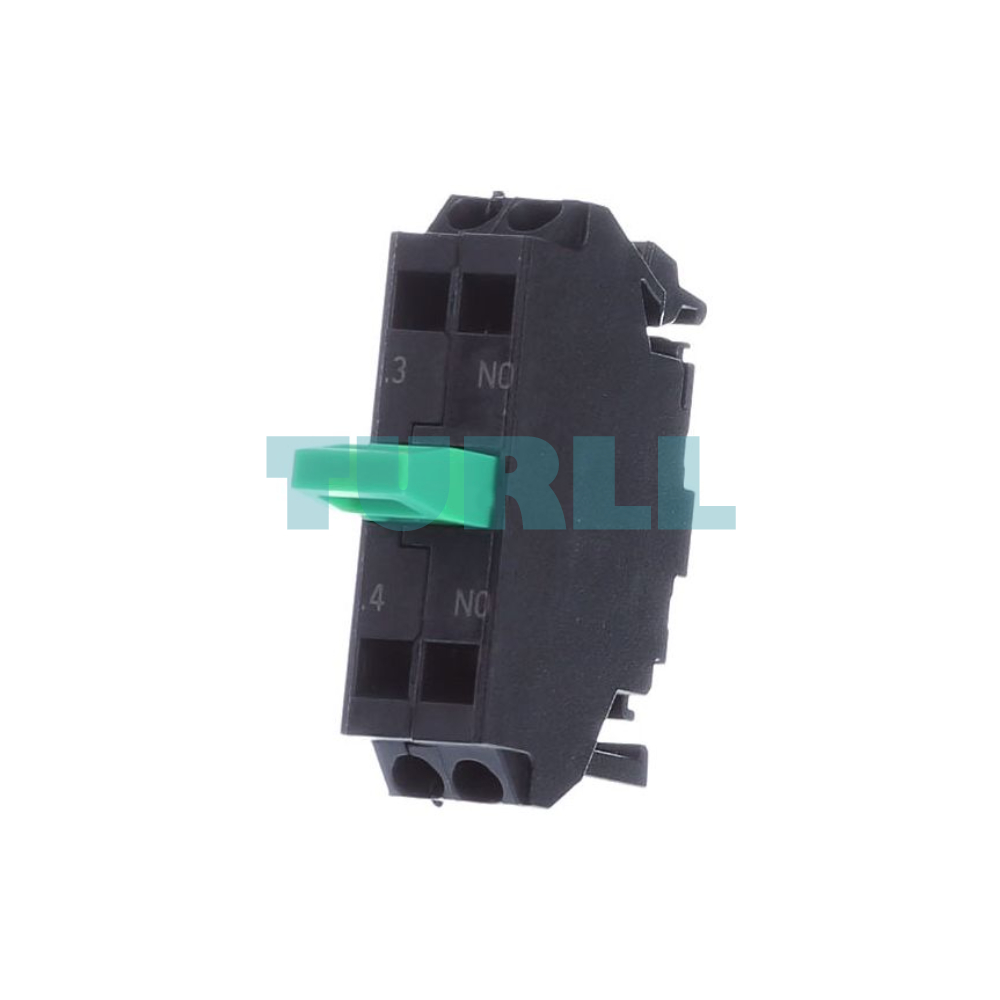

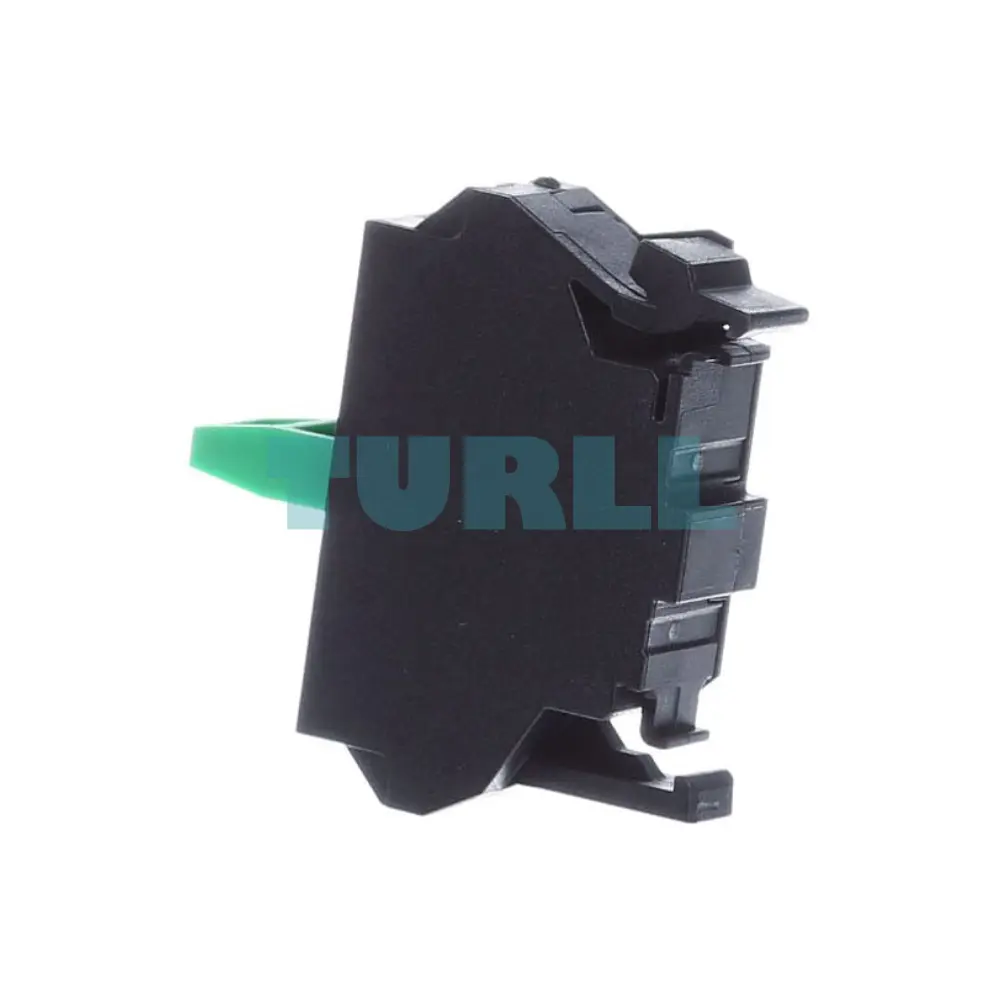

Siemens 3SU1400-2AA10-3BA0 Contact Module, 1 NO, Spring-Type Terminal, Floor Mount Original Brand New
$5.28
A highly reliable SIRIUS ACT Contact Module featuring 1 Normally Open (NO) contact and spring-type terminals for quick, secure wiring. Designed for floor mounting behind actuators. Minimum order quantity is 5 units.
Availability: In stock
Overview
The Siemens 3SU1400-2AA10-3BA0 Contact Module is engineered for reliability and easy integration in industrial control systems. Designed with 1 Normally Open (NO) contact element and a spring-type terminal, this module ensures fast, secure connections, ideal for floor-mounted installations. Perfect for high-performance automation environments, this contact module guarantees consistent operation and safety compliance.
Features & Function
-

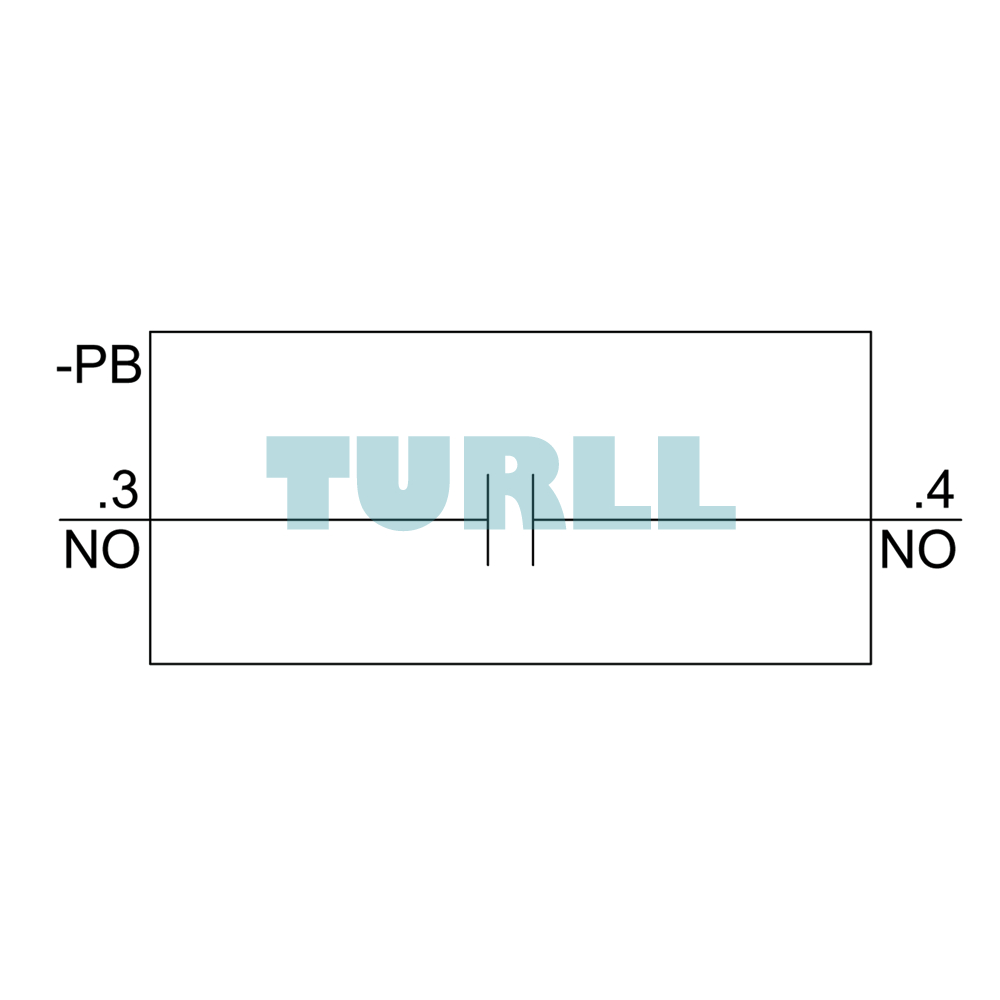

1 Contact Element, 1 NO – Provides reliable normally open contact for precise control.
-
Spring-Type Terminal – Ensures secure, vibration-resistant connections.
-
Floor-Mount Compatible – Easy installation in industrial setups.
-
Durable Design – High-quality Siemens manufacturing for long-term reliability.
-
Minimum Order Quantity – 5 pieces or multiples thereof for bulk procurement.
Benefit
-
Rapid Installation: Spring-type terminals allow for quick, tool-free wiring, reducing assembly time and labor costs.
-
High Reliability: The spring pressure connection is highly resistant to vibration, ensuring a stable and secure electrical connection in demanding industrial environments.
-
Space Efficiency: Designed for floor mounting, it allows for flexible and compact component arrangement within control panels.
-
Durability: As part of the SIRIUS ACT family, it guarantees long-term operational performance and robustness.
-
Seamless Integration: Fully compatible with other Siemens SIRIUS ACT pushbuttons, selector switches, and signaling columns.
Visit 3SU1400-2AA10-3BA0 for more detail info
For more our products visit turll
Download
| Weight | 0.010 kg |
|---|---|

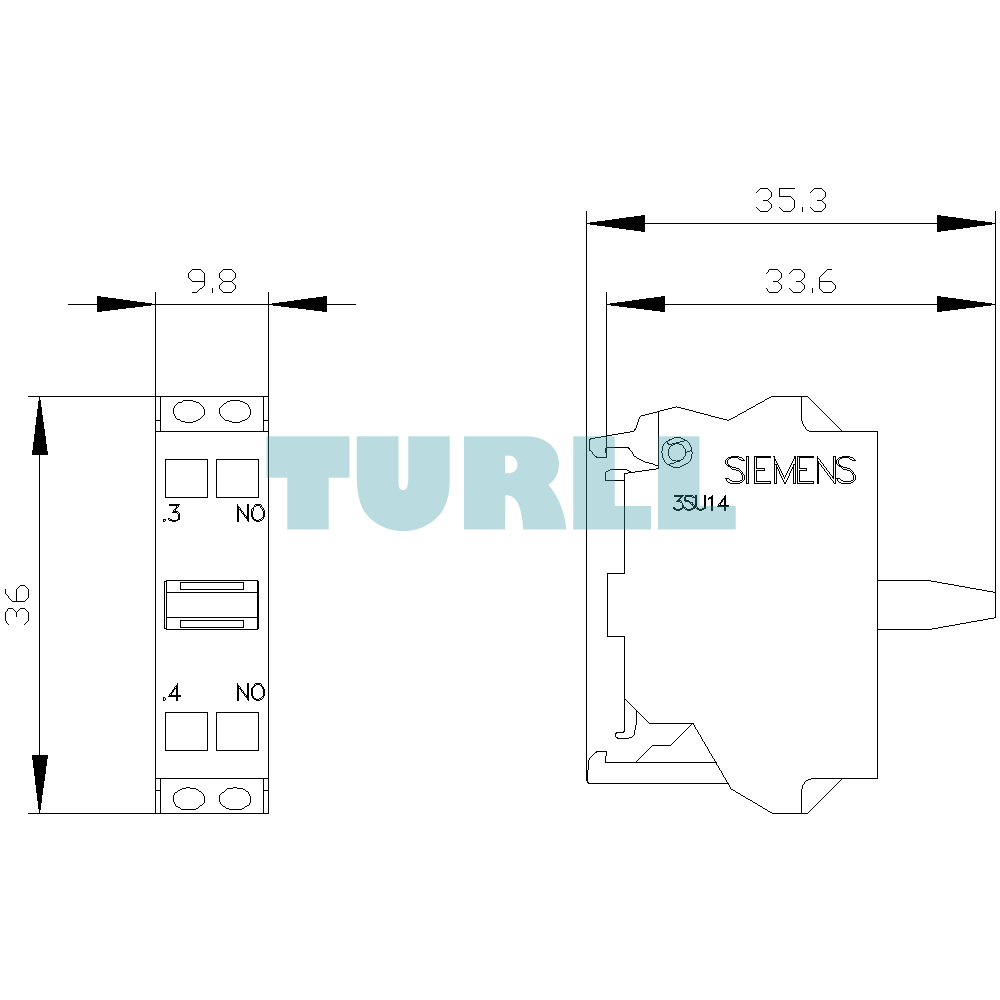

| Dimensions | 35.00 × 35.00 × 10.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Contact module |
| product type designation | 3SU1 |
| socket design | other |
| product function positive opening | No |
| insulation voltage rated value | 500 V |
| degree of pollution | 3 |
| type of voltage | – |
| ● of the operating voltage | AC/DC |
| ● of the input voltage | AC/DC |
| surge voltage resistance rated value | 6 kV |
| protection class IP | – |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| electrical endurance (switching cycles) typical | 10 000 000 |
| thermal current | 10 A |
| reference code acc. to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A |
| operating voltage | – |
| ● at AC | – |
| — at 50 Hz rated value | 5 … 500 V |
| — at 60 Hz rated value | 5 … 500 V |
| ● at DC rated value | 5 … 500 V |
| contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 0 |
| ● lagging switching | 0 |
| number of NO contacts for auxiliary contacts | 1 |
| ● leading contact | 0 |
| operational current at AC-12 | – |
| operational current at AC-15 | – |
| operational current at DC-12 | – |
| operational current at DC-13 | – |
| ● at 24 V rated value | 3 A |
| ● at 48 V rated value | 1.5 A |
| ● at 110 V rated value | 0.7 A |
| ● at 230 V rated value | 0.3 A |
| ● at 400 V rated value | 0.1 A |
| ● at 500 V rated value | 0.1 A |
| type of electrical connection | spring-loaded terminals |
| type of connectable conductor cross-sections | – |
| ● solid without core end processing | 2x (0.25 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.25 … 0.75 mm²) |
| ● finely stranded without core end processing | 2x (0.25 … 1.5 mm²) |
| ● at AWG cables | 2x (24 … 16) |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 … 95%, no condensation in operation permitted) |
| fastening method | floor mounting |
| ● of modules and accessories | Floor mounting |
| last modified: | 10/27/2021 |
