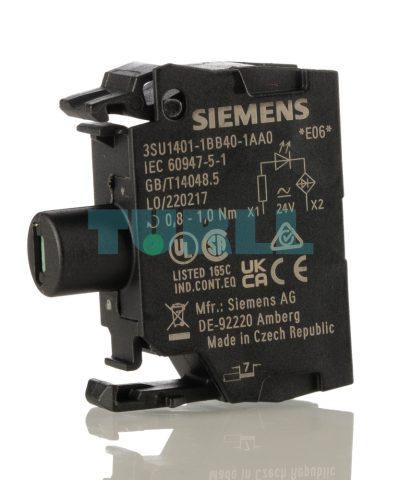

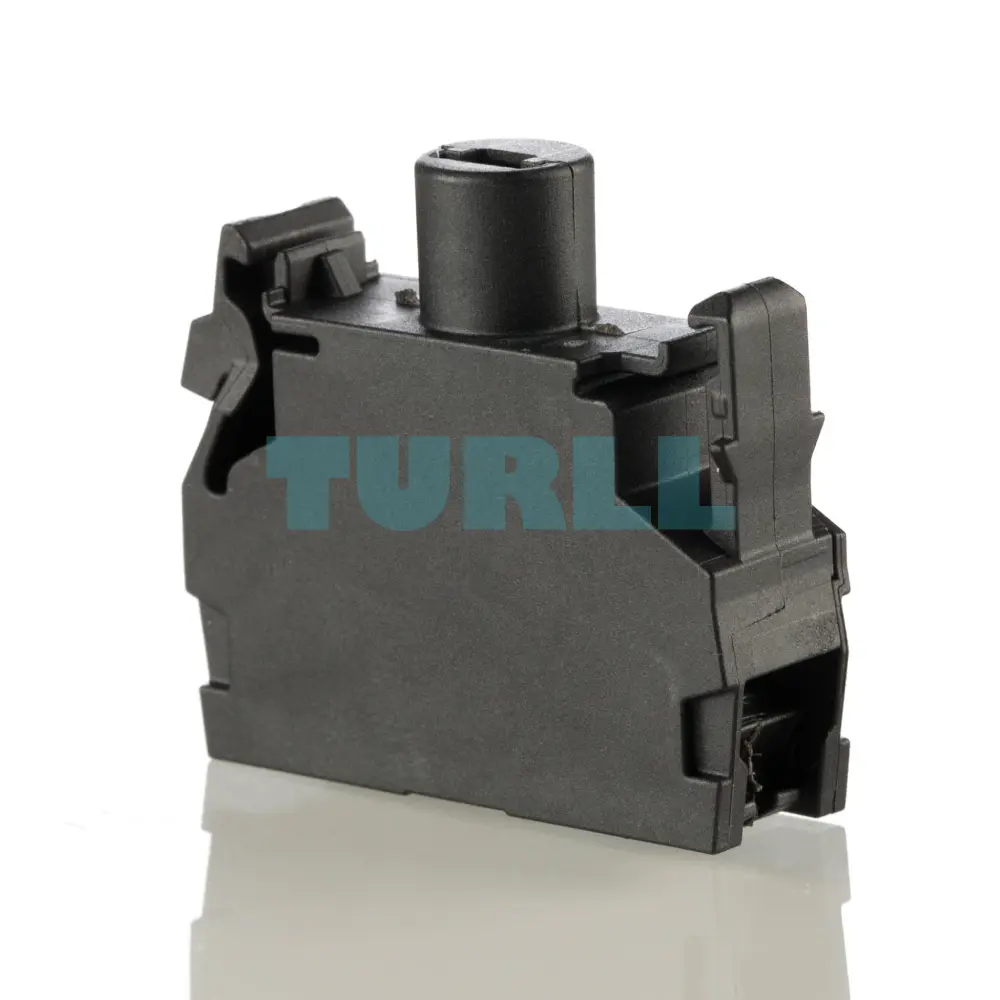

Siemens 3SU1401-1BB40-1AA0 LED Module, 24V AC/DC, Green, Screw Terminal, Front Plate Mounting Original Brand New
$6.71
LED module with integrated green LED, operating at 24 V AC/DC. Features a robust screw terminal connection and is designed for quick front plate mounting. Minimum order quantity: 5 or a multiple thereof.
Availability: In stock
Overview
The Siemens 3SU1401-1BB40-1AA0 is a professional-grade LED module specifically developed to meet modern industrial signaling demands. Featuring an integrated green LED, a robust 24V AC/DC power input, and a dependable screw terminal connection, it offers secure installation and reliable performance. The front plate mounting mechanism allows for seamless integration into operator consoles and control enclosures. Suitable for manufacturing, automation, industrial machinery, and system control applications.
This module is part of Siemens’ trusted SIRIUS ACT product family, known for its durability and efficiency.
Please note: This product is sold in minimum quantities of 5 units or more.
Benefit
-
Enhanced Visibility: Bright green integrated LED ensures clear signaling in demanding environments.
-
Reliable Performance: Operates with a stable 24V AC/DC power supply for consistent illumination.
-
Easy Installation: Screw terminal design supports secure and fast wiring.
-
Durable Build: Siemens engineering provides long-lasting, industrial-grade reliability.
-
Front Plate Mounting: Saves space and integrates seamlessly into operator panels.
-
Cost-Effective Bulk Ordering: Supplied in MOQs of 5 for efficient stocking and operations.
Function
-
Provides visual indication for control panels
-
Supports status signaling in automation systems
-
Facilitates machine and operator interface feedback
-
Integrates into Siemens SIRIUS ACT modular control device range
Visit 3SU1401-1BB40-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.010 kg |
|---|---|

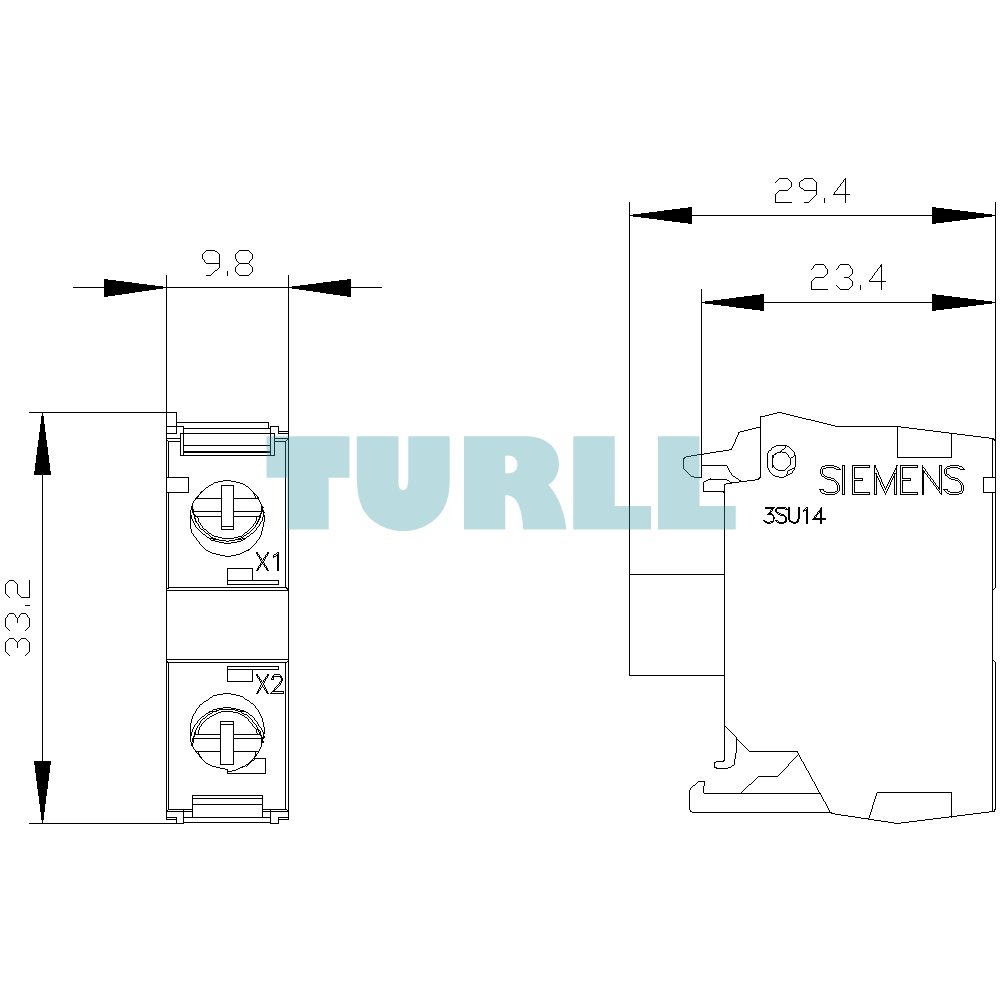

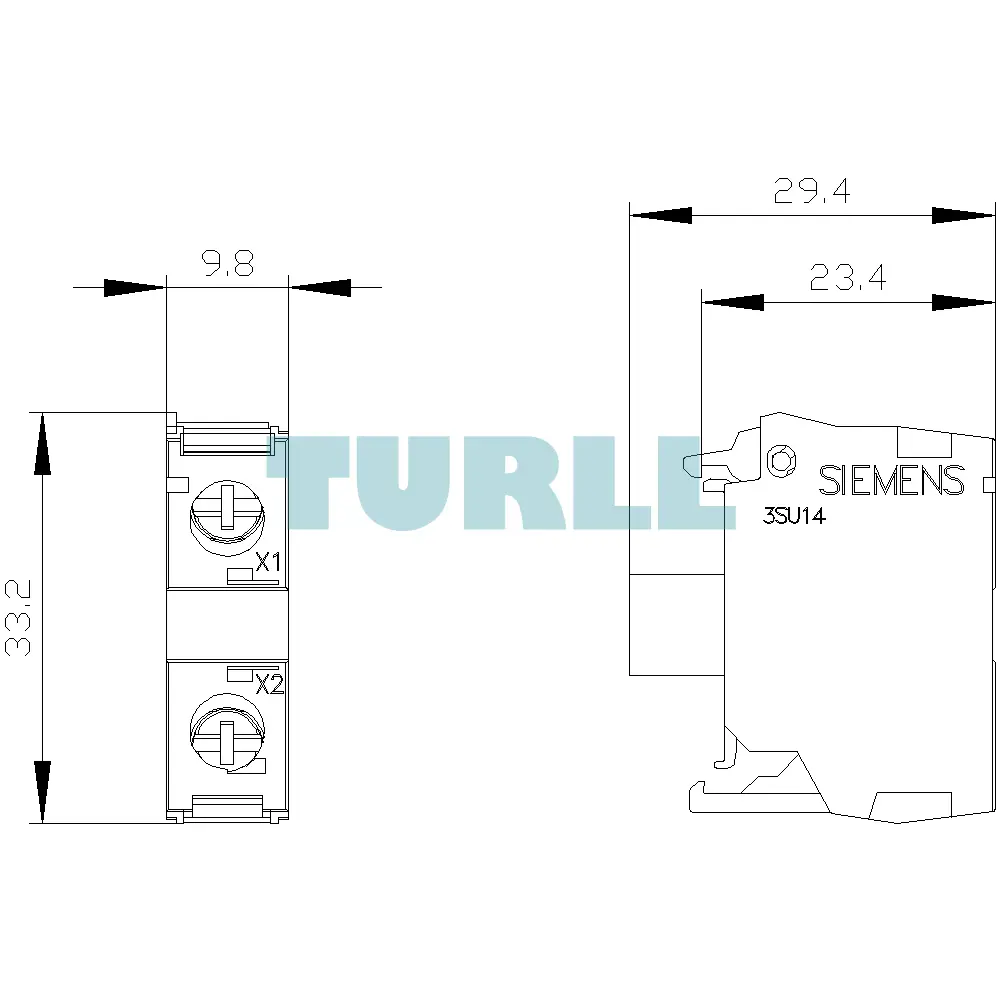

| Dimensions | 103.00 × 51.00 × 27.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | – |
| ● diode | Yes |
| ● lamp transformer | No |
| ● light source | Yes |
| ● series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC/DC |
| ● for actuation | AC/DC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 25 mA |
| protection class IP | – |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | – |
| ● at AC | – |
| — at 50 Hz rated value | 24 V |
| — at 60 Hz rated value | 24 V |
| ● at DC rated value | 24 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| inrush current maximum | 2 A |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| type of light source | LED |
| color of the light source | green |
| light intensity | 900 … 1 400 mcd |
| certificate of suitability | – |
| ● ATEX | No |
| ● IECEx | No |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted) |
| fastening method | – |
| ● of modules and accessories | Front plate mounting |
| last modified: | 10/6/2021 |
