Siemens 3SU1401-1BB50-1AA0 Blue LED Module, 24V AC/DC, Screw Terminal, Front Plate Mounting Original Brand New
$6.71
Highly efficient blue LED module from the SIRIUS ACT range. Designed for reliable front plate mounting with screw terminals, it operates on a versatile 24 V AC/DC supply. This module provides brilliant, energy-saving illumination for pushbuttons and indicator lights in industrial control panels. Minimum order quantity is 5 units.
Availability: In stock
Overview
The Siemens 3SU1401-1BB50-1AA0 is a high-quality LED module with integrated LED, designed for reliable signaling and indication in industrial control panels. Operating on 24 V AC/DC, this blue LED module ensures clear visibility, long service life, and seamless integration with Siemens front plate mounting systems. Featuring a screw terminal connection, it allows for quick, secure, and maintenance-friendly installation.
This product is ideal for automation, machinery control, and industrial electrical applications where durability and consistent performance are essential.
Minimum order quantity: 5 pieces or multiples thereof.
Benefit
-
Reliable Siemens industrial-grade quality
-
Integrated LED for long-lasting performance
-
Clear blue illumination for high visibility
-
Supports both AC and DC voltage (24 V)
-
Easy and secure screw terminal wiring
-
Designed for front plate mounting
-
Low maintenance and energy-efficient
Function
-
Provides visual status indication in control panels
-
Enhances operator awareness and system monitoring
-
Ensures consistent signaling in automation systems
-
Suitable for industrial machinery, panels, and switchboards
Technical Specification
-
Brand: Siemens
-
Product Number: 3SU1401-1BB50-1AA0
-
Voltage Rating: 24 V AC/DC
-
LED Color: Blue
-
Connection Type: Screw terminal
-
Mounting Type: Front plate mounting
-
Lighting Type: Integrated LED
-
Minimum Order Quantity: 5 pieces (or multiples)
Application
The Siemens 3SU1401-1BB50-1AA0 LED Module is essential for:
-
Control Panel Building: Providing illuminated feedback for machines, production lines, and industrial processes.
-
Machinery Status Indication: Used in conjunction with blue pushbuttons or indicator lights to signify specific machine states, such as ‘Ready,’ ‘System Active,’ or a ‘Specific Mode.’
-
Process Control: Integration into centralized control systems, often connected via industrial protocols like PROFINET, AS-Interface, or IO-Link through compatible SIRIUS ACT components.
-
Automation Systems: Enhancing the human-machine interface (HMI) in manufacturing plants, distribution centers, and power generation facilities.
Visit 3SU1401-1BB50-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.009 kg |
|---|---|

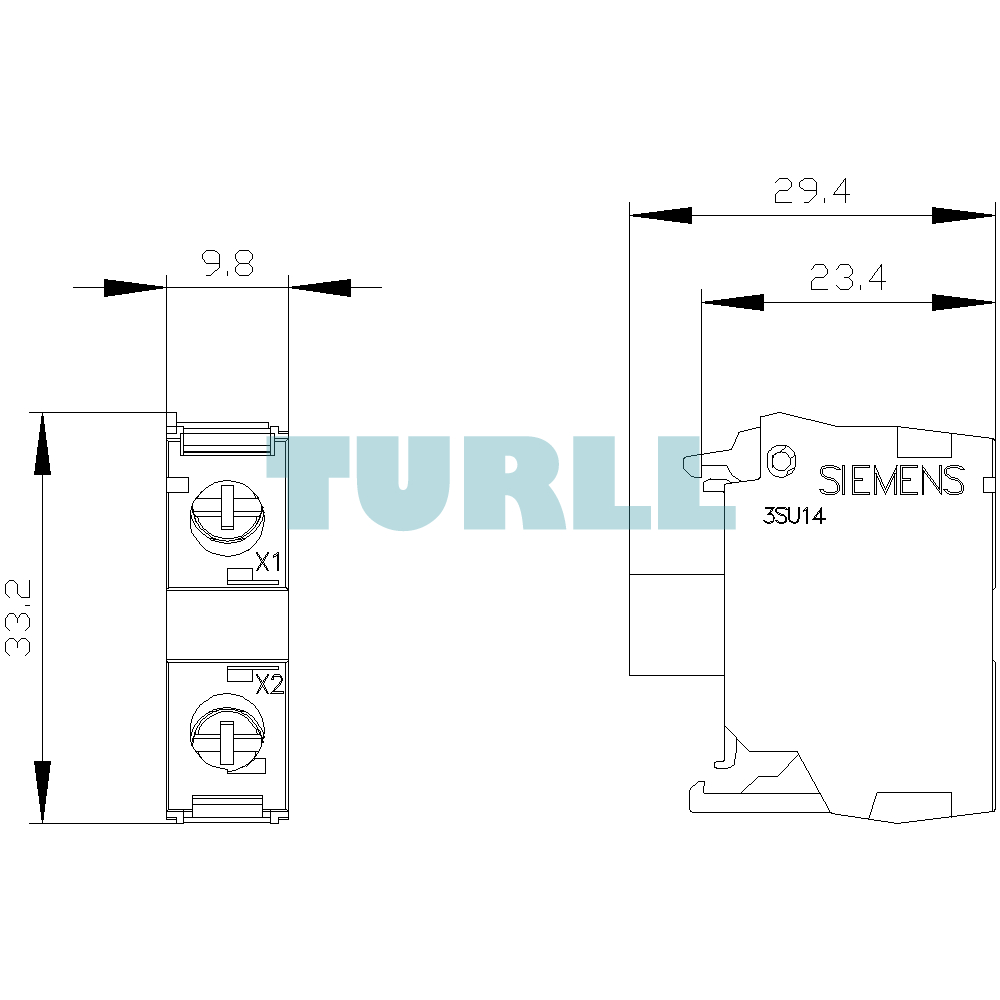

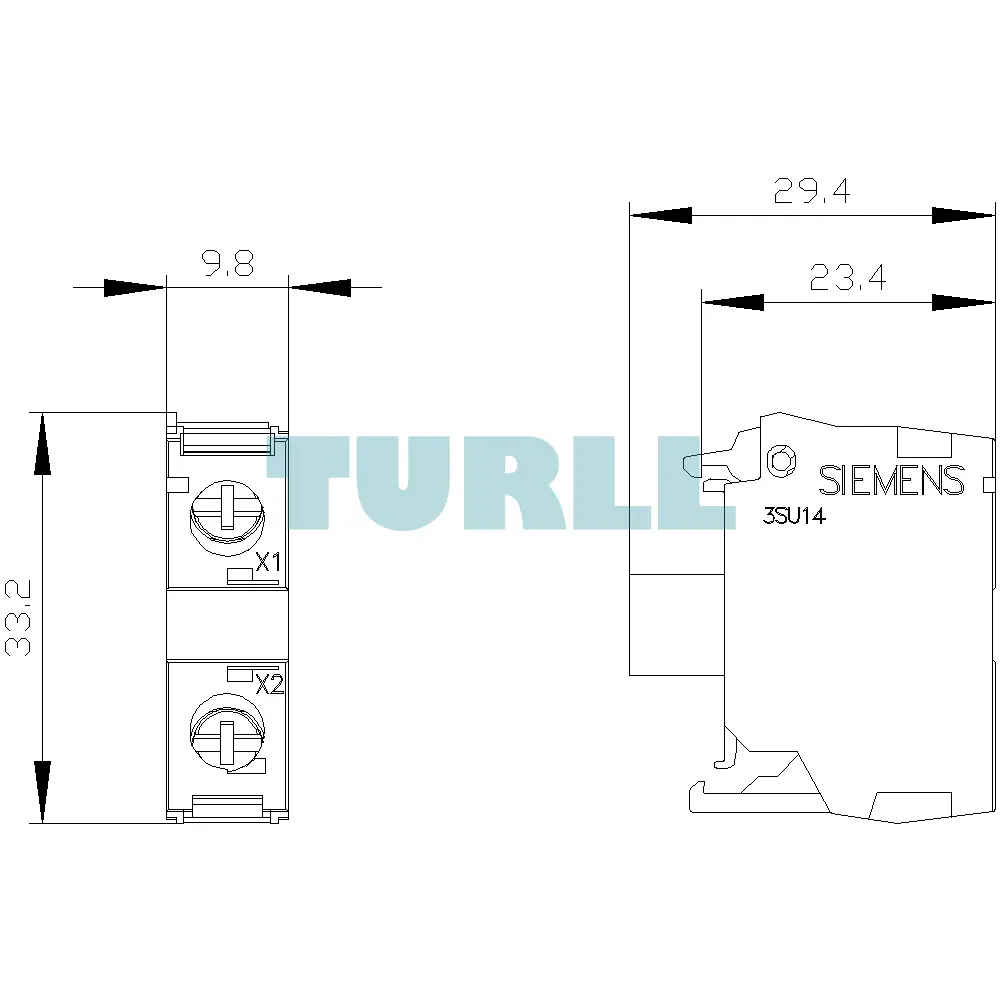

| Dimensions | 98.00 × 32.00 × 20.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | – |
| ● diode | Yes |
| ● lamp transformer | No |
| ● light source | Yes |
| ● series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC/DC |
| ● for actuation | AC/DC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 25 mA |
| protection class IP | – |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | – |
| ● at AC | – |
| — at 50 Hz rated value | 24 V |
| — at 60 Hz rated value | 24 V |
| ● at DC rated value | 24 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| inrush current maximum | 2 A |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| type of light source | LED |
| color of the light source | blue |
| light intensity | 280 … 710 mcd |
| certificate of suitability | – |
| ● ATEX | No |
| ● IECEx | No |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted) |
| fastening method | – |
| ● of modules and accessories | Front plate mounting |
| last modified: | 10/6/2021 |
