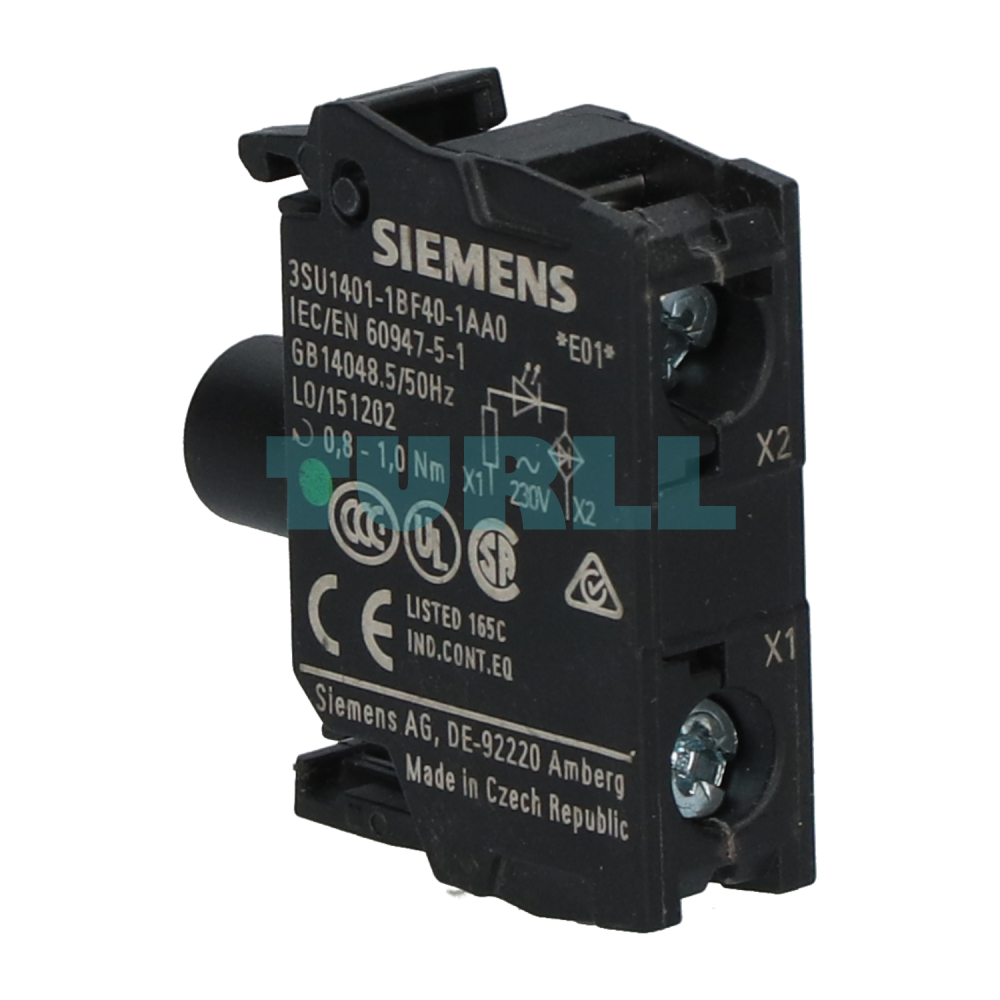

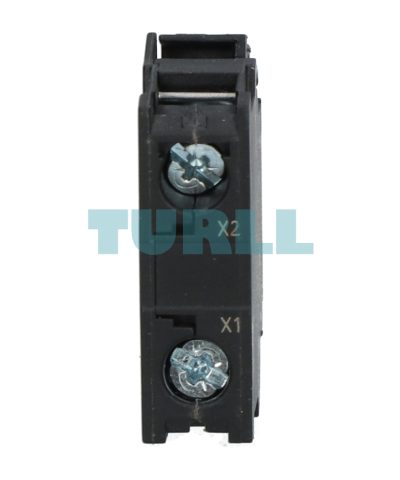

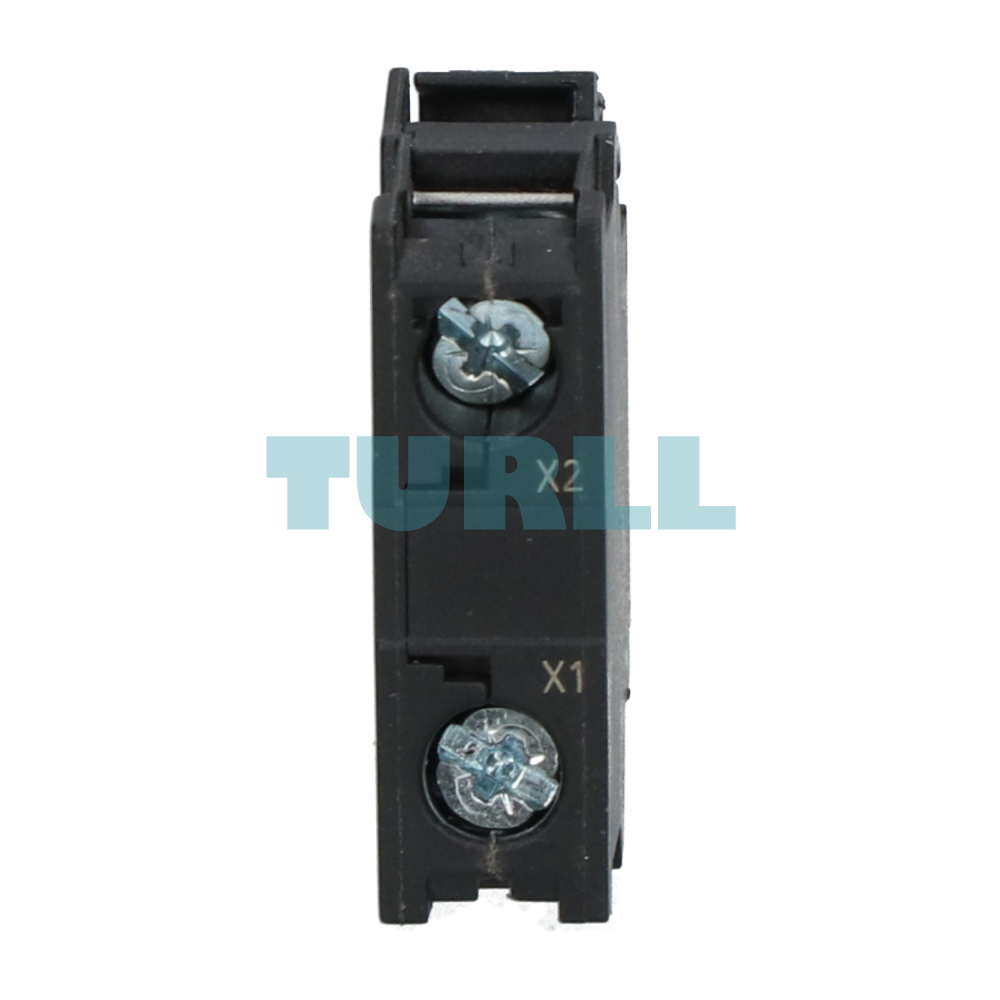

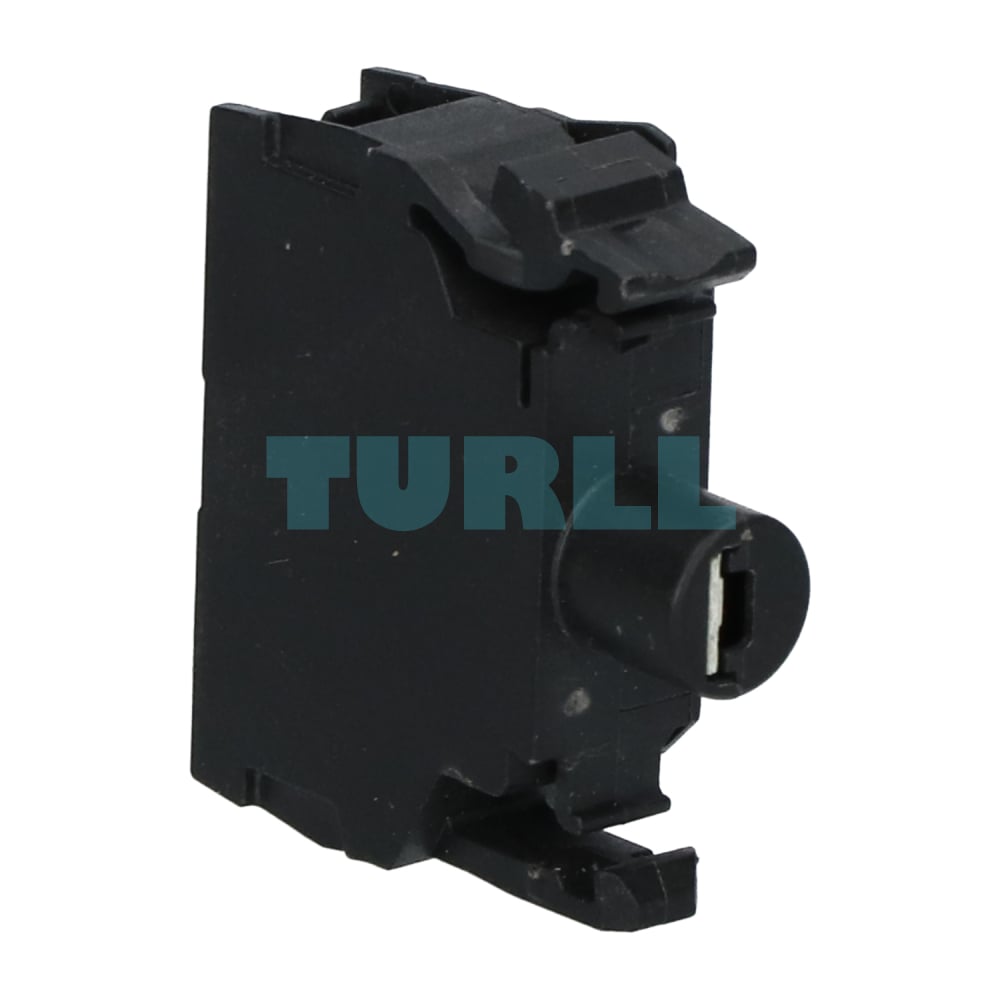

Siemens 3SU1401-1BF40-1AA0 LED Module, Green LED, 230V AC, Screw Terminal Original Brand New
$11.22
High-performance LED module from the SIRIUS ACT series. It features an integrated green LED designed for 230V AC operation, utilizing a secure screw terminal connection for reliable front plate mounting in industrial control panels.
Availability: In stock
Overview
The Siemens 3SU1401-1BF40-1AA0 LED module is a high-quality, reliable indicator solution designed for industrial applications. Featuring a green integrated LED with 230 V AC operation, this module is ideal for signaling and status indication on control panels and machinery. Its screw terminal design ensures secure and easy installation, while its compact form factor is optimized for front plate mounting.
Product Benefit
-
Long Operational Life: Integrated LED technology significantly reduces maintenance costs compared to traditional incandescent bulbs.
-
Vibration Resistant: The screw terminal connection ensures a secure electrical contact even in high-vibration industrial settings.
-
Easy Installation: Designed specifically for front plate mounting, allowing for quick assembly and replacement.
-
High Visibility: The vibrant green light provides clear status signaling for machine operators.
Product Function
-
Status indicator for industrial control panels
-
Signal transmission for automated machinery
-
Visual feedback for operational processes
-
Electrical signaling with 230 V AC input
Application
This LED module is ideal for:
-
Control panel signaling.
-
Industrial pushbutton assemblies.
-
Machine status indicators (Ready/Go/Safe).
-
Power distribution boards.
Visit 3SU1401-1BF40-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.010 kg |
|---|---|

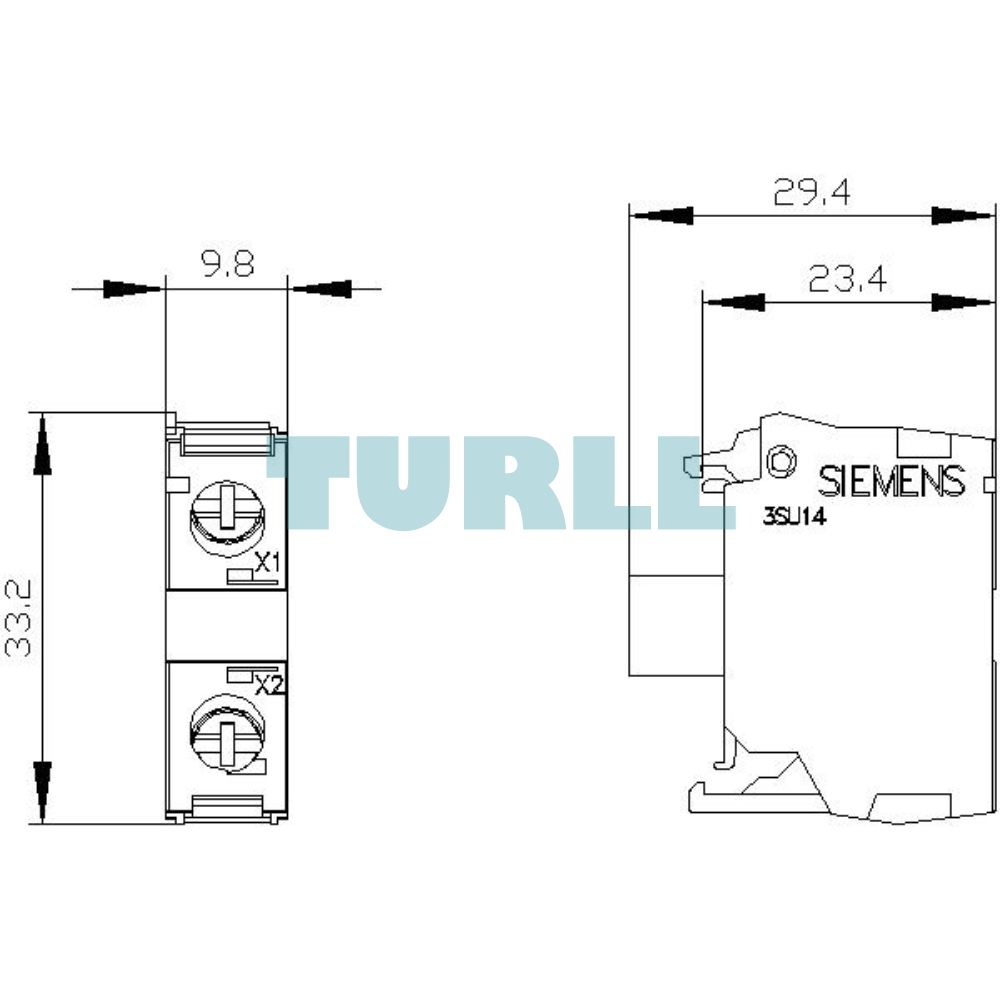

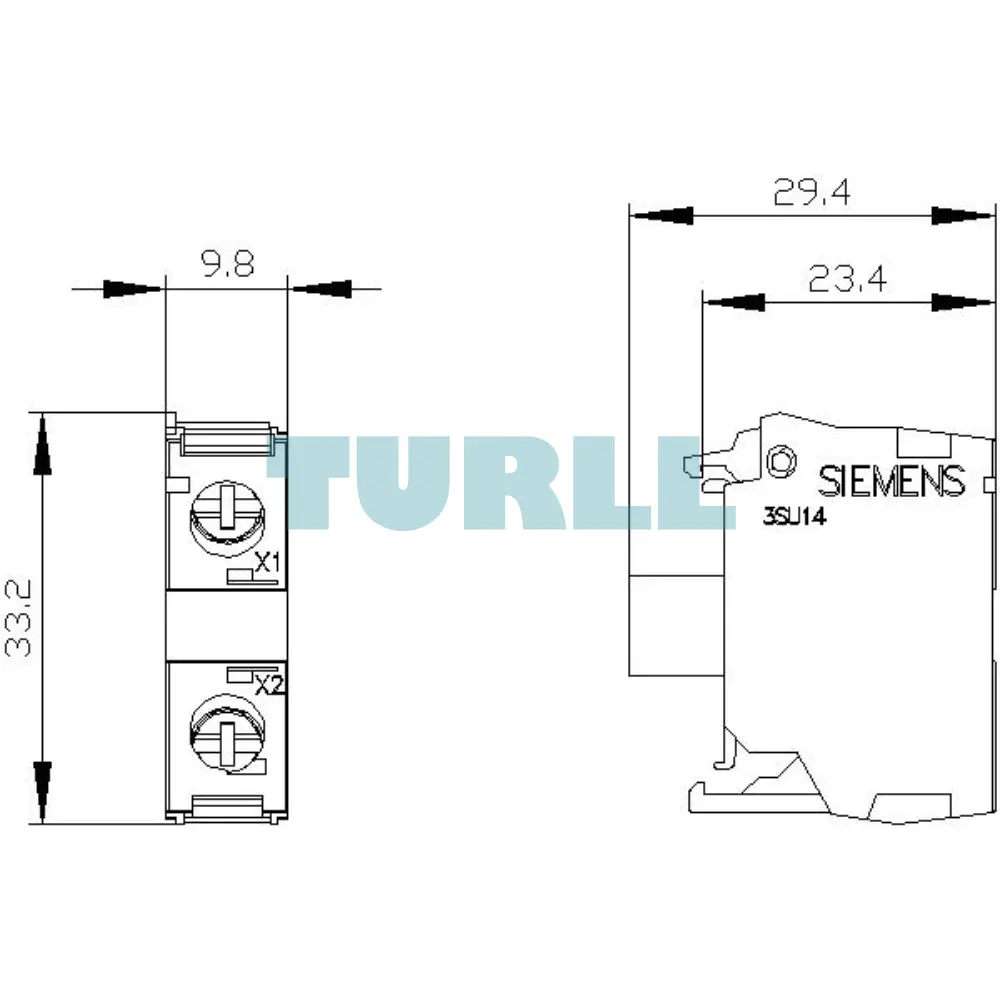

| Dimensions | 30.00 × 35.00 × 10.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | – |
| ● diode | Yes |
| ● lamp transformer | No |
| ● light source | Yes |
| ● series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC |
| ● for actuation | AC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 20 mA |
| protection class IP | – |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | – |
| ● at AC | – |
| — at 50 Hz rated value | 230 V |
| — at 60 Hz rated value | 230 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| inrush current maximum | 3 A |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| type of light source | LED |
| color of the light source | green |
| light intensity | 900 … 1 400 mcd |
| certificate of suitability | – |
| ● ATEX | No |
| ● IECEx | No |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted) |
| fastening method | – |
| ● of modules and accessories | Front plate mounting |
| last modified: | 10/6/2021 |
