Siemens 3SU1401-1BF60-1AA0 SIRIUS ACT LED Module, 230V AC, White Original Brand New
$11.22
High-intensity Siemens LED module (230V AC) in white. Features integrated LED and screw terminals for secure front plate mounting in industrial panels.
Availability: In stock
Overview
The Siemens 3SU1401-1BF60-1AA0 is a high-performance LED module from the SIRIUS ACT series. Designed for durability and clarity, this integrated white LED unit operates at 230V AC, providing bright visual signaling for industrial control panels. Its robust construction ensures long-term reliability even in demanding environments.
Key Benefit
-
Energy Efficiency: Integrated LED technology provides high luminosity with minimal power consumption.
-
Long Service Life: Vibration-resistant design ensures a significantly longer lifespan compared to traditional incandescent bulbs.
-
Easy Installation: Rapid assembly with a secure screw terminal connection.
-
Space-Saving: Compact design specifically engineered for front plate mounting.
Technical Function
-
Voltage Compatibility: Optimized for 230V AC industrial power supplies.
-
Visual Signaling: Clear white illumination for status indication or emergency lighting.
-
Termination: Reliable screw terminals accommodate standard wiring sizes for a permanent, gas-tight connection.
-
Compatibility: Fully compatible with Siemens SIRIUS ACT pushbuttons and signaling devices.
Technical Specification
-
Model: 3SU1401-1BF60-1AA0
-
Product Type: LED Module
-
Color: White
-
Supply Voltage: 230 V AC
-
Connection Type: Screw Terminal
-
Mounting Type: Front Plate Mounting
-
Series: SIRIUS ACT
Visit 3SU1401-1BF60-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.011 kg |
|---|---|

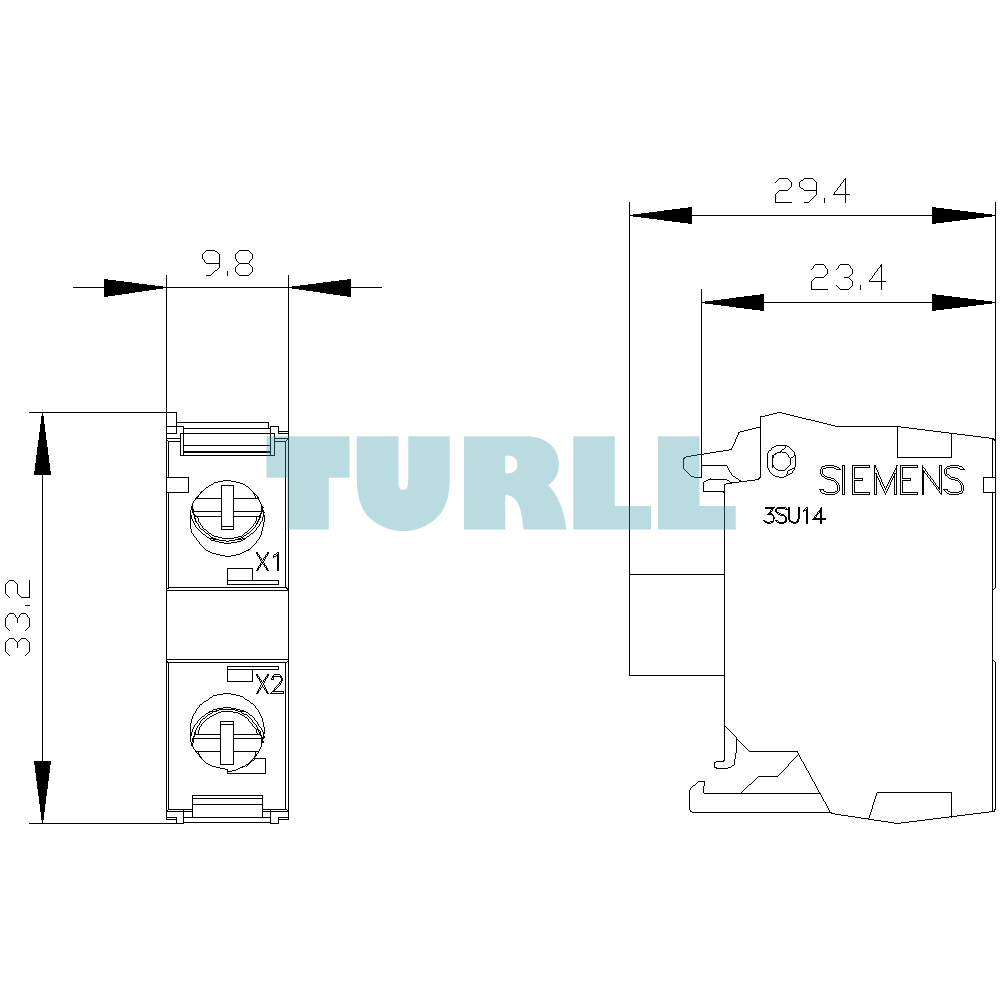

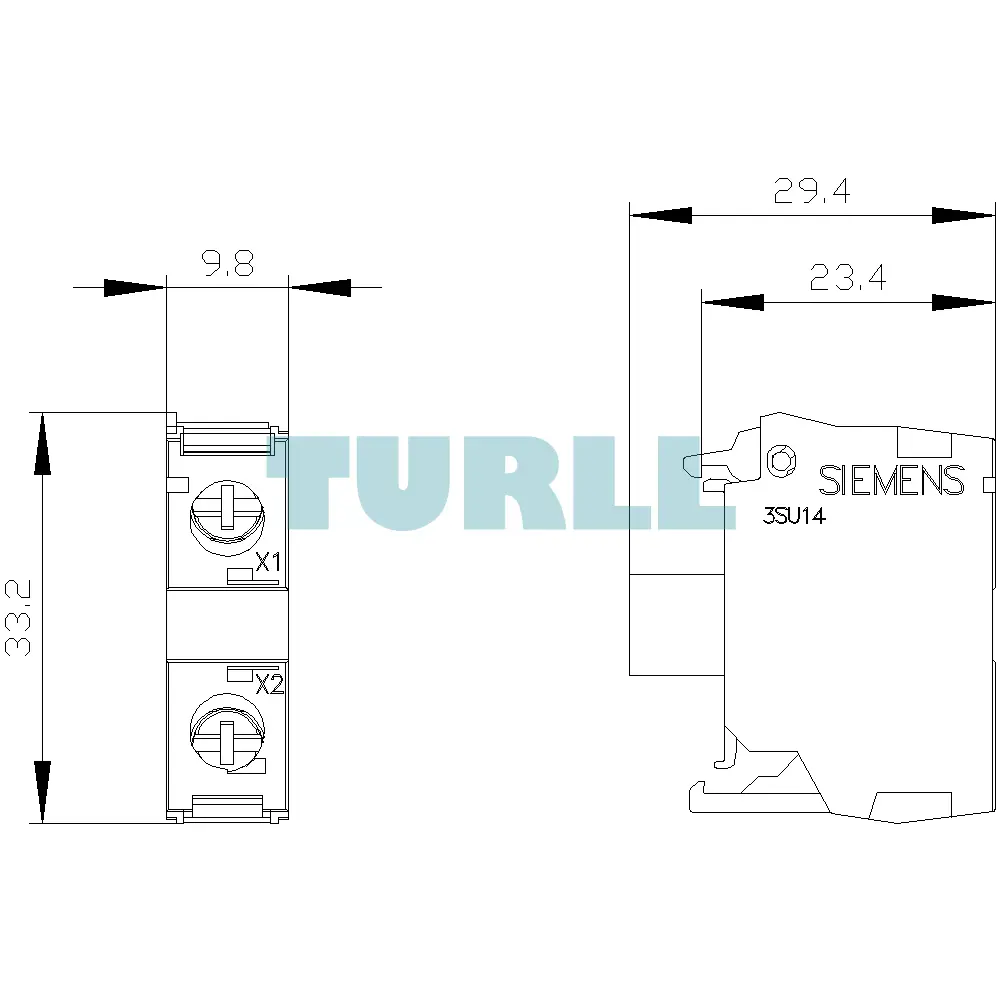

| Dimensions | 65.00 × 73.00 × 32.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | – |
| ● diode | Yes |
| ● lamp transformer | No |
| ● light source | Yes |
| ● series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC |
| ● for actuation | AC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 20 mA |
| protection class IP | – |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | – |
| ● at AC | – |
| — at 50 Hz rated value | 230 V |
| — at 60 Hz rated value | 230 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| inrush current maximum | 3 A |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| type of light source | LED |
| color of the light source | white |
| light intensity | 900 … 1 400 mcd |
| certificate of suitability | – |
| ● ATEX | No |
| ● IECEx | No |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted) |
| fastening method | – |
| ● of modules and accessories | Front plate mounting |
| last modified: | 10/6/2021 |
