3SU1401-2BB30-3AA0

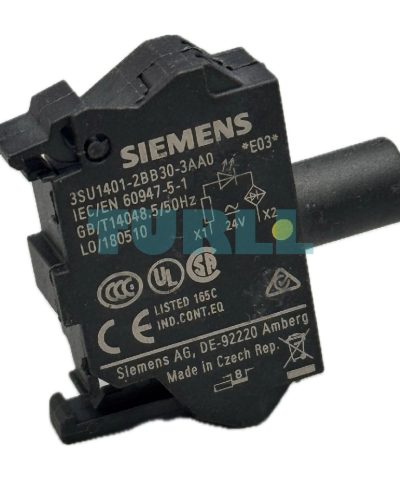

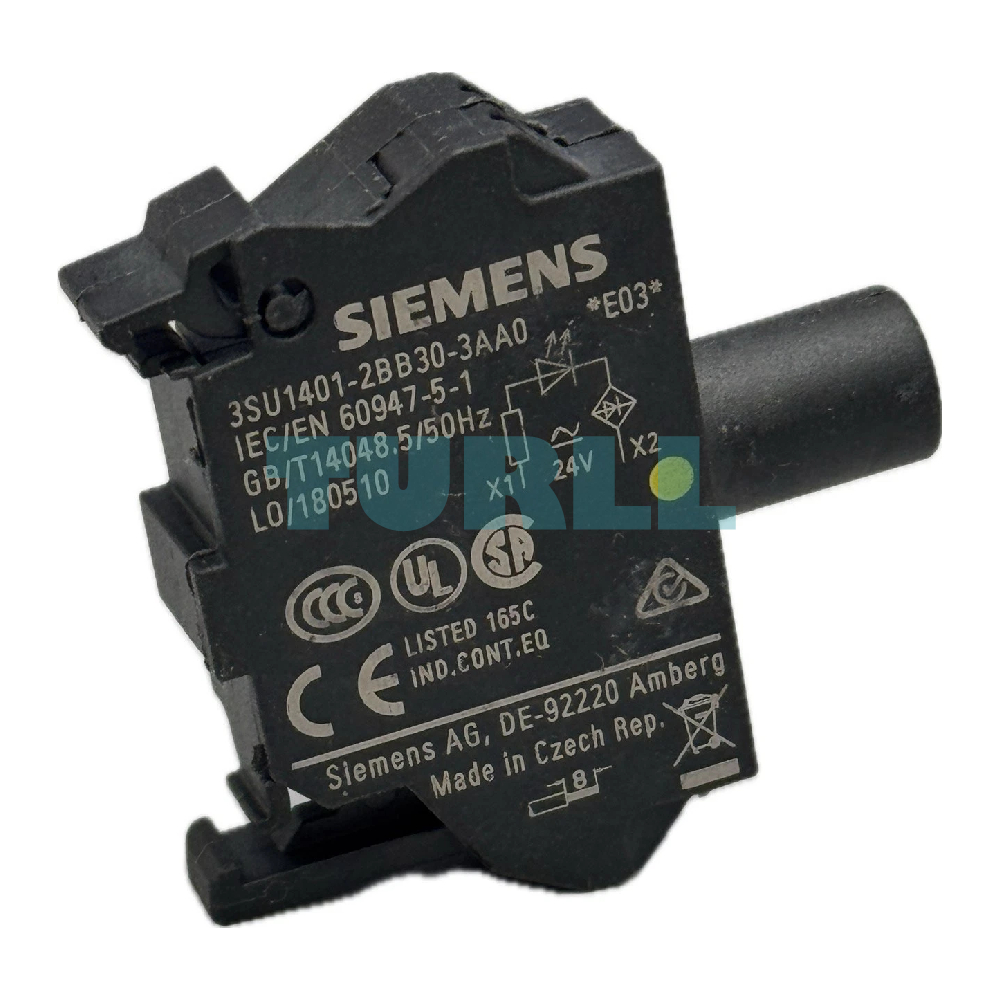

Siemens 3SU1401-2BB30-3AA0 LED Module 24V AC/DC, Yellow, Spring-Loaded Terminal, Floor Mount Original Brand New
Original price was: $9.09.$3.68Current price is: $3.68.
USDIn warehouse stock
Dispatches in 1–3 days
- Condition
- Original brand new
- Warranty
- 12 months
Save 2% on merchandise with bank transfer
Need volume pricing? Request a quoteReview shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1401-2BB30-3AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | - |
| ● diode | Yes |
| ● lamp transformer | No |
| ● light source | Yes |
| ● series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC/DC |
| ● for actuation | AC/DC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 25 mA |
| protection class IP | - |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | - |
| ● at AC | - |
| — at 50 Hz rated value | 24 V |
| — at 60 Hz rated value | 24 V |
| ● at DC rated value | 24 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| inrush current maximum | 2 A |
| type of electrical connection | spring-loaded terminals |
| type of connectable conductor cross-sections | - |
| ● solid without core end processing | 2x (0.25 ... 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.25 ... 0.75 mm²) |
| ● finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| ● at AWG cables | 2x (24 ... 16) |
| type of light source | LED |
| color of the light source | yellow |
| light intensity | 900 ... 1 400 mcd |
| certificate of suitability | - |
| ● ATEX | No |
| ● IECEx | No |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted) |
| fastening method | - |
| ● of modules and accessories | Floor mounting |
| last modified: | 10/6/2021 |
| Net weight | 0.009 kg |
| Package dimensions (L × W × H) | 55.00 × 102.00 × 22.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens 3SU1401-2BB30-3AA0 is a highly visible, floor-mounting LED module designed for integration with the SIRIUS ACT range of control and signaling devices. This module provides a clear, bright yellow signal indication essential for industrial control panels and machinery. It features an integrated LED and operates reliably on a standard 24 V AC/DC supply voltage, ensuring compatibility across various systems. The use of spring-loaded terminals guarantees quick, error-free wiring and a vibration-proof connection, maximizing operational uptime.
Key Features & Function
-
Integrated yellow LED for clear visual signaling
-
Operates on 24 V AC/DC, ensuring compatibility with industrial systems
-
Spring-loaded terminal for fast and secure wiring
-
Designed for floor mounting applications
-
Robust construction for long-lasting industrial use
-
Minimum order quantity: 5 units or multiples
Benefit
-
Superior Visibility: Bright yellow integrated LED provides a clear, unmistakable visual status signal.
-
Reliable Connection: Spring-loaded terminal technology ensures a secure, gas-tight, and vibration-resistant connection, reducing maintenance needs.
-
Versatile Power: Operates efficiently on both 24 V AC and 24 V DC power supplies.
-
Easy Installation: Designed for convenient floor mounting within the control element, simplifying panel assembly.
-
Industry Standard: Part of the proven Siemens SIRIUS ACT family, ensuring quality, compatibility, and durability.
Application
Ideal for visual signaling in a wide range of industrial applications, including:
-
Status indication (e.g., Warning, Fault, Hold, Manual Mode).
-
Control panel building and machine tools.
-
Automation and process control systems.
-
Manufacturing and assembly lines.
