Read shipping & delivery →SIEMENS
3SU1401-2BF50-3AA0

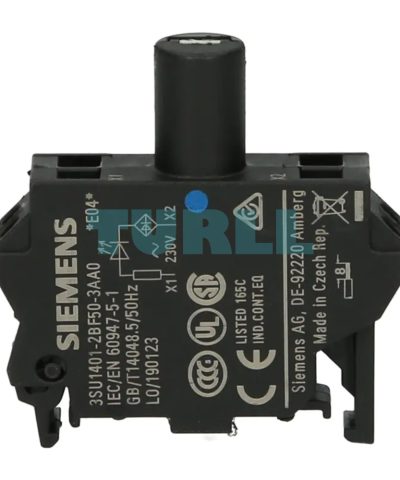

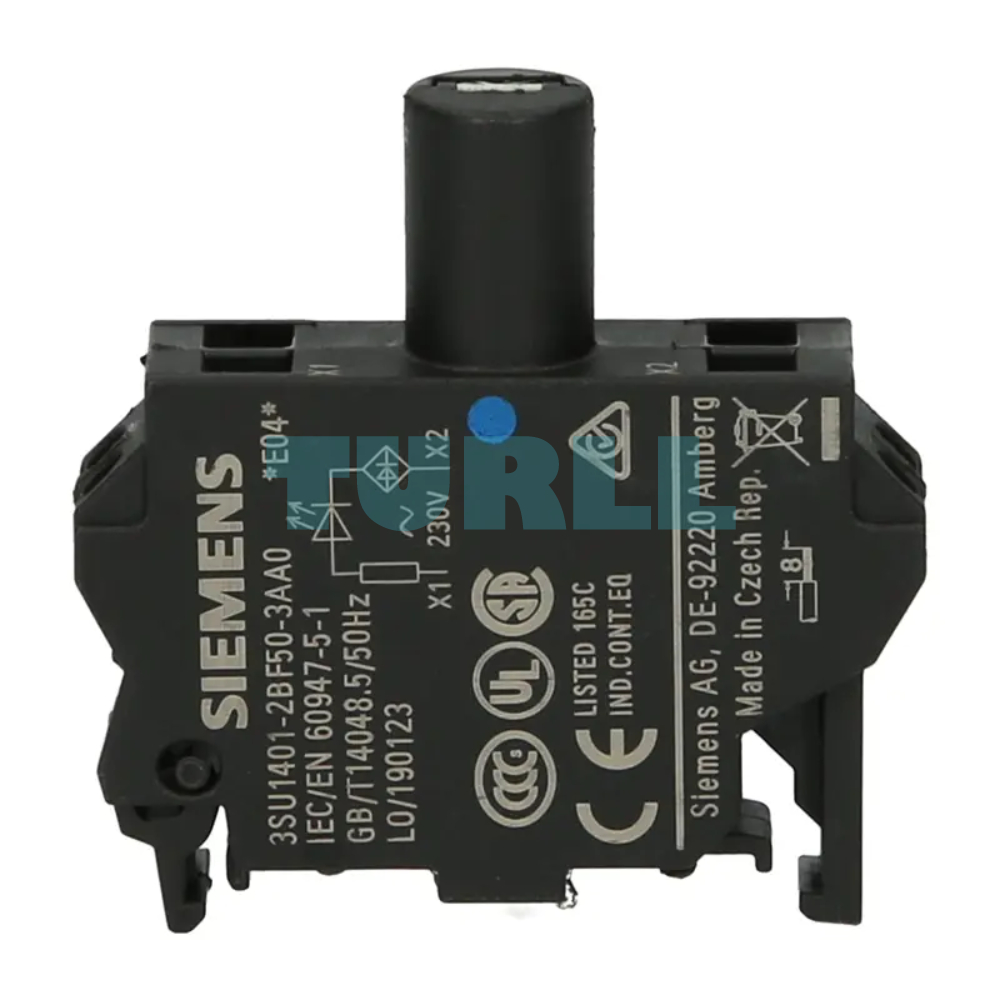

Siemens 3SU1401-2BF50-3AA0 Blue LED Module, 230V AC, Spring-Type Terminal, Floor Mount Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1401-2BF50-3AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | - |
| â—Ź diode | Yes |
| â—Ź lamp transformer | No |
| â—Ź light source | Yes |
| â—Ź series resistor | No |
| insulation voltage rated value | 320Â V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC |
| â—Ź for actuation | AC |
| surge voltage resistance rated value | 4Â kV |
| consumed current maximum | 20Â mA |
| protection class IP | - |
| â—Ź of the enclosure | IP40 |
| â—Ź of the terminal | IP20 |
| shock resistance | - |
| â—Ź acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| â—Ź acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| â—Ź for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100Â 000Â h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | - |
| â—Ź at AC | - |
| — at 50 Hz rated value | 230 V |
| — at 60 Hz rated value | 230 V |
| relative positive tolerance of the operating voltage | 20Â % |
| relative negative tolerance of the operating voltage | 20Â % |
| inrush current maximum | 3Â A |
| type of electrical connection | spring-loaded terminals |
| type of connectable conductor cross-sections | - |
| ● solid without core end processing | 2x (0.25 ... 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.25 ... 0.75 mm²) |
| ● finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| â—Ź at AWG cables | 2x (24 ... 16) |
| type of light source | LED |
| color of the light source | blue |
| light intensity | 280 ... 710 mcd |
| certificate of suitability | - |
| â—Ź ATEX | No |
| â—Ź IECEx | No |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted) |
| fastening method | - |
| â—Ź of modules and accessories | Floor mounting |
| last modified: | 10/6/2021 |
| Weight for shipping | 0.008 kg |
| Dimensions for shipping | 98.00 × 113.00 × 10.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens 3SU1401-2BF50-3AA0 is a high-performance LED module designed for seamless integration into industrial control and signaling devices. Part of the SIRIUS ACT command and signaling range, this module features an integrated blue LED and operates efficiently on a standard control supply voltage of 230V AC. Its spring-type terminal connection method ensures fast, vibration-proof, and maintenance-free wiring, making it ideal for robust industrial environments. Specifically configured for floor mounting, it provides a reliable, long-lasting light source for status indication in control panels and machinery.
Benefit
-
Reduced Wiring Time: Spring-type technology accelerates installation and minimizes connection errors.
-
High Visibility: The bright blue LED light provides clear operational status at a glance.
-
Reliability: Robust design and vibration-proof terminals ensure continuous, trouble-free operation in harsh industrial settings.
-
Cost-Effective: Low energy consumption from the LED and minimal maintenance requirements save on long-term operating costs.
-
Simplified Integration: 230V AC rating is common in many industrial setups, allowing for easy drop-in replacement or new installation.
Function & Application
-
Floor-mounted indicator for industrial machines and control panels.
-
Status signaling in factory automation and production lines.
-
Visual alerts for operational conditions in various industrial environments.
-
Ideal for both new installations and replacement of existing modules.
