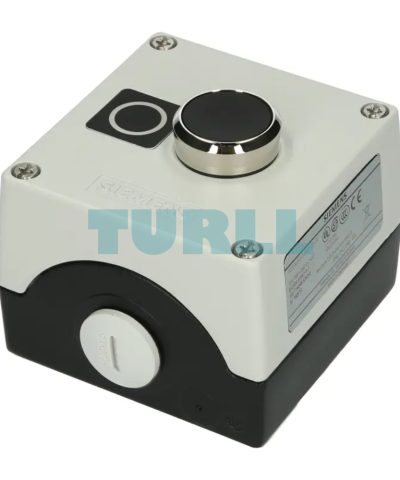

Siemens 3SU1851-0AE00-2AB1 Metal Enclosure for 22mm Round Command Devices Original Brand New
Model / SKU3SU1851-0AE00-2AB1
Metal enclosure for 22 mm round command devices with black pushbutton, 1 NC contact, screw terminals, and floor-mounting. Gray top part, 1xM20 entries, and label included.
Original price was: $71.03.$38.53Current price is: $38.53.
In stockShips in 1–3 business days
- ConditionOriginal Brand New
- Warranty12 months
- Genuine Products
- Up to 1-Year Warranty
- Global Shipping
- Secure Payment
- PI / Bank Transfer Available
- Bulk Quote Support
Description
Overview

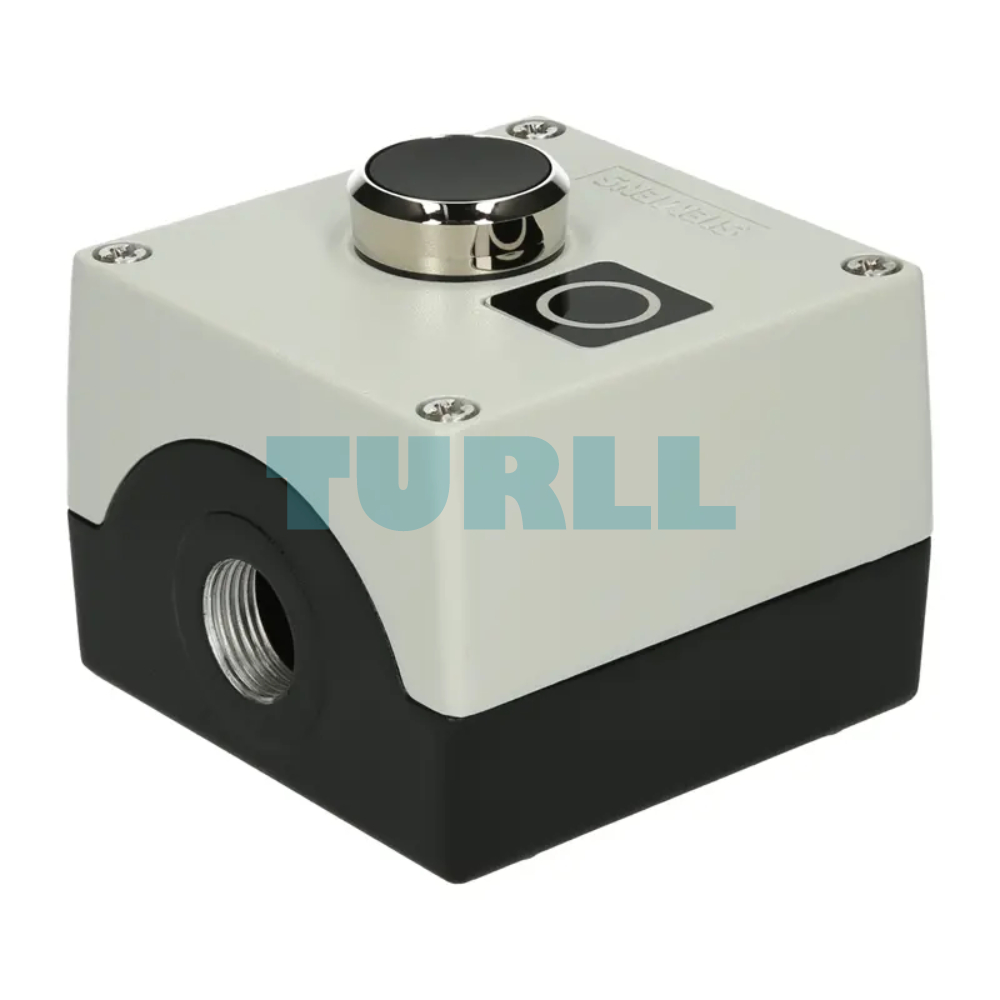

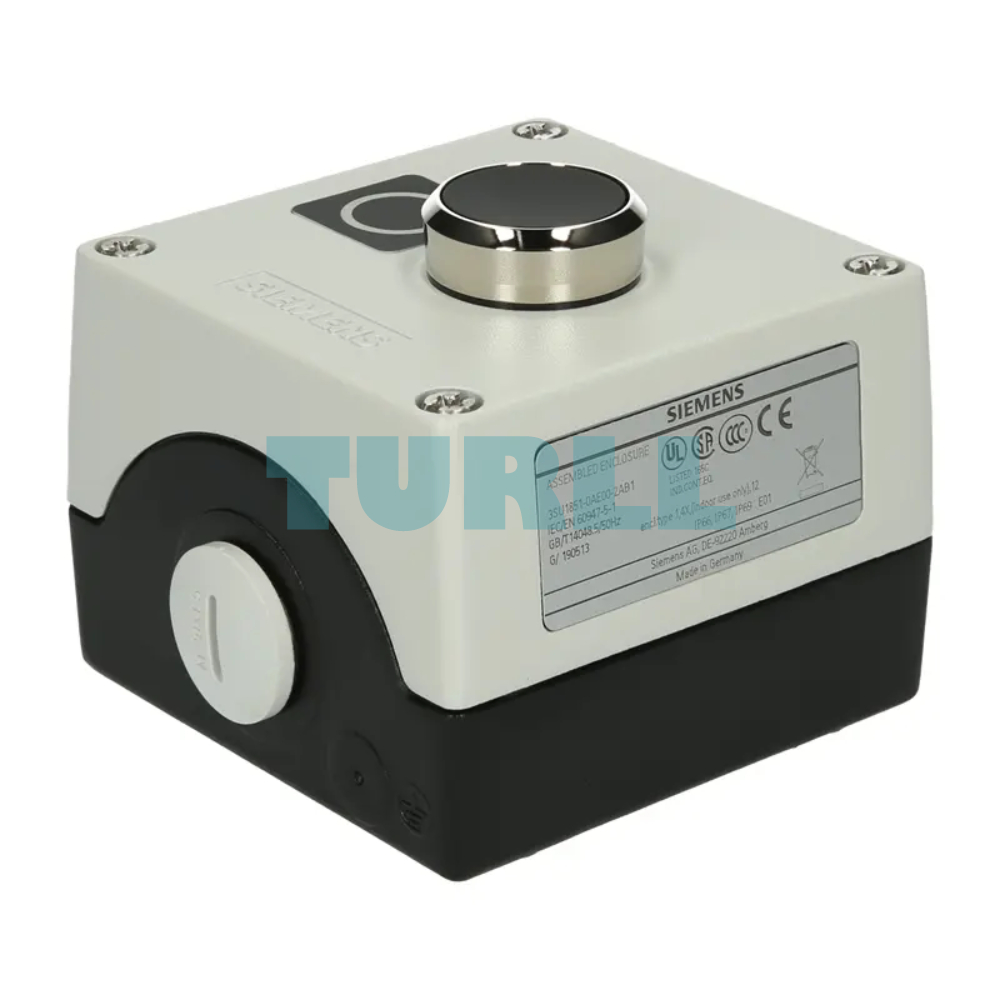

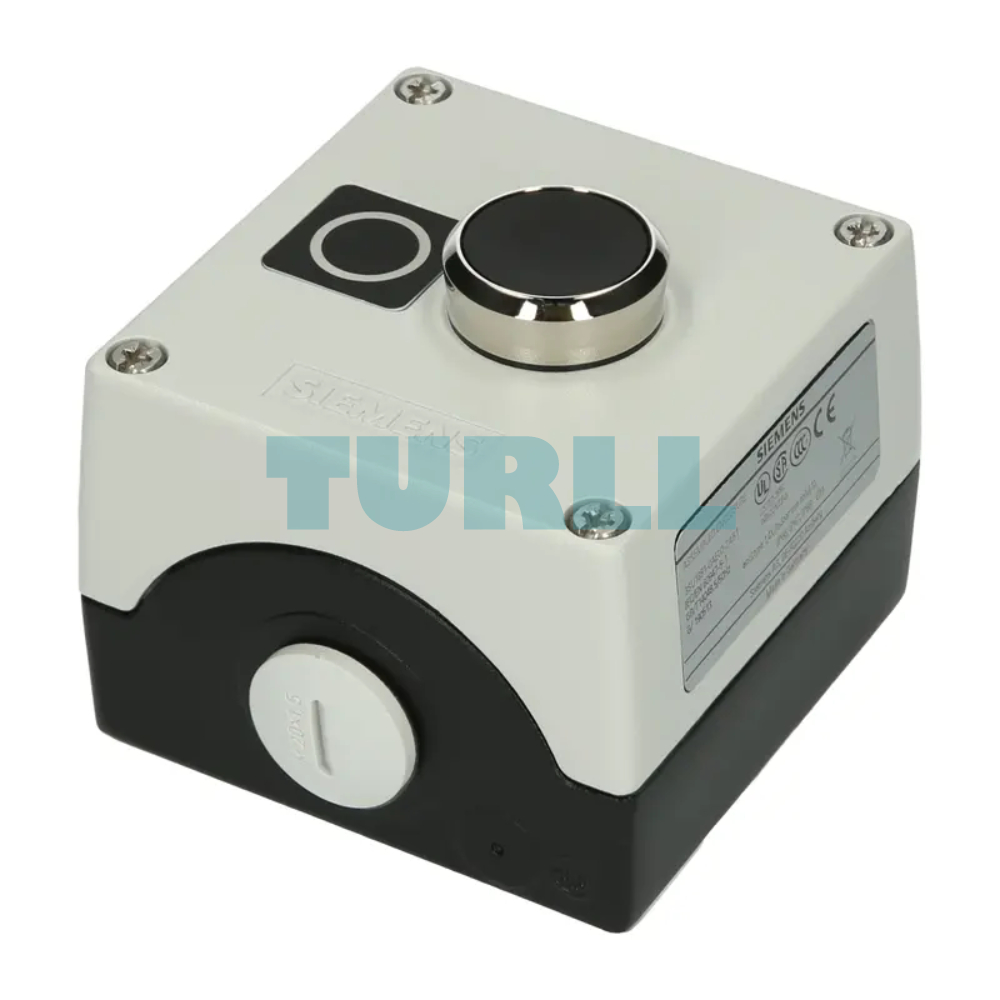

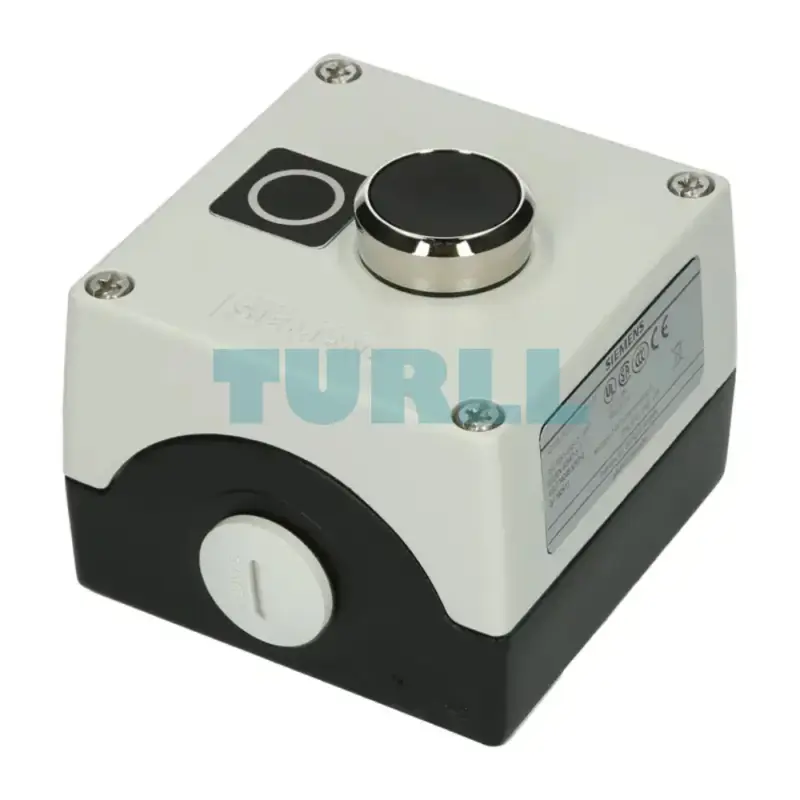

The Siemens 3SU1851-0AE00-2AB1 is a high-quality, pre-assembled metal enclosure designed for single command device applications within the SIRIUS ACT 22 mm product line. This robust, industrial-grade station provides a reliable and protected interface for machine control. It comes equipped with one control point, featuring a black pushbutton labeled with an 'O' symbol, wired with one Normally Closed (NC) contact element. Its gray metal top part and durable metal body are engineered for floor mounting, making it perfectly suited for manufacturing floors and heavy-duty environments.
Key Benefit
- Enhanced Durability: Constructed with a rugged metal enclosure and top part, offering superior protection against physical impact, dust, and environmental factors compared to plastic alternatives.
- Simple Installation: Features convenient screw terminals for quick, secure wiring, reducing installation time and complexity.
- Ready-to-Use: Pre-assembled with a black 'O' labeled pushbutton and 1 NC contact, minimizing assembly work on-site.
- Flexible Cable Management: Includes M20 cable entries on both the top and bottom, allowing for tidy and versatile cable routing based on installation requirements.
- Industrial Standard: Part of the trusted Siemens SIRIUS ACT 22 mm range, ensuring compatibility and quality.
Function & Application
This enclosure station functions as a primary operator interface, typically used for machine STOP, OFF, or RESET commands due to the inclusion of the 'O' labeled (Off/Stop) pushbutton with an NC contact.
Application:
-
Machine Start/Stop Stations
-
Conveyor Belt Control
-
Process Monitoring and Interruption
-
Industrial Safety Applications requiring a simple, rugged control point.
Download
Visit 3SU1851-0AE00-2AB1 for more detail info
For more our products visit turll
Specifications
| SKU / Model | 3SU1851-0AE00-2AB1 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Enclosures |
| product type designation | 3SU1 |
| manufacturer's article number | - |
| ● of supplied contact module | A1 = 3SU1400-2AA10-1CA0 |
| ● of supplied contact module at the command point A 1 | 3SU1400-2AA10-1CA0 |
| ● of the supplied holder | A = 3SU1550-0AA10-0AA0 |
| ● of the supplied holder at the command point A | 3SU1550-0AA10-0AA0 |
| ● of the supplied actuator | 3SU1050-0AB10-0AA0 |
| ● of the supplied actuator at the command point A | 3SU1050-0AB10-0AA0 |
| ● of supplied empty enclosure | 3SU1851-0AA00-0AB1 |
| ● of supplied accessory | A = 3SU1900-0AF16-0QA0 |
| ● of the supplied accessories at the command point A | 3SU1900-0AF16-0QA0 |
| design of the housing | with recess for label |
| shape of the enclosure front | Square |
| material of the enclosure | metal |
| number of command points | 1 |
| product component | - |
| ● EMERGENCY STOP device | No |
| ● protective collar | No |
| color of the enclosure top part | grey |
| delivery state | - |
| ● as a kit | No |
| ● pre-wired on strip terminal | No |
| fastening method of the enclosure | Vertical |
| design of the actuating element | Pushbutton |
| suitability for use EMERGENCY OFF switch | No |
| product feature lockout | No |
| product extension optional light source | No |
| color of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| number of contact modules | 1 |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| material of the holder | Plastic |
| number of LED modules | 0 |
| product function | - |
| ● positive opening | No |
| ● EMERGENCY OFF function | No |
| ● EMERGENCY STOP function | No |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| reference code acc. to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A |
| continuous current of the DIAZED fuse link gG | 10 A |
| operating voltage | - |
| ● at AC | - |
| — at 50 Hz rated value | 5 ... 500 V |
| — at 60 Hz rated value | 5 ... 500 V |
| ● at DC rated value | 5 ... 500 V |
| design of the interface for communication | without |
| design of the contact of auxiliary contacts | Silver alloy |

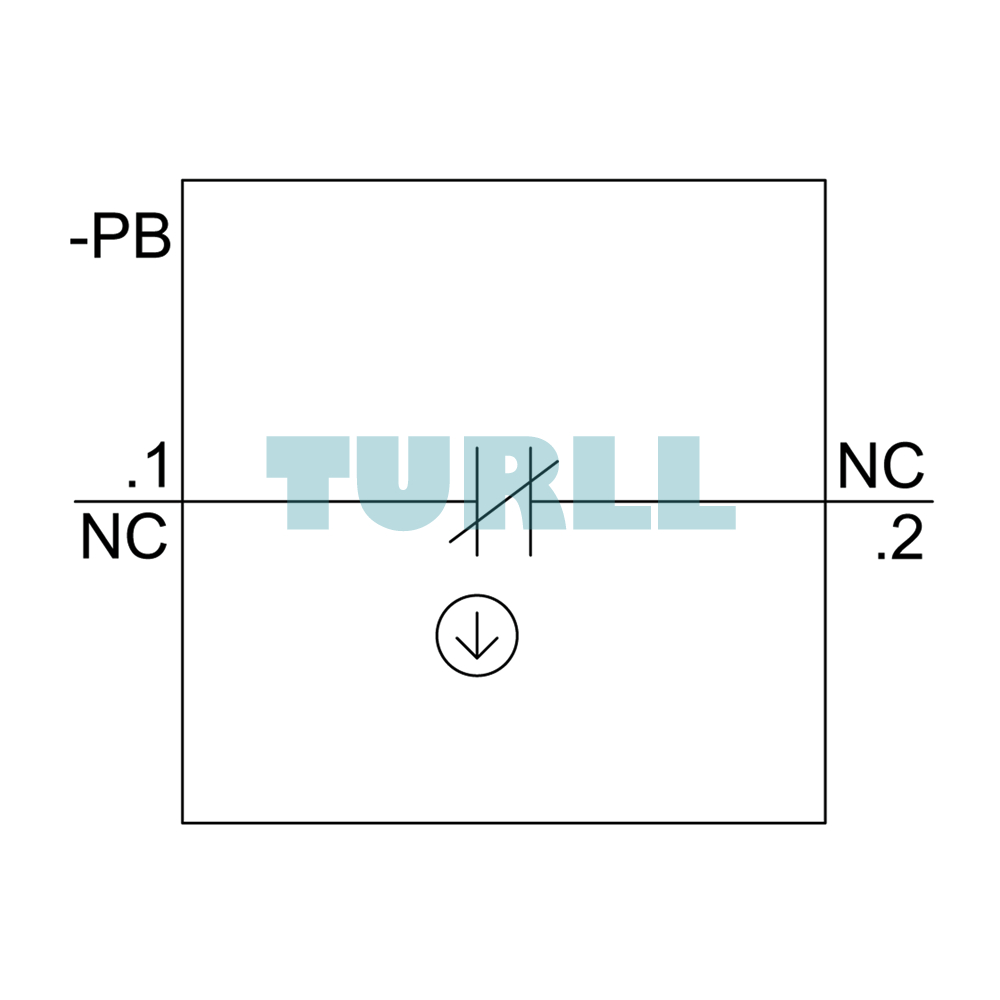

| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 0 |
| type of electrical connection of modules and accessories | Screw-type terminal |
| type of electrical connection on enclosure | Cable routing above and below, both 1 x M20 |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| tightening torque of fixing screws in the enclosure cover | 1.5 ... 1.7 N·m |
| tightening torque with screw-type terminals | 0.8 ... 0.9 N·m |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method of modules and accessories | Floor mounting |
| shape of the installation opening | round |
| number of labels | 1 |
| marking of the name plate for command devices | A = I |
| color of the label | A = black |
| number of inscription plates | 0 |
| last modified: | 10/1/2021 |
| Weight | 0.562 kg |

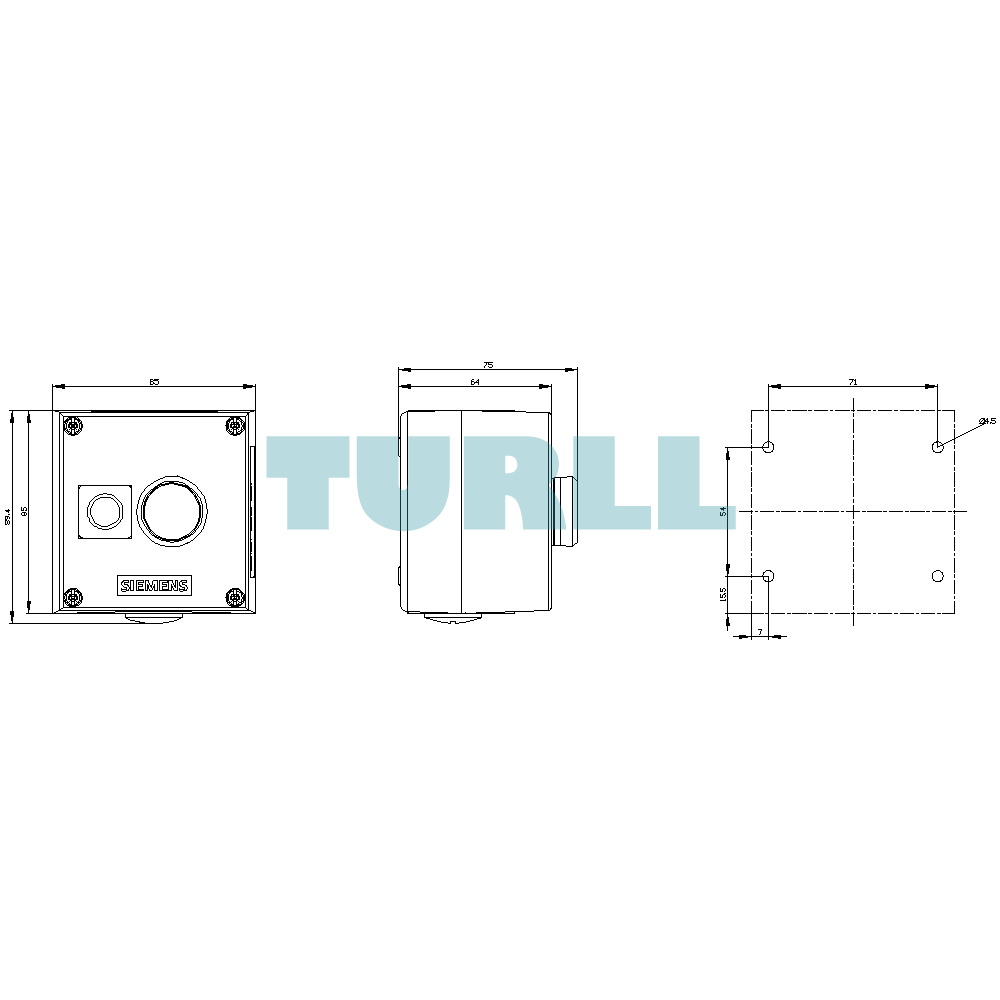

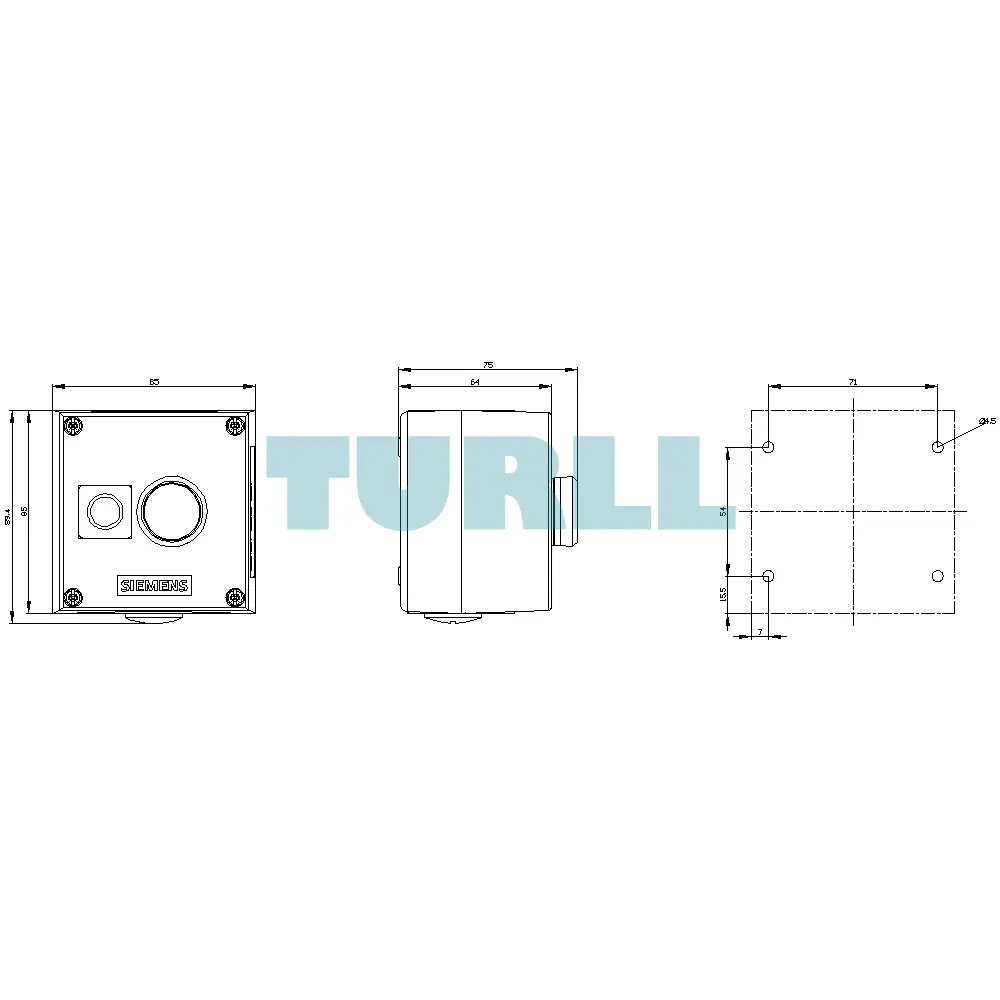

| Dimensions | 95.00 × 100.00 × 134.00 mm |
