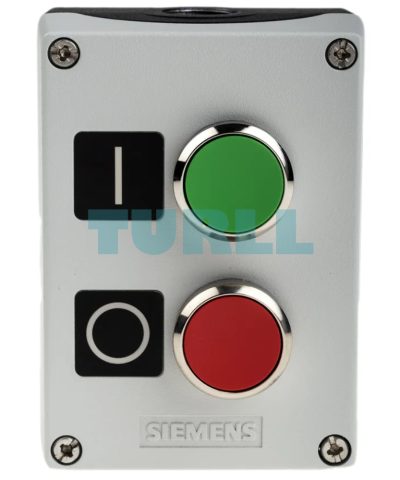

Siemens 3SU1852-0AB00-2AB1 Metal Enclosure, 22mm Command Devices with Pushbuttons Original Brand New
Model / SKU3SU1852-0AB00-2AB1
A rugged 22mm round metal enclosure from the SIRIUS ACT series. This pre-configured command station includes two control points: a green pushbutton (Label I, 1 NO) and a red pushbutton (Label O, 1 NC). Designed for floor mounting with M20 cable entries, it provides a durable solution for industrial start/stop operations.
Original price was: $103.93.$56.37Current price is: $56.37.
Available on backorder
- ConditionOriginal Brand New
- Warranty12 months
Backorder available · Factory lead time 2–3 weeks.
- Genuine Products
- Up to 1-Year Warranty
- Global Shipping
- Secure Payment
- PI / Bank Transfer Available
- Bulk Quote Support
Description
Overview

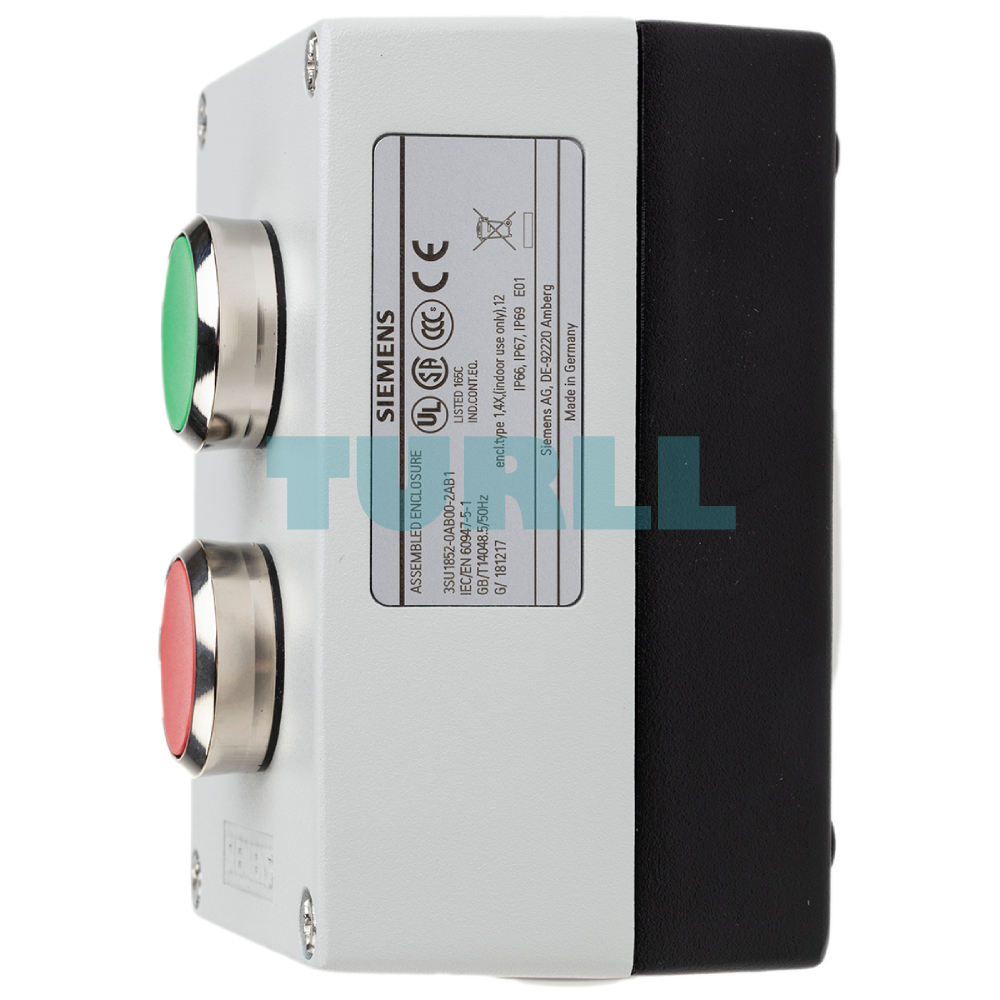

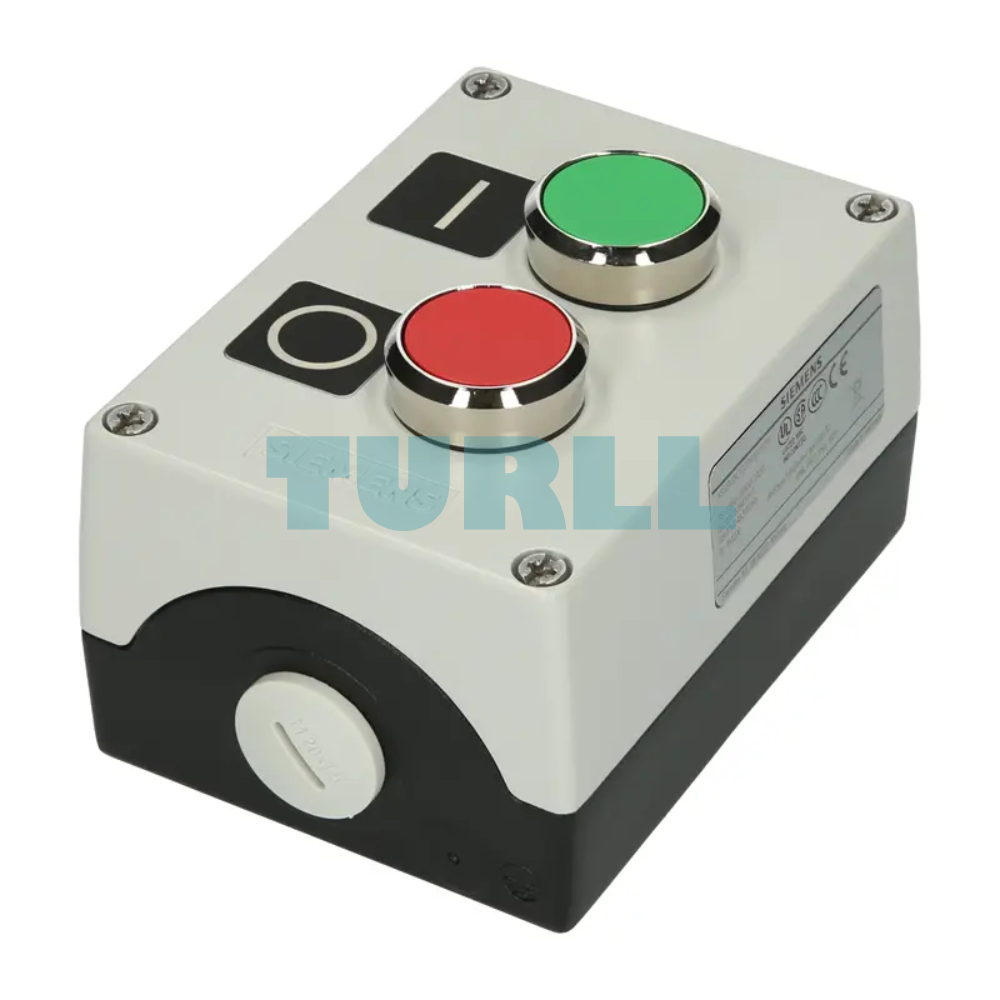

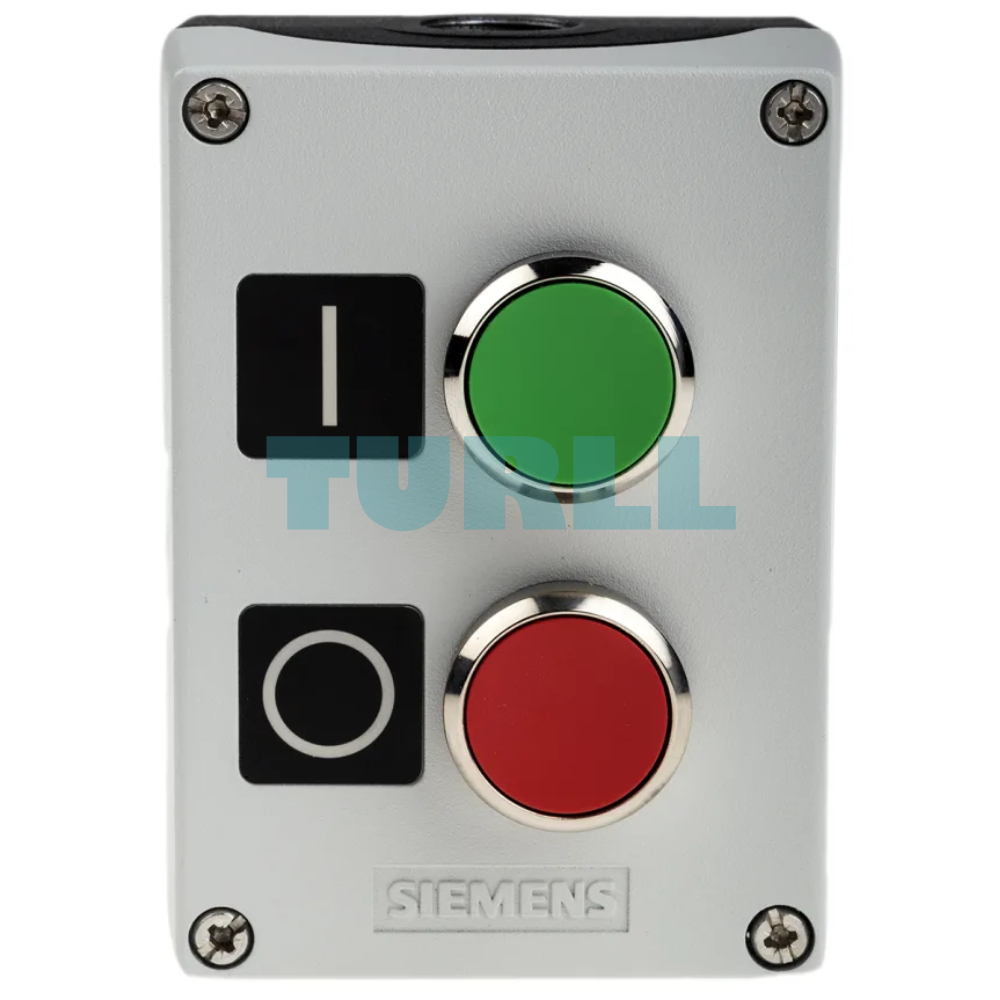

The Siemens 3SU1852-0AB00-2AB1 is a high-quality metal enclosure designed for command devices with a 22mm round profile. Its robust gray top part and metal construction ensure long-lasting durability for industrial environments. Equipped with two control points, this enclosure includes a green pushbutton (I) with 1 NO screw terminal and a red pushbutton (O) with 1 NC screw terminal. Designed for floor mounting, it features 1xM20 cable entry on both the top and bottom, making installation flexible and efficient. Labels are included for easy identification.
Key Benefit
-
Durable Metal Construction: Long-lasting performance in industrial settings.
-
Easy Operation: Clear green (I) and red (O) pushbuttons with screw terminals.
-
Flexible Installation: Floor-mountable with M20 entries on top and bottom.
-
Safety & Compliance: Includes labels for accurate device identification.
-
Compact Design: 22 mm round size fits most standard control panels.
Function
-
Acts as a protective enclosure for command devices.
-
Provides clearly labeled control points for start (I) and stop (O) functions.
-
Facilitates easy wiring with screw terminals.
-
Supports floor mounting with flexible cable entry options.
Download
Visit 3SU1852-0AB00-2AB1 for more detail info
For more our products visit turll
Specifications
| SKU / Model | 3SU1852-0AB00-2AB1 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Enclosures |
| product type designation | 3SU1 |
| manufacturer's article number | - |
| ● of supplied contact module | A1 = 3SU1400-2AA10-1CA0 / B2 = 3SU1400-2AA10-1BA0 |
| ● of supplied contact module at the command point A 1 | 3SU1400-2AA10-1CA0 |
| ● of supplied contact module at the command point B 2 | 3SU1400-2AA10-1BA0 |
| ● of the supplied holder | A = 3SU1550-0AA10-0AA0, B = 3SU1550-0AA10-0AA0 |
| ● of the supplied holder at the command point A | 3SU1550-0AA10-0AA0 |
| ● of the supplied holder at the command point B | 3SU1550-0AA10-0AA0 |
| ● of the supplied actuator | A = 3SU1050-0AB20-0AA0 / B = 3SU1050-0AB40-0AA0 |
| ● of the supplied actuator at the command point A | 3SU1050-0AB20-0AA0 |
| ● of the supplied actuator at the command point B | 3SU1050-0AB40-0AA0 |
| ● of supplied empty enclosure | 3SU1852-0AA00-0AB1 |
| ● of supplied accessory | A = 3SU1900-0AF16-0QA0, B = 3SU1900-0AF16-0QB0 |
| ● of the supplied accessories at the command point A | 3SU1900-0AF16-0QA0 |
| ● of the supplied accessories at the command point B | 3SU1900-0AF16-0QB0 |
| design of the housing | with recess for label |
| shape of the enclosure front | rectangular |
| material of the enclosure | metal |
| number of command points | 2 |
| product component | - |
| ● EMERGENCY STOP device | No |
| ● protective collar | No |
| color of the enclosure top part | grey |
| delivery state | - |
| ● as a kit | No |
| ● pre-wired on strip terminal | No |
| fastening method of the enclosure | Vertical |
| design of the actuating element | Pushbutton / pushbutton |
| suitability for use EMERGENCY OFF switch | No |
| product feature lockout | No |
| product extension optional light source | No |
| color of the actuating element | A = red / B = green |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| number of contact modules | 2 |
| type of unlocking device | A = none / B = none |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| material of the holder | Plastic |
| number of LED modules | 0 |
| product function | - |
| ● positive opening | Yes |
| ● EMERGENCY OFF function | No |
| ● EMERGENCY STOP function | No |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| reference code acc. to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A |
| continuous current of the DIAZED fuse link gG | 10 A |
| operating voltage | - |
| ● at AC | - |
| — at 50 Hz rated value | 5 ... 500 V |
| — at 60 Hz rated value | 5 ... 500 V |
| ● at DC rated value | 5 ... 500 V |
| design of the interface for communication | without |
| design of the contact of auxiliary contacts | Silver alloy |

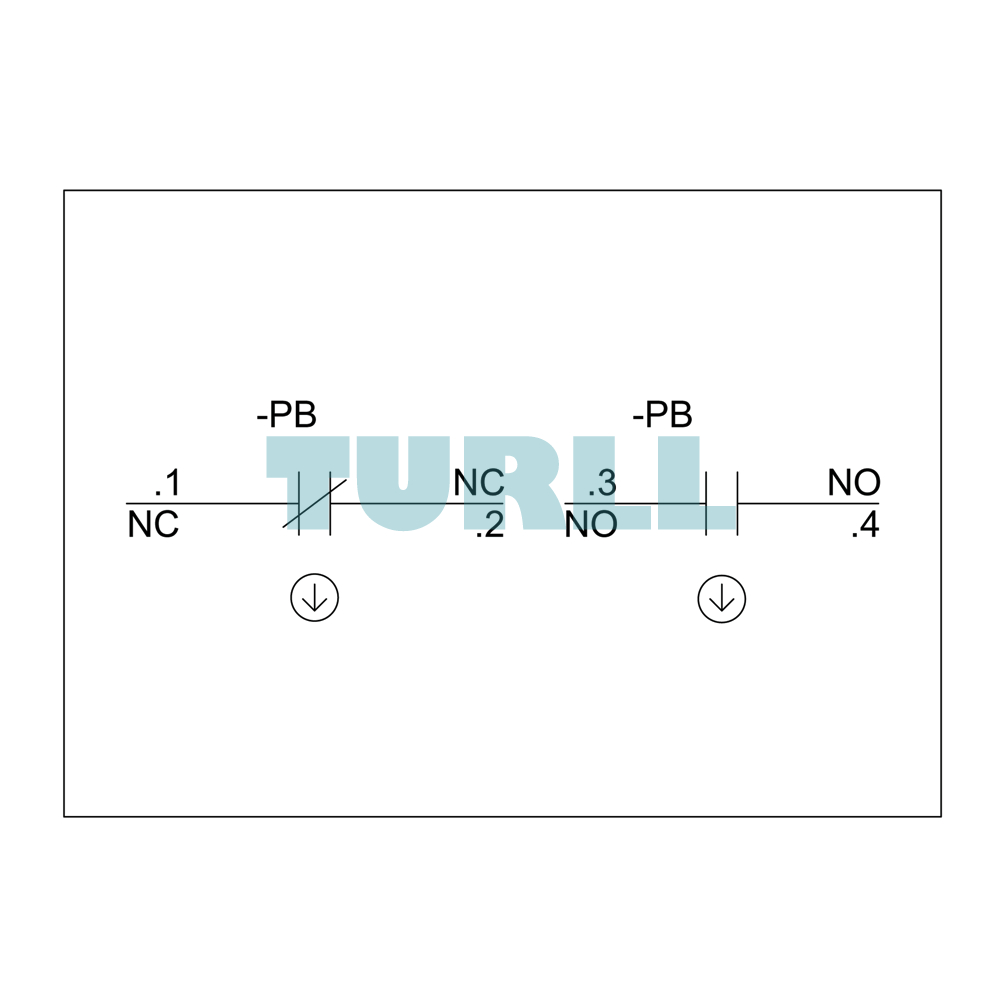

| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| type of electrical connection of modules and accessories | Screw-type terminal |

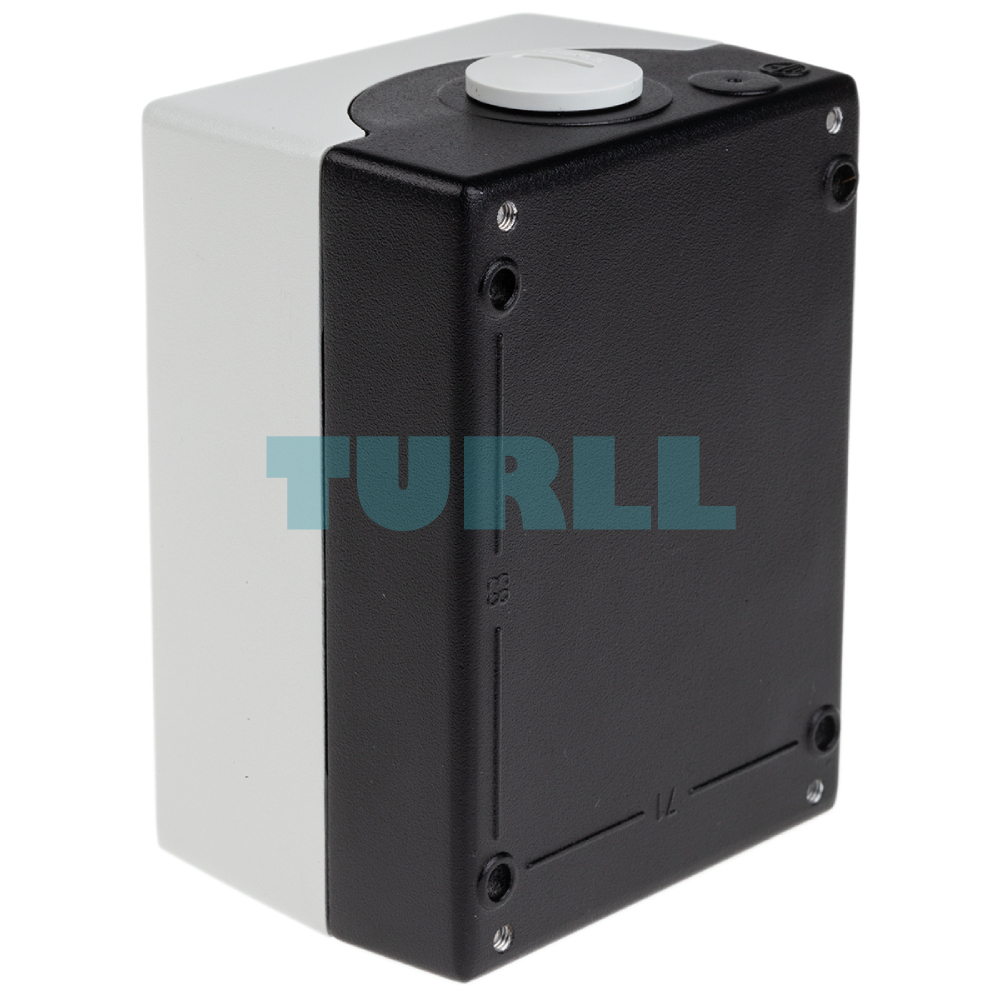

| type of electrical connection on enclosure | Cable routing above and below, both 1 x M20 |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| tightening torque of fixing screws in the enclosure cover | 1.5 ... 1.7 N·m |
| tightening torque with screw-type terminals | 0.8 ... 0.9 N·m |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method of modules and accessories | Floor mounting |
| shape of the installation opening | round |
| number of labels | 2 |
| marking of the name plate for command devices | A = O / B = I |
| color of the label | A = black / B = black |
| number of inscription plates | 0 |
| last modified: | 10/1/2021 |
| Weight | 0.725 kg |

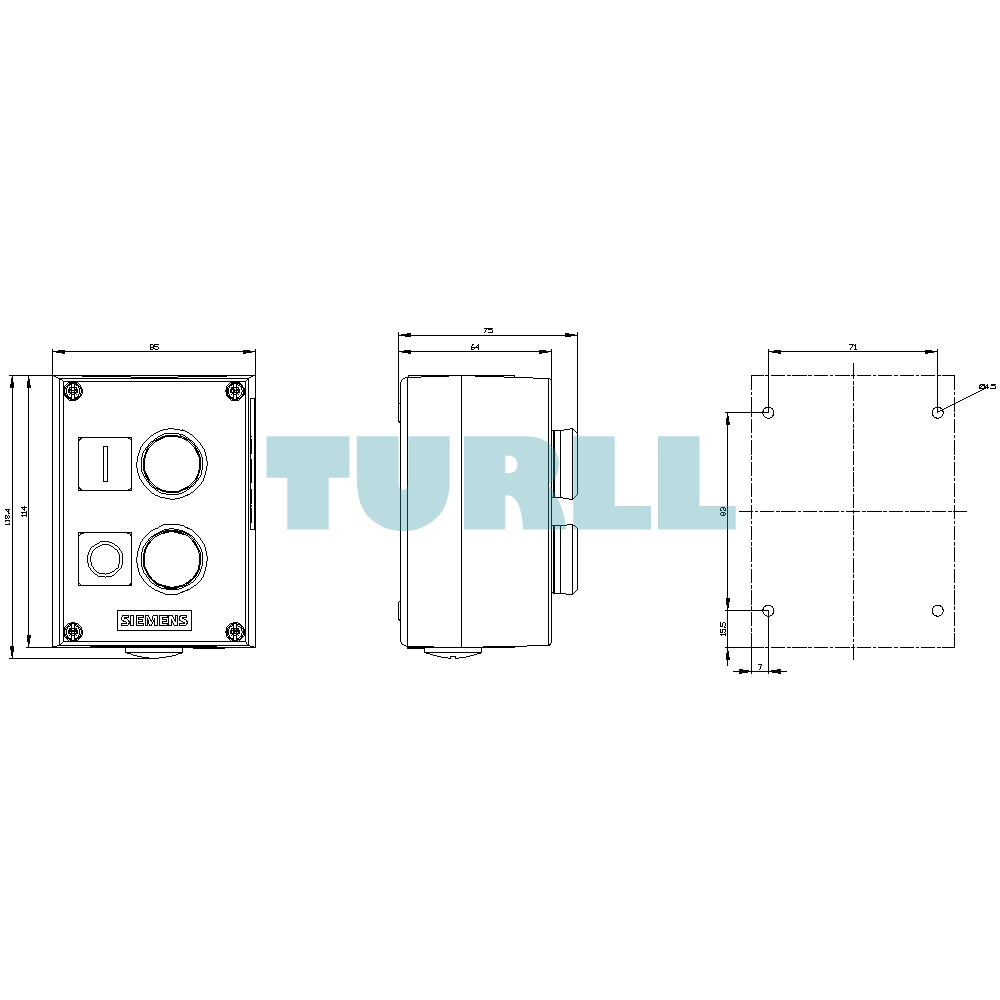

| Dimensions | 126.00 × 129.00 × 95.00 mm |
