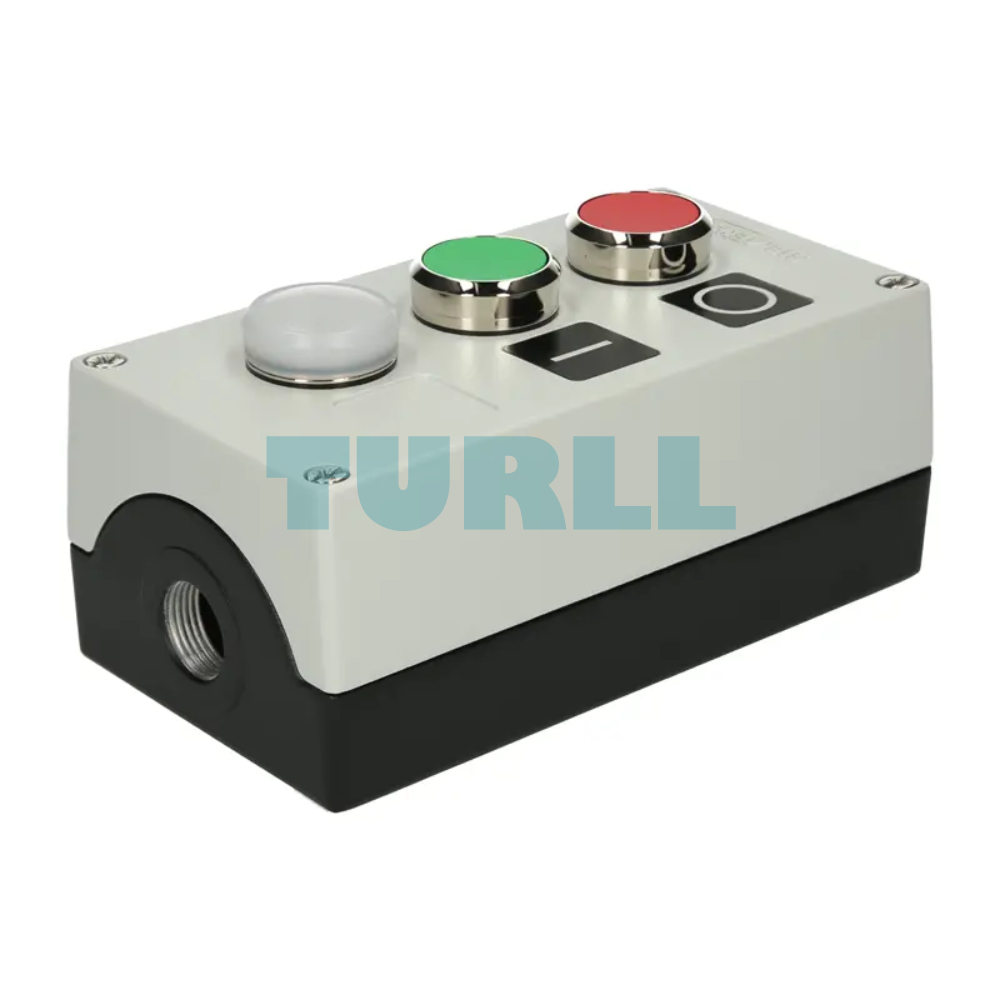

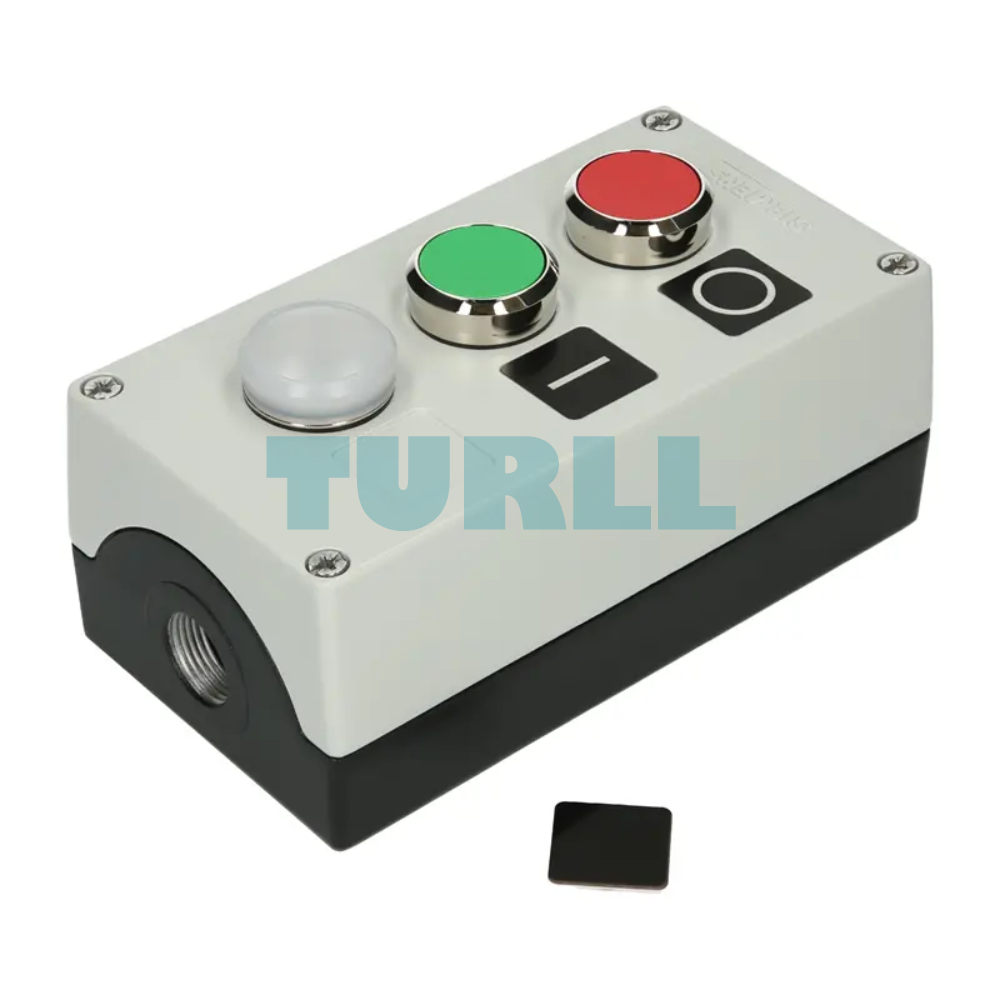

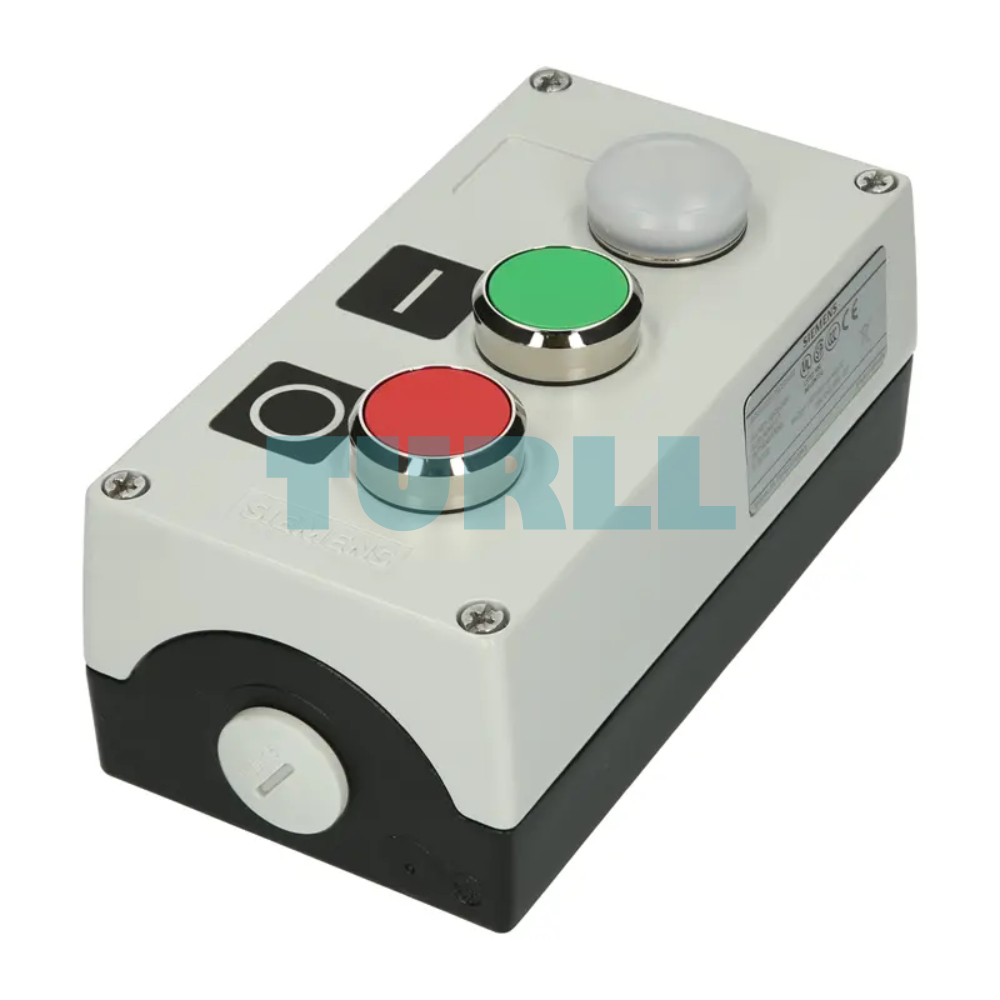

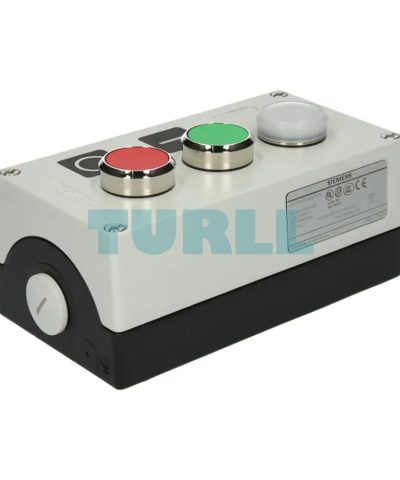

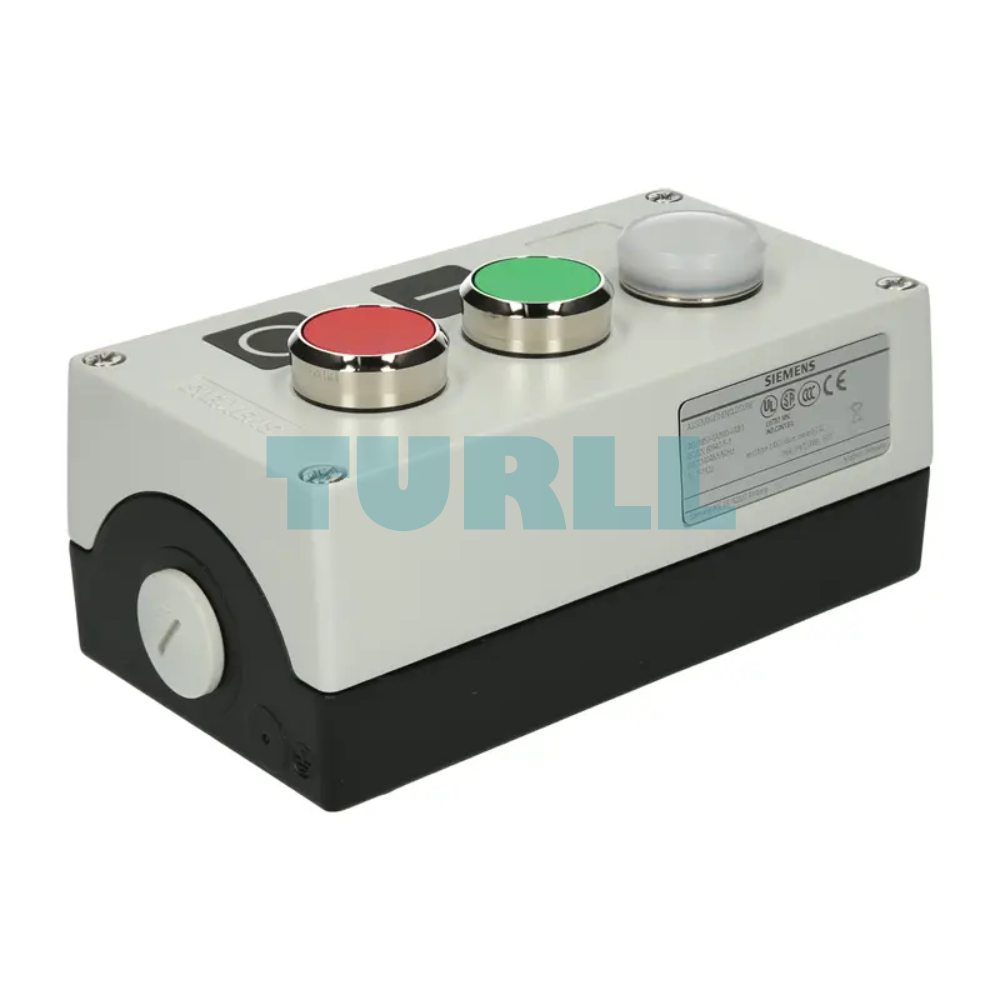

Siemens 3SU1853-0AB00-2AB1 Metal Enclosure for Command Devices, 22mm, Floor Mount, 3 Control Points Original Brand New
$92.95
Durable Siemens metal enclosure for command devices, 22 mm round, with 3 control points: clear LED indicator light (24V), green pushbutton (I, 1 NO), red pushbutton (O, 1 NC). Floor mount design with 1xM20 top and bottom, labels included.
Availability: In stock
Overview
The Siemens 3SU1853-0AB00-2AB1 is a pre-configured SIRIUS ACT metal enclosure designed for robust industrial control applications. This 22 mm, round, floor-mounting control station provides a complete solution for essential machine operation, featuring three durable metal control points: a green ‘I’ (Start/ON) pushbutton, a red ‘O’ (Stop/OFF) pushbutton, and a clear 24V LED indicator light. Its sturdy metal construction and easy terminal connections make it ideal for demanding environments where reliability and clear control signaling are critical.
Features & Function
-
Material: Durable metal construction for long-lasting performance
-

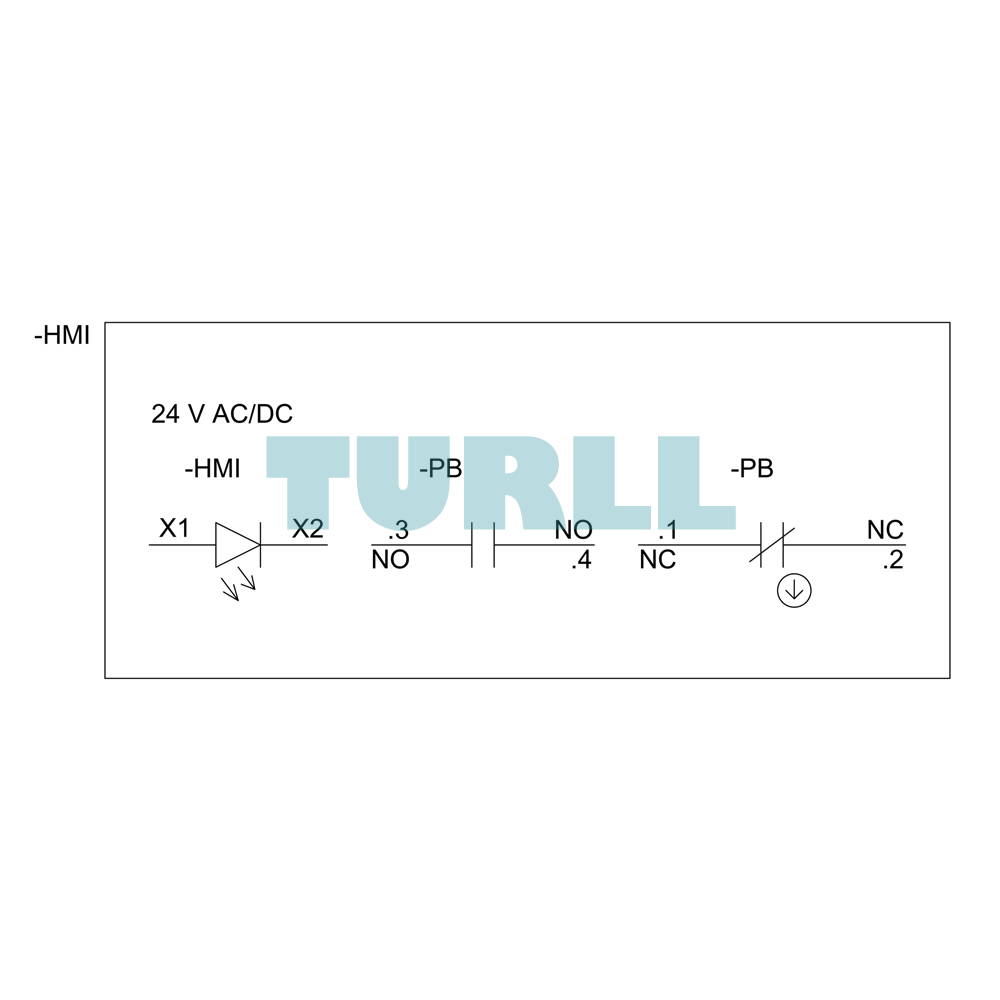

Control Points:
-
C: Clear LED indicator light, 24V, with label
-
B: Green pushbutton, labeled “I”, 1 NO, screw terminal
-
A: Red pushbutton, labeled “O”, 1 NC, screw terminal
-
-
Mounting: Floor mount with 1xM20 each on top and bottom
-
Design: Round, 22 mm, gray top part for a professional finish
-
Included Accessories: Labels for easy identification
-
Application: Ideal for industrial control systems, machinery operation panels, and automated processes
Benefit
-
Robustness: High-quality metal enclosure material ensures durability and protection in harsh industrial settings.
-
Pre-configured Control: Ready-to-use with essential START (I) / STOP (O) control functions and a visual status indicator.
-
Easy Installation: Designed for floor mounting and features 1xM20 cable entries on both the top and bottom for flexible wiring.
-
Standardized Connectivity: All components utilize screw terminals, simplifying installation and maintenance wiring.
-
Visual Status: The 24V AC/DC clear LED indicator light (C) provides immediate visual feedback on machine status.
Visit 3SU1853-0AB00-2AB1 for more detail info
For more our products visit turll
Download
| Weight | 0.931 kg |
|---|---|

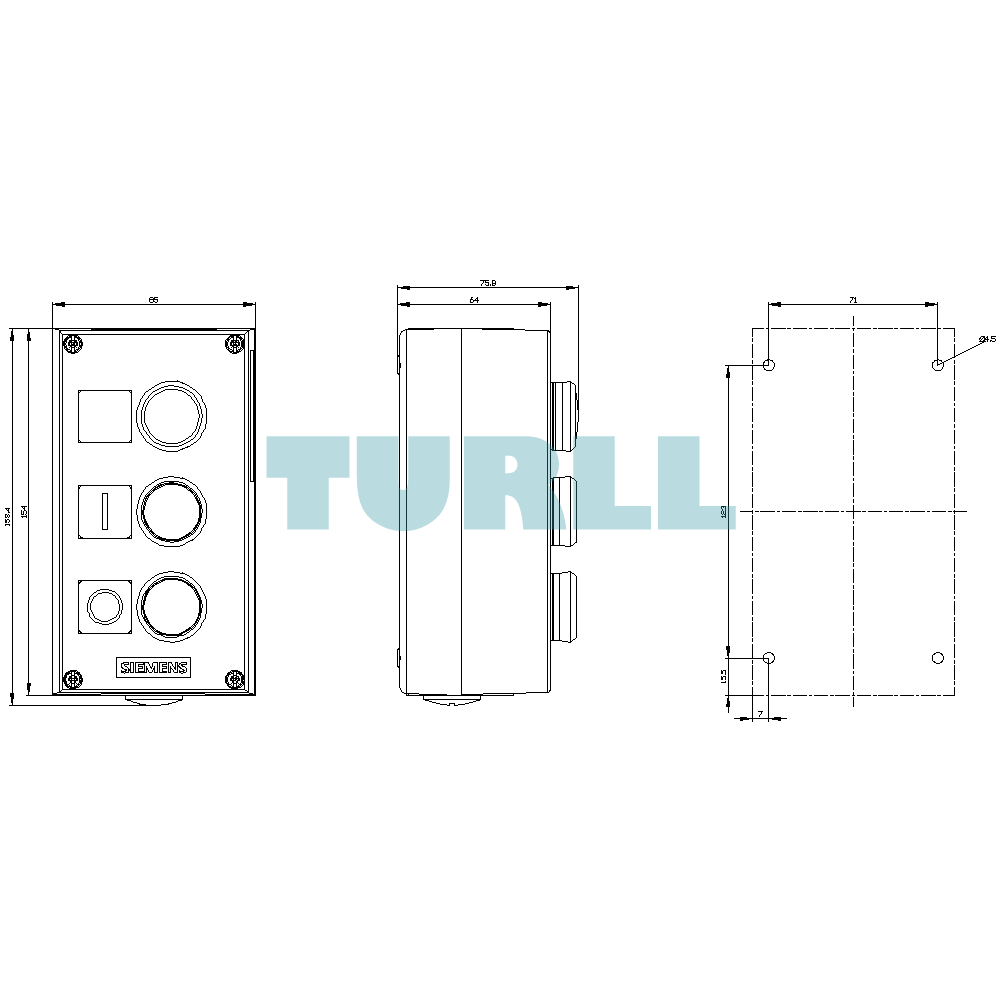

| Dimensions | 95.00 × 169.00 × 131.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Enclosures |
| product type designation | 3SU1 |
| manufacturer's article number | – |
| ● of supplied contact module | A1 = 3SU1400-2AA10-1CA0 / B2 = 3SU1400-2AA10-1BA0 |
| ● of supplied contact module at the command point A 1 | 3SU1400-2AA10-1CA0 |
| ● of supplied contact module at the command point B 2 | 3SU1400-2AA10-1BA0 |
| ● of supplied LED module | C3 = 3SU1401-2BG60-1AA0 |
| ● of supplied LED module at the command point C | 3SU1401-2BG60-1AA0 |
| ● of the supplied holder | A = 3SU1550-0AA10-0AA0, B =3SU1550-0AA10-0AA0, C = 3SU1550-0AA10-0AA0 |
| ● of the supplied holder at the command point A | 3SU1550-0AA10-0AA0 |
| ● of the supplied holder at the command point B | 3SU1550-0AA10-0AA0 |
| ● of the supplied holder at the command point C | 3SU1550-0AA10-0AA0 |
| ● of the supplied actuator | A = 3SU1050-0AB20-0AA0 / B = 3SU1050-0AB40-0AA0 |
| ● of the supplied actuator at the command point A | 3SU1050-0AB20-0AA0 |
| ● of the supplied actuator at the command point B | 3SU1050-0AB40-0AA0 |
| ● of the supplied actuator at the command point C | 3SU1051-6AA60-0AA0 |
| ● of supplied repeater | C = 3SU1051-6AA60-0AA0 |
| ● of supplied empty enclosure | 3SU1853-0AA00-0AB1 |
| ● of supplied accessory | A = 3SU1900-0AF16-0QA0, B = 3SU1900-0AF16-0QB0, C = 3SU1900-0AF16-0AA0 |
| ● of the supplied accessories at the command point A | 3SU1900-0AF16-0QA0 |
| ● of the supplied accessories at the command point B | 3SU1900-0AF16-0QB0 |
| ● of the supplied accessories at the command point C | 3SU1900-0AF16-0AA0 |
| design of the housing | with recess for label |
| shape of the enclosure front | rectangular |
| material of the enclosure | metal |
| number of command points | 3 |
| product component | – |
| ● EMERGENCY STOP device | No |
| ● protective collar | No |
| color of the enclosure top part | grey |
| delivery state | – |
| ● as a kit | No |
| ● pre-wired on strip terminal | No |
| fastening method of the enclosure | Vertical |
| design of the actuating element | Pushbutton / pushbutton / indicator light |
| suitability for use EMERGENCY OFF switch | No |
| product feature lockout | No |
| product extension optional light source | Yes |
| color of the actuating element | A = red / B = green / C = clear |
| material of the actuating element | metal |
| shape of the actuating element | round |
| number of contact modules | 2 |
| type of unlocking device | A = none / B = none / C = none |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| material of the holder | Plastic |
| number of LED modules | 1 |
| product function | – |
| ● positive opening | Yes |
| ● EMERGENCY OFF function | No |
| ● EMERGENCY STOP function | No |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| reference code acc. to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A |
| continuous current of the DIAZED fuse link gG | 10 A |
| operating voltage | – |
| ● at AC | – |
| — at 50 Hz rated value | 24 … 24 V |
| — at 60 Hz rated value | 24 … 24 V |
| ● at DC rated value | 24 … 24 V |
| design of the interface for communication | without |
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| type of electrical connection of modules and accessories | Screw-type terminal |
| type of electrical connection on enclosure | Cable routing above and below, both 1 x M20 |
| tightening torque of the screws in the bracket | 1 … 1.2 N·m |
| tightening torque of fixing screws in the enclosure cover | 1.5 … 1.7 N·m |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| light intensity | 900 … 1 400 mcd |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method of modules and accessories | Floor mounting |
| shape of the installation opening | round |
| number of labels | 3 |
| marking of the name plate for command devices | A = O / B = I / C = "ohne Aufschrift" |
| color of the label | A = black / B = black / C = black |
| number of inscription plates | 0 |
| last modified: | 10/1/2021 |
