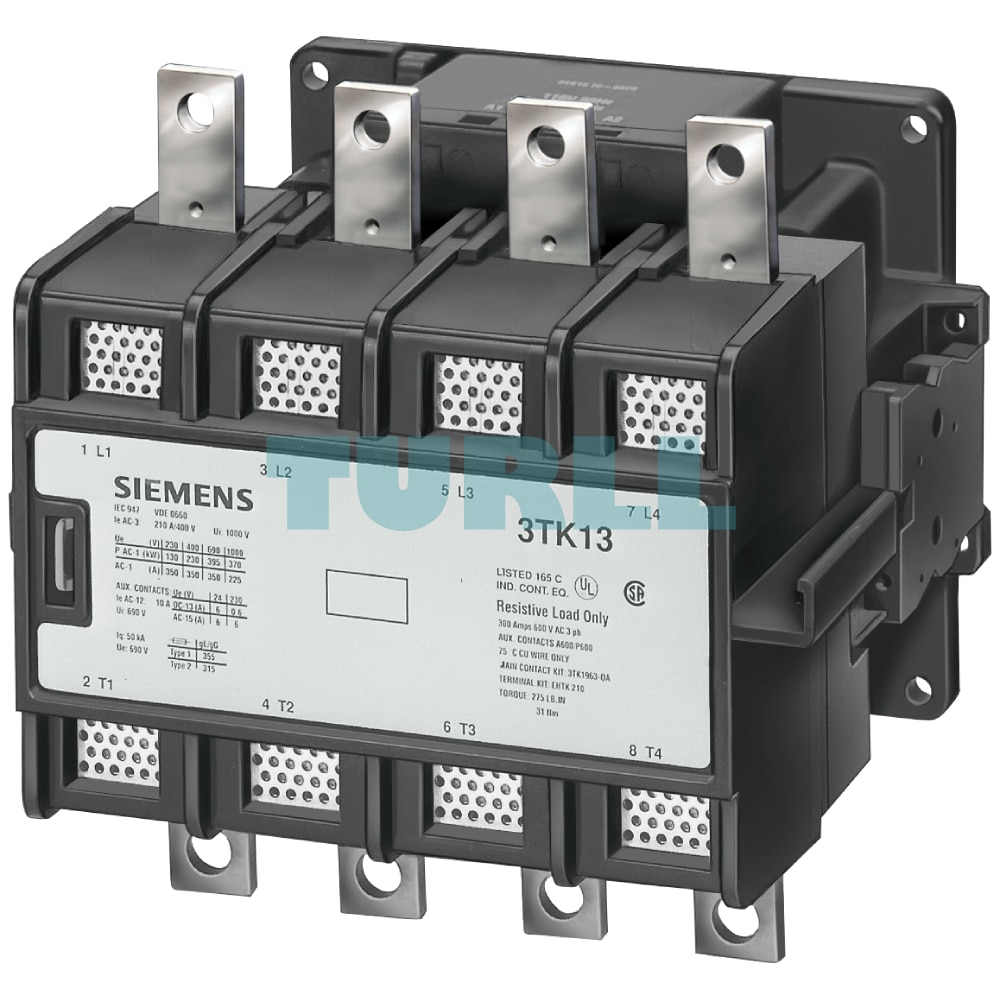

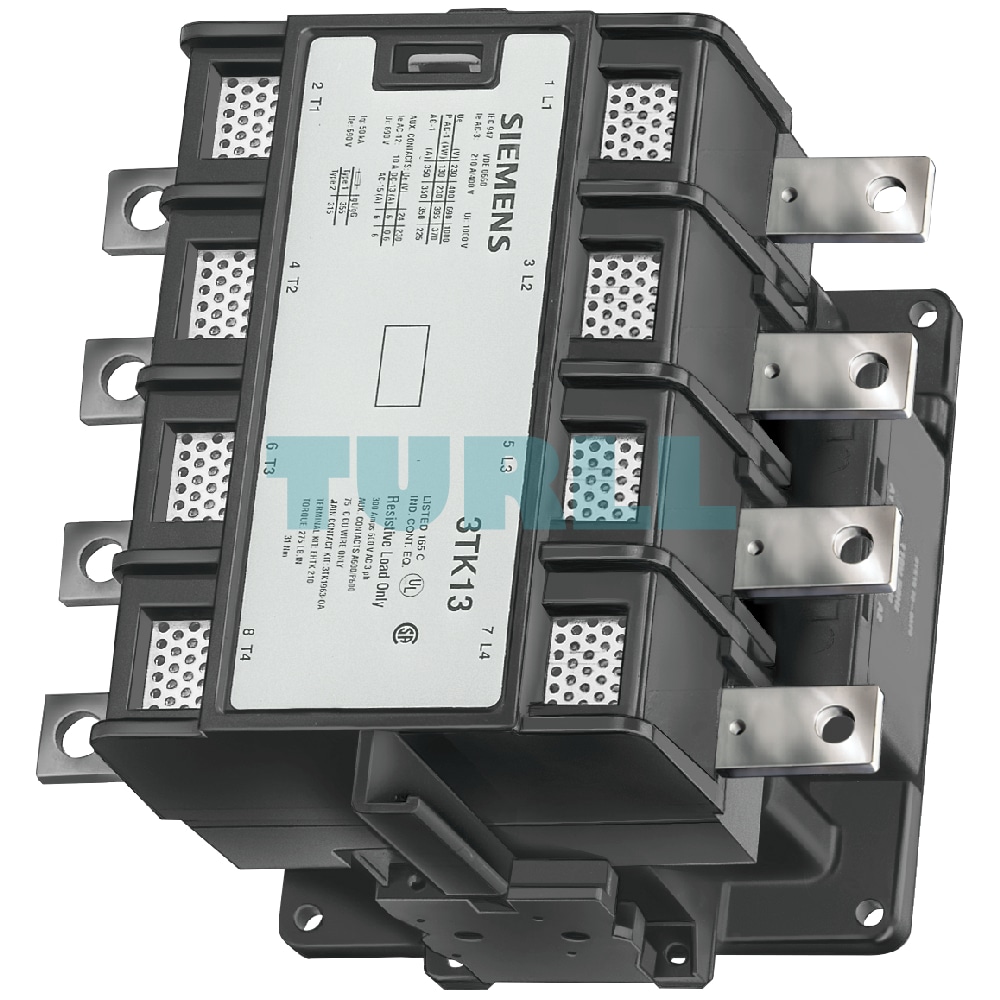

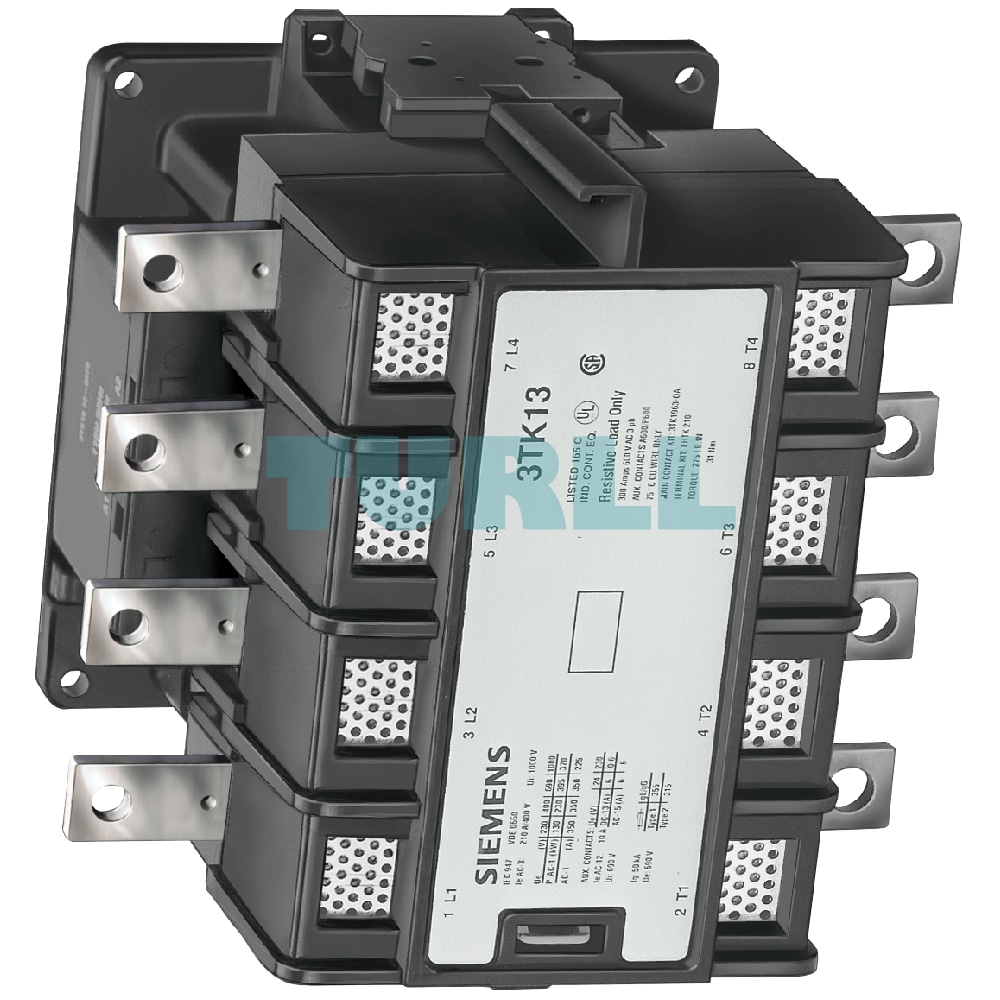

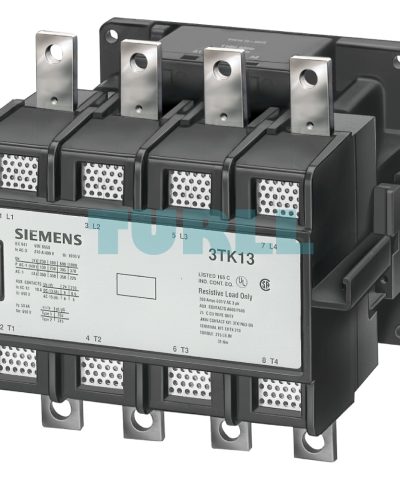

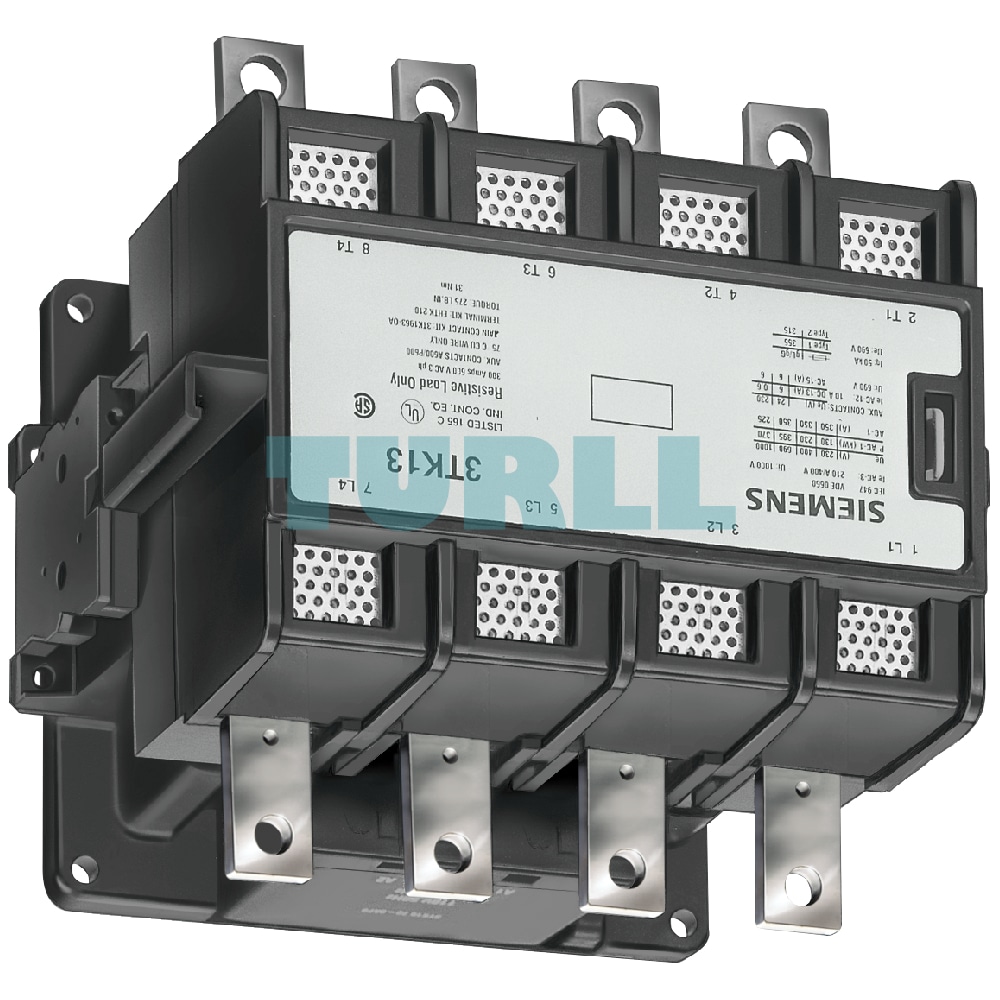

Siemens 3TK1542-0AP0 AC-1 Contactor, 4-Pole, 800A Resistive Load Switching Original Brand New

Overview: Siemens 3TK1542-0AP0 Heavy-Duty AC-1 Contactor

The Siemens 3TK1542-0AP0 is a robust 4-pole contactor designed specifically for switching resistive loads (AC-1 applications). With a formidable 800 A current rating, this high-performance contactor features 4 normally open (NO) main contacts and 2 normally open (NO) plus 2 normally closed (NC) auxiliary contacts, providing versatile control options. It operates efficiently with AC coil voltages of 220-230 V AC at 50 Hz or 240 V AC at 60 Hz, making it suitable for a wide range of industrial power control systems.

Key Features & Benefit

• High Current Capacity: Rated at 800 A for AC-1 resistive loads, making it ideal for demanding applications.
• 4-Pole Configuration: Provides robust switching for multi-phase systems.
• Versatile Contact Arrangement: Includes 4 NO main contacts for power switching and 2 NO + 2 NC auxiliary contacts for control and signaling flexibility.
• Global Compatibility: Designed for AC operation at 220-230 V AC (50 Hz) and 240 V AC (60 Hz).
• Reliable Performance: Built to IEC 60947-1, IEC 60947-4-1, and IEC 60947-5-1 (auxiliary switches) standards for industrial safety and performance.
• Enhanced Durability: Features robust screw-type terminals for secure main and auxiliary circuit connections.
• Surge Suppression Ready: Solenoid coils can be equipped with optional RC elements for improved surge protection (see Accessories and Spare Parts for 3TK1 Contactors).
• Siemens Quality: A product from a leading global manufacturer in industrial automation, ensuring high standards and reliability.

Function

The Siemens 3TK1542-0AP0 contactor functions as an electrically operated switch, primarily used for remotely controlling and switching high current resistive loads in various industrial and commercial applications. When the appropriate AC control voltage is applied to its coil, the main contacts close, allowing power to flow to the connected resistive load. The auxiliary contacts provide additional signaling and interlocking capabilities within control circuits. Its design for AC-1 applications means it’s optimized for loads where the inrush current is negligible or limited, such as heating elements, lighting systems, or power distribution in non-inductive circuits.

Application

The Siemens 3TK1542-0AP0 contactor is ideally suited for controlling:

• Heating systems
• Lighting circuits
• Capacitor banks (with appropriate considerations)
• Resistive furnaces
• Power distribution circuits with non-inductive loads
• General AC-1 applications in industrial panels and machinery
