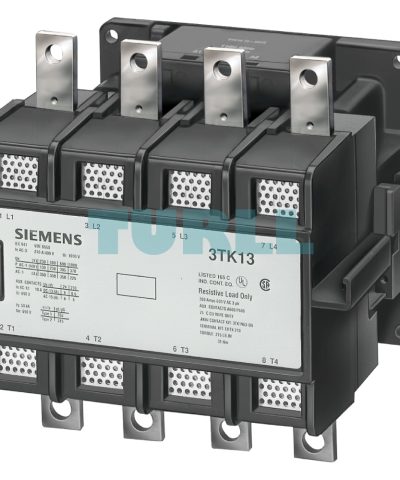

Siemens 3TK1542-0AU0 Contactor 4-Pole, 800A AC-1, 230-240V AC Operation for Resistive Loads Original Brand New

Overview

The Siemens 3TK1542-0AU0 is a robust and reliable 4-pole AC-1 contactor, engineered for switching resistive loads up to 800 Amperes. Part of the proven 3TK1 series, this contactor offers exceptional performance and durability for various industrial and commercial applications. Featuring 4 normally open (NO) main contacts and a versatile auxiliary contact configuration of 2 normally open (NO) and 2 normally closed (NC) contacts, it provides comprehensive control and signaling capabilities. Designed for AC operation with a control voltage range of 230-240V AC at 50 Hz, the 3TK1542-0AU0 is a workhorse for demanding electrical systems.

Function

The Siemens 3TK1542-0AU0 functions as an electromechanical switching device primarily used for safely and efficiently controlling the flow of electricity to resistive loads in industrial and commercial settings. Its 4-pole configuration allows for switching multi-phase circuits. The main contacts handle the high current of the load, while the integrated auxiliary contacts provide essential feedback and control signals for interlocking, signaling, and automation circuits within control panels and systems.

Benefit

• High Current Capacity: Handles substantial resistive loads up to 800A, suitable for large-scale heating, lighting, and power distribution applications.
• Reliable Performance: Built to Siemens’ rigorous quality standards, ensuring long-term operational stability and safety.
• Versatile Auxiliary Contacts: The 2 NO + 2 NC auxiliary contact configuration provides flexibility for complex control circuit designs and enhanced system integration.
• Robust Construction: Designed for demanding industrial environments with a wide operating temperature range and robust screw-type terminals for secure connections.
• Standards Compliance: Adherence to international standards like IEC 60947 ensures compatibility and safety in global applications.
• Integration with SIRIUS System: Although a 3TK1 series product, it aligns with Siemens’ broader industrial control portfolio, with clear migration paths to the modern SIRIUS 3RT23 and 3RT13 contactors.

Application

The Siemens 3TK1542-0AU0 contactor is ideally suited for:

• Switching resistive heating elements (e.g., ovens, furnaces)
• Controlling large lighting systems
• Power distribution in buildings and industrial facilities
• Switching mixed loads with power factor > 0.8 according to IEC 60947-4-1 (e.g., for supplying heaters, lamps, PC power supply units)
• Industrial control panels and machinery requiring robust AC-1 switching capabilities
