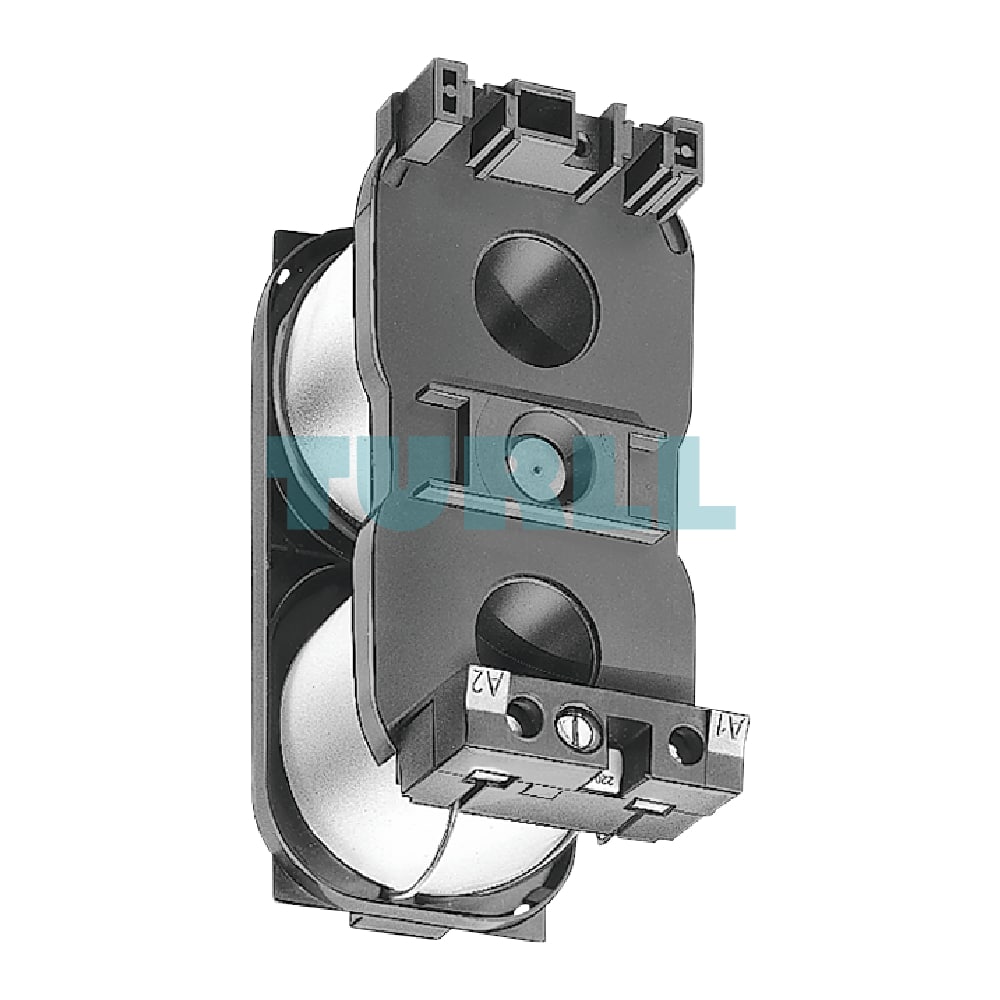

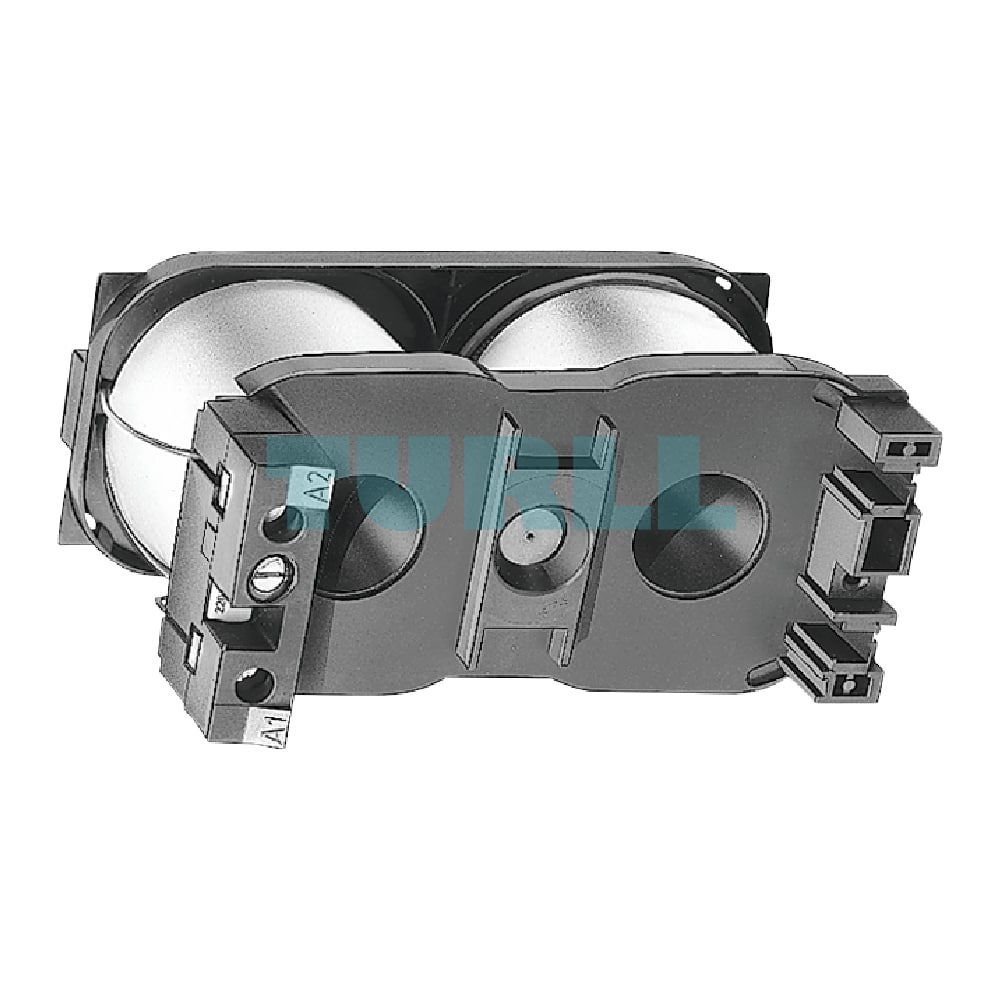

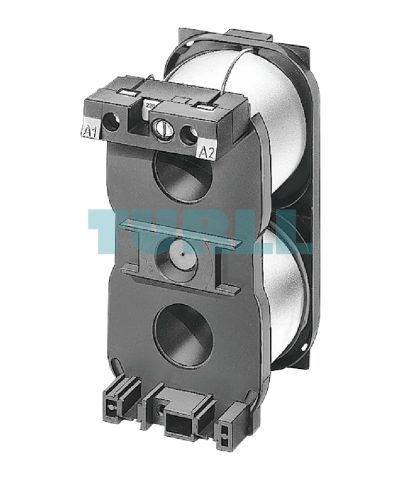

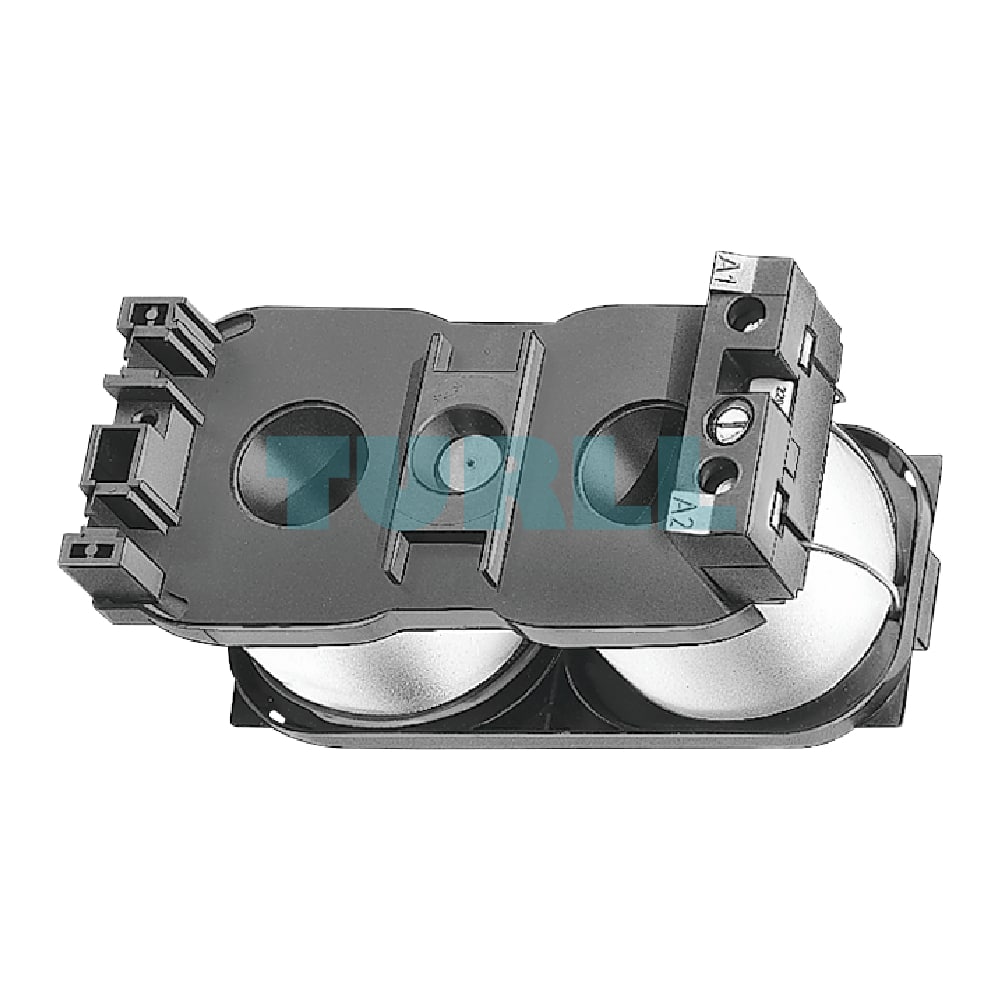

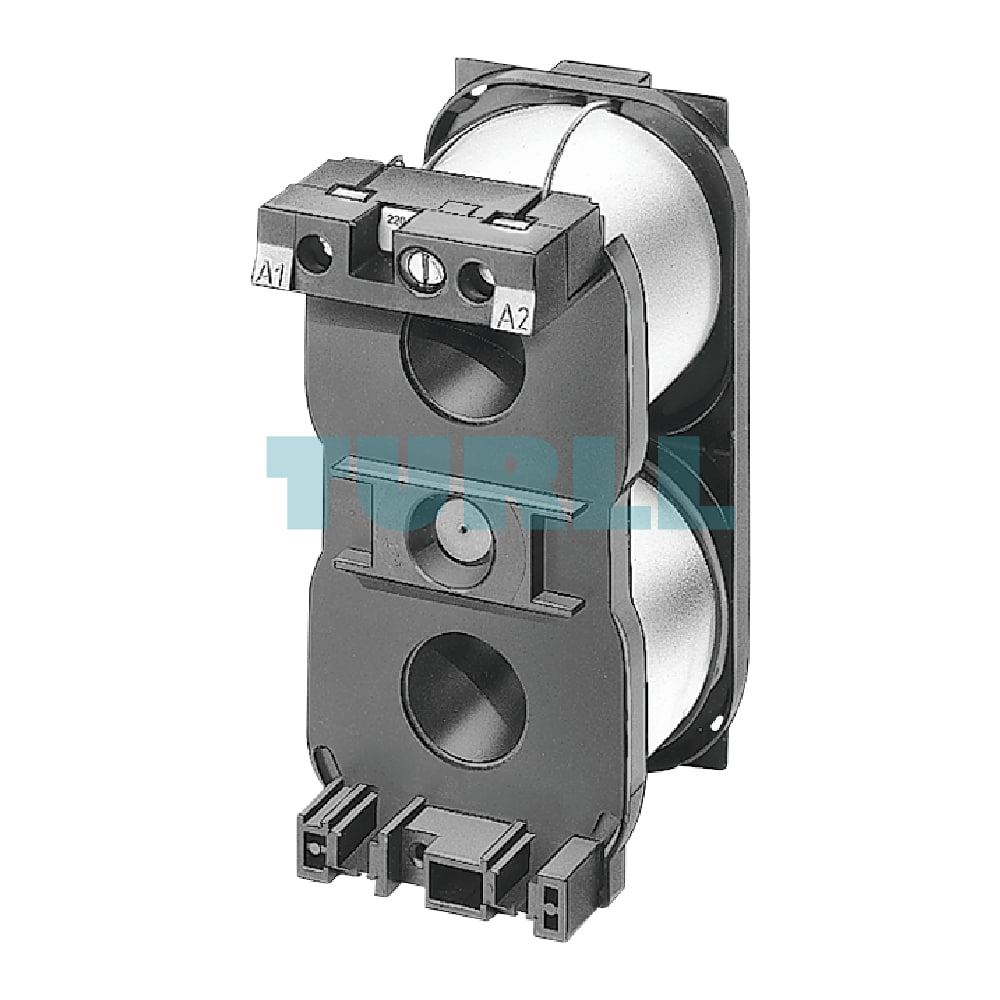

Siemens 3TY6563-0BG4 Magnet Coil 125 V DC for 3TB56 & 3TC56 Contactor Original Brand New

Overview

The Siemens 3TY6563-0BG4 is a high-quality magnet coil specifically designed for use with Siemens 3TB56 and 3TC56 series contactors. Engineered to meet rigorous industrial standards, this coil provides the necessary electromagnetic force to actuate the contactor’s main contacts, ensuring reliable and safe operation in various electrical control applications. With a nominal operating voltage of 125 V DC, it is an essential replacement or spare part for maintaining the functionality of your Siemens contactor systems.

Key Features & Benefits

• Precision Engineering: Manufactured by Siemens, a global leader in industrial technology, this magnet coil guarantees exceptional quality and performance.
• Reliable Operation: The coil is designed to provide consistent and dependable magnetic force, preventing contactor chatter and ensuring a long operational life.
• Easy Installation: Designed for a perfect fit, the 3TY6563-0BG4 can be easily installed into compatible Siemens 3TB56 and 3TC56 contactors, minimizing downtime during maintenance.
• Optimal Performance: Operating at 125 V DC, this coil is perfectly matched to the specifications of the contactors, ensuring efficient and reliable switching.
• Durable Construction: Built with robust materials to withstand demanding industrial environments, providing long-term reliability.

Function

The magnet coil, also known as the solenoid or operating coil, is the heart of an electromechanical contactor. When a control voltage (in this case, 125 V DC) is applied to the coil’s terminals, it generates a magnetic field. This magnetic field attracts an armature, which in turn moves a set of contacts. This action either closes (makes) or opens (breaks) the circuit, allowing the contactor to switch power to motors, lighting, heating systems, and other electrical loads. The Siemens 3TY6563-0BG4 coil ensures this fundamental process occurs smoothly and reliably for its compatible contactors.

Applications

The Siemens 3TY6563-0BG4 magnet coil is used in any application where Siemens 3TB56 or 3TC56 contactors are deployed, including:

• Motor control centers
• Industrial machinery
• Building automation systems
• HVAC systems
• Lighting control panels
• Pump and compressor control
