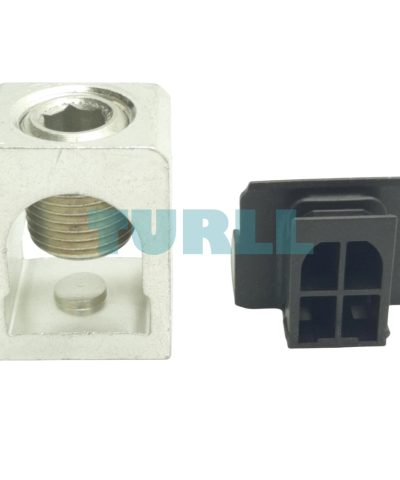

Siemens 3VA9243-0JB12 Wire Connector TA1.4 (6 AWG…350 kcmil), Set of 3 Original Brand New
$66.53
High-quality TA1.4 wire connector designed for 3VA61 and 3VA62 molded case circuit breakers. This set includes 3 units, supporting a wire cross-section range from 6 AWG to 350 kcmil.
Availability: In stock
Overview
The Siemens 3VA9243-0JB12 is a critical connection accessory for the 3VA series of molded case circuit breakers (MCCB). Specifically engineered for the 3VA61 and 3VA62 frames, this TA1.4 wire connector ensures a secure, low-resistance electrical connection for heavy-duty industrial applications.
Key Benefit
-
Precision Engineering: Designed by Siemens to meet exact tolerances for the 3VA6 series.
-
Versatile Wire Range: Accommodates a wide range of conductors from 6 AWG up to 350 kcmil.
-

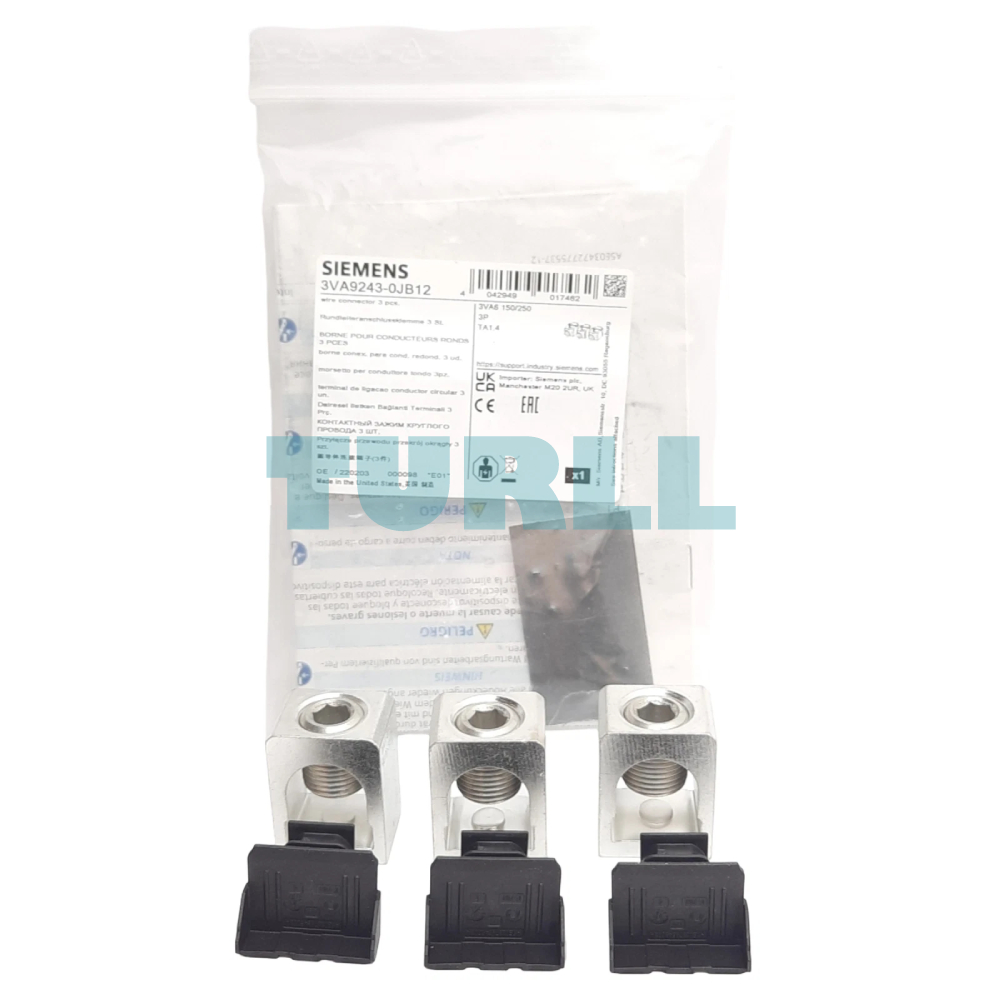

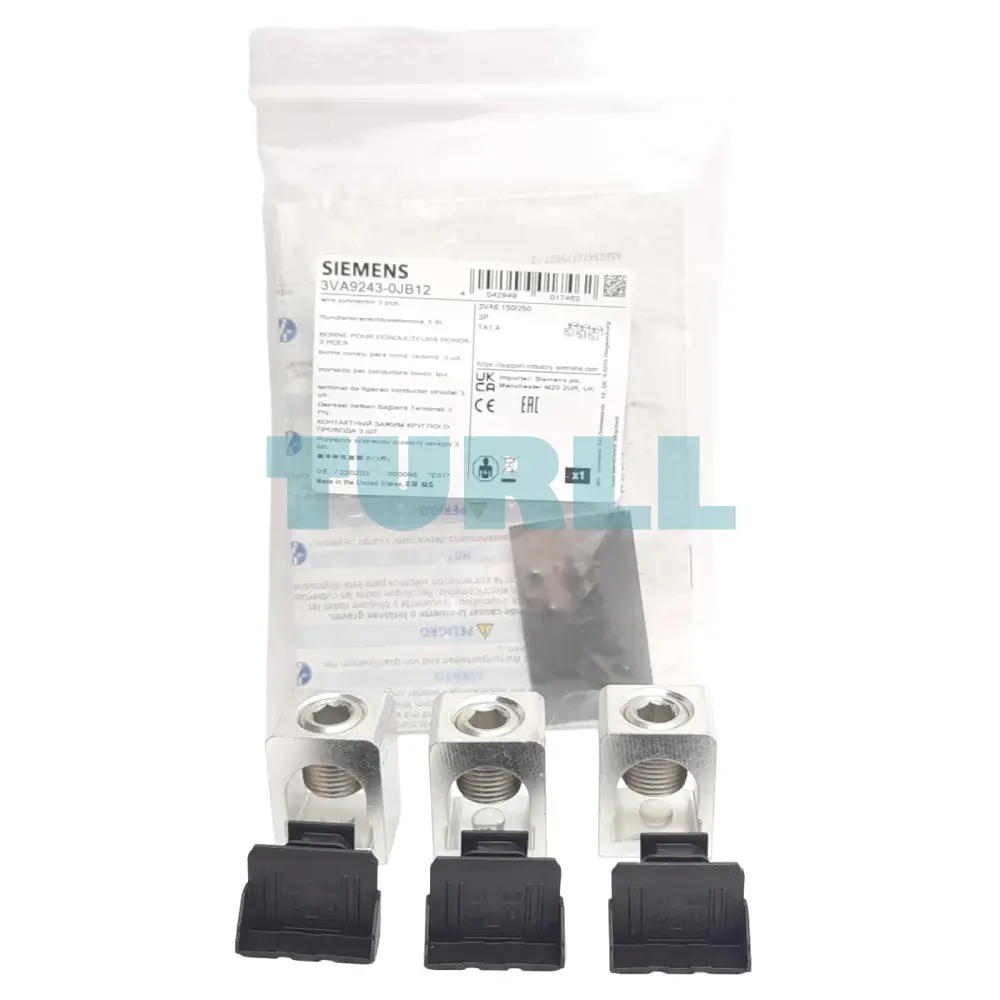

Complete Set: Comes as a pack of 3 units, providing a total solution for three-pole installations.
-
Enhanced Safety: Provides a stable mechanical connection to prevent overheating and terminal failure.
Function & Application
This wire connector functions as the primary interface between power cables and the circuit breaker. It is essential for:
-
Connecting aluminum or copper conductors to 3VA61/3VA62 MCCBs.
-
Industrial control panels and power distribution boards.
-
Retrofitting or upgrading existing 3VA series breaker installations.
Visit 3VA9243-0JB12 for more detail info
For more our products visit turll
Download
| Weight | 0.130 kg |
|---|---|

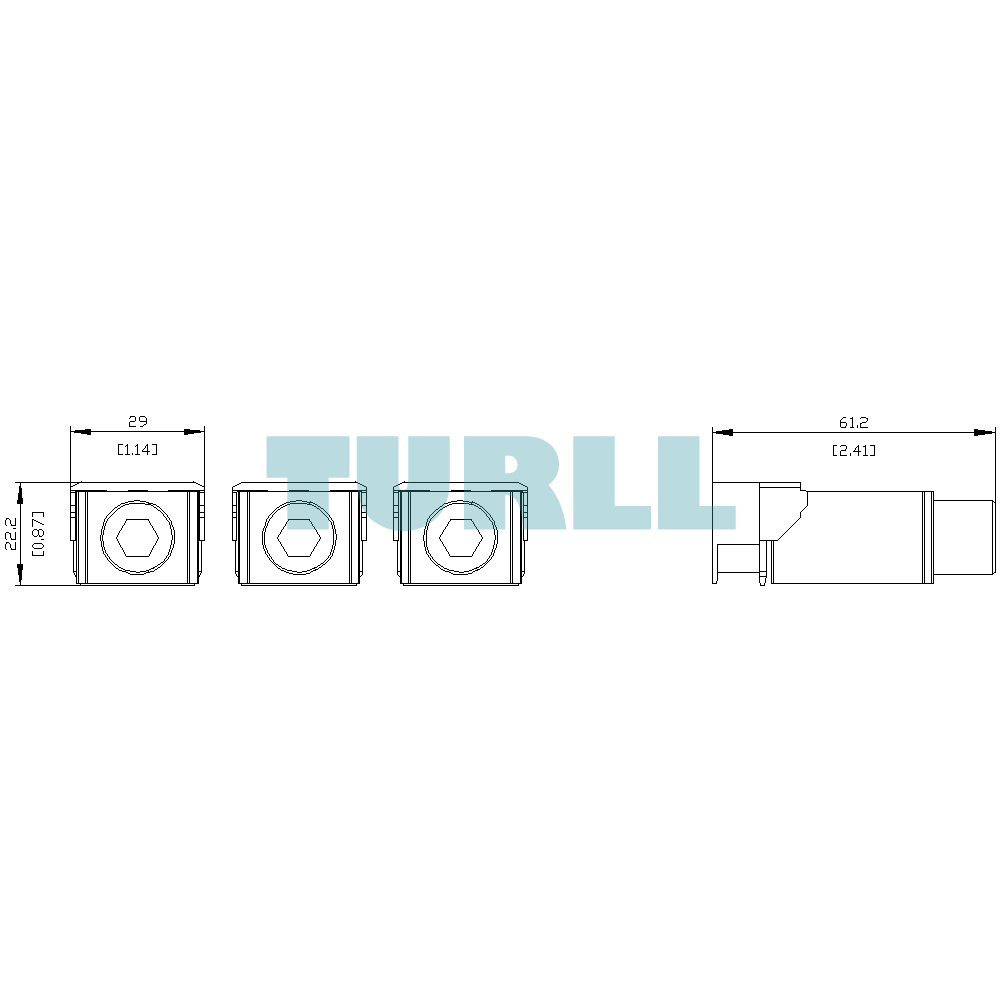

| Dimensions | 170.00 × 120.00 × 25.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | accessories |
| Accessories | Wire connector |
| designation / of the terminal | TA1.4 |
| ● for aluminum cable / solid / minimum | 16 mm² |
| ● for aluminum cable / solid / maximum | 16 mm² |
| ● solid | 16 mm²: 15.8 Nm |
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 0.8 in |
| connectable conductor cross-section | – |
| ● for copper cable / stranded / minimum | 6 AWG |
| ● for copper cable / stranded / maximum | 350 kcmil |
| ● for copper cable / finely stranded / minimum | 6 AWG |
| ● for copper cable / finely stranded / maximum | 350 kcmil |
| ● for aluminum cable / stranded / minimum | 6 AWG |
| ● for aluminum cable / stranded / maximum | 350 kcmil |
| tightening torque / when using copper cables | – |
| ● stranded | 6 – 2 AWG: 140 lb-in, |
| ● finely stranded | 6 – 2 AWG: 140 lb-in, |
| last modified: | 4/6/2021 |
