Siemens 5SE2302 NEOZED Fuse-Link, D01 Size, 2A, gG, 400V AC / 250V DC Original Brand New

Model / SKU5SE2302

High-quality NEOZED fuse-link designed for reliable circuit protection. Featuring a 2A current rating and gG utilization category, this D01 size fuse includes tin-coated contact caps for enhanced conductivity and corrosion resistance.

$0.13
Out of stockSubject to sourcing — request a quote
  • ConditionOriginal Brand New
  • Warranty12 months
Request a Quote
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 5SE2302 NEOZED fuse-link is a critical component for power distribution and industrial electrical systems. Part of the trusted Siemens SENTRON portfolio, these fuse-links are significantly more compact than traditional DIAZED systems, saving valuable space in distribution boards. The 5SE2302 is engineered for full-range protection (gG), making it suitable for both cable and line protection against short circuits and overloads.

Key Benefit

  • Space-Efficient Design: The NEOZED D01 format allows for smaller footprints in electrical cabinets.

  • Superior Conductivity: Equipped with tin-coated contact caps to ensure long-term, low-resistance connections and protection against oxidation.

  • Versatile Application: Rated for both 400 V AC and 250 V DC applications, providing flexibility across different power systems.

  • High Reliability: Manufactured by Siemens to meet rigorous international safety standards, ensuring consistent breaking capacity.

Function & Features

  • Utilization Category: gG (Full-range breaking capacity for general applications).

  • Size: D01 (Standardized NEOZED dimensions).

  • Operating Voltage: Up to 400V AC / 250V DC.

  • Operational Current: 2 Amperes.

  • Climate Resistance: Designed to operate in diverse industrial environments.

Technical Specification

  • Model Number: Siemens 5SE2302

  • Fuse Type: NEOZED Fuse-Link

  • Size: D01

  • Current Rating: 2 A

  • Fuse Characteristic: gG (general-purpose)

  • Voltage Rating: AC 400 V / DC 250 V

  • Contact Caps: Tin-coated

  • Applications: Motor protection, transformers, switchboards, electrical panels

Visit 5SE2302 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model5SE2302
BrandSIEMENS
product brand nameSENTRON
product designationNEOZED fuse link
design of the productWith tin-coated contact caps

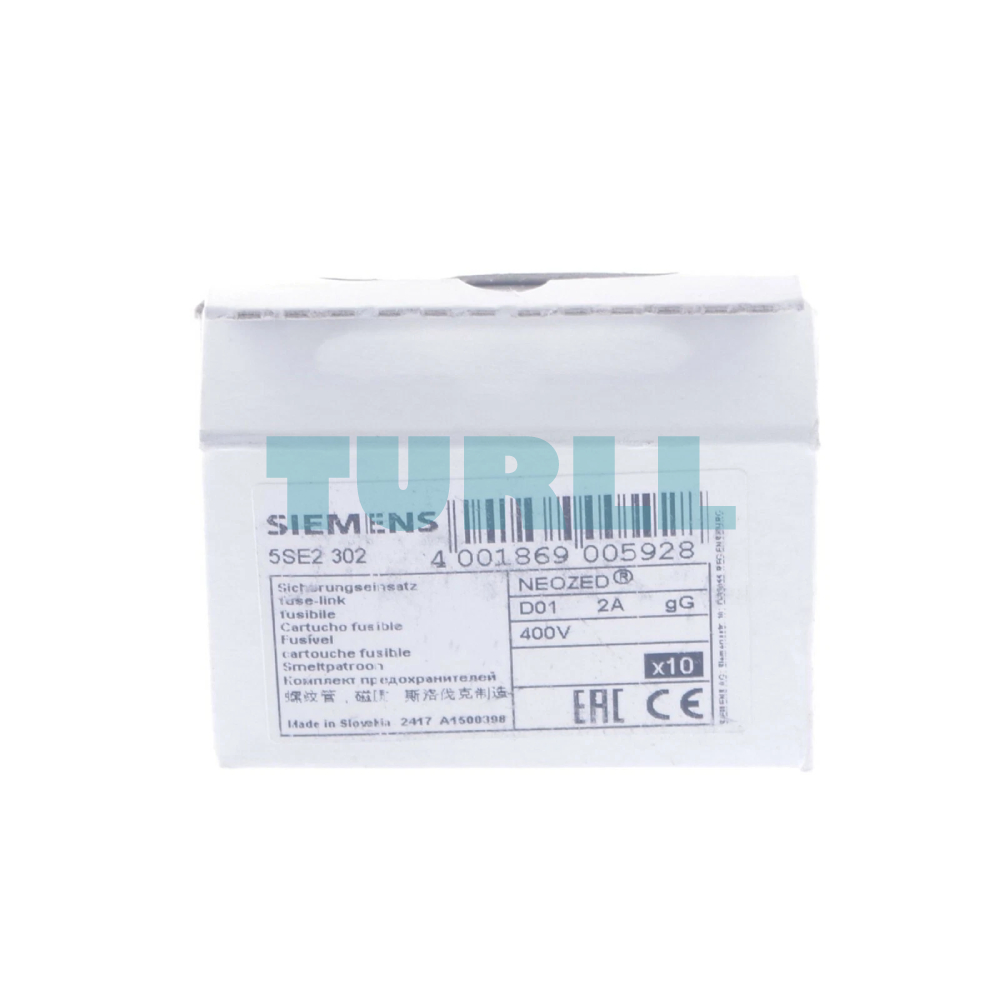

product variationsPack of 10
design of the fuse linkNEOZED fuse link
size of fuse system / acc. to DIN EN 60269-1D01
operating class of the fuse linkgG
supply voltage-
● at DC250 V
operating voltage / rated value400 V
protection class IPIP20, with connected conductors
switching capacity current / acc. to IEC 60947-2 / rated value50 kA
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole1.8 W
operational current-
● at 30 °C / rated value1.96 A
● at 40 °C / rated value1.9 A
● at 45 °C / rated value1.84 A
● at 50 °C / rated value1.8 A
● at 55 °C / rated value1.76 A
● at 60 °C / rated value1.72 A
● at AC / rated value2 A
operational current / rated value2 A
color coding of the fuse linkPink
breaking capacity maximum short-circuit current (Icu) / at AC / rated value50 kA
mounting positionAny, preferably vertical
ambient temperature / during operation-
● minimum40 °C
● maximum40 °C
environmental categoryUp to 45°C at 95 % rel. humidity
Test Certificatesother
Weight0.006 kg

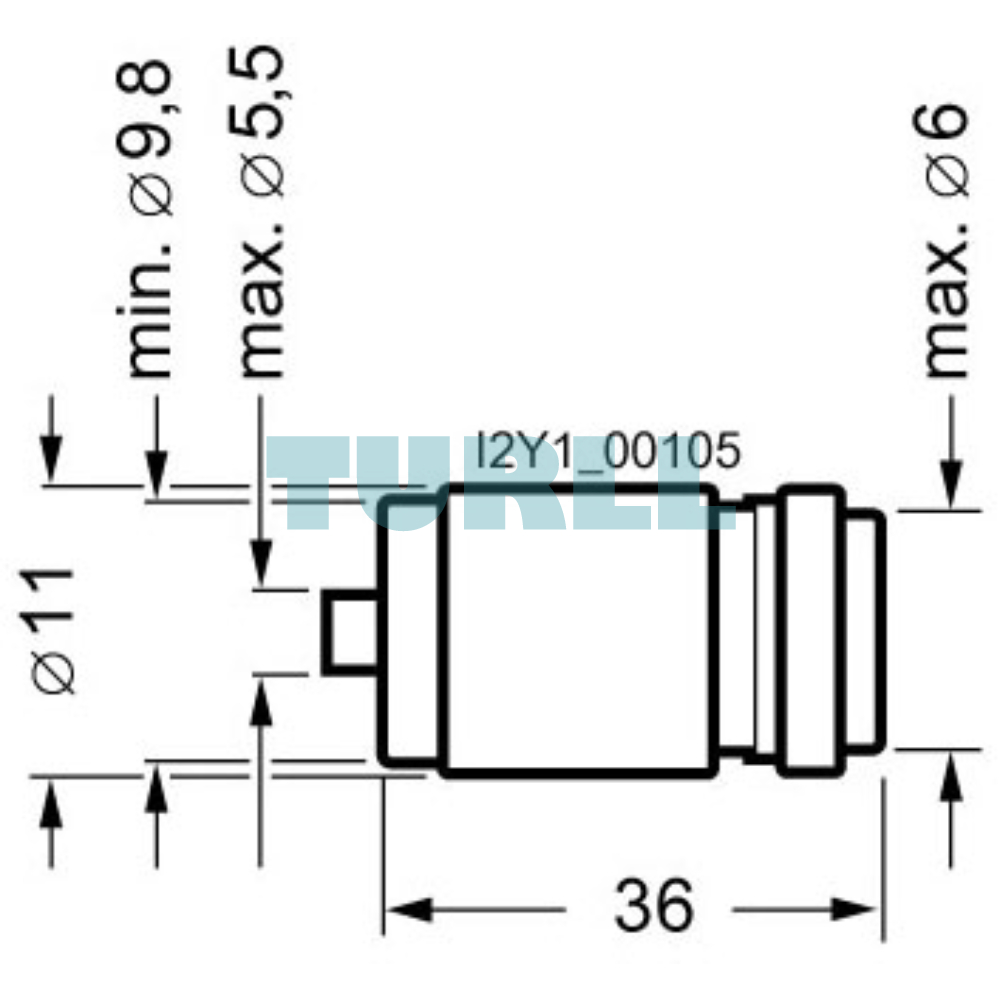

Dimensions23.00 × 57.00 × 39.00 mm
