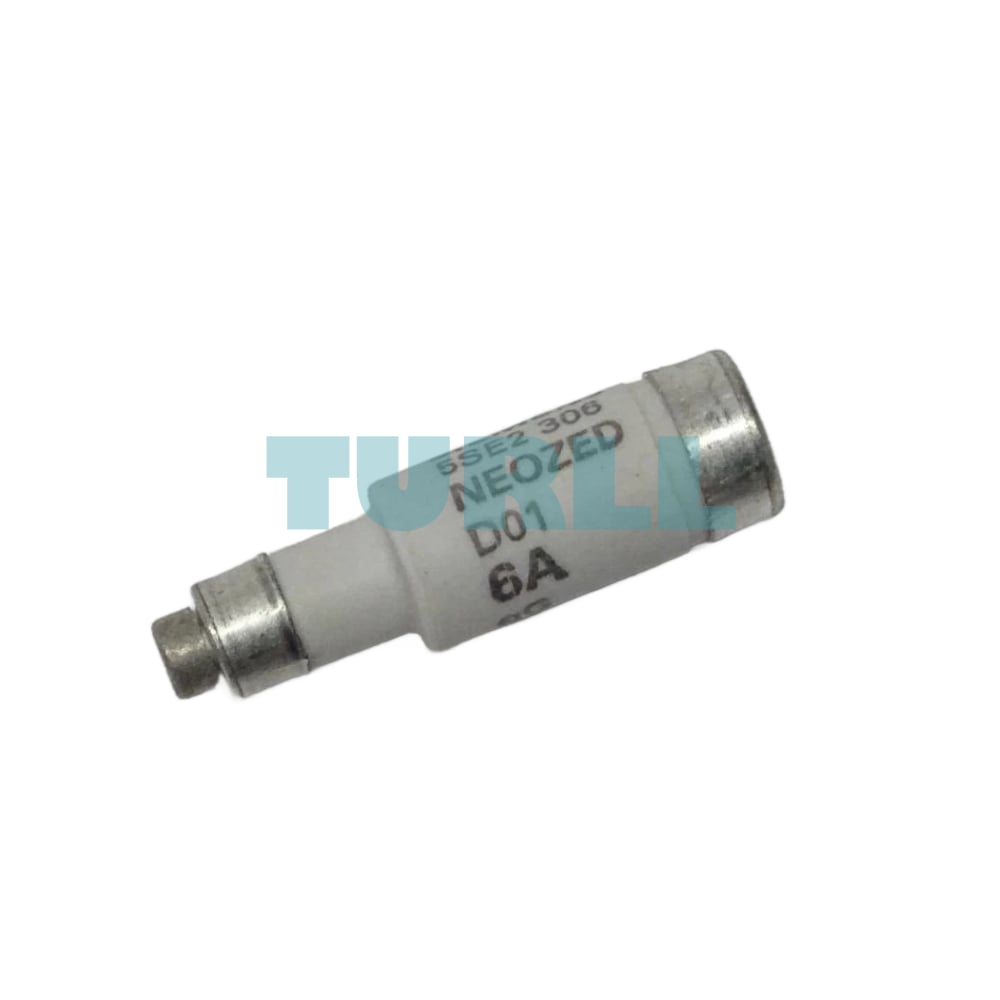

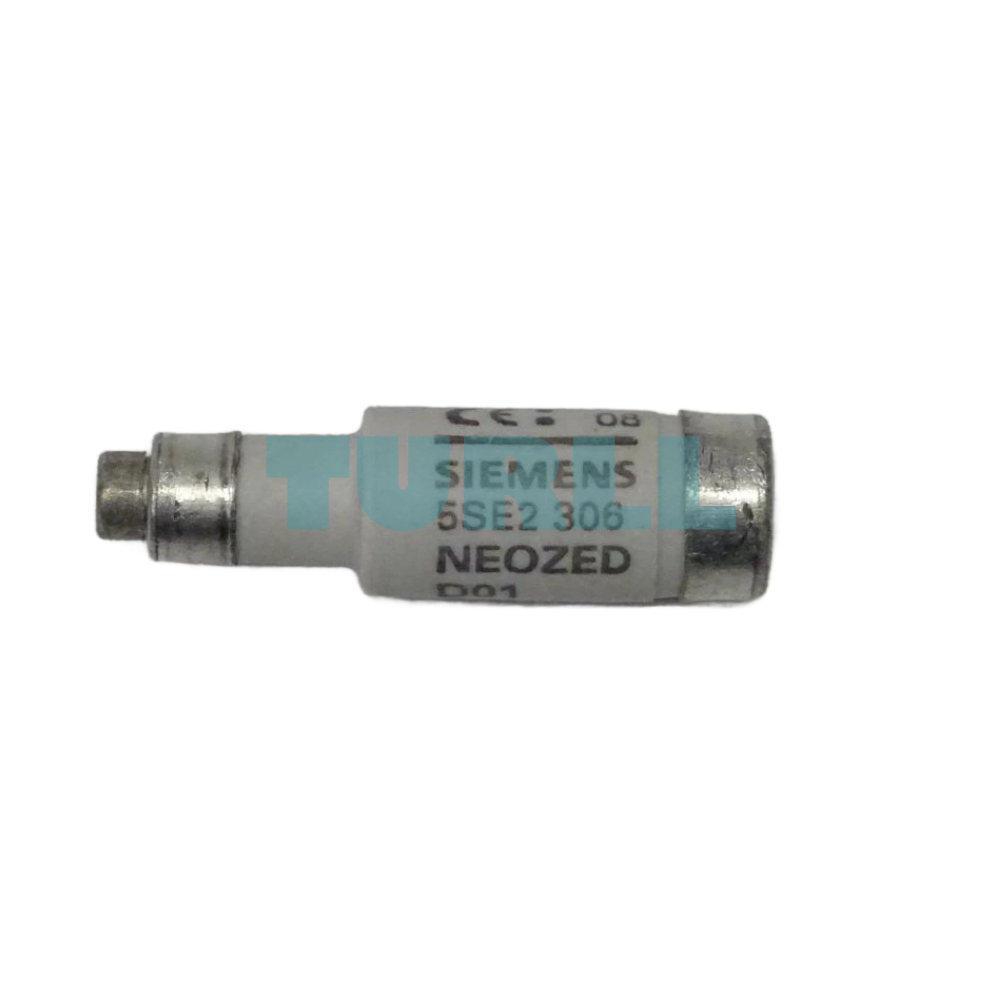

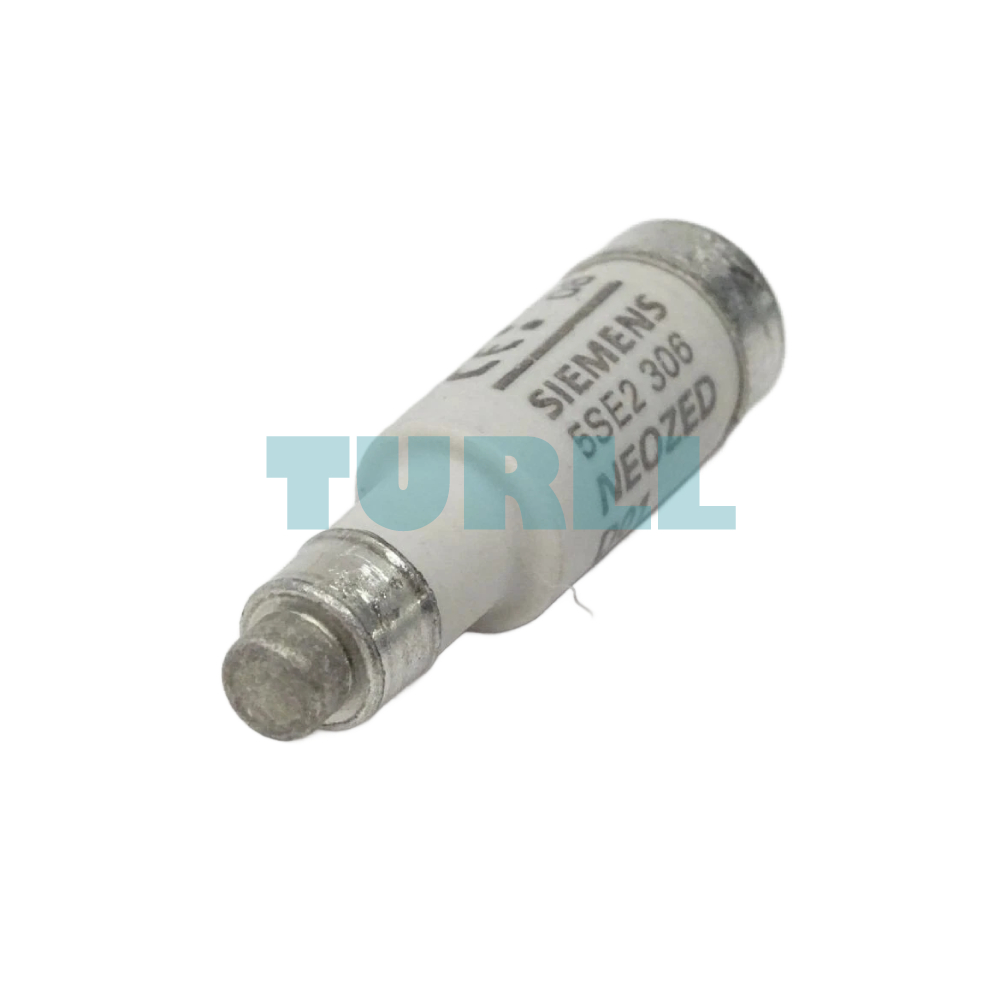

Siemens 5SE2306 NEOZED Fuse-Link, Size D01, 6A, gG Application, 400V AC / 250V DC Original Brand New
$3.22
High-quality D01 NEOZED fuse-link designed for reliable circuit protection. It features a 6A current rating, gG operating class for general applications, and tin-coated contact caps for superior conductivity and corrosion resistance.
Availability: In stock
Overview
The Siemens NEOZED system is primarily used in distribution boards and industrial control systems. The 5SE2306 fuse-link is more compact than older DIAZED systems, saving significant space in your electrical cabinet. Its gG (general purpose) characteristic ensures it handles both overload and short-circuit protection effectively.
Key Benefit
-
Space-Saving Design: The D01 size allows for high-packing density in small enclosures.
-
Enhanced Durability: Tin-coated contact caps prevent oxidation, ensuring long-term contact reliability even in humid environments.
-
Low Power Loss: Optimized design minimizes heat dissipation, contributing to the energy efficiency of the electrical system.
-
Versatile Application: Rated for both AC (400V) and DC (250V) operations.
Function
-
Protects circuits from short circuits and overloads.
-
Ensures safe operation of electrical equipment.
-
Extends the lifespan of electrical installations by preventing damage from excess current.
Application
-
Industrial switchgear and distribution panels.
-
Residential and commercial circuit protection.
-
Motor circuit protection (in conjunction with other protective devices).
Technical Specification
-
Product Number: Siemens 5SE2306
-
Type: NEOZED fuse-link, D01
-
Rated Current: 6 A
-
Fuse Class: gG
-
AC Voltage Rating: 400 V
-
DC Voltage Rating: 250 V
-
Contact-Cap Material: Tin-coated
-
Mounting: Standard D01 fuse holder
Visit 5SE2306 for more detail info
For more our products visit turll
Download
| Weight | 0.006 kg |
|---|---|

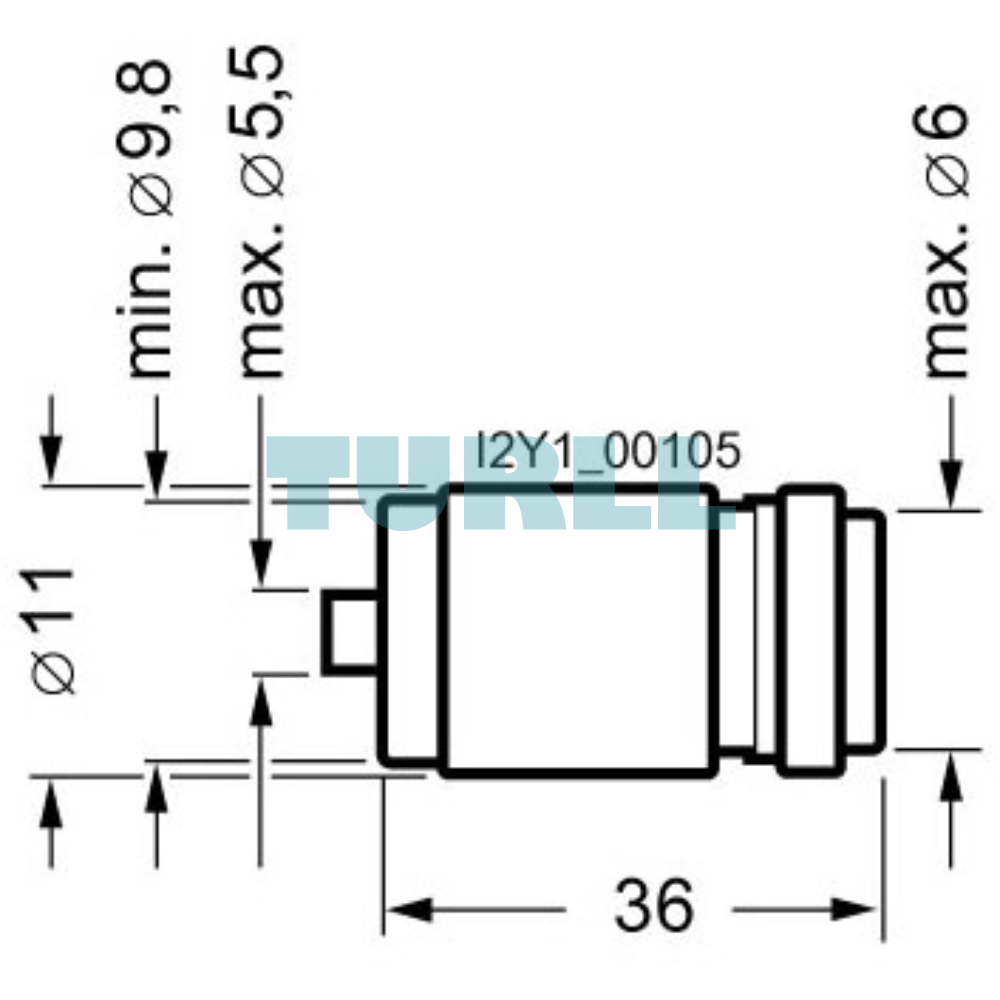

| Dimensions | 23.00 × 57.00 × 39.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | NEOZED fuse link |
| design of the product | With tin-coated contact caps |

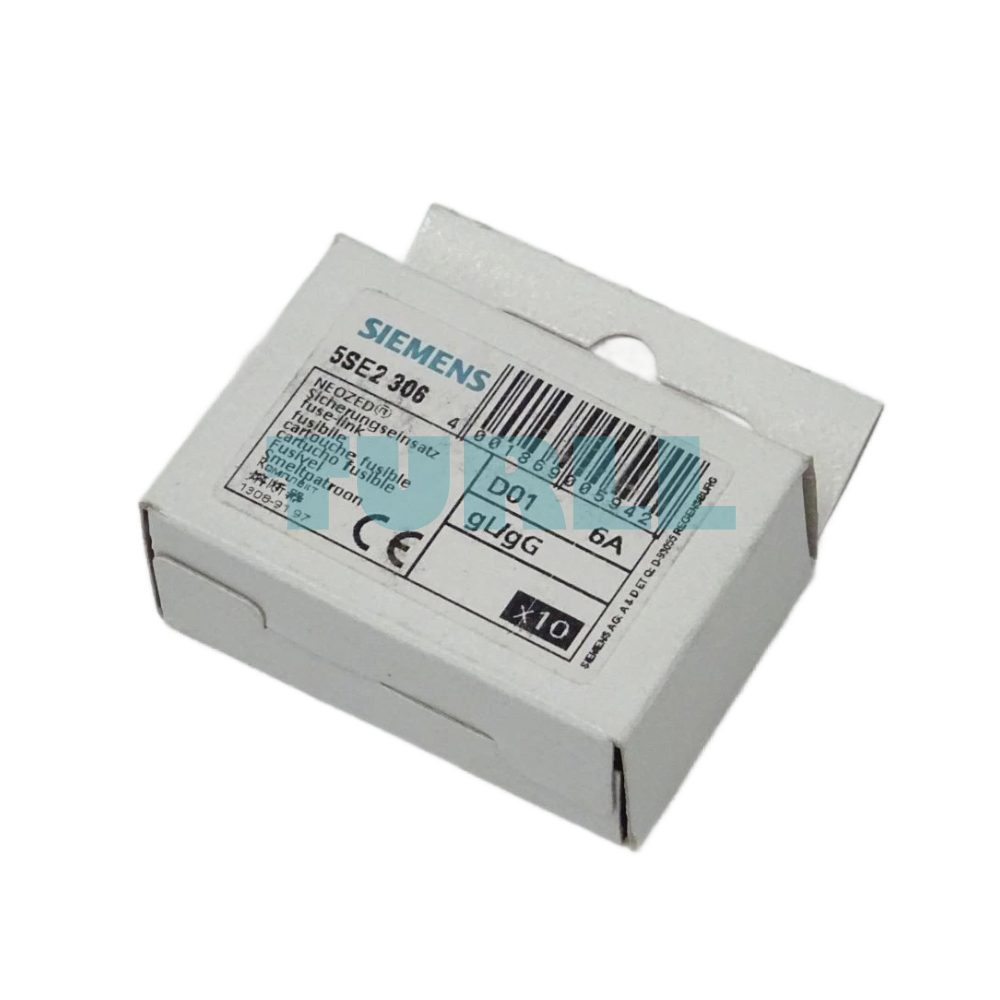

| product variations | Pack of 10 |
| design of the fuse link | NEOZED fuse link |
| size of fuse system / acc. to DIN EN 60269-1 | D01 |
| operating class of the fuse link | gG |
| supply voltage | – |
| ● at DC | 250 V |
| operating voltage / rated value | 400 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current / acc. to IEC 60947-2 / rated value | 50 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.4 W |
| operational current | – |
| ● at 30 °C / rated value | 5.88 A |
| ● at 40 °C / rated value | 5.7 A |
| ● at 45 °C / rated value | 5.52 A |
| ● at 50 °C / rated value | 5.4 A |
| ● at 55 °C / rated value | 5.28 A |
| ● at 60 °C / rated value | 5.16 A |
| ● at AC / rated value | 6 A |
| operational current / rated value | 6 A |

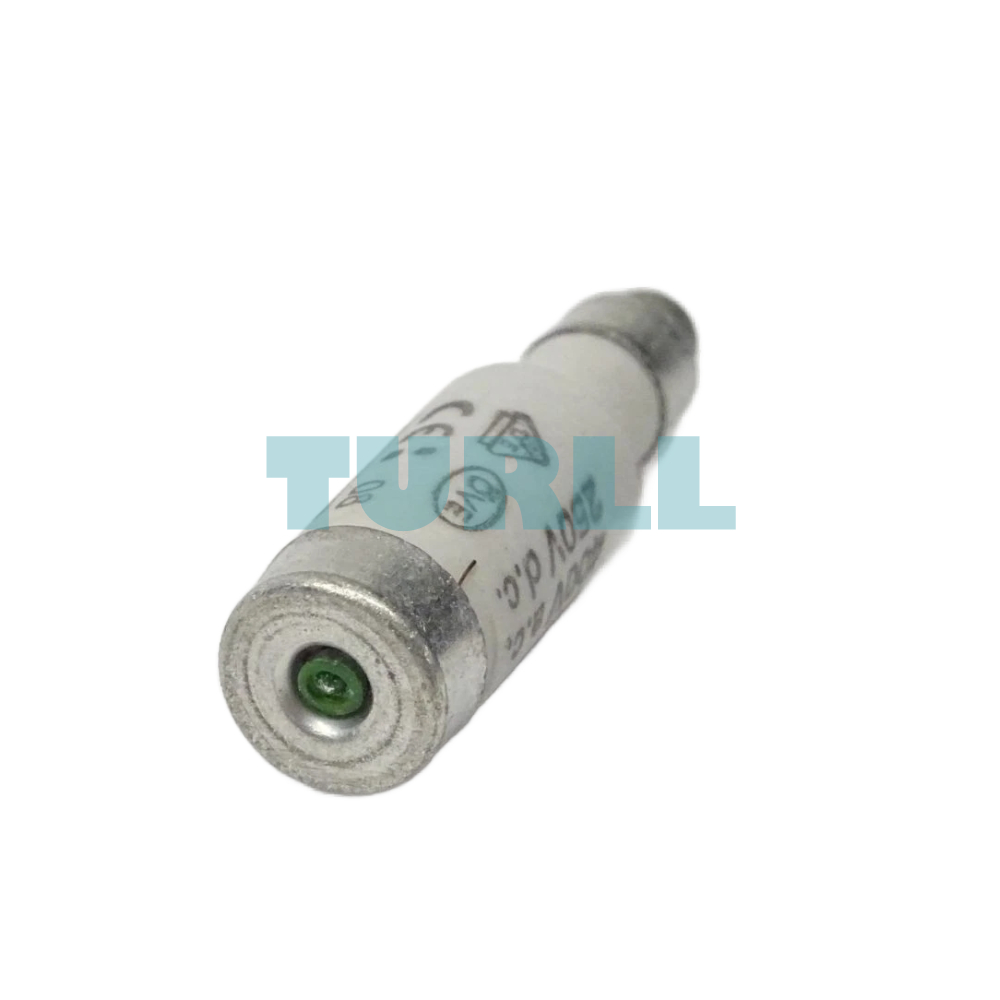

| color coding of the fuse link | Green |
| breaking capacity maximum short-circuit current (Icu) / at AC / rated value | 50 kA |
| mounting position | Any, preferably vertical |
| ambient temperature / during operation | – |
| ● minimum | 40 °C |
| ● maximum | 40 °C |
| environmental category | Up to 45°C at 95 % rel. humidity |
| Test Certificates | other |
