Siemens 5SJ4110-7HG42 Circuit Breaker 10kA, 1-Pole, 10A, Type C, UL 489-277V Original Brand New
$56.96
High-performance, single-pole miniature circuit breaker (MCB) designed for demanding industrial applications. Rated at 10A with a Type C tripping characteristic, it offers reliable 10kA short-circuit protection and complies strictly with UL 489 standards for branch circuit protection up to 277V AC.
Availability: In stock
Overview
The Siemens 5SJ4110-7HG42 is a high-performance 1-pole circuit breaker designed to provide reliable protection for residential, commercial, and industrial electrical systems. With a breaking capacity of 10kA, it ensures safety against short circuits and overloads, while its Type C tripping characteristic makes it ideal for general-purpose applications. UL 489-277V certified, this circuit breaker meets rigorous safety and quality standards.
Key Benefit
-
Universal Compliance: Fully compliant with UL 489 and CSA C22.2, making it suitable for global export and diverse industrial environments.
-
High Breaking Capacity: Features a 10kA interrupting rating, ensuring safety during significant electrical faults.
-
Precision Tripping: The Type C characteristic is optimized for circuits with medium inrush currents, such as lighting and small motor loads.
-
Durability: Built with Siemens’ industry-leading materials to ensure a long mechanical and electrical service life.
Function / Features
-
Single-pole circuit breaker with C-type tripping characteristic
-
Rated current: 10 A
-
Breaking capacity: 10kA
-
Voltage rating: UL 489-277V
-
Compact, modular design for easy installation
-
High-quality Siemens manufacturing standards
-
Reliable protection for electrical circuits
Visit 5SJ4110-7HG42 for more detail info
For more our products visit turll
Download
| Weight | 0.172 kg |
|---|---|

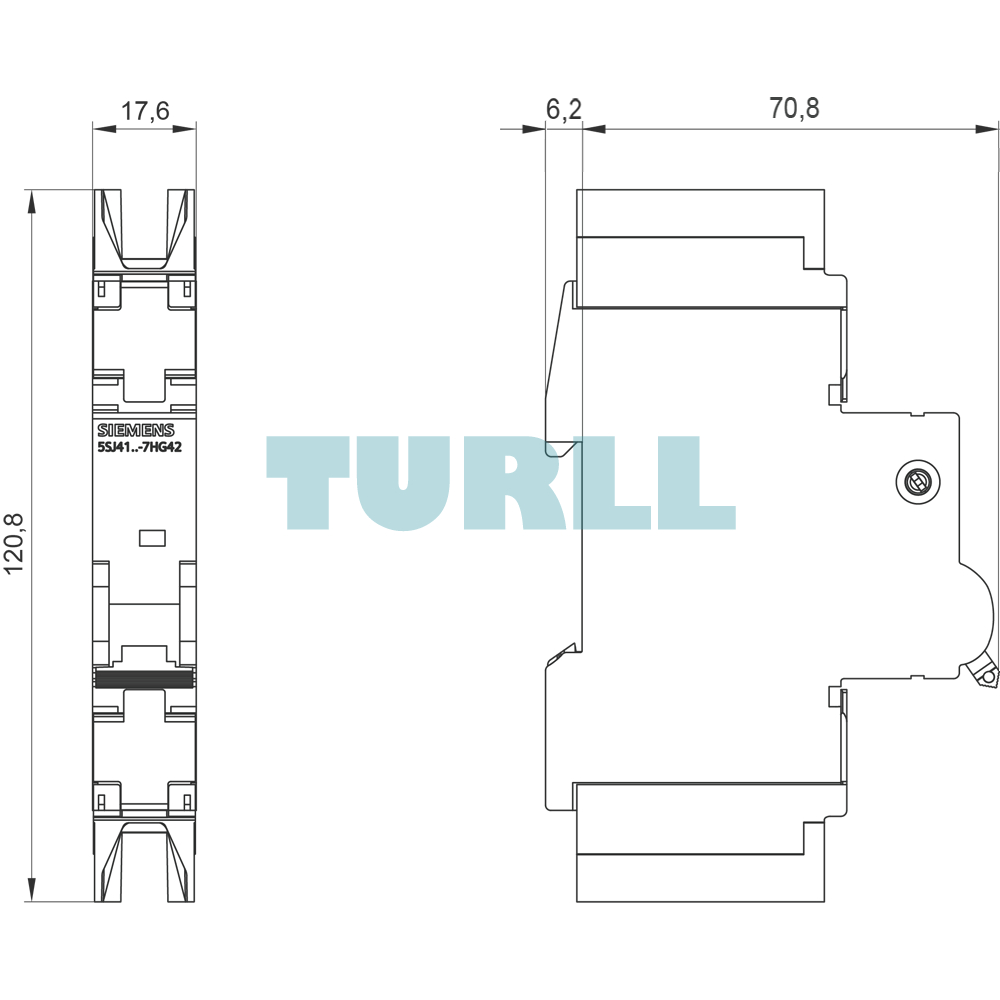

| Dimensions | 22.00 × 125.00 × 84.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breakers |
| design of the product | Miniature circuit-breaker 5SJ4 |
| number of poles | 1 |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| installation environment regarding EMC | Suitable for environment B (immunity to interference not applicable) |
| reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750 | F |
| overvoltage category | 3 |
| degree of pollution | 3 |
| insulation voltage (Ui) / at AC / rated value | 440 V |
| supply voltage / at AC / rated value | 400 V |
| operating voltage | – |
| ● at AC / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 277 V |
| ● at DC / rated value / maximum | 60 V |
| ● at DC / single channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 60 V |
| ● at DC / 2-channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 125 V |
| protection class IP | IP20, with connected conductors, IP 40 in the handle range |
| switching capacity current | – |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 15 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.4 W |
| operational current | – |
| ● at 30 °C / rated value | 10 A |
| ● at 40 °C / rated value | 10 A |
| ● at 45 °C / rated value | 9.7 A |
| ● at 50 °C / rated value | 9.4 A |
| ● at 55 °C / rated value | 9.1 A |
| ● at 60 °C / rated value | 0.88 A |
| ● at AC / rated value | 10 A |
| type of voltage supply / at AC / acc. to UL 489 and CSA C22.2 No. 5-02 | 480/277 |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● tunnel terminals top | No |
| ● tunnel terminals bottom | No |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| product function / note | Terminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in |
| breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.235 | 10 kA |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| tightening torque / with screw-type terminals / maximum | 3.5 N·m |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | on standard mounting rail |
| mounting position | any |
| vibration resistance | 50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec) |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
| Miscellaneous | – |
