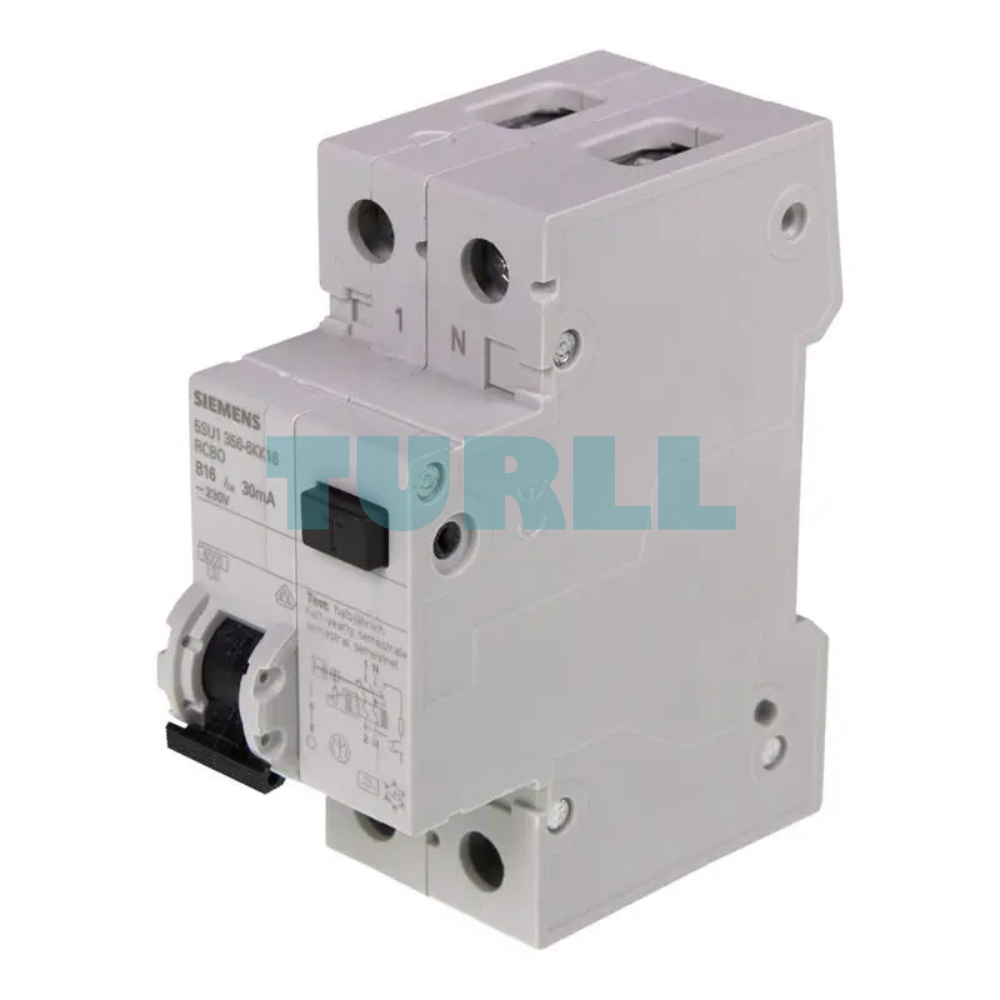

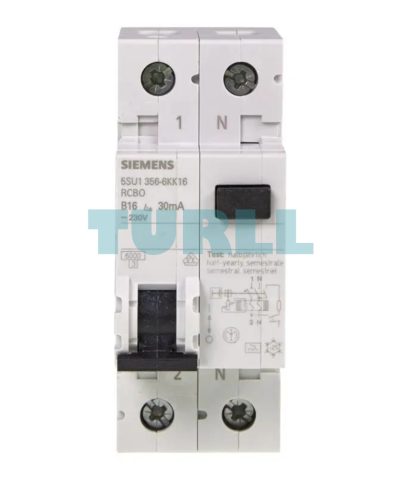

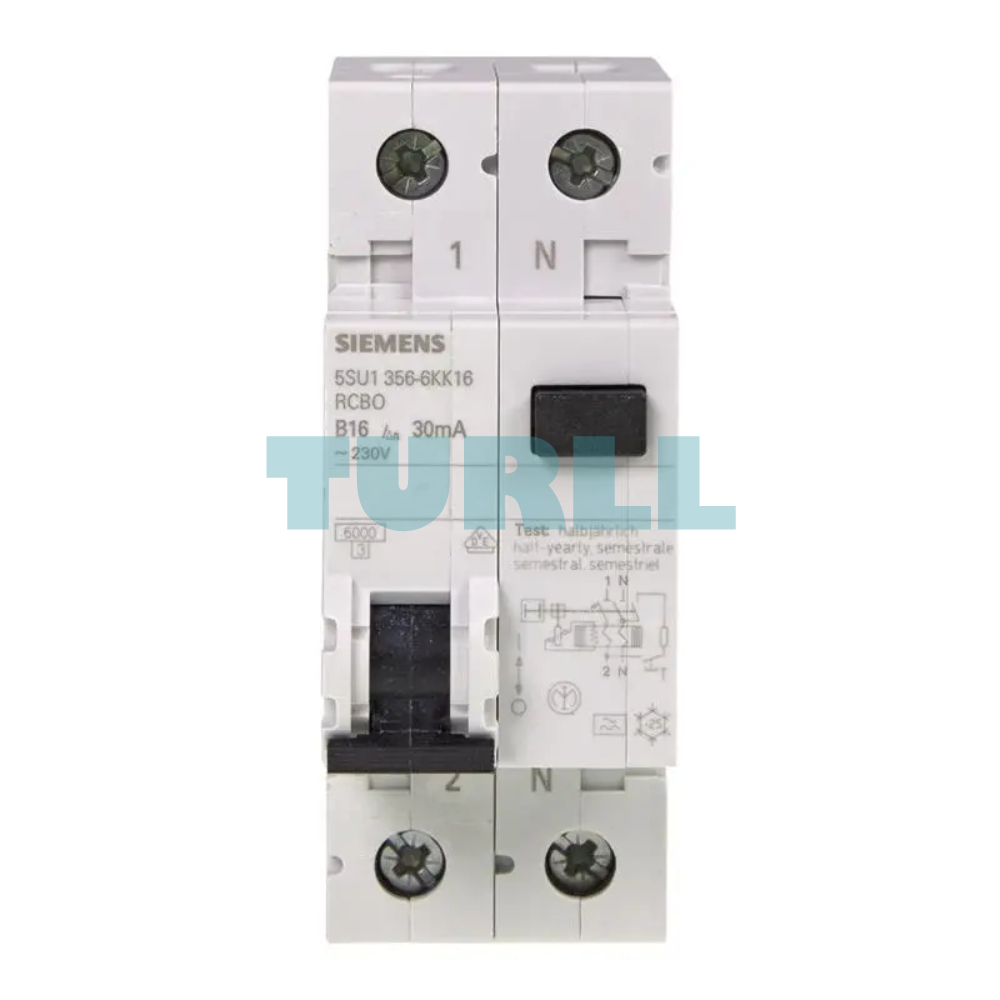

Siemens 5SU1356-6KK16 RCBO, 6kA, 1P+N, Type A, 30mA, B Curve, 16A, 230V Original Brand New
$30.47
High-performance RCBO designed for combined short-circuit, overload, and residual current protection. Featuring a 16A rated current and 30mA sensitivity, this Type A device ensures maximum safety for personnel and electrical installations in 230V AC networks.
Availability: In stock
Overview
The Siemens 5SU1356-6KK16 RCBO is a high-quality residual current circuit breaker with overcurrent protection, designed for modern electrical installations. It combines the functions of an MCB and RCD in one compact device, delivering enhanced safety and space-saving efficiency. With a 6 kA breaking capacity and Type A protection, it is ideal for detecting AC and pulsating DC residual currents.
Benefit
-
Combines overcurrent and residual current protection in one device
-
30 mA sensitivity ensures enhanced personal protection
-
Type A protection detects AC and pulsating DC leakage currents
-
6 kA breaking capacity for dependable fault interruption
-
B characteristic suitable for residential and light commercial applications
-
Trusted Siemens quality for long-term reliability
Function
-
Overload Protection: Protects cables and systems against excessive current.
-
Short-Circuit Protection: Instantaneous tripping at 6kA to prevent fire hazards.
-
Residual Current Protection: Detects AC and pulsating DC earth leakage to prevent electric shocks (Type A).
-
B-Characteristic: Ideal for standard residential and light commercial circuits with low inrush currents.
Technical Specification
-
Product Number: Siemens 5SU1356-6KK16
-
Device Type: RCBO
-
Breaking Capacity: 6 kA
-
Poles: 1P+N
-
Residual Current Type: Type A
-
Residual Current Sensitivity: 30 mA
-
Tripping Characteristic: B Curve
-
Rated Current (In): 16 A
-
Rated Voltage (Un): 230 V AC
Visit 5SU1356-6KK16 for more detail info
For more our products visit turll
Download
| Weight | 0.274 kg |
|---|---|

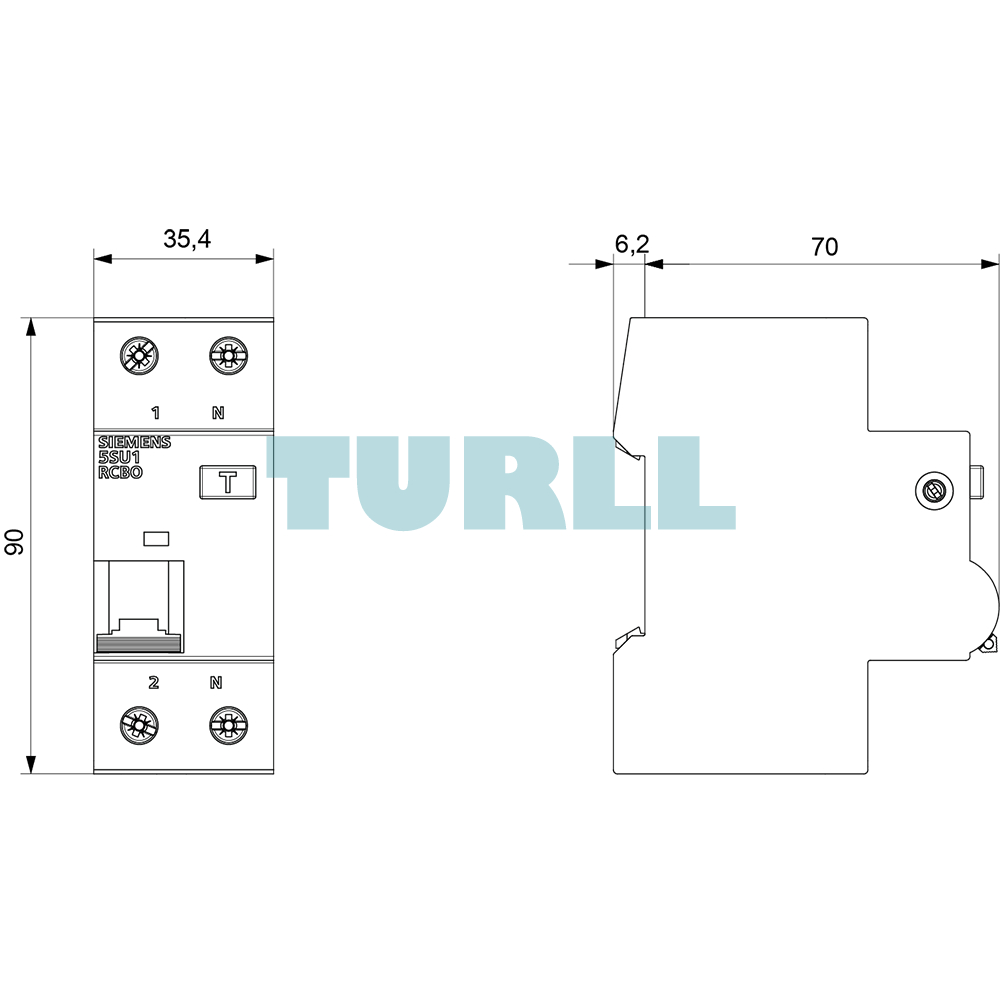

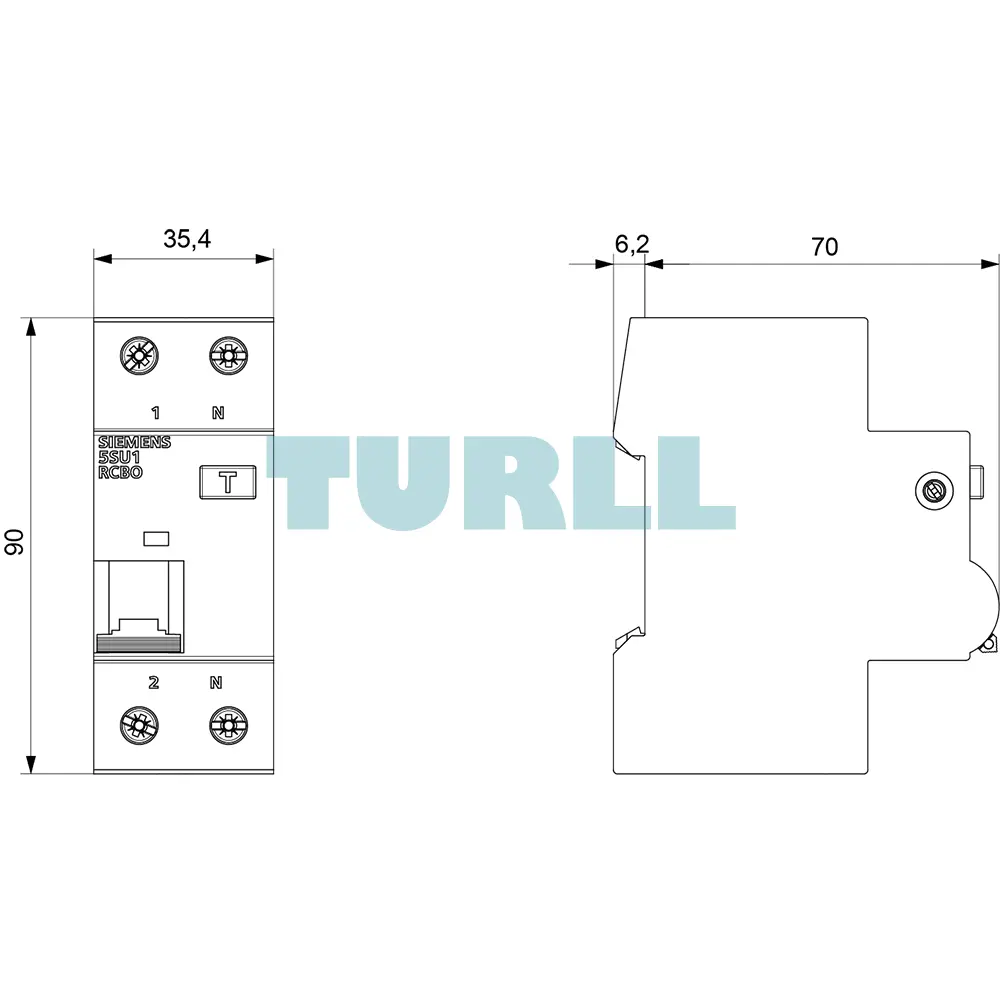

| Dimensions | 40.00 × 96.00 × 82.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | RCBO |
| design of the product | Instantaneous |
| number of poles | 2 |
| number of poles / with protection | 1 |
| tripping characteristic class | B |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 2 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) / rated value | 264 V |
| surge voltage resistance / rated value | 4 000 V |
| surge current resistance / at (8/20) µs | 1 kA |
| supply voltage | – |
| ● for testing equipment / minimum | 195 V |
| operating frequency | 50 Hz |
| supply voltage frequency / rated value | 50 Hz |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| breaking capacity short-circuit current (Icn) / according to EN 61009-1 / rated value | 6 kA |
| switching capacity current | – |
| ● acc. to EN 60898 / rated value | 6 kA |
| ● acc. to IEC 60947-2 / rated value | 15 kA |
| rated residual switching capacity (IΔm) / according to IEC 61009-1 | 6 kA |
| energy limitation class | 3 |
| power loss [W] | – |
| ● for rated value of the current / at AC / in hot operating state / per pole | 3 W |
| tripping fault current / rated value | 30 mA |
| operational current | – |
| ● at 30 °C / rated value | 16 A |
| ● at 40 °C / rated value | 15.2 A |
| ● at 45 °C / rated value | 14.88 A |
| ● at 50 °C / rated value | 14.4 A |
| ● at 55 °C / rated value | 13.92 A |
| ● at 60 °C / rated value | 13.6 A |
| ● at 65 °C / rated value | 12.96 A |
| ● at 70 °C / rated value | 12.32 A |
| ● at AC / rated value | 16 A |
| residual current type | A |
| product component / neutral conductor switching | Yes |
| product feature / touch protection | Yes |
| product feature | – |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Either top or bottom |
| installation depth | 70 mm |
| number of modular width units | 2 |
| mounting position | any |
| weight / with packaging | 272 g |
| influence of the surrounding temperature | Max. 95% humidity |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
| Railway | Dangerous Good |
