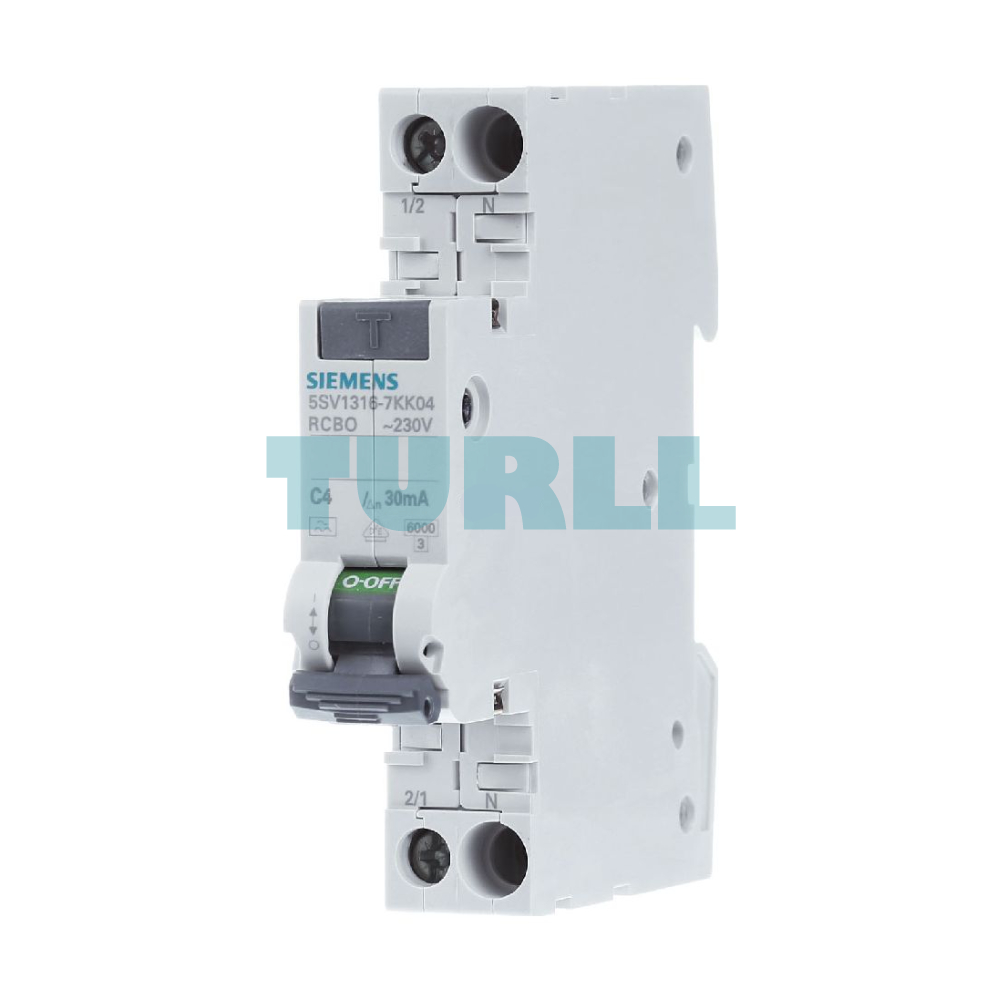

Siemens 5SV1316-7KK04 RCBO Compact 1MW, 1-Pole+N, 6 kA, Type A, 30 mA, C4 Original Brand New

Overview

The Siemens 5SV1316-7KK04 is a high-performance RCBO compact device designed to provide reliable protection against overloads, short circuits, and earth leakage faults. Engineered for residential, commercial, and industrial electrical systems, this RCBO combines superior safety features with Siemens' advanced technology to ensure maximum operational safety and compliance.

Description

The Siemens 5SV1316-7KK04 RCBO is a 1-pole+N, Type A, 6 kA, 30 mA residual current circuit breaker equipped with a C4 tripping characteristic. Its compact design makes it ideal for space-restricted distribution boards while delivering high accuracy and fast response. It is suitable for circuits with moderately inductive loads and provides comprehensive protection against earth leakage and overcurrent faults.

Benefit

• Enhanced Protection – Combines overcurrent and residual current protection in one compact device.

• High Breaking Capacity – Rated at 6 kA to ensure safe disconnection in fault conditions.

• Improved Safety – 30 mA sensitivity for personal and equipment protection.

• Type A Detection – Detects AC and pulsating DC residual currents.

• Compact Design – Optimized for modern, space-saving distribution boards.

• Reliable Performance – Backed by Siemens’ reputation for durability and precision.

Functions & Features

• 1-pole+N configuration for safe switching of the neutral conductor

• C4 tripping curve suitable for circuits with medium inrush currents

• Residual current protection (30 mA) for detecting dangerous leakage faults

• Electromagnetic and thermal release mechanisms

• DIN rail mounting for quick installation

• Compliance with international safety standards

Technical Specification

• Model: Siemens 5SV1316-7KK04

• Product Type: RCBO Compact

• Poles: 1P+N

• Rated Breaking Capacity: 6 kA

• Rated Sensitivity: 30 mA (Type A)

• Tripping Curve: C4

• Application: Residential, Commercial, Industrial

Download

Datasheet in PDF
