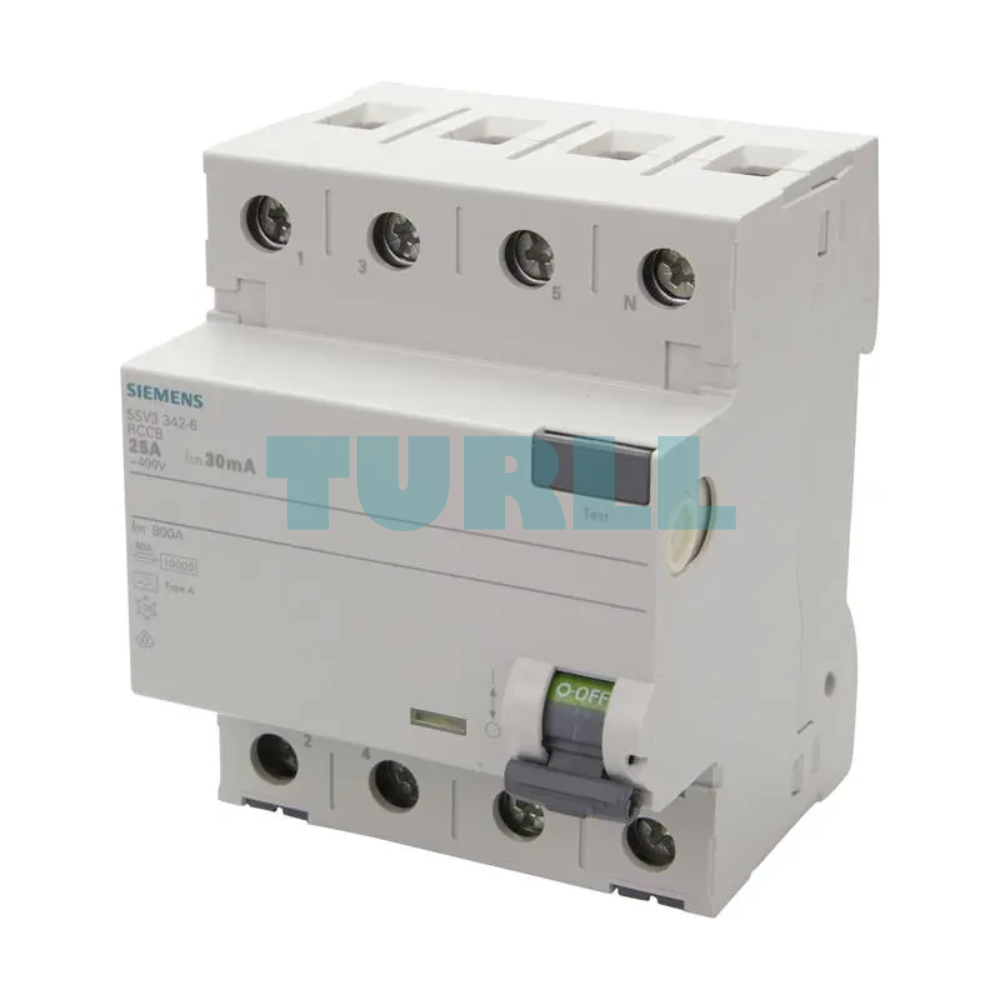

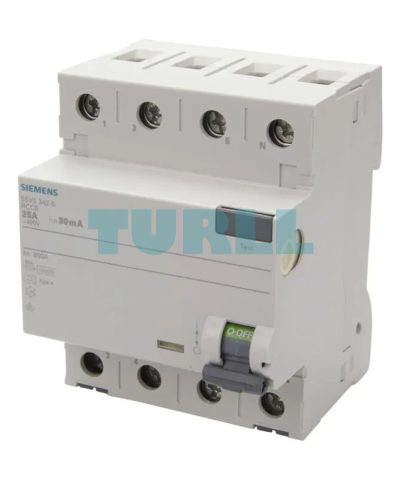

Siemens 5SV3342-6 Residual Current Operated Circuit Breaker (RCCB), 4-Pole, Type A, 25A, 30mA, 400V
Siemens 5SV3342-6 Residual Current Operated Circuit Breaker (RCCB), 4-Pole, Type A, 25A, 30mA, 400V
Siemens 5SV3342-6 Residual Current Operated Circuit Breaker (RCCB), 4-Pole, Type A, 25A, 30mA, 400V
Siemens 5SV3342-6 Residual Current Operated Circuit Breaker (RCCB), 4-Pole, Type A, 25A, 30mA, 400V
Siemens 5SV3342-6 Residual Current Operated Circuit Breaker (RCCB), 4-Pole, Type A, 25A, 30mA, 400V

SIEMENS

Siemens 5SV3342-6 Residual Current Operated Circuit Breaker (RCCB), 4-Pole, Type A, 25A, 30mA, 400V Original Brand New

Model / SKU5SV3342-6

High-performance Siemens 5SV3342-6 RCCB. Features 4-pole protection, Type A tripping characteristic, 25A rated current, and 30mA sensitivity for superior electrical safety.

Original price was: $160.99.Current price is: $63.60.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 5SV3342-6 is a premium Residual Current Operated Circuit Breaker (RCCB) from the SENTRON family. Designed to provide comprehensive protection against electrical shocks and fire hazards, this 4-pole device is essential for modern electrical installations. It operates on a Type A tripping characteristic, ensuring it can detect both purely sinusoidal AC residual currents and pulsating DC residual currents.

Key Benefit

  • Enhanced Safety: The 30mA trip sensitivity provides high-level protection for personnel against direct contact.

  • Reliable Performance: Siemens engineering ensures long-term operational stability and minimal nuisance tripping.

  • Global Standards: Fully compliant with international safety standards for industrial and residential applications.

  • Easy Installation: Designed for quick mounting on standard DIN rails within distribution boards.

Function & Features

  • Trip Type: Type A (Protects against AC and pulsating DC faults).

  • Pole Configuration: 4-Pole (Suitable for three-phase systems).

  • Instantaneous Tripping: Reacts immediately to earth leakage faults to prevent equipment damage and injury.

  • Durable Housing: Built with high-quality thermoplastic for heat resistance and durability.

Visit 5SV3342-6 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model5SV3342-6
BrandSIEMENS
product brand nameSENTRON
product designationRCCB
design of the productInstantaneous
number of poles4
size of installation devices / acc. to DIN 438801
mechanical service life (switching cycles) / typical10 000
short-circuit current / of series fuse / maximum permissible80 A
short-circuit current rating10 kA
switching function / short-term delayedNo
overvoltage categoryIII
supply voltage-
● for testing equipment / minimum195 V
operating frequency50 Hz
supply voltage frequency / rated value50 Hz
protection class IPIP20, if the distribution board is installed, with connected conductors
switching capacity current-
● acc. to EN 60898 / rated value0.8 kA
● according to IEC 61008-1 / rated value0.8 kA
power loss [W]-
● for rated value of the current / at AC / in hot operating state / per pole1.3 W
tripping fault current / rated value30 mA
operational current-
● at 40 °C / rated value25 A
● at 45 °C / rated value25 A
● at 50 °C / rated value25 A
● at 55 °C / rated value25 A
● at 60 °C / rated value25 A
● at 65 °C / rated value23.3 A
● at 70 °C / rated value17.6 A
● at AC / rated value25 A
residual current typeA
let-through current / permissible5 200 kA
I2t value / permissible58 000 A²·s
surge current resistance / rated value1 kA
product feature / silicon-freeYes
product extension / installable / supplementary devicesYes
connectable conductor cross-section / solid-
connectable conductor cross-section / stranded-
tightening torque / with screw-type terminals-
position / of power supply cordtop or bottom
installation depth70 mm
number of modular width units4
fastening methodDIN rail (REG)
mounting positionany
ambient temperature / during operation-
● minimum-25 °C
● maximum45 °C
ambient temperature / during storage-
● minimum permissible-40 °C
● maximum permissible75 °C
number of test cycles / for environmental testing / acc. to IEC 60068-2-3028
Transport Information-
Weight0.330 kg

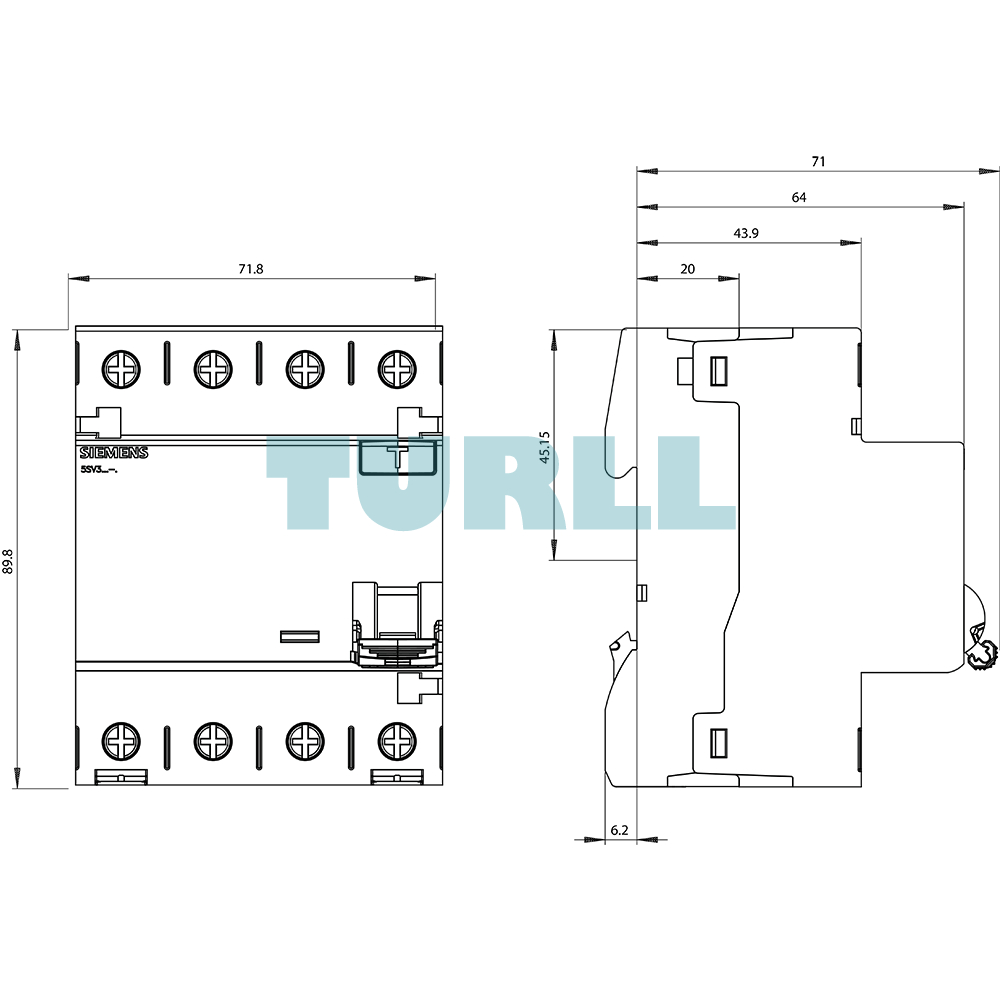

Dimensions97.00 × 78.00 × 85.00 mm
