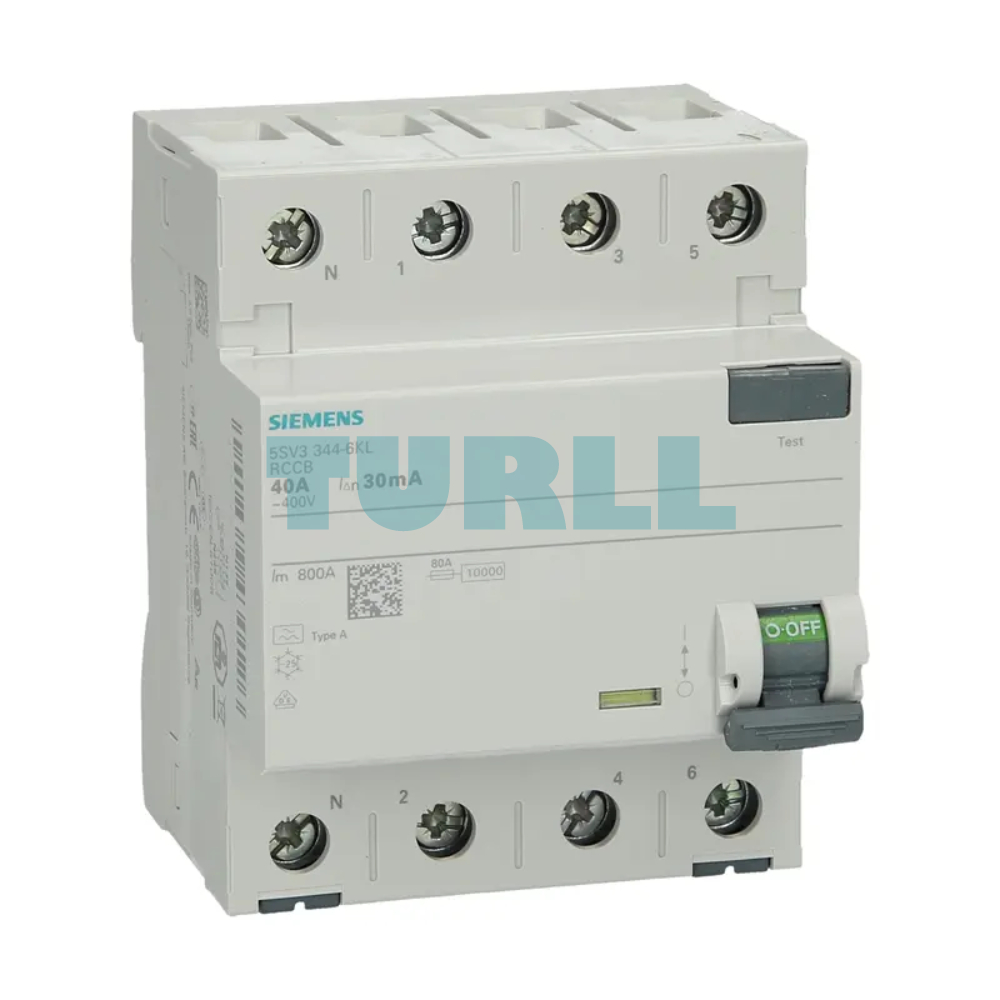

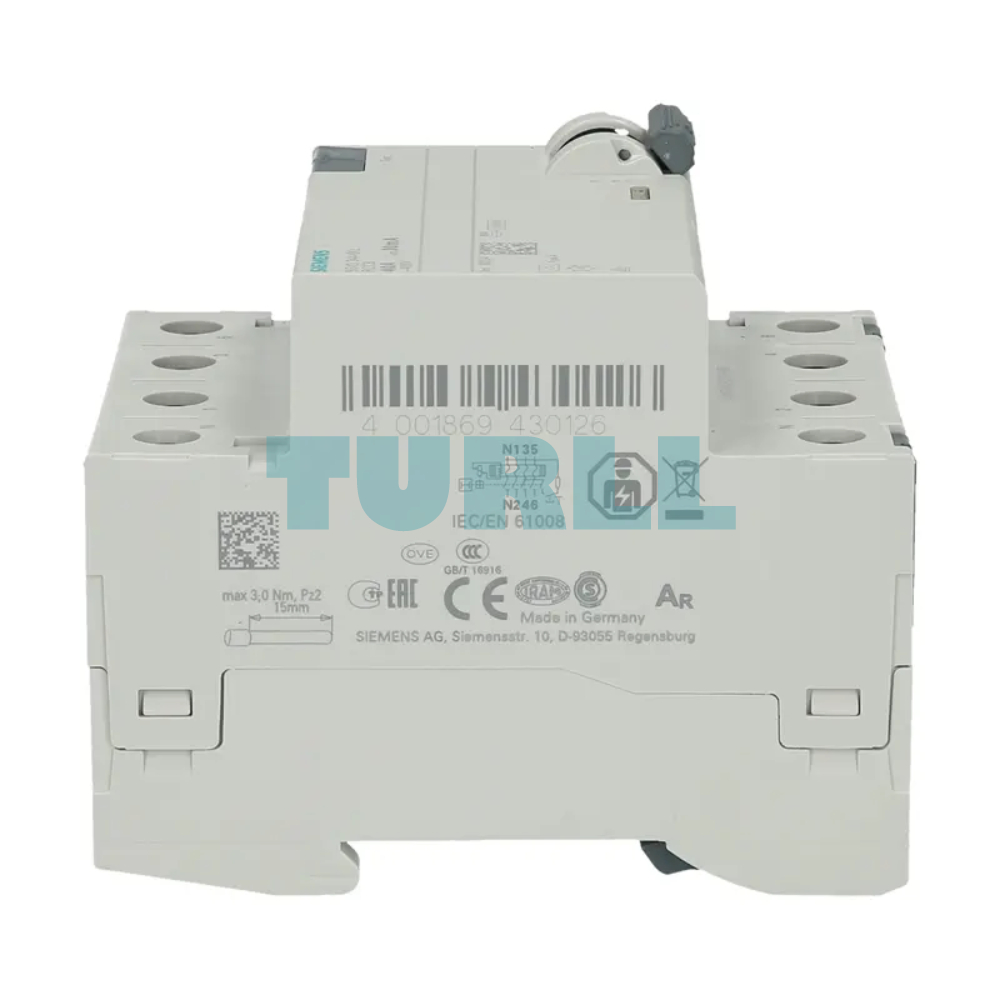

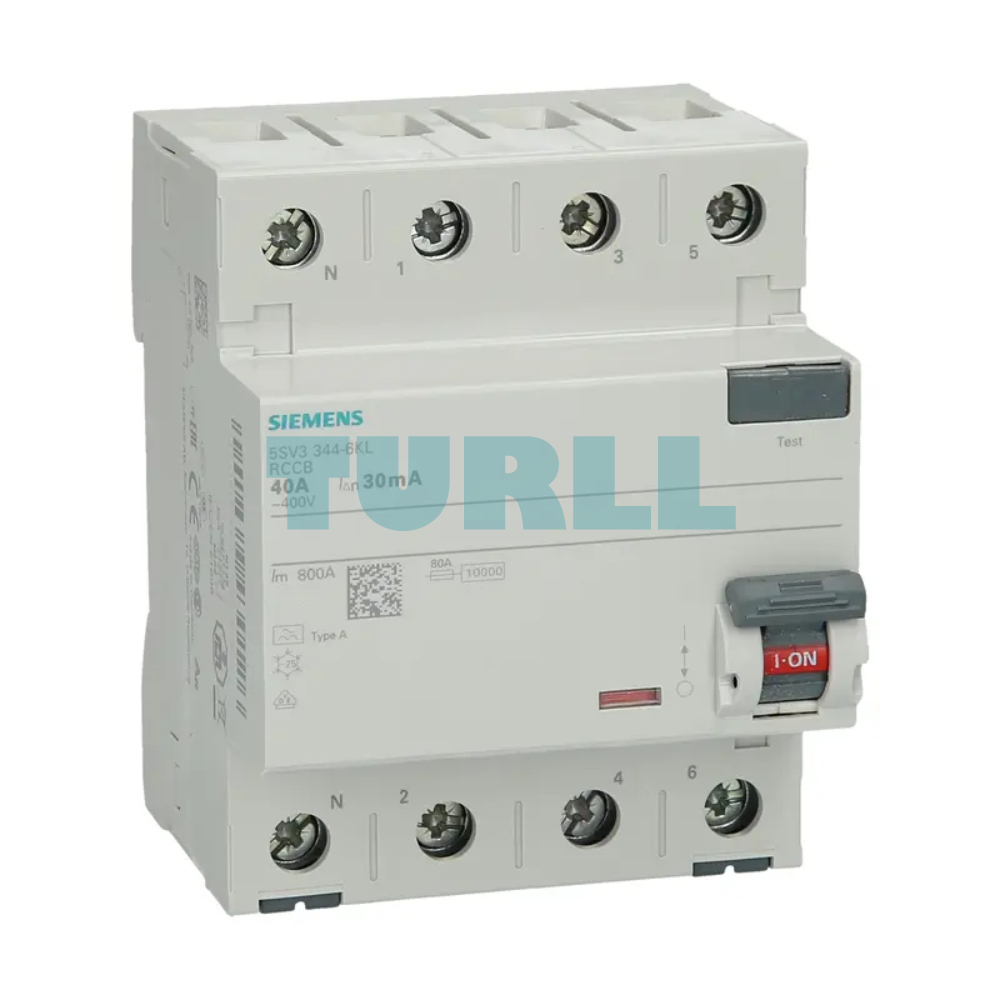

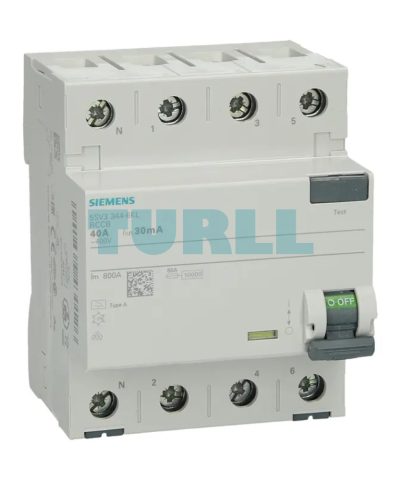

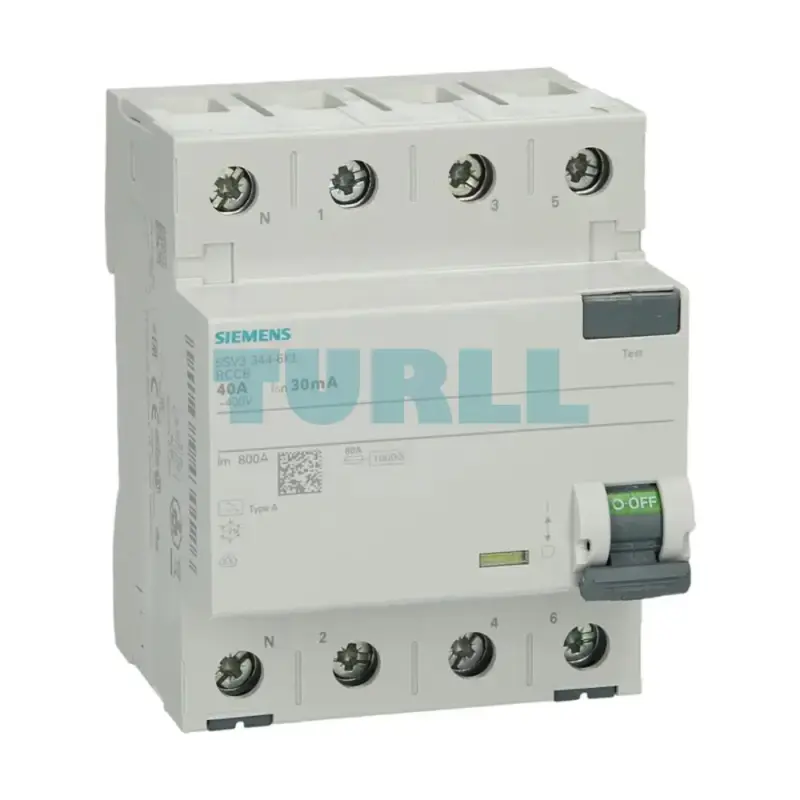

Siemens 5SV3344-6KL Residual Current Circuit Breaker, 4-Pole, Type A, 40A, 30mA, 400V Original Brand New
$24.75
High-quality 4-pole Residual Current Circuit Breaker (RCCB) from the SENTRON range, engineered for reliable personal and property protection. It features a Type A tripping characteristic, a 40A rated current, and a high sensitivity 30mA residual current threshold for 400V AC systems. Its space-saving design is equipped with the N (Neutral) conductor terminal on the left.
Availability: In stock
Overview
The Siemens 5SV3344-6KL is an instantaneous, 4-pole Residual Current Circuit Breaker (RCCB) designed to provide comprehensive fault current protection in electrical installations. As part of the respected Siemens SENTRON line, this device ensures safety against dangerous electric shock caused by direct or indirect contact, as well as fire hazards resulting from insulation faults.
This Type A RCCB is specifically optimized to detect and respond to sinusoidal AC residual currents and pulsating DC residual currents, making it suitable for standard residential and commercial applications. With a robust design and a 10 kA short-circuit current rating (SCCR), the 5SV3344-6KL guarantees exceptional operational safety and longevity.
Benefit
-
Superior Personal Protection: The ultra-sensitive 30 mA trip threshold ensures rapid disconnection, effectively protecting users from lethal electric shock.
-
Fire Prevention: Detects and interrupts small earth leakage currents that could otherwise lead to cable overheating and electrical fires.
-
Broad Application: Type A capability covers a wide range of common loads and fault types, including those generated by electronic equipment with rectifiers.
-
Easy Integration: The standard DIN rail mounting and 4-unit width (72mm) allows for simple and quick installation into any standard distribution board.
-
Reliability & Durability: Engineered by Siemens, featuring a typical 10,000 switching cycle mechanical service life.
Function
-
Monitors residual currents and disconnects circuits when leakage is detected.
-
Provides 4-pole protection for multi-phase electrical systems.
-
Prevents potential fire hazards due to earth leakage.
-
Complies with international safety standards for residential and industrial installations.
Visit 5SV3344-6KL for more detail info
For more our products visit turll
Download
| Weight | 0.316 kg |
|---|---|

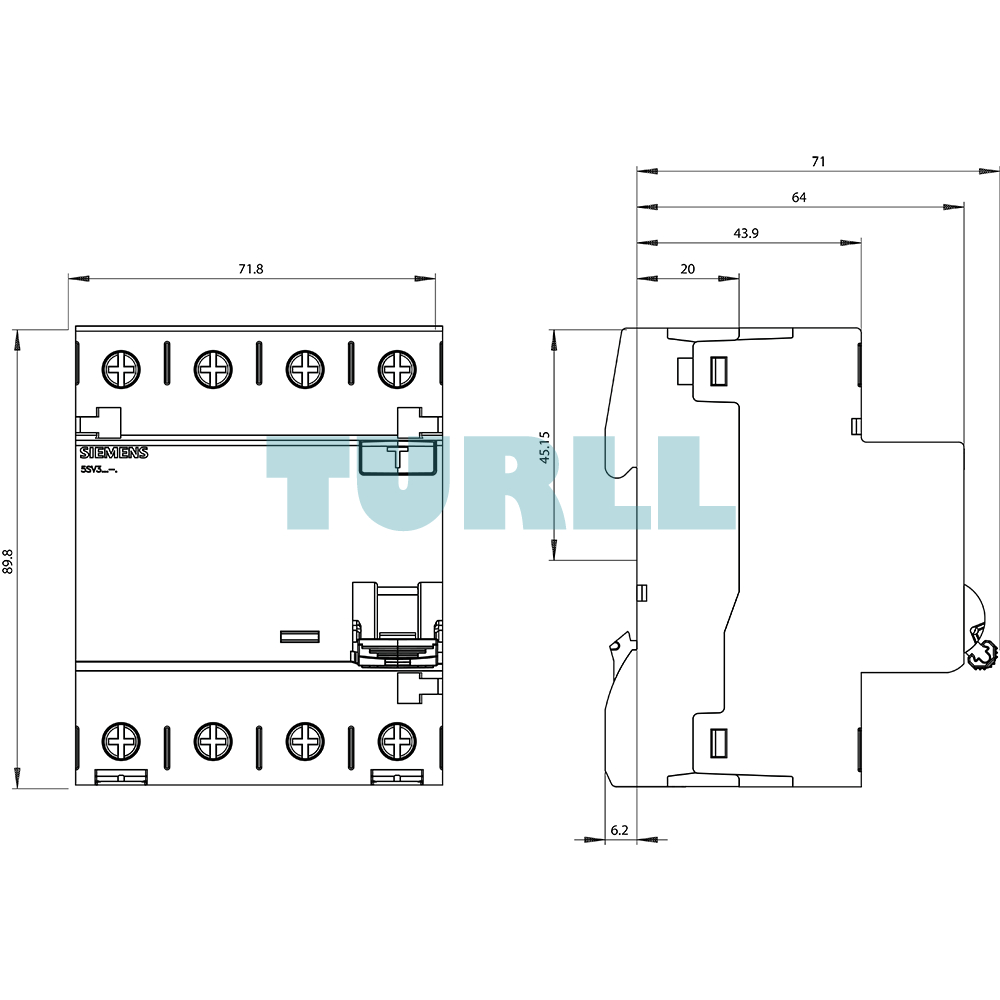

| Dimensions | 97.00 × 78.00 × 85.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | RCCB |
| design of the product | Instantaneous |
| number of poles | 4 |
| size of installation devices / acc. to DIN 43880 | 1 |
| mechanical service life (switching cycles) / typical | 10 000 |
| short-circuit current / of series fuse / maximum permissible | 80 A |
| short-circuit current rating | 10 kA |
| switching function / short-term delayed | No |
| overvoltage category | III |
| supply voltage | – |
| ● for testing equipment / minimum | 195 V |
| operating frequency | 50 Hz |
| supply voltage frequency / rated value | 50 Hz |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| switching capacity current | – |
| ● acc. to EN 60898 / rated value | 0.8 kA |
| ● according to IEC 61008-1 / rated value | 0.8 kA |
| power loss [W] | – |
| ● for rated value of the current / at AC / in hot operating state / per pole | 3.9 W |
| tripping fault current / rated value | 30 mA |
| operational current | – |
| ● at 40 °C / rated value | 40 A |
| ● at 45 °C / rated value | 38.1 A |
| ● at 50 °C / rated value | 35.59 A |
| ● at 55 °C / rated value | 32.29 A |
| ● at 60 °C / rated value | 28.19 A |
| ● at 65 °C / rated value | 23.3 A |
| ● at 70 °C / rated value | 17.6 A |
| ● at AC / rated value | 40 A |
| residual current type | A |
| let-through current / permissible | 5 200 kA |
| I2t value / permissible | 58 000 A²·s |
| surge current resistance / rated value | 1 kA |
| product feature / silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | top or bottom |
| installation depth | 70 mm |
| number of modular width units | 4 |
| fastening method | DIN rail (REG) |
| mounting position | any |
| ambient temperature / during operation | – |
| ● minimum | -25 °C |
| ● maximum | 45 °C |
| ambient temperature / during storage | – |
| ● minimum permissible | -40 °C |
| ● maximum permissible | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
| Transport Information | – |
