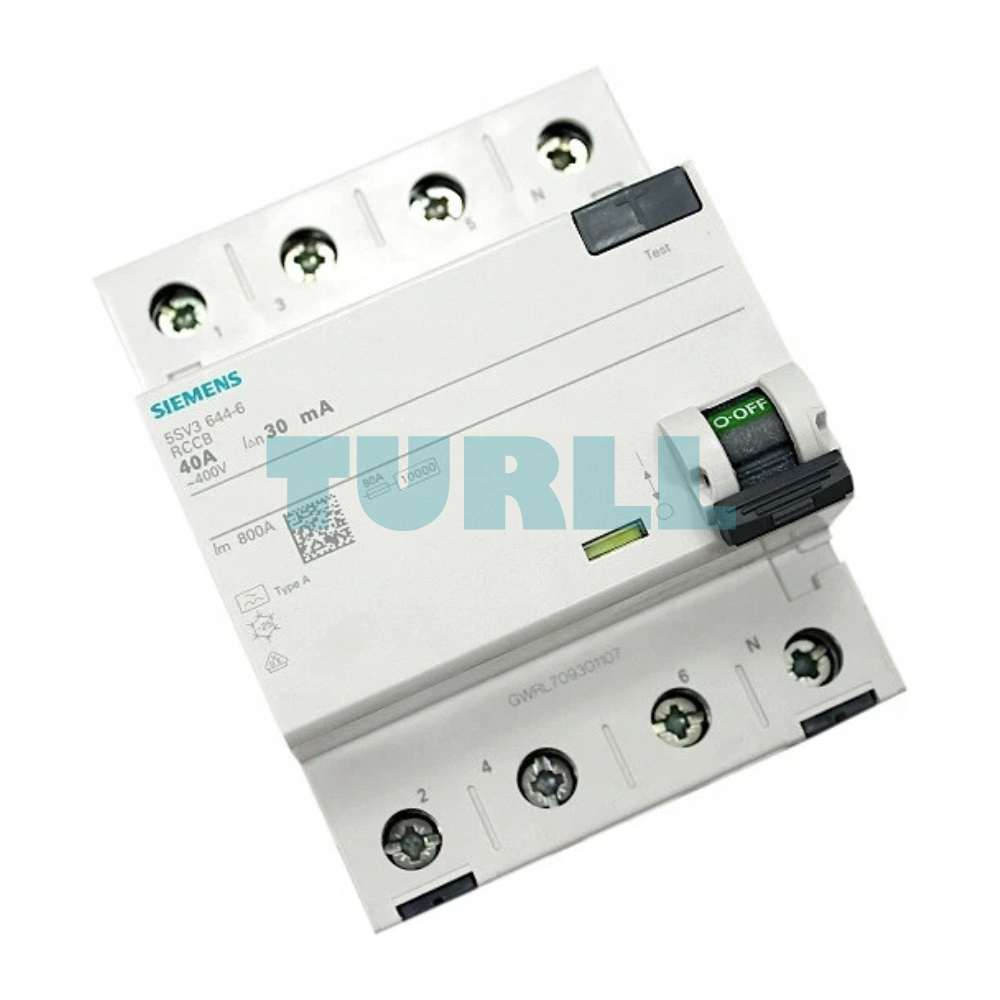

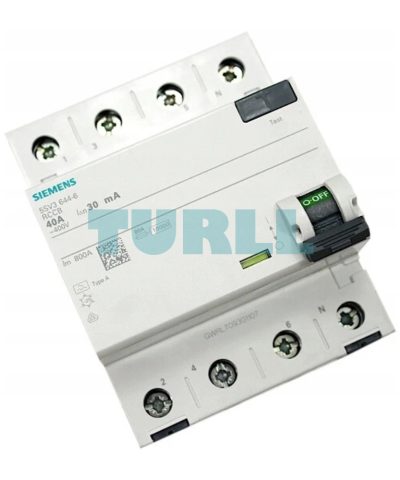

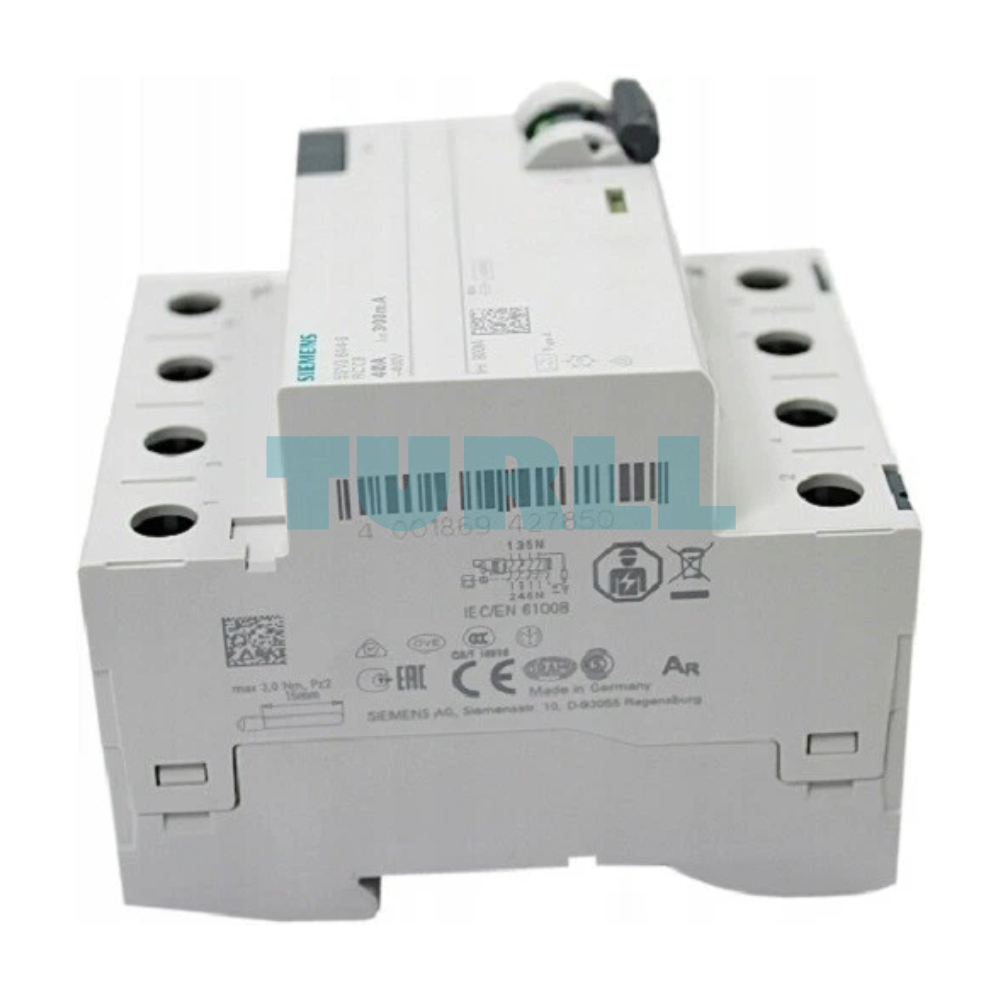

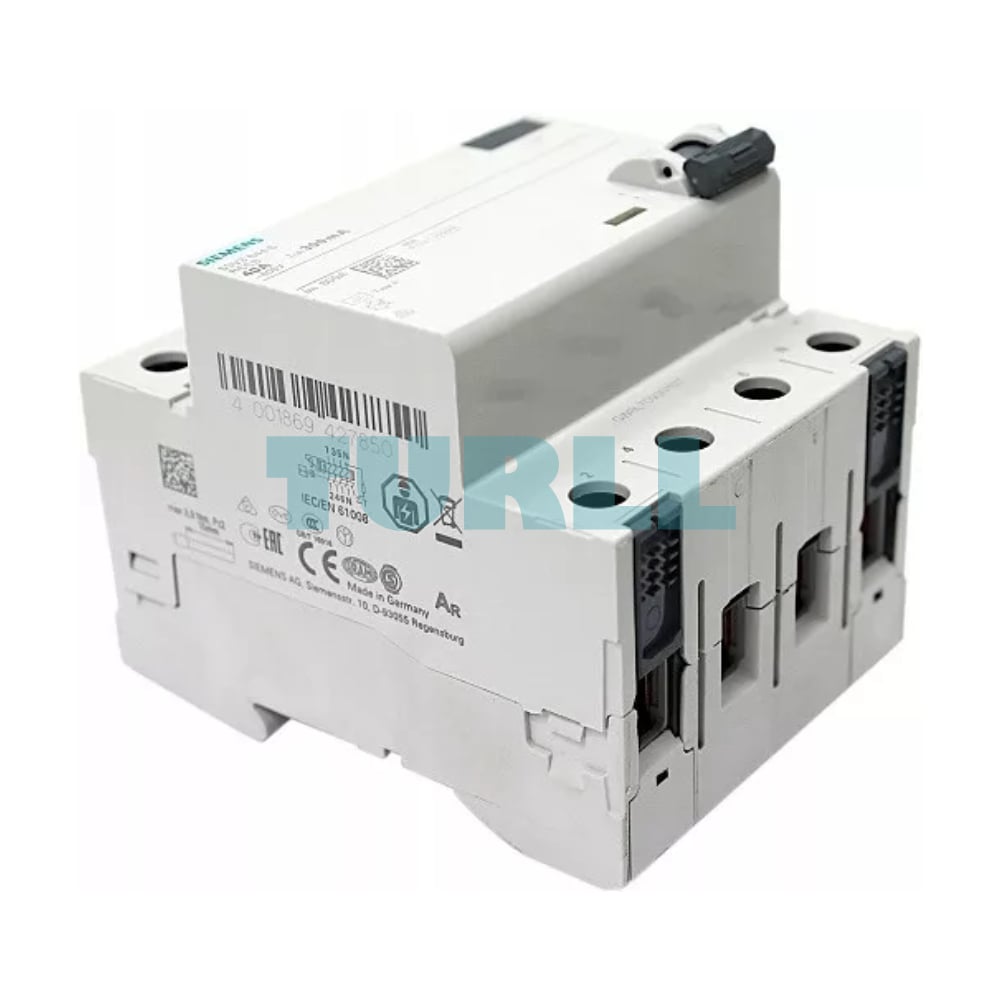

Siemens 5SV3644-6 Residual Current Circuit Breaker, 4-Pole, Type A, 40A, 300mA, 400V AC Original Brand New
$49.61
A 4-pole Type A residual current circuit breaker rated at 40A and 300mA for 400V AC systems, providing reliable protection against electric shocks and leakage currents.
Availability: In stock
Overview
The Siemens 5SV3644-6 is a critical component within the SENTRON protection portfolio, offering reliable and effective residual current operated circuit breaker functionality. Engineered for industrial, commercial, and large residential applications, this device ensures immediate disconnection of the power supply upon detecting earth leakage currents, thereby preventing severe electrical hazards, equipment damage, and electrical fires.
This particular model is a robust 4-pole breaker, suited for three-phase (400V AC) systems. Its Type A classification means it can detect and respond to both sinusoidal AC residual currents and pulsating DC residual currents, covering the majority of common fault scenarios in modern electrical installations.
Key Benefit
-
Enhanced Safety: Protects people and equipment from electric shock and leakage currents.
-
Reliable Performance: Designed by Siemens for consistent and long-lasting operation.
-
Versatile Application: Suitable for residential, commercial, and industrial installations.
-
High Sensitivity: Rated at 300 mA, it quickly detects leakage currents for maximum protection.
-
Easy Integration: 4-pole design allows for efficient installation in multi-phase systems.
Function
-
Detects residual currents (Type A) including pulsating and sinusoidal AC currents.
-
Automatically disconnects power in the event of an earth fault.
-
Operates in 400V AC systems with a nominal current rating of 40A.
-
Provides reliable 4-pole protection for complete circuit coverage.
Technical Specification
-
Product Number: Siemens 5SV3644-6
-
Type: Residual current operated circuit breaker (RCCB)
-
Poles: 4
-
Rated Current (In): 40 A
-
Rated Residual Current (IΔn): 300 mA
-
Rated Voltage (Un AC): 400 V
-
Type of Residual Current: Type A
Visit 5SV3644-6 for more detail info
For more our products visit turll
Download
| Weight | 0.306 kg |
|---|---|

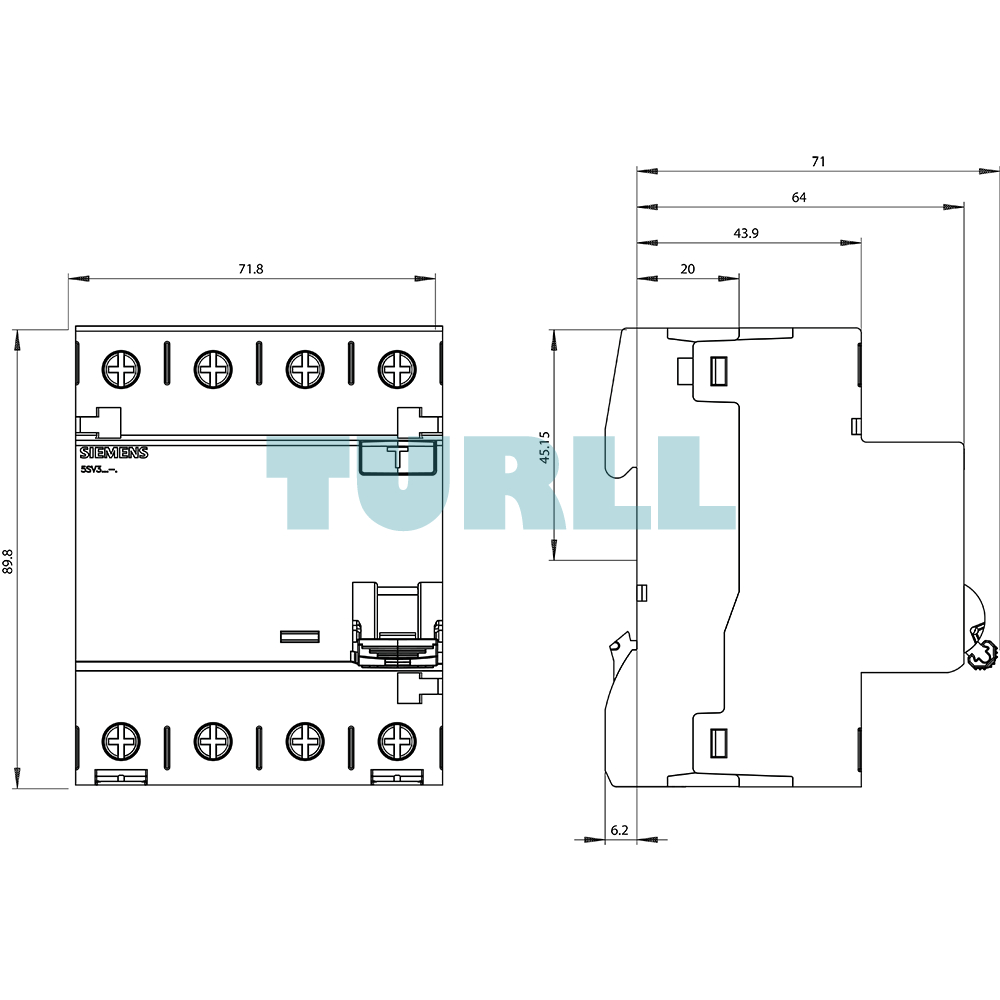

| Dimensions | 97.00 × 78.00 × 85.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | RCCB |
| design of the product | Instantaneous |
| number of poles | 4 |
| size of installation devices / acc. to DIN 43880 | 1 |
| mechanical service life (switching cycles) / typical | 10 000 |
| short-circuit current / of series fuse / maximum permissible | 80 A |
| short-circuit current rating | 10 kA |
| switching function / short-term delayed | No |
| overvoltage category | III |
| supply voltage | – |
| ● for testing equipment / minimum | 100 V |
| operating frequency | 50 Hz |
| supply voltage frequency / rated value | 50 Hz |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| switching capacity current | – |
| ● acc. to EN 60898 / rated value | 0.8 kA |
| ● according to IEC 61008-1 / rated value | 0.8 kA |
| power loss [W] | – |
| ● for rated value of the current / at AC / in hot operating state / per pole | 2 W |
| tripping fault current / rated value | 300 mA |
| operational current | – |
| ● at 40 °C / rated value | 40 A |
| ● at 45 °C / rated value | 38.1 A |
| ● at 50 °C / rated value | 35.59 A |
| ● at 55 °C / rated value | 32.29 A |
| ● at 60 °C / rated value | 28.19 A |
| ● at 65 °C / rated value | 23.3 A |
| ● at 70 °C / rated value | 17.6 A |
| ● at AC / rated value | 40 A |
| residual current type | A |
| let-through current / permissible | 5 200 kA |
| I2t value / permissible | 58 000 A²·s |
| surge current resistance / rated value | 1 kA |
| product feature / silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | top or bottom |
| installation depth | 70 mm |
| number of modular width units | 4 |
| fastening method | DIN rail (REG) |
| mounting position | any |
| ambient temperature / during operation | – |
| ● minimum | -25 °C |
| ● maximum | 45 °C |
| ambient temperature / during storage | – |
| ● minimum permissible | -40 °C |
| ● maximum permissible | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
| Transport Information | – |
