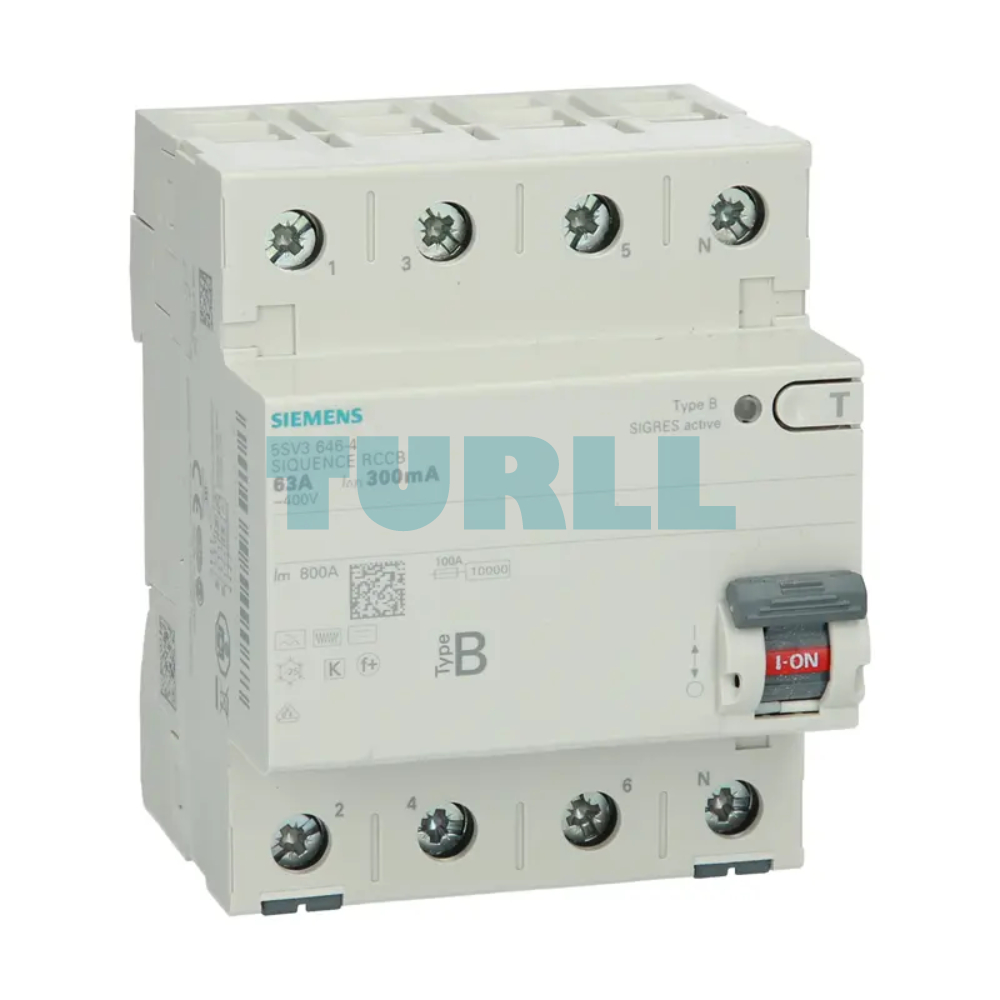

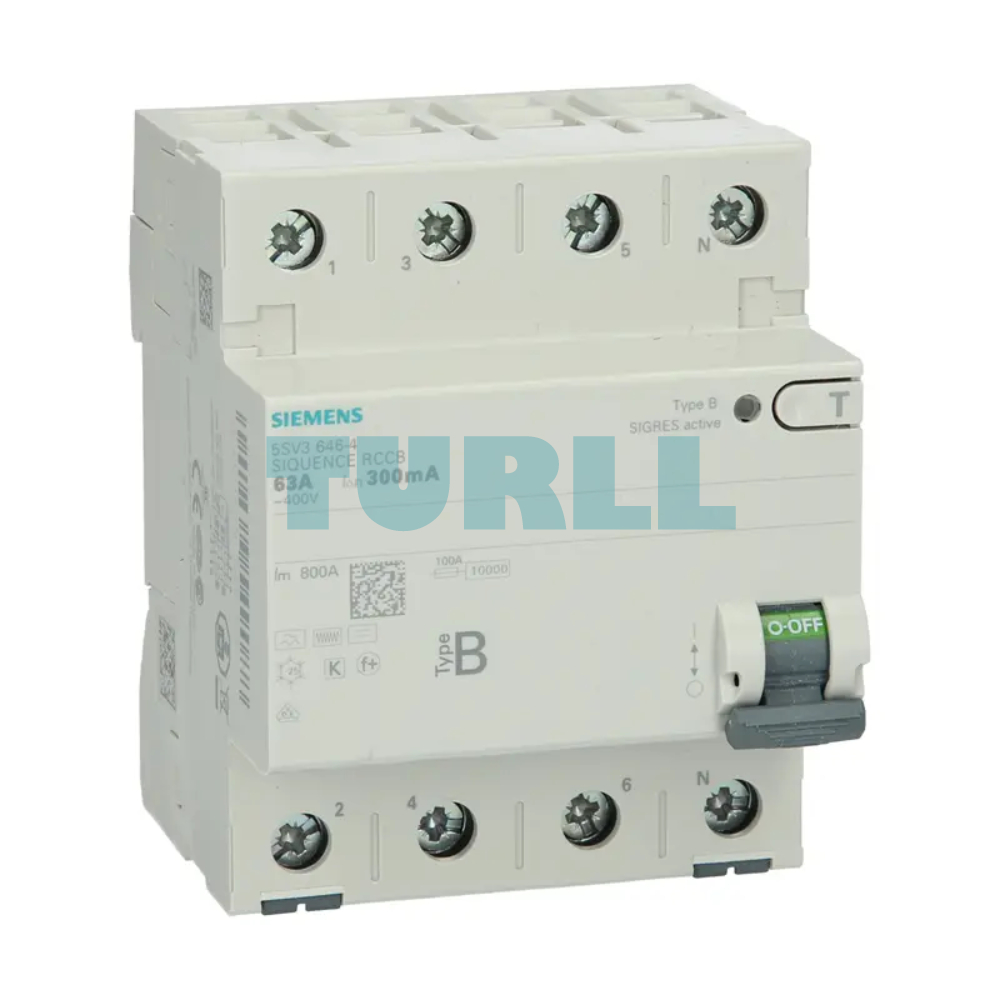

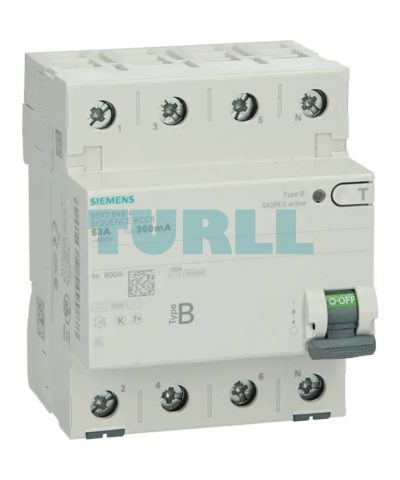

Siemens 5SV3646-4 Residual Current Operated Circuit Breaker, 4-Pole, Type B, 63A, 300mA Original Brand New
$462.00
High-performance Siemens residual current operated circuit breaker (RCCB), 4-pole, type B, 63A, 300mA. Designed for harsh environments with extended test intervals and short-time-delayed protection.
Availability: In stock
Overview
The Siemens SENTRON 5SV3646-4 is a robust, 4-pole residual current operated circuit breaker (RCCB) engineered for demanding environments. Featuring Type B residual current detection, a high nominal current of 63 A, and a residual current rating of 300 mA, this device ensures superior protection against AC, pulsating DC, and smooth DC fault currents. The short-time-delayed feature prevents unwanted tripping from transient disturbances, and the SIGRES designation guarantees performance in harsh ambient conditions with an extended test interval, reducing maintenance needs. Ideal for industrial applications, machinery, and facilities requiring the highest degree of reliability.
Benefit
-
Maximum Safety (Type B): Provides comprehensive protection against AC, pulsating DC, and smooth DC fault currents, essential for circuits with electronic devices (e.g., VFDs, inverters).
-
High Reliability (Short-Time Delayed): The built-in delay minimizes nuisance tripping from brief voltage or current spikes, ensuring continuous operation.
-
Reduced Maintenance (SIGRES): Certified for harsh ambient conditions and designed with an extended test interval, significantly lowering operational costs and downtime.
-
Versatile Application: 4-pole design is suitable for use in three-phase (400 V AC) industrial power systems.
-
Certified Quality: Part of the Siemens SENTRON series, guaranteeing high quality and compliance with international standards.
Function
-
Residual current detection with 4-pole configuration.
-
Rated current: 63A, Rated residual operating current: 300mA.
-
Short-time-delayed response for selective protection.
-
Operates at AC voltage: 400V.
-
SIGRES protection ensures reliability in extreme environmental conditions.
-
Extended test interval reduces downtime and maintenance costs.
Visit 5SV3646-4 for more detail info
For more our products visit turll
Download
| Weight | 0.450 kg |
|---|---|

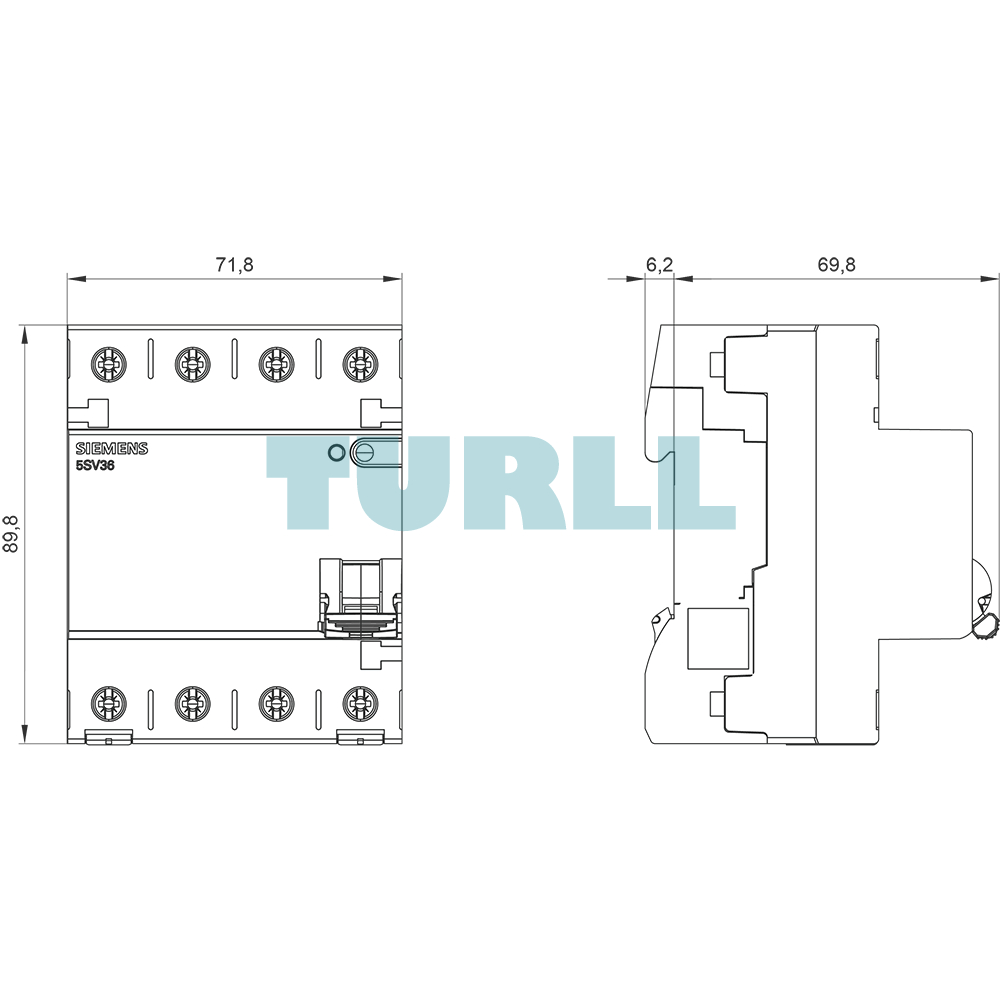

| Dimensions | 97.00 × 78.00 × 85.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | RCCB |
| design of the product | Short-time delayed |
| number of poles | 4 |
| size of installation devices / acc. to DIN 43880 | 1 |
| mechanical service life (switching cycles) / typical | 10 000 |
| short-circuit current / of series fuse / maximum permissible | 100 A |
| short-circuit current rating | 10 kA |
| switching function / short-term delayed | Yes |
| overvoltage category | III |
| supply voltage | – |
| ● for testing equipment / minimum | 195 V |
| operating frequency | 50/60 Hz |
| supply voltage frequency / rated value | 50 Hz |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| switching capacity current | – |
| ● acc. to EN 60898 / rated value | 0.8 kA |
| ● according to IEC 61008-1 / rated value | 0.8 kA |
| power loss [W] | – |
| ● for rated value of the current / at AC / in hot operating state / per pole | 5 W |
| tripping fault current / rated value | 300 mA |
| operational current | – |
| ● at 40 °C / rated value | 63 A |
| ● at 45 °C / rated value | 63 A |
| ● at 50 °C / rated value | 63 A |
| ● at 55 °C / rated value | 63 A |
| ● at 60 °C / rated value | 63 A |
| ● at 65 °C / rated value | 55 A |
| ● at 70 °C / rated value | 48 A |
| ● at AC / rated value | 63 A |
| residual current type | B |
| let-through current / permissible | 7 000 kA |
| I2t value / permissible | 60 000 A²·s |
| surge current resistance / rated value | 3 kA |
| product feature / silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| tightening torque / with screw-type terminals | – |
| installation depth | 70 mm |
| number of modular width units | 4 |
| fastening method | DIN rail (REG) |
| mounting position | any |
| ambient temperature / during operation | – |
| ● minimum | -25 °C |
| ● maximum | 45 °C |
| ambient temperature / during storage | – |
| ● minimum permissible | -40 °C |
| ● maximum permissible | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
| other | Dangerous Good Railway |
