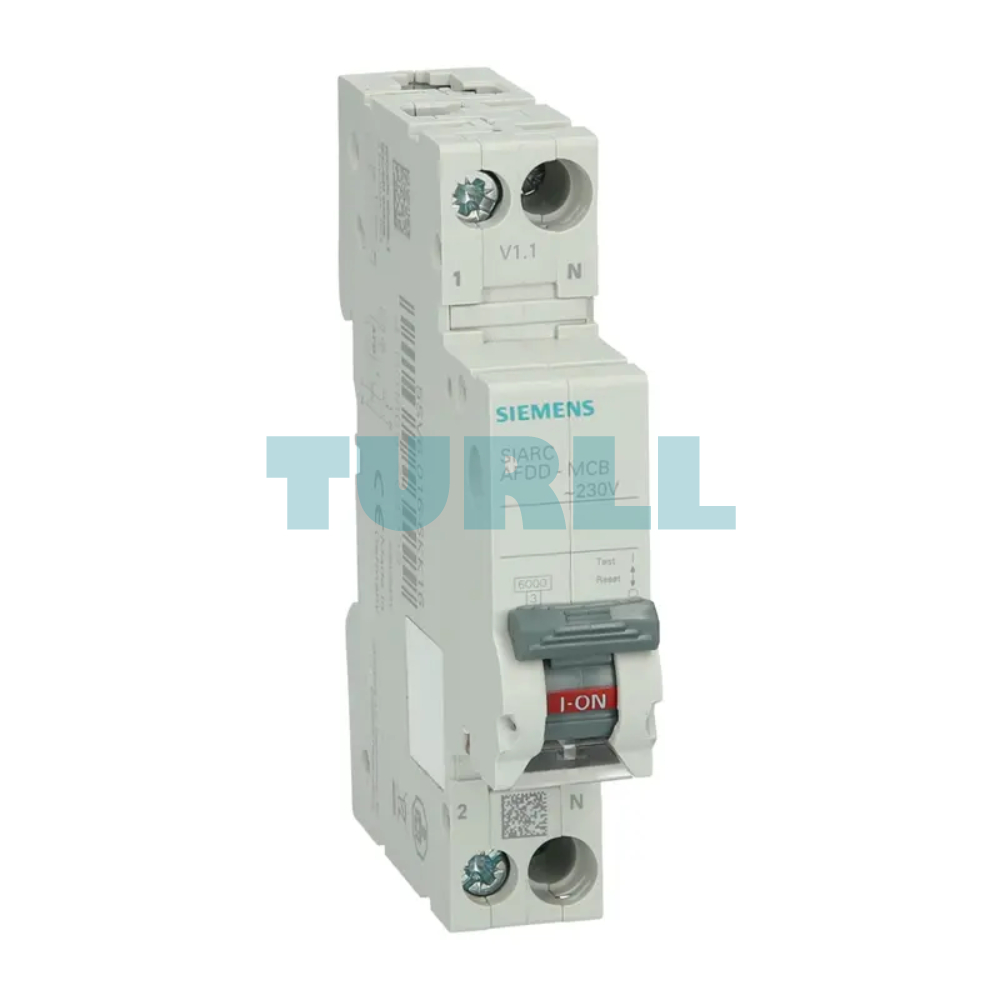

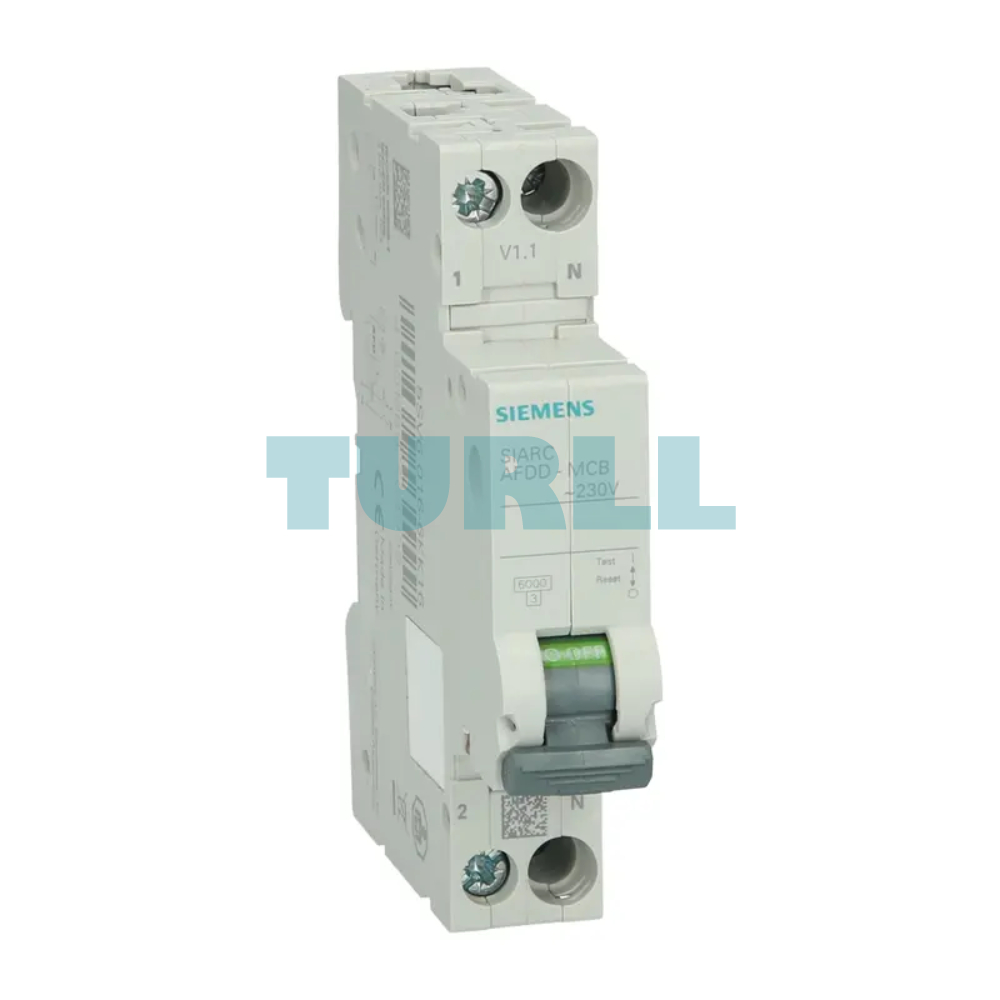

Siemens 5SV6016-6KK10 AFDD-MCB Combination 230V, 10A, 6kA, 1+N, Type B, Compact (1MW) Original Brand New

Model / SKU5SV6016-6KK10

A space-saving 1MW compact AFDD-MCB combination. It provides comprehensive protection against short circuits, overloads, and dangerous arc faults in a single 230V, 10A unit.

$115.28
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 5SV6016-6KK10 AFDD-MCB Combination is a compact and highly reliable protective device designed to enhance electrical safety in modern installations. Combining Arc Fault Detection Device (AFDD) and Miniature Circuit Breaker (MCB) technology, this unit protects against arc faults, overloads, and short circuits in a single space-saving module.

Operating at 230V with a 10A rated current and 6kA breaking capacity, this Siemens AFDD-MCB is ideal for residential, commercial, and light industrial electrical distribution systems where fire prevention and circuit reliability are critical.

Benefit

  • Enhanced Fire Protection: Detects dangerous arc faults that standard MCBs cannot detect

  • All-in-One Safety Solution: Combines AFDD and MCB in a single compact device

  • Space-Saving Design: Compact 1MW width optimizes distribution board space

  • High Reliability: Siemens engineering ensures long-term operational stability

  • Compliance Ready: Meets modern electrical safety standards and regulations

Function & Features

  • Arc fault detection and interruption

  • Overload and short-circuit protection

  • Rated Voltage: 230V

  • Rated Current: 10A

  • Breaking Capacity: 6kA

  • Pole Configuration: 1+N

  • Tripping Curve: Type B

  • Mounting: DIN rail

  • Module Width: Compact 1MW design

Application

  • Residential electrical distribution boards

  • Commercial buildings

  • Offices and retail spaces

  • Fire-sensitive electrical circuits

  • Modern low-voltage installations

Download

Datasheet in PDF

Visit 5SV6016-6KK10 for more detail info

For more our products visit turll



Specifications

SKU / Model5SV6016-6KK10
BrandSIEMENS
product brand nameSENTRON
product designationArc-fault detection unit MCB
design of the productCompact unit
number of poles2
design of pole1P+N
tripping characteristic classB
size of installation devices / acc. to DIN 438801
touch protection against electrical shock / acc. to EN 50274finger and back-of-hand safe
mechanical service life (switching cycles) / typical10 000
switching function / short-term delayedNo
overvoltage categoryIII
degree of pollution2
type of voltage / of the operating voltageAC
supply voltage-
● at AC / rated value230 V
value range / of the supply voltage frequency50Hz
protection class IPIP20, with connected protective device and conductors
switching capacity current-
● according to EN 60898-1 / rated value6 000 A
● acc. to IEC 60947-2 / rated value6 000 A
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole1.66 W
tripping current-
● in the event of electrical arcs in parallel with the load / minimum50 A
● in the event of electrical arcs in parallel with the load / maximum500 A
● in the event of electrical arcs in series with the load / minimum2 A
● in the event of electrical arcs in series with the load / maximum10 A
operational current / at AC / rated value10 A
product feature-
● halogen-freeYes
● silicon-freeYes
product extension / installable / supplementary devicesYes
connectable conductor cross-section / solid-
connectable conductor cross-section / stranded-
connectable conductor cross-section / finely stranded / with core end processing-
tightening torque / with screw-type terminals-
position / of power supply cordany
installation depth70 mm
number of modular width units1
fastening methodDIN rail (REG)
mounting positionany
ambient temperature / during operation-
ambient temperature / during storage-
● minimum-40 °C
● maximum75 °C
ambient temperature / with relative humidity 95%55 °C
number of test cycles / for environmental testing / acc. to IEC 60068-2-3028
Weight0.132 kg

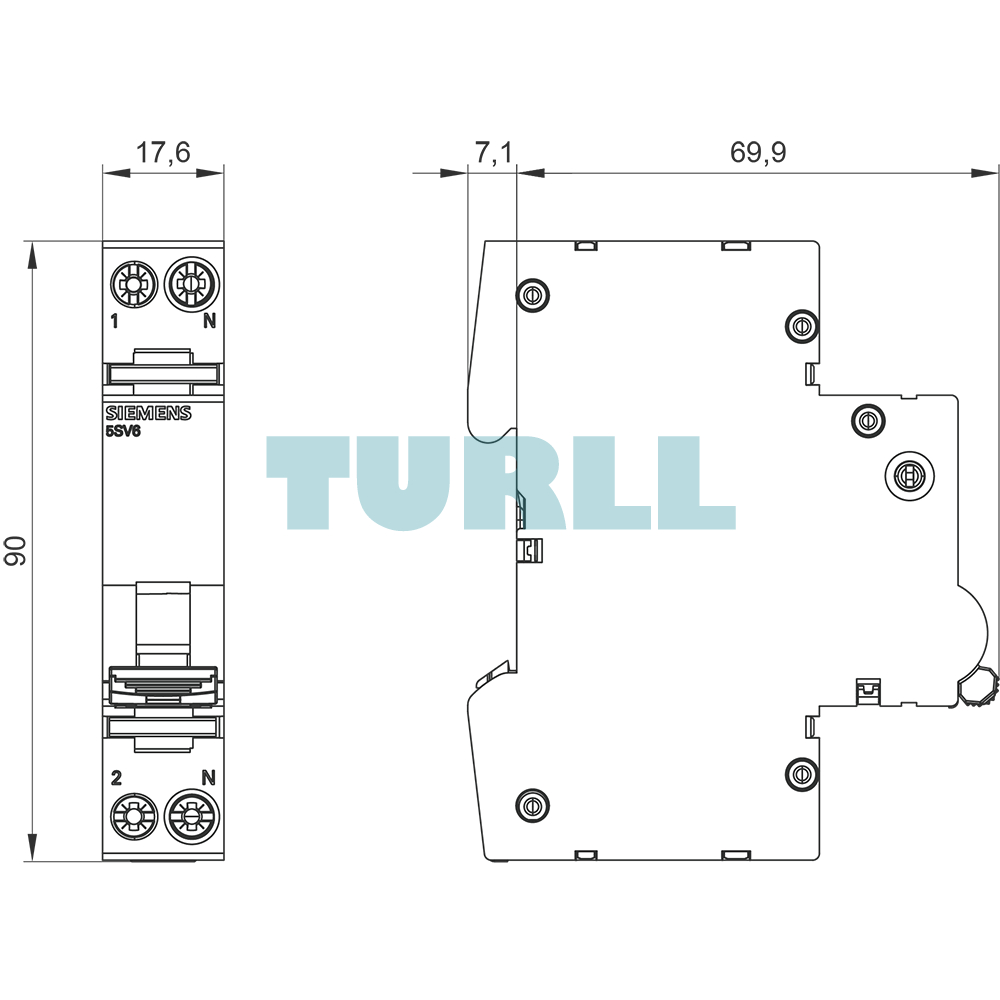

Dimensions80.00 × 100.00 × 44.00 mm
