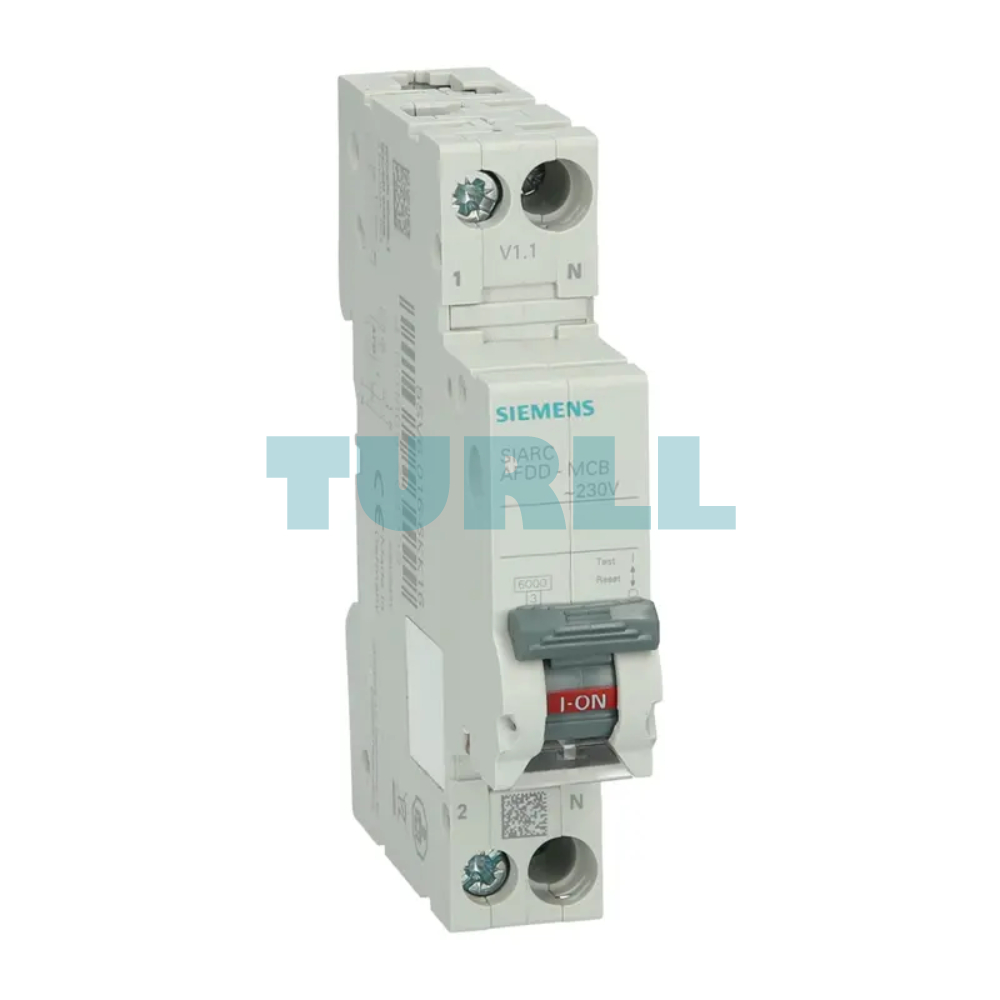

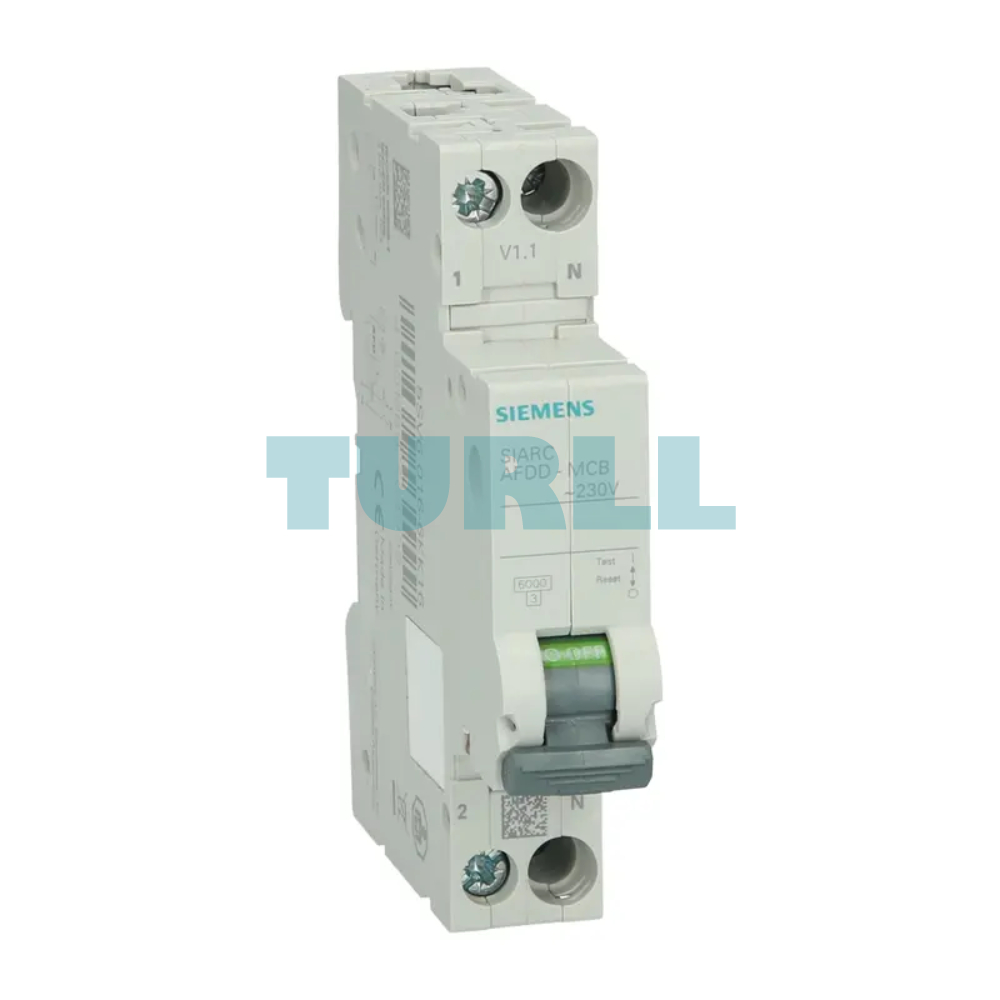

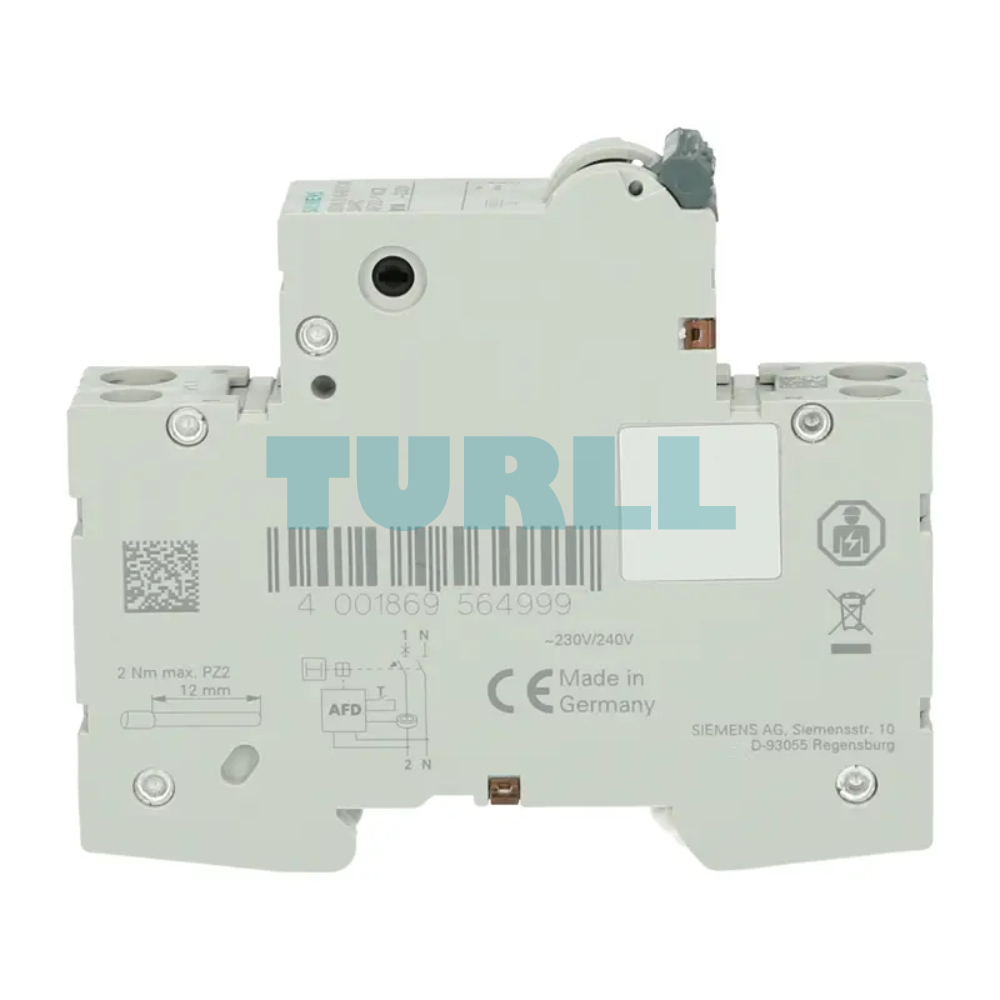

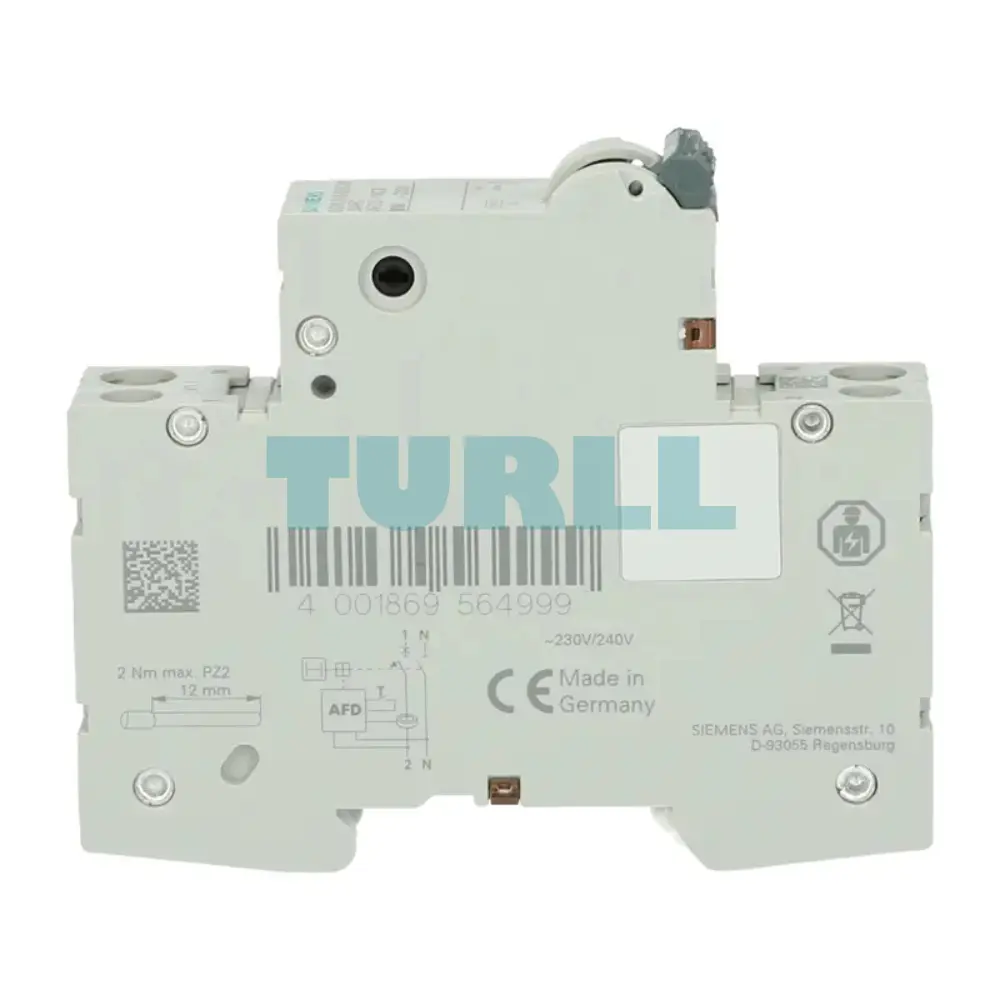

Siemens 5SV6016-7KK06 AFDD-MCB Combination 230V, 6kA, 1+N, C, 6A Compact (1MW) Original Brand New
$121.77
A compact (1MW) AFDD-MCB combination device, offering comprehensive protection against arc faults, short circuits, and overloads. Rated at 6A with a C-curve and 6kA breaking capacity, it’s the ideal space-saving solution for modern electrical installations requiring maximum safety.
Availability: In stock
Overview
The Siemens 5SV6016-7KK06 is a premium AFDD-MCB combination device engineered to provide maximum safety and reliable protection in residential, commercial, and industrial electrical systems. Designed with Siemens’ advanced Arc Fault Detection Technology (AFDD), this compact unit significantly enhances protection against dangerous arc faults that standard circuit breakers may not detect.
Ideal for modern electrical installations, the unit delivers superior overload, short-circuit, and arc fault protection in a space-saving compact design.
Benefit
-
Maximum Fire Protection: Detects and trips on critical arc faults (serial and parallel), significantly reducing the risk of electrical fires, especially in older wiring, damaged insulation, or pinched cables.
-
Space-Saving Design: At only 1 module width (1MW), it takes up 50% less space than standard 2MW AFDD/MCB combinations, allowing for higher density installations.
-
Three-in-One Protection: Provides Arc Fault Protection (AFDD), Overload Protection, and Short-Circuit Protection (MCB) in a single component, simplifying wiring and reducing inventory.
-
High Reliability: Part of the proven Siemens SENTRON portfolio, ensuring consistent performance and long service life.
-
Simple Status Indication: Features an integrated LED to quickly and clearly indicate the cause of the trip (Arc Fault, Overload, or Short Circuit).
Features / Function
-
Rated Voltage: 230V
-
Breaking Capacity: 6kA
-
Poles: 1+N
-
Tripping Characteristic: C Curve
-
Rated Current: 6A
-
Device Type: Compact (1MW) AFDD+MCB combination
-
Integrated Arc Fault Detection
-
Overload & Short-circuit Protection
-
High reliability with Siemens quality engineering
Visit 5SV6016-7KK06 for more detail info
For more our products visit turll
Download
| Weight | 0.133 kg |
|---|---|

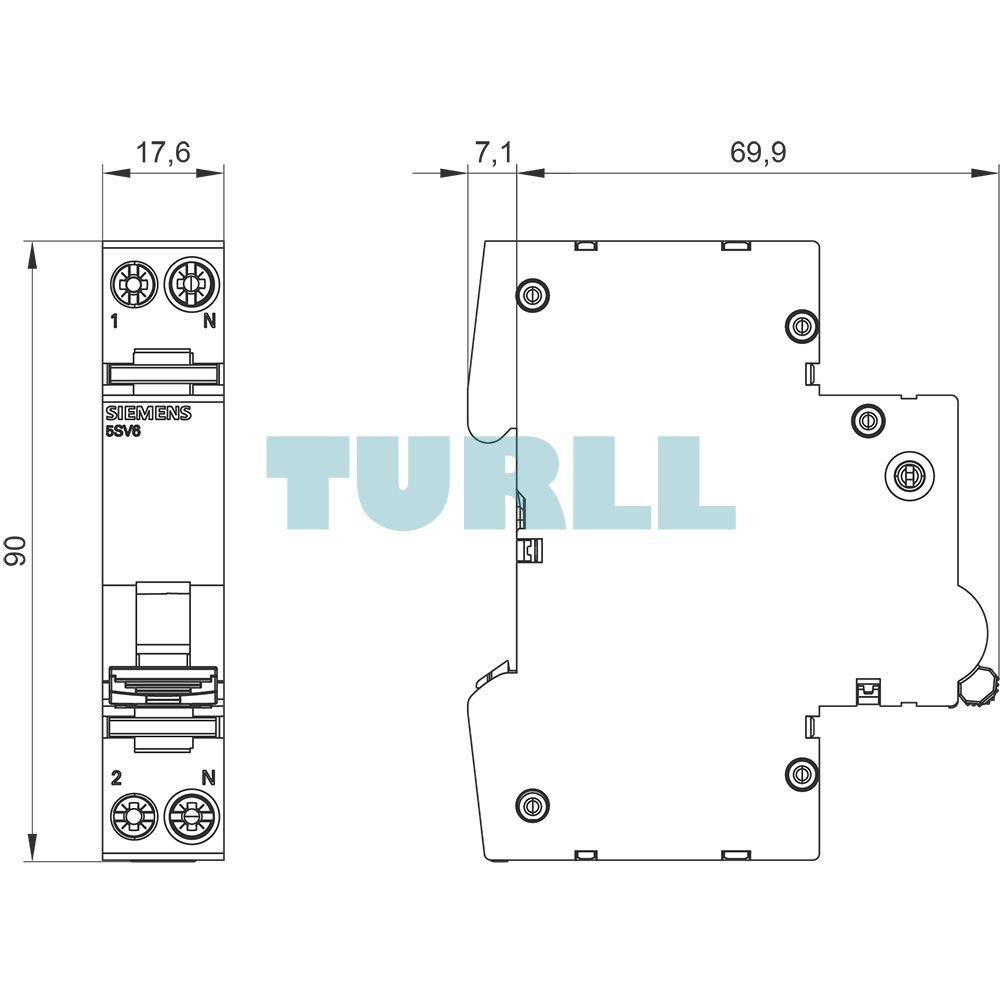

| Dimensions | 80.00 × 100.00 × 44.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Arc-fault detection unit MCB |
| design of the product | Compact unit |
| number of poles | 2 |
| design of pole | 1P+N |
| tripping characteristic class | C |
| size of installation devices / acc. to DIN 43880 | 1 |
| touch protection against electrical shock / acc. to EN 50274 | finger and back-of-hand safe |
| mechanical service life (switching cycles) / typical | 10 000 |
| switching function / short-term delayed | No |
| overvoltage category | III |
| degree of pollution | 2 |
| type of voltage / of the operating voltage | AC |
| supply voltage | – |
| ● at AC / rated value | 230 V |
| value range / of the supply voltage frequency | 50Hz |
| protection class IP | IP20, with connected protective device and conductors |
| switching capacity current | – |
| ● according to EN 60898-1 / rated value | 6 000 A |
| ● acc. to IEC 60947-2 / rated value | 6 000 A |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 0.87 W |
| tripping current | – |
| ● in the event of electrical arcs in parallel with the load / minimum | 50 A |
| ● in the event of electrical arcs in parallel with the load / maximum | 500 A |
| ● in the event of electrical arcs in series with the load / minimum | 2 A |
| ● in the event of electrical arcs in series with the load / maximum | 6 A |
| operational current / at AC / rated value | 6 A |
| product feature | – |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | DIN rail (REG) |
| mounting position | any |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| ambient temperature / with relative humidity 95% | 55 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
