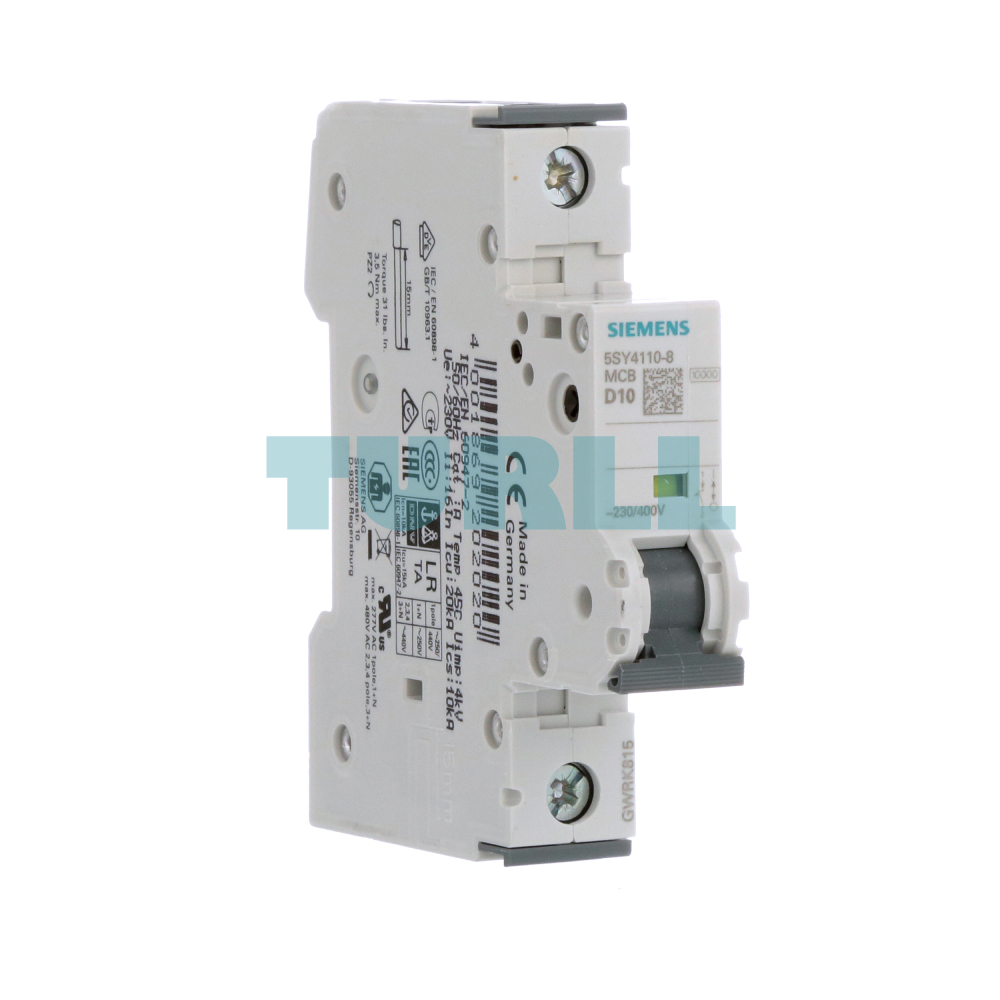

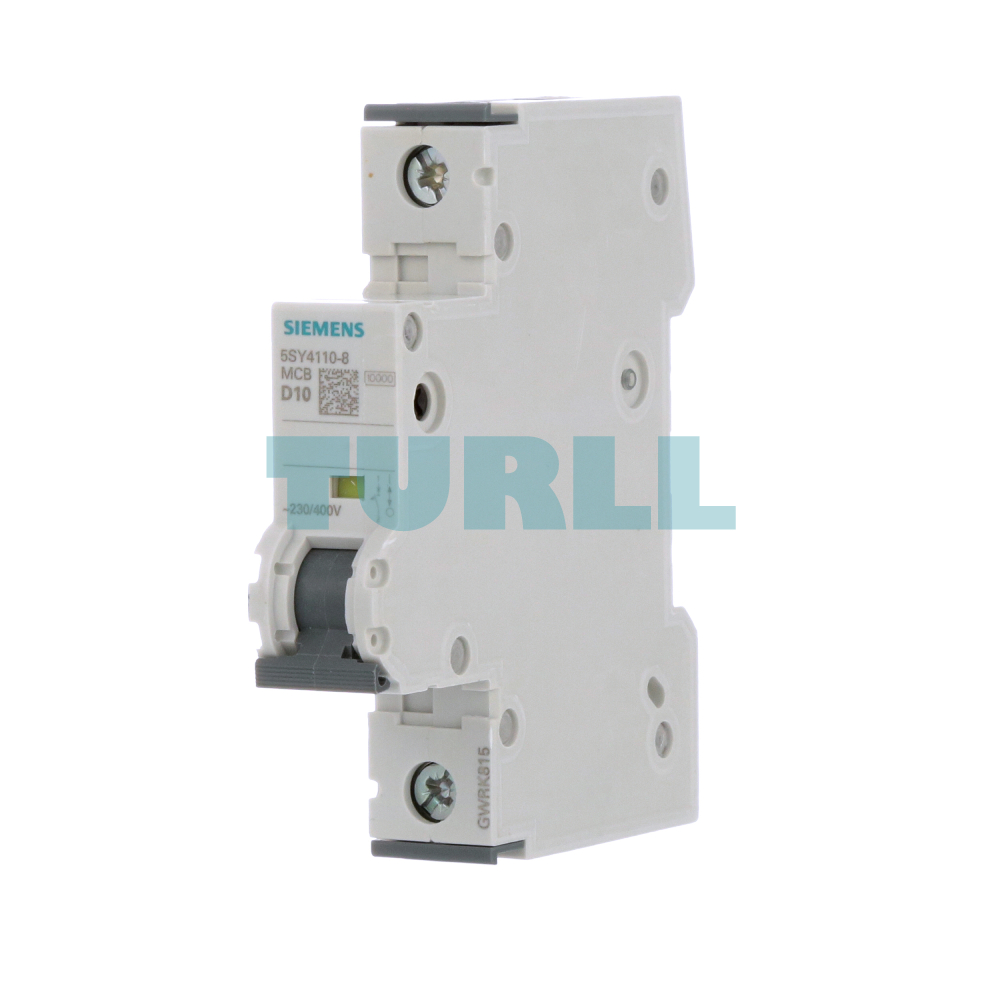

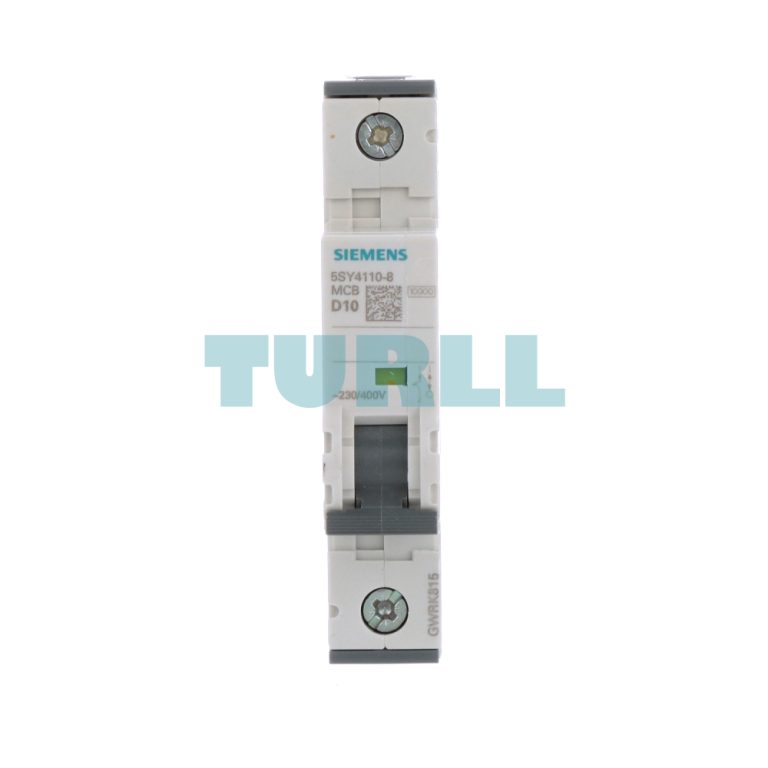

Siemens 5SY4110-8 Miniature Circuit Breaker 1-Pole, 10A, Type D, 10kA Original Brand New

Model / SKU5SY4110-8

High-performance miniature circuit breaker from the Sentron series, designed for superior circuit protection. Featuring a 10A rated current and a Type D tripping characteristic, it is engineered to handle high inductive loads and provide a 10kA breaking capacity at 230/400V.

Original price was: $32.91.Current price is: $17.11.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 5SY4110-8 is a 1-pole miniature circuit breaker (MCB) designed for demanding industrial and commercial electrical systems. As part of the trusted Siemens Sentron family, this device ensures the safety of electrical installations against overloads and short circuits.

With a Type D tripping curve, this unit is specifically optimized for circuits with high inrush currents, such as motors, transformers, and solenoid valves. Its compact 70mm depth allows for easy integration into standard distribution boards and control cabinets.

Key Benefit

  • Enhanced Safety: Provides reliable protection for personnel and assets with a 10kA switching capacity.

  • Industrial Durability: Built to withstand rigorous environments and frequent switching cycles.

  • Easy Installation: Standard DIN rail mounting and a compact 70mm profile save time and space during assembly.

  • Global Compliance: Meets international standards for safety and performance (IEC/EN).

Technical Function

  • Overload Protection: Thermal tripping mechanism for long-term overcurrent.

  • Short-Circuit Protection: Electromagnetic tripping for instantaneous disconnection during faults.

  • Type D Characteristic: Delayed tripping to prevent nuisance blowing during high-starting current peaks.

Technical Specification

  • Product Number: 5SY4110-8

  • Brand: Siemens

  • Rated Voltage: 230/400 V

  • Rated Current: 10A

  • Poles: 1-Pole

  • Tripping Curve: Type D

  • Breaking Capacity: 10kA

  • Depth (D): 70 mm

  • Product Type: Miniature Circuit Breaker (MCB)

Visit 5SY4110-8 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model5SY4110-8
BrandSIEMENS
product brand nameSENTRON
product designationMiniature circuit breaker
number of poles1
design of pole1P
tripping characteristic classD
mechanical service life (switching cycles) / typical10 000
overvoltage categoryIII
degree of pollution3
type of voltage / of the operating voltageAC
insulation voltage (Ui)-
● with single-phase operation / at AC / rated value440 V
● with multi-phase operation / at AC / rated value440 V
supply voltage / with single-phase operation / at AC / rated value230 V
supply voltage-
operating voltage / at DC / rated value / maximum72 V
protection class IPIP20, with connected conductors
switching capacity current-
● at DC / acc. to IEC 60947-2 / rated value15 kA
● acc. to EN 60898 / rated value10 kA
● acc. to IEC 60947-2 / rated value20 kA
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole0.9 W
operational current-
● at 35 °C / rated value10 A
● at 45 °C / rated value9.07 A
● at 50 °C / rated value8.74 A
● at 55 °C / rated value8.4 A
● at 60 °C / rated value8.04 A
● at AC / rated value10 A
suitability for operationMechanical engineering / industry
product component / neutral conductor switchingNo
product feature / touch protectionYes
product component-
● combined terminal topYes
● combined terminal bottomYes
product feature-
● properties for main switches in accordance with EN 60204-1Yes
● halogen-freeYes
● sealableYes
● silicon-freeYes
product extension / installable / supplementary devicesYes
breaking capacity short-circuit current (Icn)-
● at AC / acc. to UL 1077 and CSA C22.2 No.2355 kA
connectable conductor cross-section / solid-
connectable conductor cross-section / stranded-
connectable conductor cross-section / finely stranded / with core end processing-
AWG number / as coded connectable conductor cross section-
tightening torque [lbf·in] / with screw-type terminals-
tightening torque / with screw-type terminals-
position / of power supply cordAny
installation depth70 mm
number of modular width units1
fastening methodQuick assembly system
mounting positionany
influence of the surrounding temperaturemax. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C
vibration resistance / acc. to IEC 60068-2-6±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz
ambient temperature / during operation-
ambient temperature / during storage-
● minimum-40 °C
● maximum75 °C
number of test cycles / for environmental testing / acc. to IEC 60068-2-306
reference code-
● acc. to DIN EN 61346-2F
● acc. to IEC 81346-2F
Weight0.147 kg

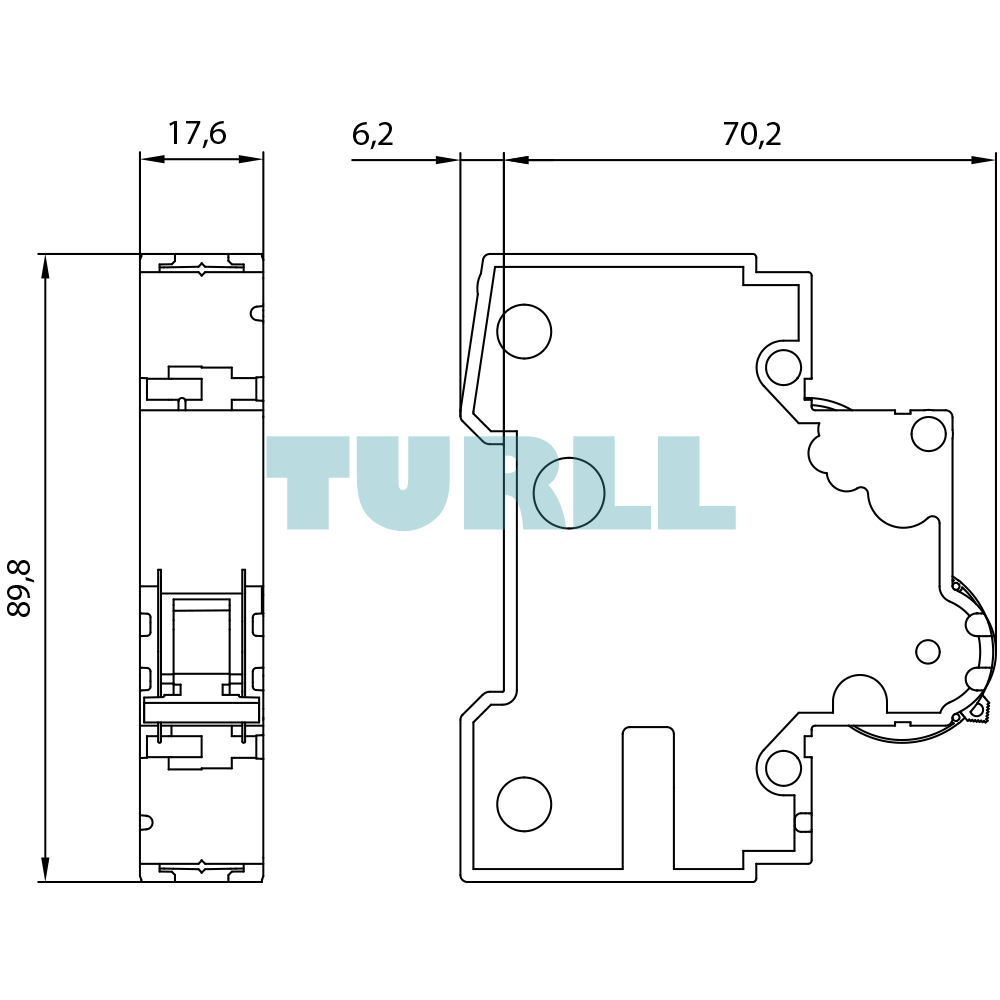

Dimensions21.00 × 93.00 × 83.00 mm
