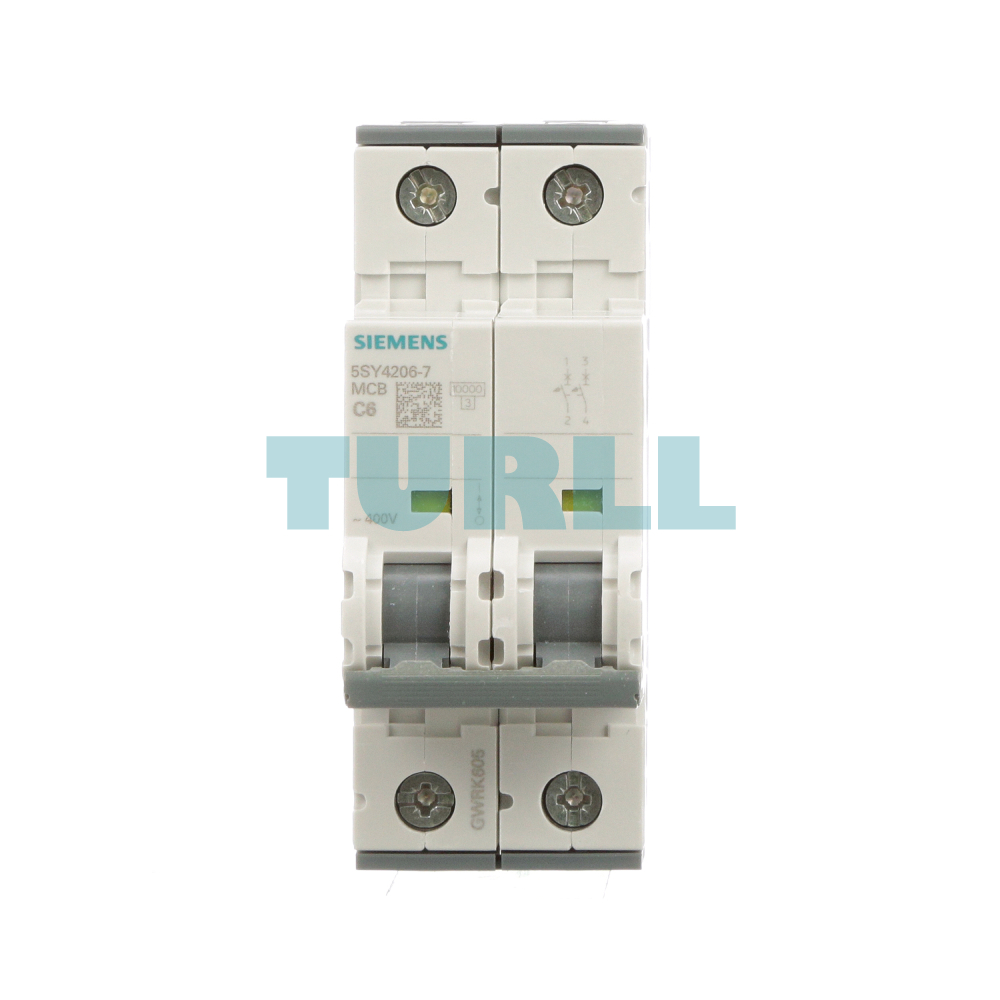

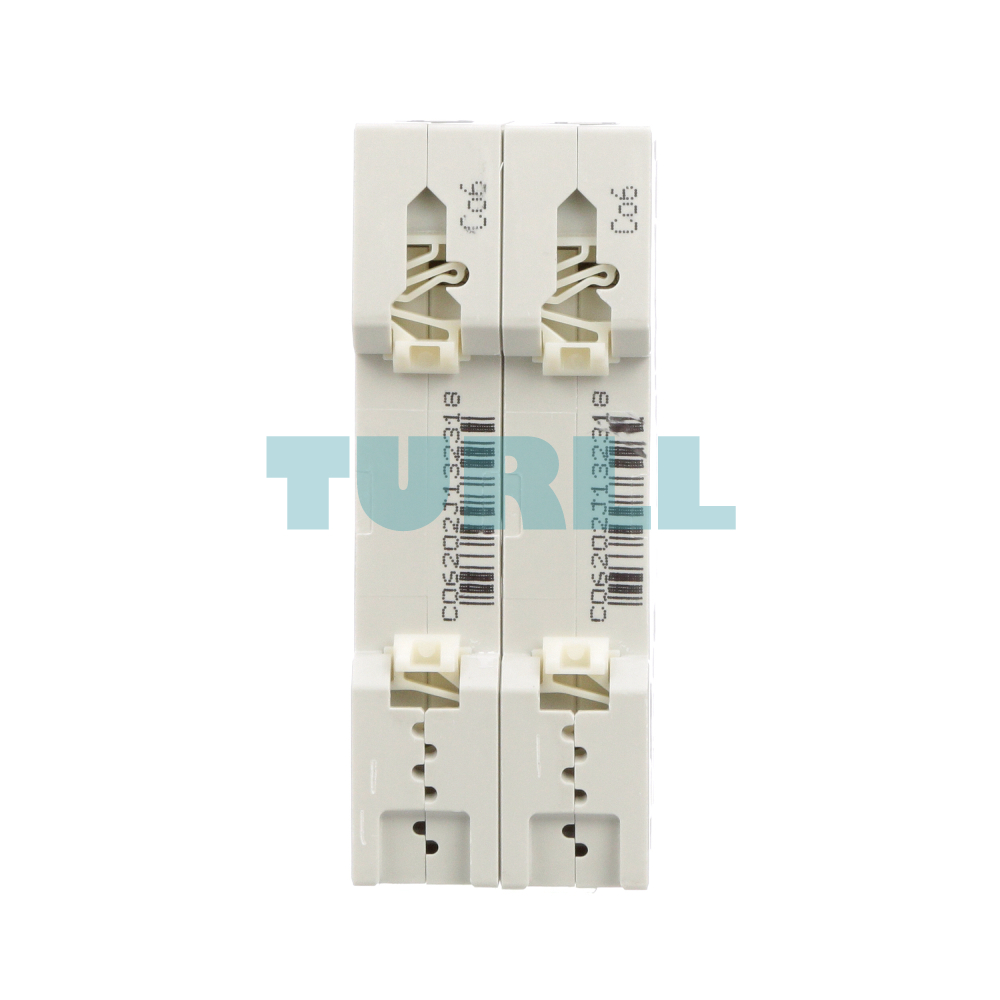

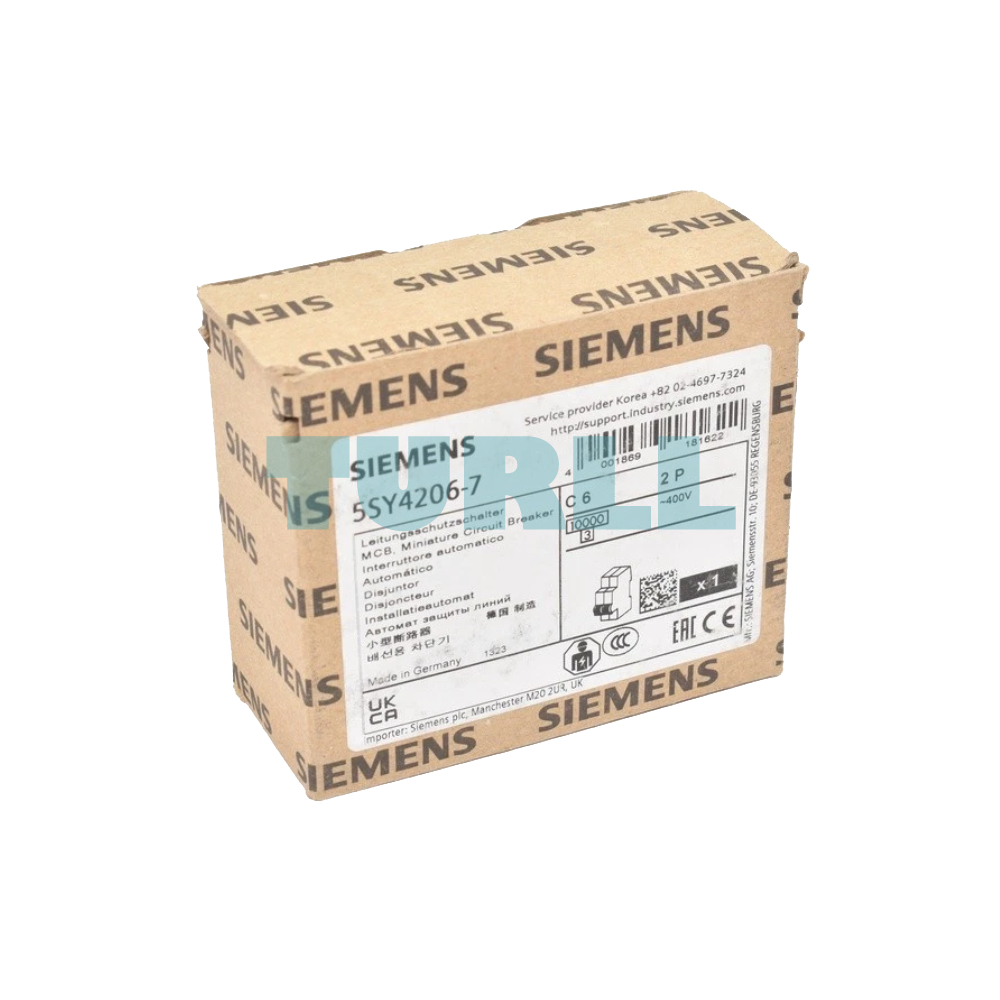

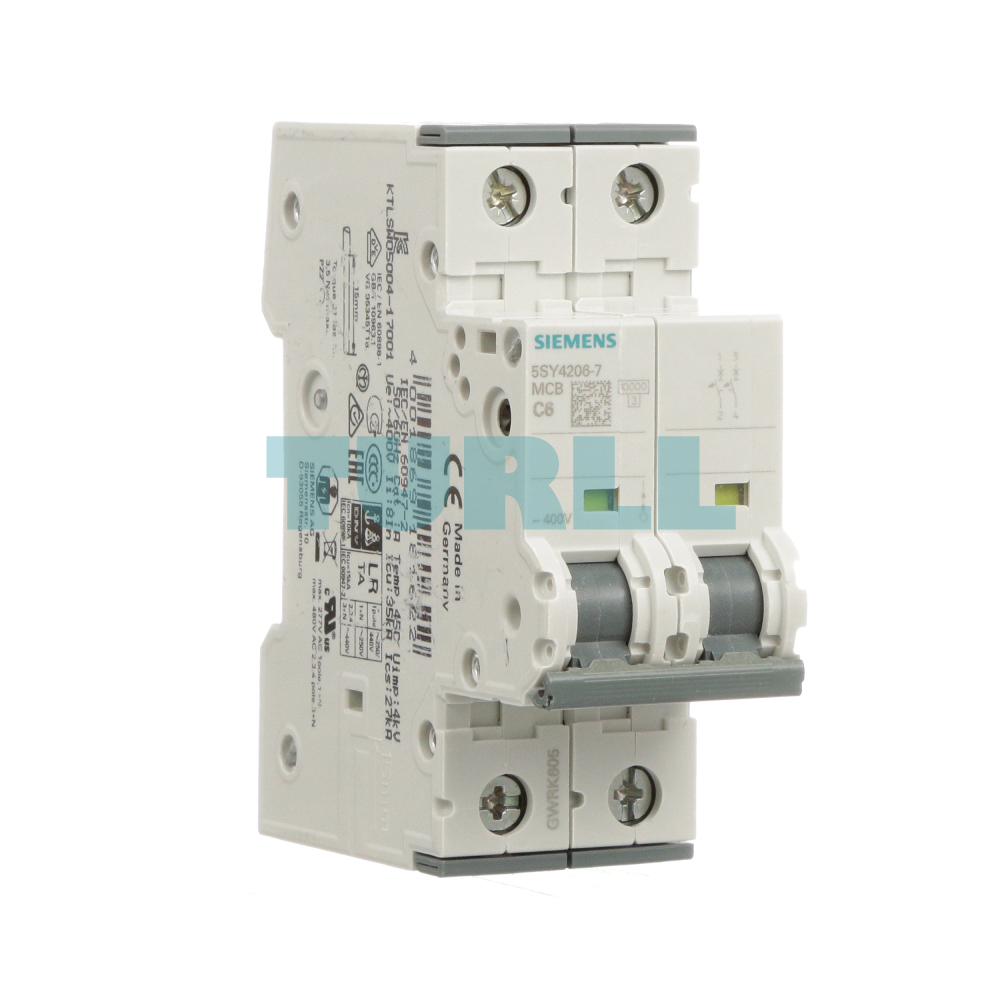

Siemens 5SY4206-7 Miniature Circuit Breaker, 2-Pole, 6A, 400V, 10kA C Curve Original Brand New
$58.08
High-performance Siemens miniature circuit breaker, 2-pole, 6A, 400V, 10kA, C curve, D=70mm – reliable protection for electrical circuits.
Availability: In stock
Overview
The Siemens 5SY4206-7 is a premium 2-pole miniature circuit breaker designed for superior circuit protection. Rated at 6 A with a C curve tripping characteristic, it ensures fast and reliable response to overcurrents, safeguarding electrical systems efficiently. With a 400V operating voltage and 10kA short-circuit breaking capacity, this compact 70mm device is perfect for residential, commercial, and industrial applications.
Key Features
-
Rated Voltage: 400V AC
-
Current Rating: 6 A
-
Poles: 2
-
Tripping Curve: C curve (ideal for general protection and inductive loads)
-
Breaking Capacity: 10kA
-
Width (D): 70 mm, compact for modular panels
-
Reliable Protection: Protects circuits against overloads and short circuits
-
Durable Construction: Long-lasting performance for industrial and residential use
Function
The primary function of the 5SY4206-7 MCB is to protect cables and lines against overload and short circuit faults.
-
Overload Protection (Thermal Principle): A sustained current slightly above 6 A heats a bimetallic strip, which eventually trips the mechanism.
-
Short-Circuit Protection (Electromagnetic Principle): A sudden, large current (short circuit) generates a strong magnetic field that instantly trips the mechanism, providing immediate isolation.
Benefit
-
Superior Safety: High 10 kA short-circuit breaking capacity provides robust protection for industrial power distribution.
-
Reliable Performance: Siemens quality guarantees long-term operational integrity and reduced maintenance costs.
-
Space-Saving Design: The compact 2-pole design and optimized 70 mm depth allow for efficient use of space within distribution boards and control panels.
-
Quick Installation: Features user-friendly terminal connections for fast and secure mounting on a standard DIN rail.
Visit 5SY4206-7 for more detail info
For more our products visit turll
Download
| Weight | 0.302 kg |
|---|---|
| Dimensions | 40.00 × 92.00 × 84.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 2 |
| design of pole | 2P |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | – |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | – |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 35 kA |
| energy limitation class | 3 |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.6 W |
| operational current | – |
| ● at 35 °C / rated value | 6 A |
| ● at 40 °C / rated value | 5.63 A |
| ● at 45 °C / rated value | 5.44 A |
| ● at 50 °C / rated value | 5.24 A |
| ● at 55 °C / rated value | 5.04 A |
| ● at 60 °C / rated value | 4.82 A |
| ● at AC / rated value | 6 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | – |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| AWG number / as coded connectable conductor cross section | – |
| tightening torque [lbf·in] / with screw-type terminals | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 2 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
