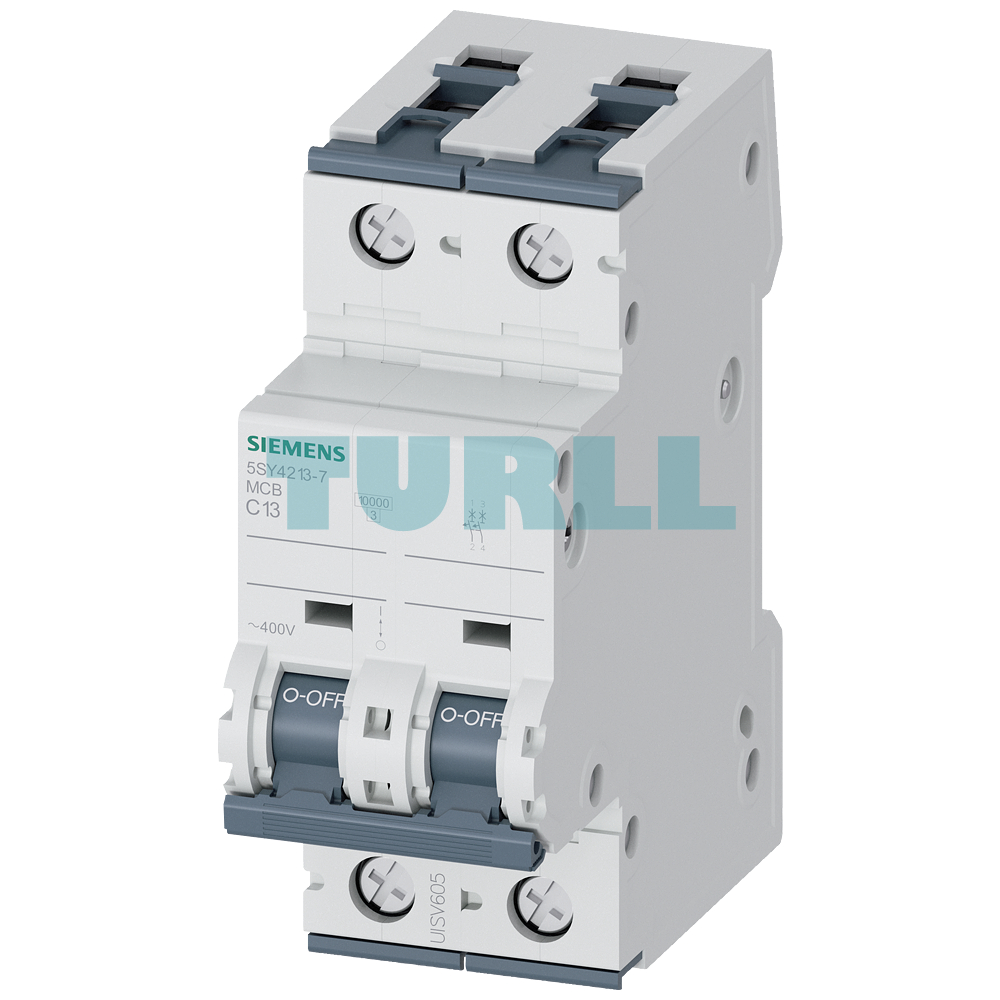

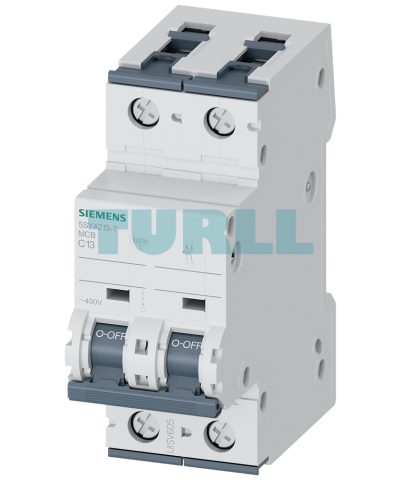

Siemens 5SY4213-7 Miniature Circuit Breaker 2-Pole, 13A, Type C, 10kA, 400V
Siemens 5SY4213-7 Miniature Circuit Breaker 2-Pole, 13A, Type C, 10kA, 400V
Siemens 5SY4213-7 Miniature Circuit Breaker 2-Pole, 13A, Type C, 10kA, 400V
Siemens 5SY4213-7 Miniature Circuit Breaker 2-Pole, 13A, Type C, 10kA, 400V

SIEMENS

Siemens 5SY4213-7 Miniature Circuit Breaker 2-Pole, 13A, Type C, 10kA, 400V Original Brand New

Model / SKU5SY4213-7

High-performance 2-pole miniature circuit breaker designed for superior electrical protection. Featuring a 13A rated current and Type C tripping characteristic, it provides a 10kA breaking capacity at 400V, ensuring safety in demanding industrial and commercial environments.

Original price was: $49.10.Current price is: $35.83.
Out of stockSubject to sourcing — request a quote
  • ConditionOriginal Brand New
  • Warranty12 months
Request a Quote
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 5SY4 series is engineered for advanced protection of plants and buildings. The 5SY4213-7 model is specifically designed to handle medium inrush currents, making it ideal for protecting circuits with motors or lighting systems. With a compact mounting depth of 70 mm, it fits seamlessly into standard distribution boards while offering the world-class reliability associated with Siemens Sentron technology.

Key Benefit

  • Enhanced Safety: Provides reliable protection against overloads and short circuits.

  • High Breaking Capacity: Rated at 10kA, making it suitable for industrial applications with higher fault current risks.

  • Easy Installation: Features a user-friendly design for quick mounting on DIN rails.

  • Space-Saving: The 70mm depth ensures compatibility with standard enclosures and electrical cabinets.

  • Global Standards: Complies with international safety standards for peace of mind.

Function & Features

  • Tripping Characteristic C: Optimal for inductive loads and circuits where moderate current peaks occur.

  • 2-Pole Configuration: Provides simultaneous switching and protection for two-phase systems.

  • Clear Status Indication: Visible toggle switch for easy identification of the "ON" or "OFF" status.

  • Durable Housing: Built with high-quality materials to withstand mechanical stress and environmental factors.

Visit 5SY4213-7 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model5SY4213-7
BrandSIEMENS
product brand nameSENTRON
product designationMiniature circuit breaker
design of the productFor railway applications
number of poles2
design of pole2P
tripping characteristic classC
mechanical service life (switching cycles) / typical10 000
overvoltage categoryIII
degree of pollution3
type of voltage / of the operating voltageAC
insulation voltage (Ui)-
● with single-phase operation / at AC / rated value440 V
● with multi-phase operation / at AC / rated value440 V
supply voltage-
operating voltage / at DC / rated value / maximum72 V
protection class IPIP20, with connected conductors
switching capacity current-
● acc. to EN 60898 / rated value10 kA
energy limitation class3
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole1.4 W
operational current-
● at 35 °C / rated value13 A
● at 40 °C / rated value11.95 A
● at 45 °C / rated value11.38 A
● at 50 °C / rated value10.78 A
● at 55 °C / rated value10.15 A
● at 60 °C / rated value9.48 A
● at AC / rated value13 A
suitability for operationMechanical engineering / industry
product component / neutral conductor switchingNo
product feature / touch protectionYes
product component-
● combined terminal topYes
● combined terminal bottomYes
product feature-
● properties for main switches in accordance with EN 60204-1No
● halogen-freeYes
● sealableYes
● silicon-freeYes
product extension / installable / supplementary devicesYes
connectable conductor cross-section / solid-
connectable conductor cross-section / stranded-
connectable conductor cross-section / finely stranded / with core end processing-
tightening torque [lbf·in] / with screw-type terminals-
tightening torque / with screw-type terminals-
position / of power supply cordAny

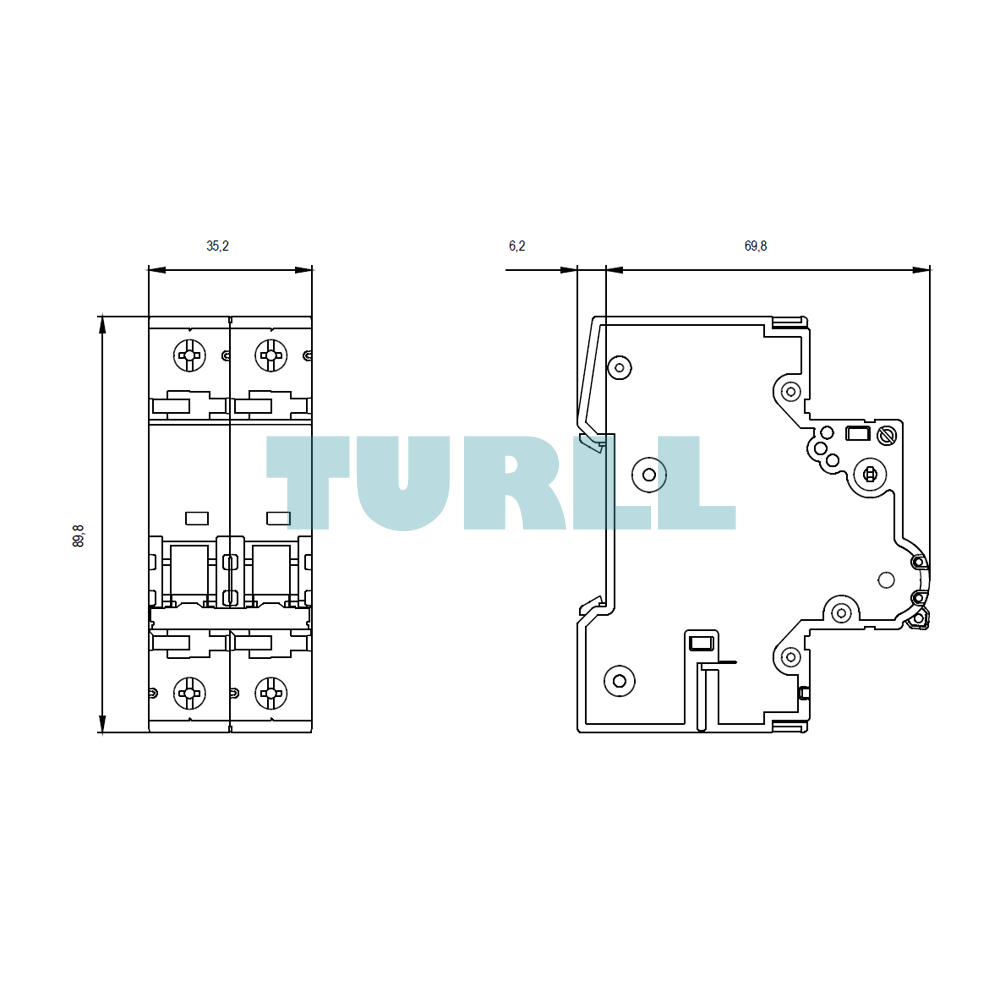

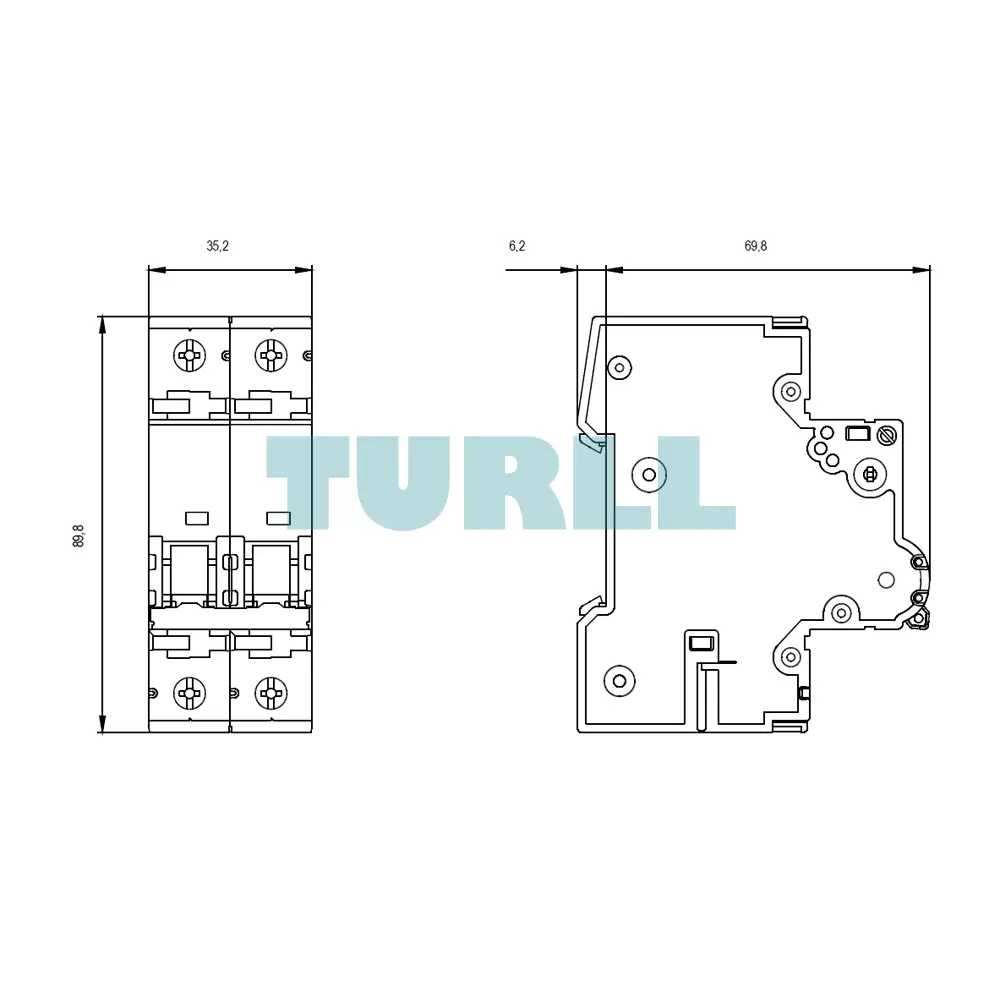

installation depth70 mm
number of modular width units2
fastening methodQuick assembly system
mounting positionany
influence of the surrounding temperaturemax. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C
vibration resistance / acc. to IEC 60068-2-6±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz
ambient temperature / during operation-
ambient temperature / during storage-
● minimum-40 °C
● maximum75 °C
number of test cycles / for environmental testing / acc. to IEC 60068-2-3028
reference code-
● acc. to DIN EN 61346-2F
● acc. to IEC 81346-2F
Weight0.323 kg
Dimensions40.00 × 92.00 × 84.00 mm
