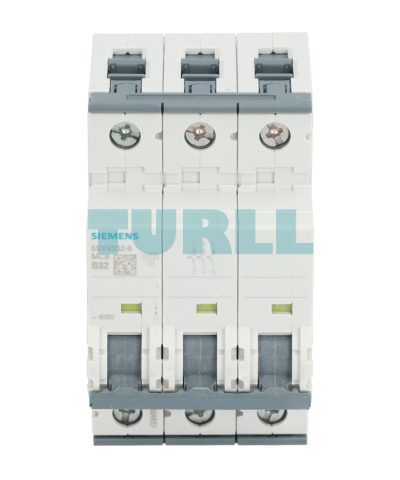

Siemens 5SY4332-6 Miniature Circuit Breaker, 3-Pole, 32A, B-Curve, 10kA, 400V Original Brand New
$33.88
Siemens Miniature Circuit Breaker, 400 V, 10kA, 3-pole, B-curve, 32 A, D=70 mm. Designed for dependable circuit protection in industrial and commercial electrical installations.
Availability: In stock
Overview
The Siemens 5SY4332-6 Miniature Circuit Breaker (MCB) is a high-performance electrical protection device designed for industrial, commercial, and residential applications. With a 3-pole configuration, 32A rated current, and B-curve tripping characteristic, this MCB ensures safe and reliable protection against overloads and short circuits. Built to Siemens’ renowned quality standards, it delivers long-term operational reliability in demanding environments.
Benefit
-
Reliable Protection: Safeguards electrical circuits from overloads and short circuits
-
High Breaking Capacity: 10kA short-circuit breaking capacity for enhanced safety
-
B-Curve Tripping: Ideal for circuits with low inrush current
-
Durable Design: Engineered for long service life and consistent performance
-
Trusted Brand: Siemens quality ensures compliance with international standards
Function
-
Automatically disconnects circuits during electrical faults
-
Prevents damage to wiring, equipment, and connected devices
-
Ensures stable and safe electrical system operation
-
Suitable for distribution boards and control panels
Technical Specification
-
Manufacturer: Siemens
-
Product Number: 5SY4332-6
-
Product Type: Miniature Circuit Breaker (MCB)
-
Number of Poles: 3-Pole
-
Rated Voltage: 400 V
-
Rated Current: 32 A
-
Tripping Characteristic: B Curve
-
Breaking Capacity: 10 kA
-
Depth (D): 70 mm
Application
-
Industrial electrical panels
-
Commercial building installations
-
Residential power distribution systems
-
Control cabinets and switchboards
Visit 5SY4332-6 for more detail info
For more our products visit turll
Download
| Weight | 0.470 kg |
|---|---|

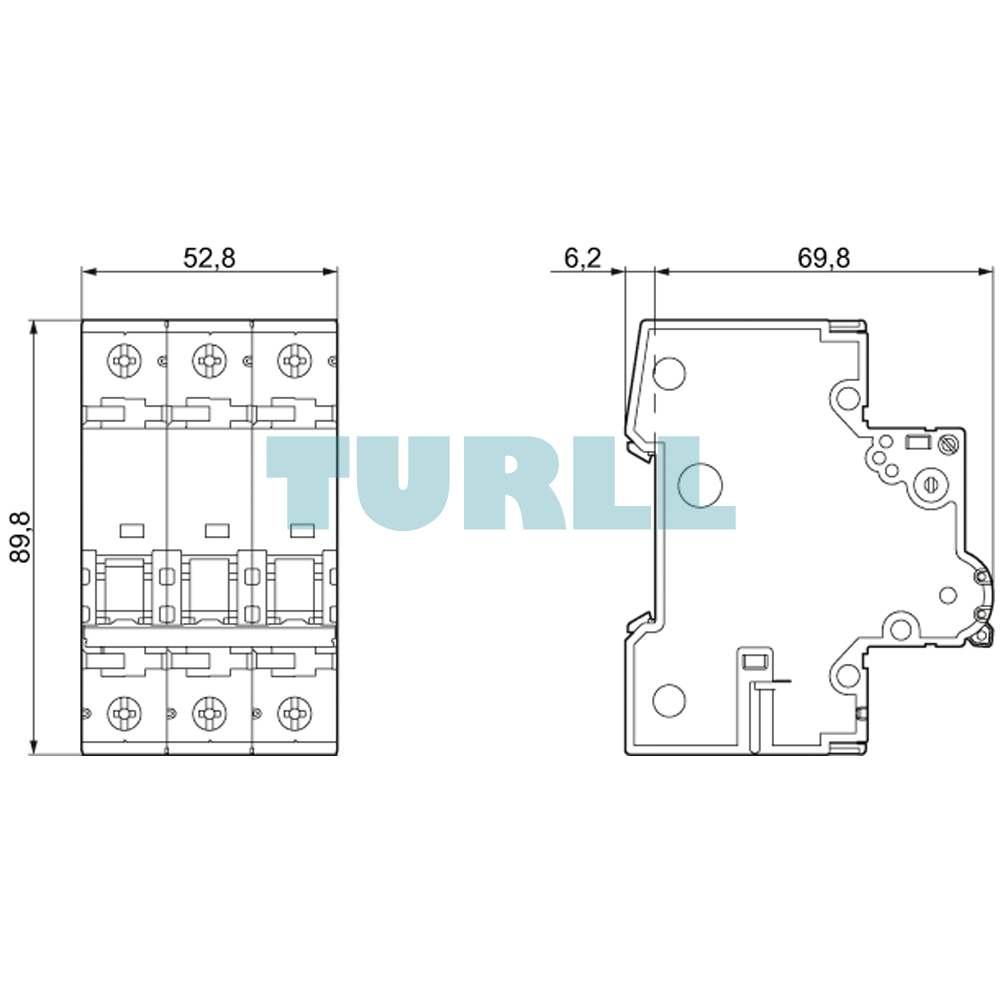

| Dimensions | 58.00 × 94.00 × 84.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 3 |
| design of pole | 3P |
| tripping characteristic class | B |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | – |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | – |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 20 kA |
| energy limitation class | 3 |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 2.6 W |
| operational current | – |
| ● at 35 °C / rated value | 32 A |
| ● at 40 °C / rated value | 30.72 A |
| ● at 45 °C / rated value | 30.08 A |
| ● at 50 °C / rated value | 29.41 A |
| ● at 55 °C / rated value | 28.74 A |
| ● at 60 °C / rated value | 28.03 A |
| ● at AC / rated value | 32 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | – |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| AWG number / as coded connectable conductor cross section | – |
| tightening torque [lbf·in] / with screw-type terminals | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 3 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
